High Speed Paper Slitting Machine with Friction Shaft for Label Printing and Film Processing

You’re pushing 300 m/min through coated stocks and the winder’s wandering ±0.05 mm or more on every reel change, so the real question is what happens when the slip shaft loses grip on the release liner at that speed.

It runs adhesive label stock, thin-film release liners, and even coated art sticker paper with shear knife slitting—the ±0.03 mm precision holds because teh 45 mm body plate dampens vibration better than most 30 mm frames we’ve seen, and the two servo motors keep tension steady without the usual hunting.

Knipia knives form Korea and a Delta inverter drive the main motor; the Omron counter tracks length to the meter, and the Pausource ultrasonic rectification corrects web wander in real time, which matters more when you’re running 2700 mm wide jumbo rolls at full speed.

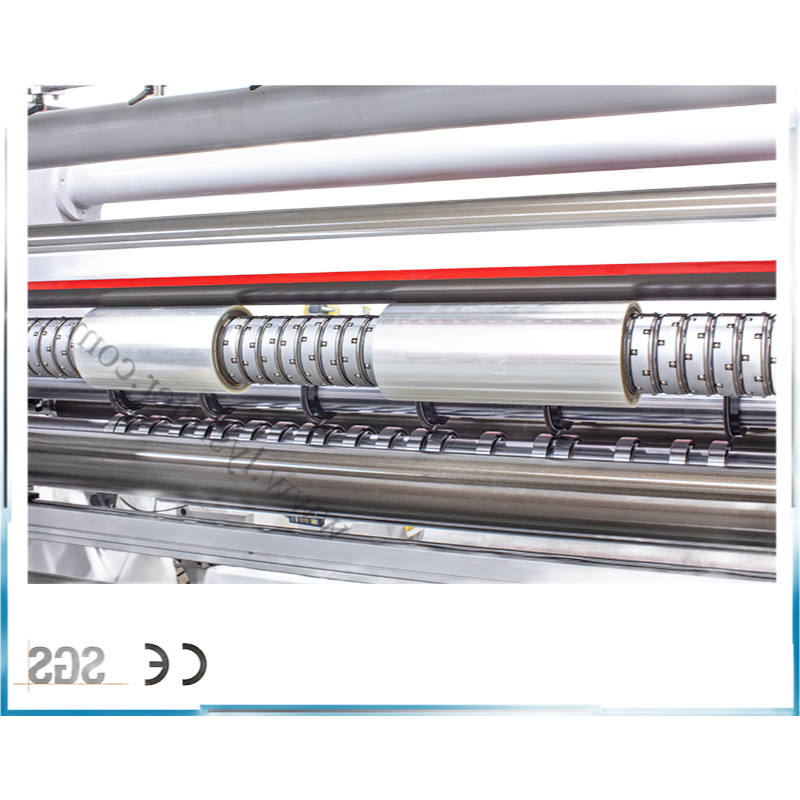

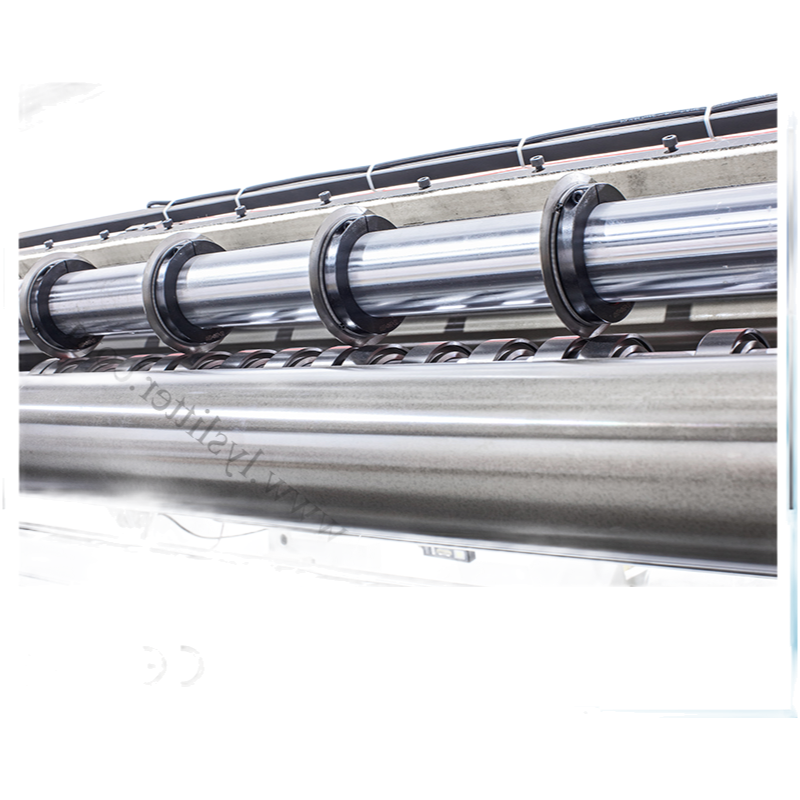

Basically, the duplex slip shaft is where it either works or doesn’t—on heavy paper it’s fine, but for thin film under 20 microns you’ll want to confirm the core ID matches the shaft expansion range, or you’ll get telescoping on the rewind.

We usually ship on wooden pallets with the machine broken down to fit a 40-foot container, and the CE/TUV certs are current; lead time is roughly 45 days, but our company can tighten it to 30 if you’re flexible on color or control panel layout.

Also, it’s not designed for unsupported film or ultra-thin PET—the shear knife gap adjustment is manual, so you’ll need an operator who knows how to set the overlap right for each substrate, or you’ll burn through blades faster than expected.
