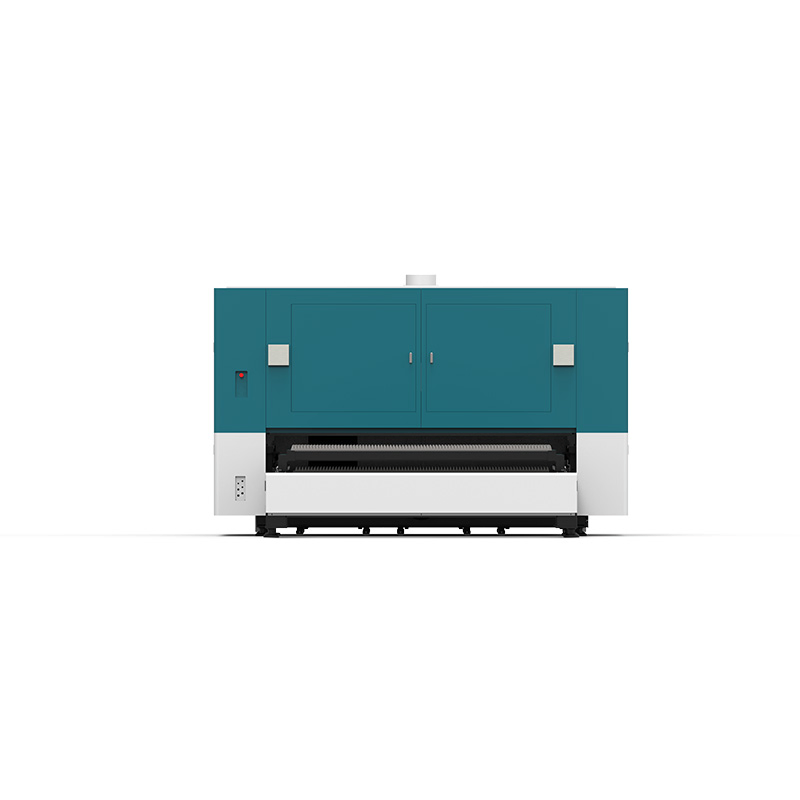

You're probably looking at gantry fiber lasers already if you're metal, and the 6025H's 0.02mm positioning accuracy with 1.5G acceleration means it handles thin to mid-gauge sheets cleanly without sacrificing cycle time — we see most buyers running it on 3mm to 12mm mild steel or stainlss.
The exchange table swaps in 15 seconds, so you're not losing production time between sheets, and the water-cooled system keeps the laser source stable even in 8-hour runs (check your facility's water supply pressure first).
We ship to US and EU with full CE and ISO 9001 docs, plus a customs-ready packing list and COA for the laser source — import compliance is straightforward if your broker has handled industiral machinery before.
It's not great for thin foil or reflective copper under 1mm without a pulse module, but for structural steel fabrication or automotive panels, the 6061 T6 gantry gives you the stiffness to hold tolerance across teh full 8000×3450mm footprint.
The 3-year the resonator and drives, and we usually have stock in 20 days or so — confirm lead time if you need it faster, since the CNC controller is custom-ordered for your region's voltage.
It means the laser head repeats within 0.02mm of the programmed path, so you get tight tolerances on parts like brackets or panels. For most metal fabrication, that's more than enough precision.
Yes, the exchange table swaps in 15 seconds regardless of the sheet size, as long as it's within the work area. That keeps your cycle times short when running multiple jobs.
Absolutely, we include both CE and ISO 9001 certificates in the shipping package. You'll get digital copies upfront and hard copies with the machine.
Yes, we can adjust the work area to fit your specific sheet sizes or part dimensions. Just tell us your requirements, and we'll modify the gantry and table layout accordingly.
Keep it in a dry, temperature-controlled shop between 10°C and 40°C, and avoid direct sunlight or high humidity. The aviation aluminum gantry and water cooling system hold up well, but stable conditions prevent corrosion and maintain alignment.
