Factory Supply XLPO Insulated Solar Cable for PV Systems Single/Twin Core

US$ 0.375 ~ 0.856
Min.Order: 100
Product origin: Shijiazhuang, Hebei, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 0 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : H1Z2Z2-K
  • Application : Photovoltaic Power Systems
  • Conductor Material : Tinned Copper
  • Insulation Material : XLPE (XLPO)
  • Sheath Material : XLPO
  • Temperature Range : -40°C to 90°C
  • Rated Voltage : 600/1000V AC, 1000/1500V DC
  • Available Sizes : 1.5, 2.5, 4, 6, 10, 16, 25, 35mm²
  • Core Configuration : Single Core/Twin Core
  • Shape : Round or Flat
  • Certification : TUV, CE
  • DC Resistance : ≤5.09 Ω/km at 20°C
  • Insulation Resistance : ≥1014 Ω·cm at 20°C
  • Flame Retardant : Yes
  • Halogen Free : Yes
  • UV Resistance : Excellent
  • Service Life : >25 years at 90°C

Our premium solar PV cables are specially designed for photovoltaic power systems with excellent weather resistance and long service life. These cables feature tinned copper conductors and XLPE insulation for optimal performance in solar energy applications.

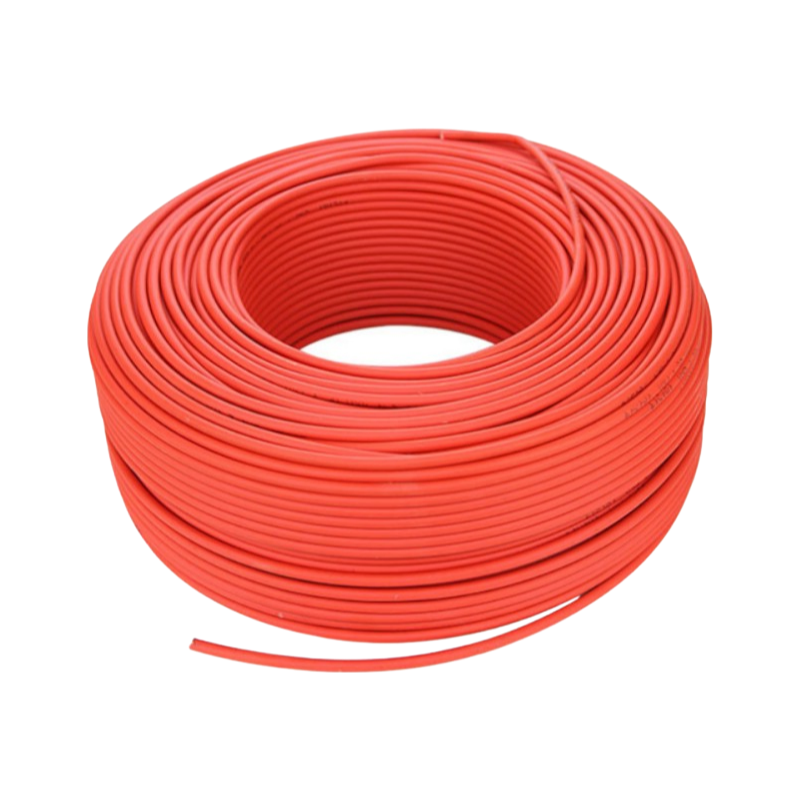

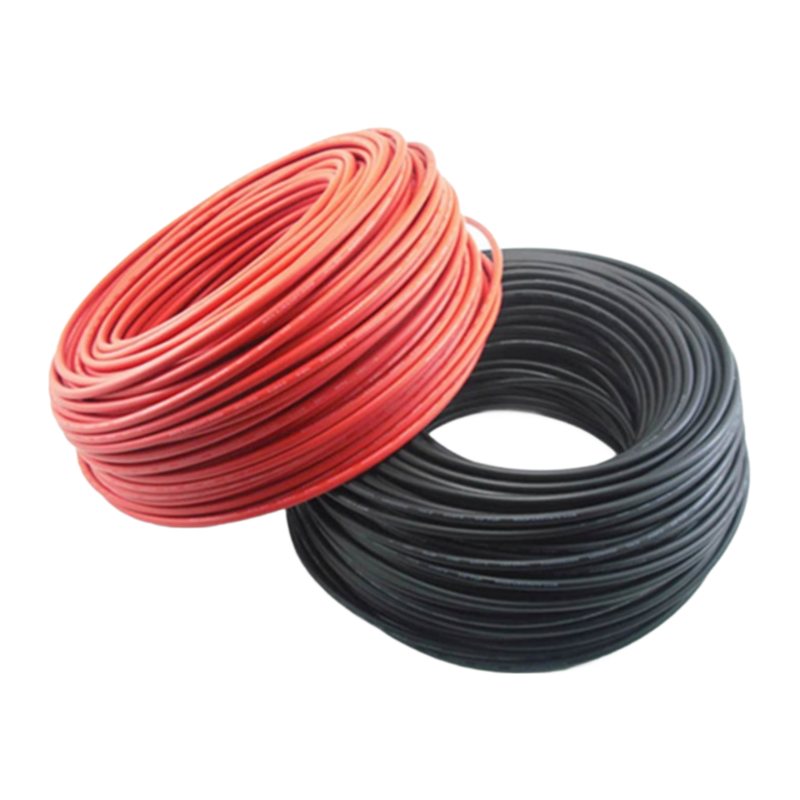

Solar PV Cable Product Image

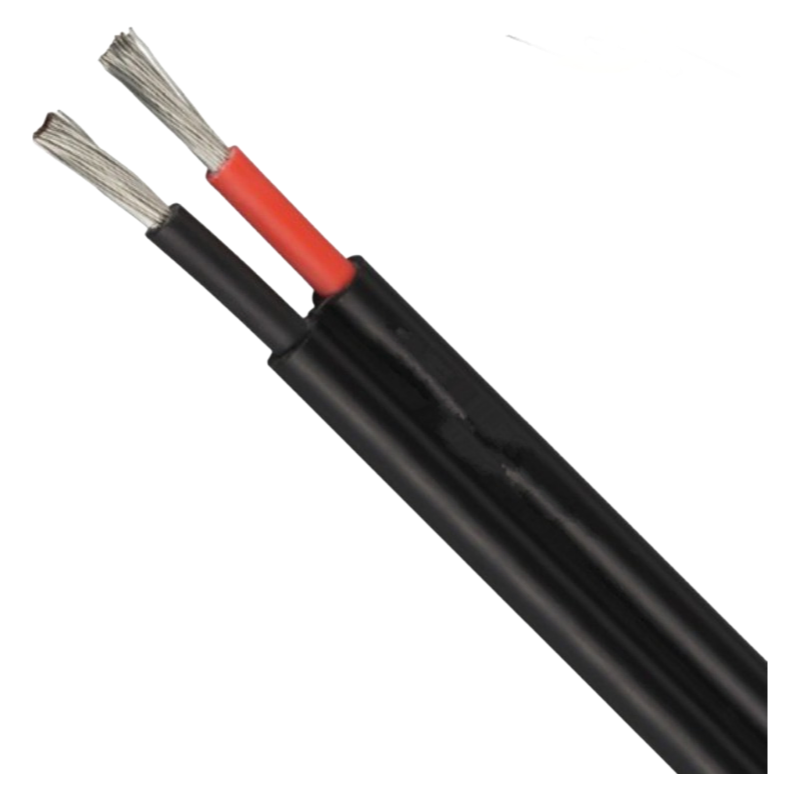

The cables are available in both single core and twin core configurations, with round or flat wire options to suit different installation requirements. With temperature resistance ranging from -40°C to 90°C, these cables maintain stable performance in various environmental conditions.

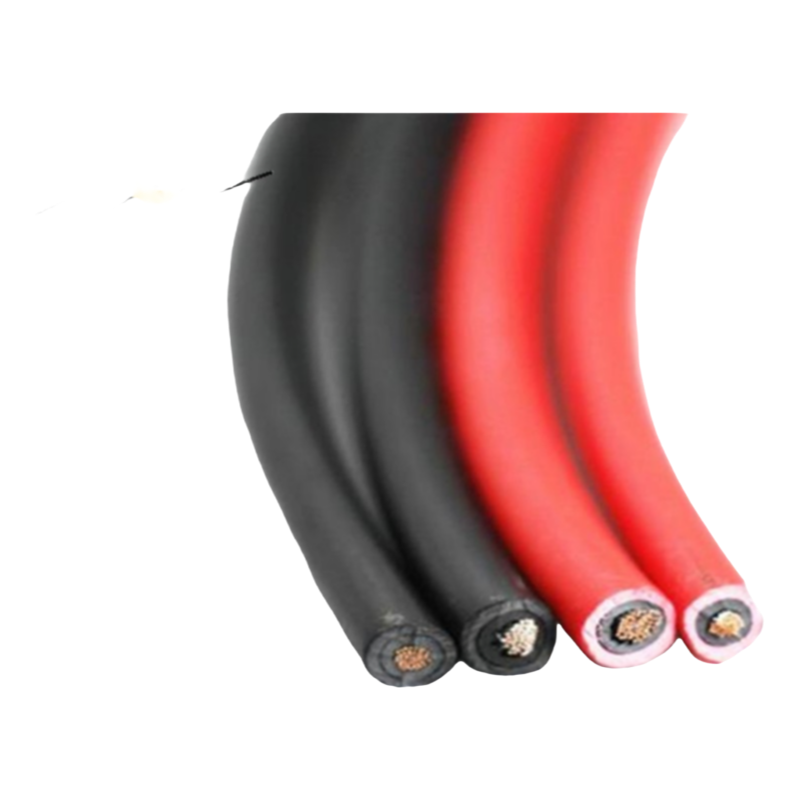

Solar Cable Cross Section

Key features include excellent resistance to UV radiation, abrasion, oil, grease, oxygen and ozone. The halogen-free, flame retardant material ensures safety while the special formulation provides outstanding flexibility and stripping performance.

Solar Cable Specifications

Our solar cables meet international standards including TUV and CE certifications, making them suitable for global photovoltaic projects. The cables are available in standard colors (red/black/white) and can be customized according to project requirements.

Solar Cable Packaging

With a service life exceeding 25 years at 90°C, our photovoltaic cables provide reliable long-term performance for solar power systems. The electron-beam cross-linked compounds ensure durability and resistance to environmental factors.

Solar Cable Application
