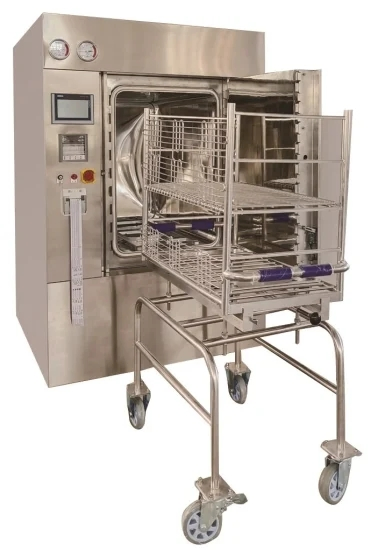

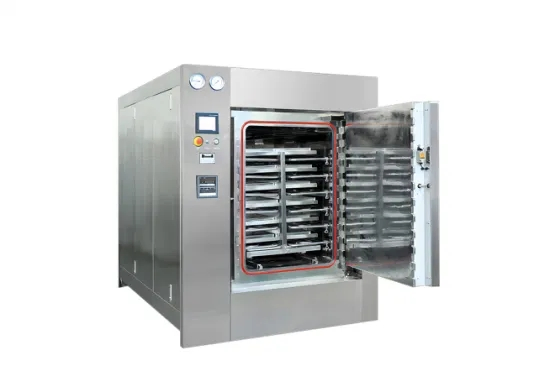

Large Volume Pulse Vacuum Steam Autoclave Sterilizer for Medical Equipment Disinfection

The pulse vacuum hits -80.0 kPa before steam even enters, which is what actually gets air out of wrapped textiles and lumens—most buyers in CSSD or ORs know cold spots are the real killer. We've seen facilities run 600L units for surgical kits and they typically cycle at 134°C for about 18 minutes, but you'll want to confirm your load density. Carbon steel chambers handle 210-230 kPa repeatedly without warping, better than some stainless options for this thermal cycling. The LCD display shows real-time pulsation amplitude, so you can watch it drop from 150 kPa to negative pressrue mid-cycle. Just don't push it past 99 minutes on the timer—that's hard limit for standard sterilization.

380V is what you'll need, and the unit draws roughly 20-70kg of steam per cycle depending on chamber size—240L uses less, 2000L obviously more. Water consumption runs 50-100kg per cycle, give or take, and we usually have stock on the 360L and 600L models. One thing: the MOQ is 1 unit, but lead time can stretch to 8 weeks or so if you want the 1500L or 2000L. CE and ISO 13485 are factory-validated, so COAs come with every shipment. Also, the ultra-high temperature alarm is standard—it'll trip if you overshoot 134°C by more than a couple degrees.

Basically, this isn't for small benchtop loads or quick turnaround—it's a floor-standing beast that needs dedicated space. The carbon steel chamber is heavy, 700-2400kg net weight depending on volume, so you'll want a reinforced floor for the bigger units. We've had buyers ask about using it for liquids, but honestly it's better suited for wrapped goods and porous loads; teh pulse vacuum can pull liquid out of containers if you're not careful. The LCD panel records and prints sterilization data, which is handy for audits, but the printout is thermal paper so keep spares handy.

Anyway, the 240L model is pretty much the sweet spot for smaller ORs—it fits through standard doorways and doesn't need a forklift. For central sterile supply departments, the 1000L or 1200L is common, but check your ceiling height because the 2000L unit is about 2.2 meters tall. The pulsation amplitude range of -80.0 to 150 kPa is tighter than some older models, which reduces steam consumption on the 20-70kg per cycle range. You'll get the LCD display, alarm, and printer as standard—no extra options to haggle over.

And the working temperature locks at either 121°C or 134°C, so you can't run it at 115°C or 140°C—that's a limitation if you're doing specialized cycles. Most buyers go with 134°C for faster turnaround, but 121°C is better for heat-sensitive items like some plastics. The timer runs form 0 to 99 minutes, but we usually recommend 20-30 minutes for standard loads. One detail: the chamber is carbon steel, not stainles, so it can rust if you don't dry it properly after cycles—wipe it down, especially around the door gasket.

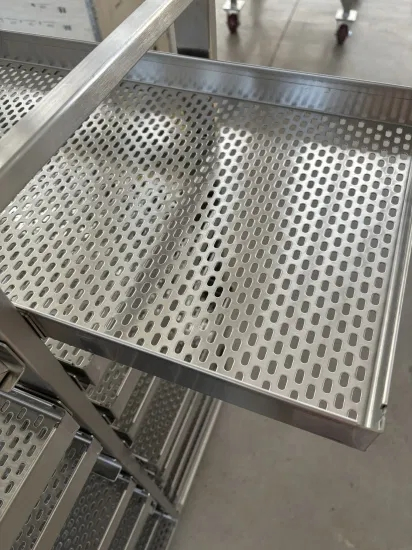

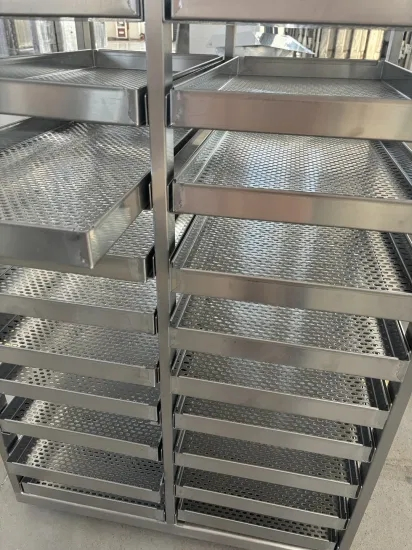

So when you order, you'll get the autoclave unit itself, a set of shelves or trays (varies by volume), and the insallation manual. The LCD display is pre-configured with cycle presets, but you can program custom times and temperatures. We'll send the COA and a copy of the CE certificate with the shipment—usually takes 4-6 weeks for the 600L model, but confirm lead time for the 2000L because of that it's made to order. The 380V connection is your responsibility, but the unit comes with a standard industrial plug.
