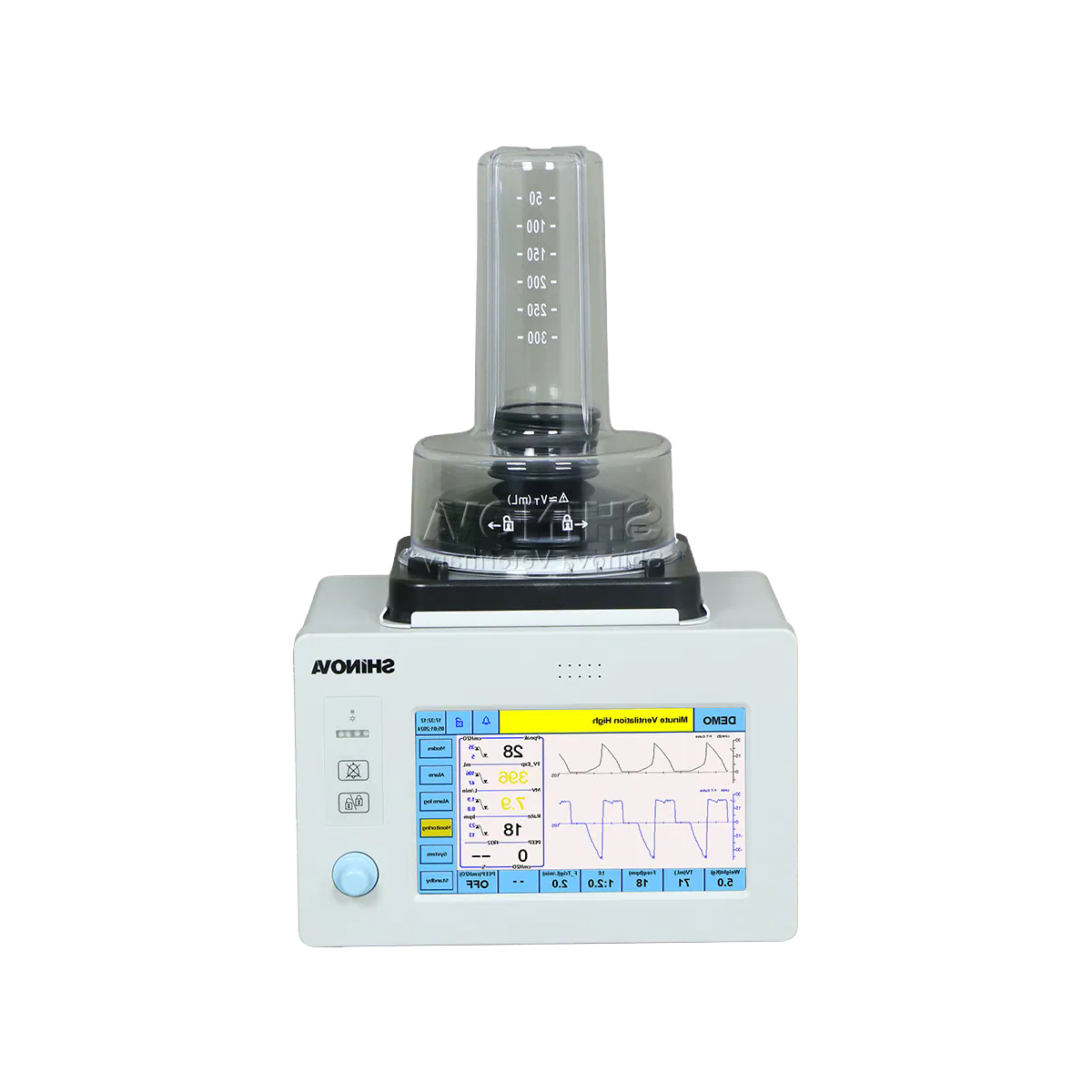

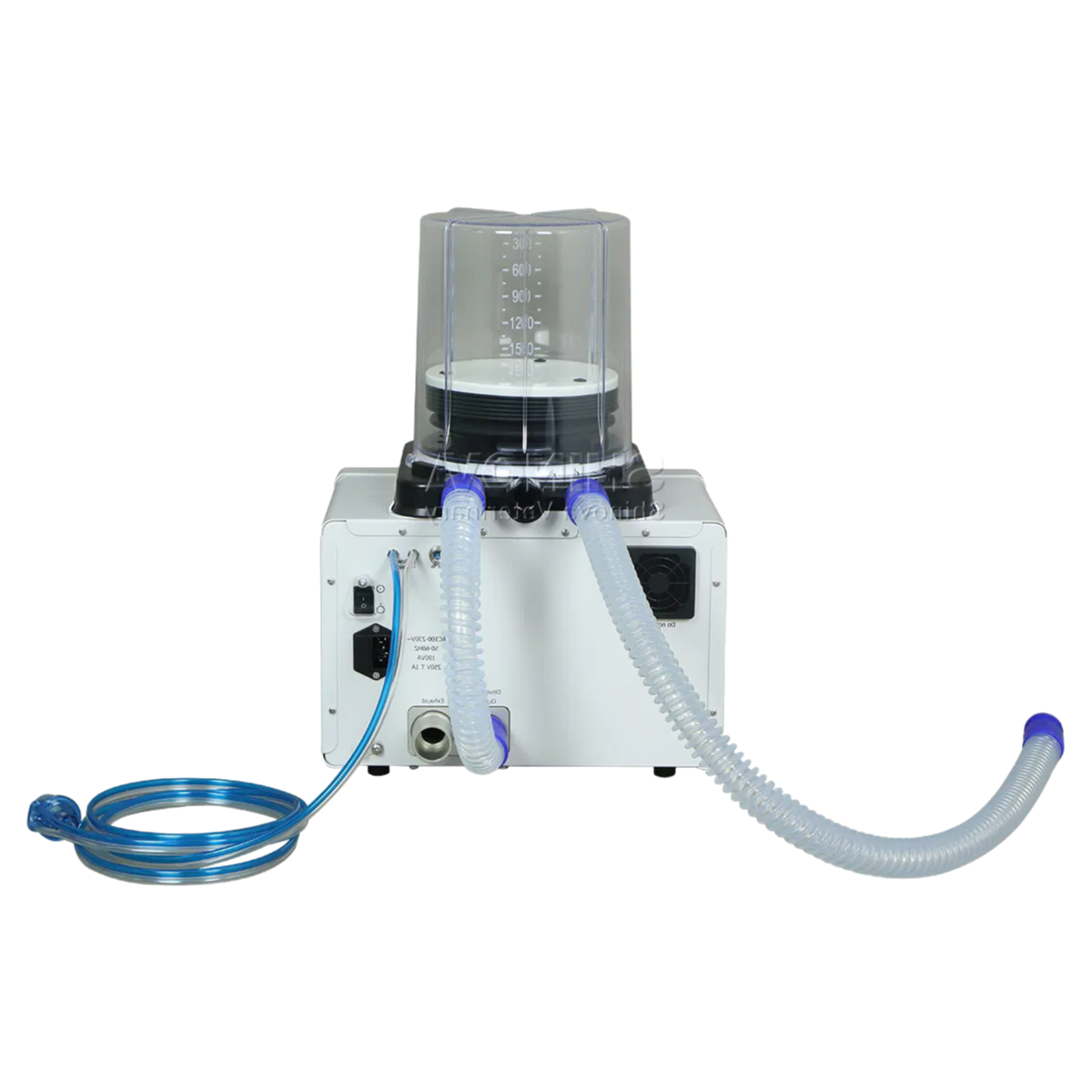

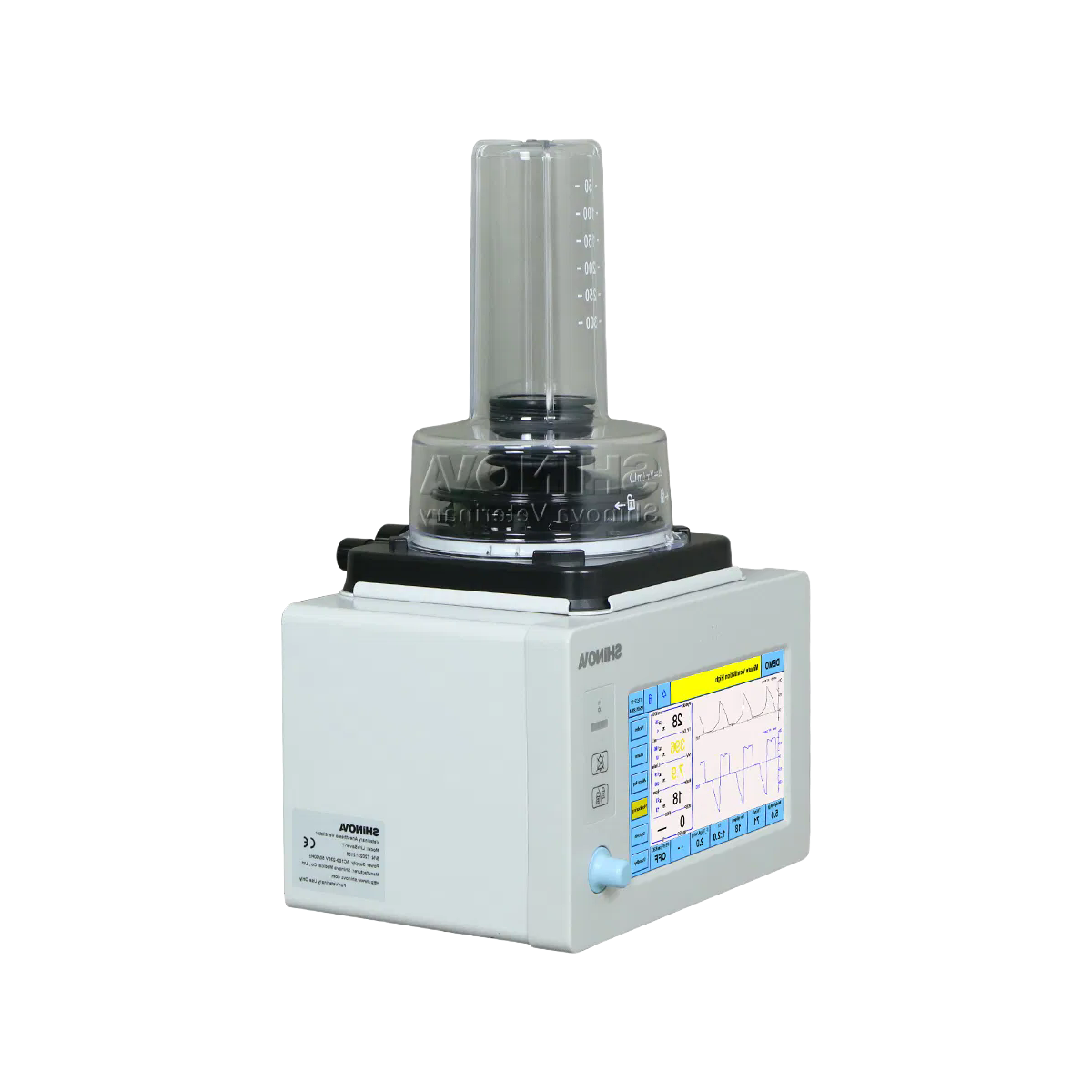

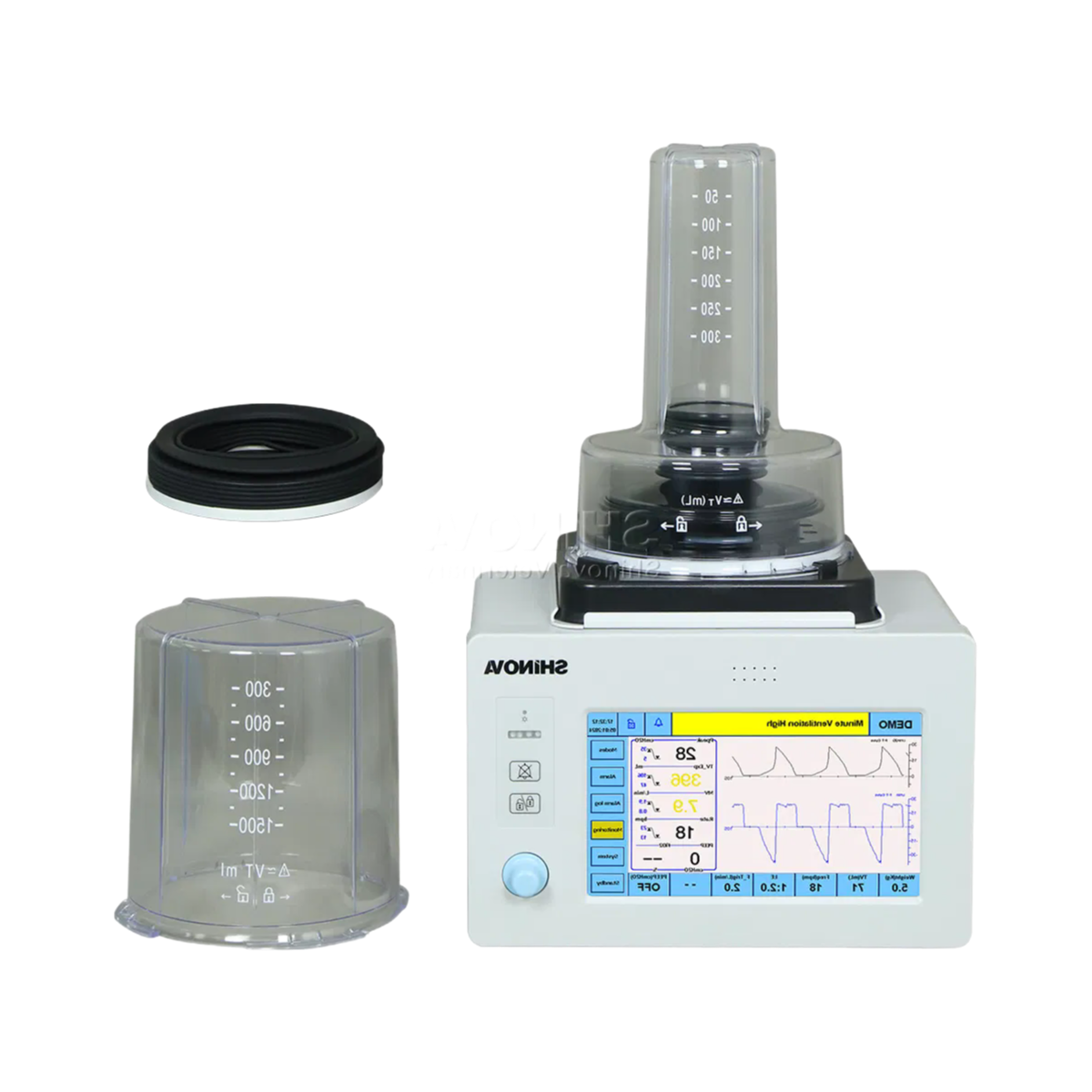

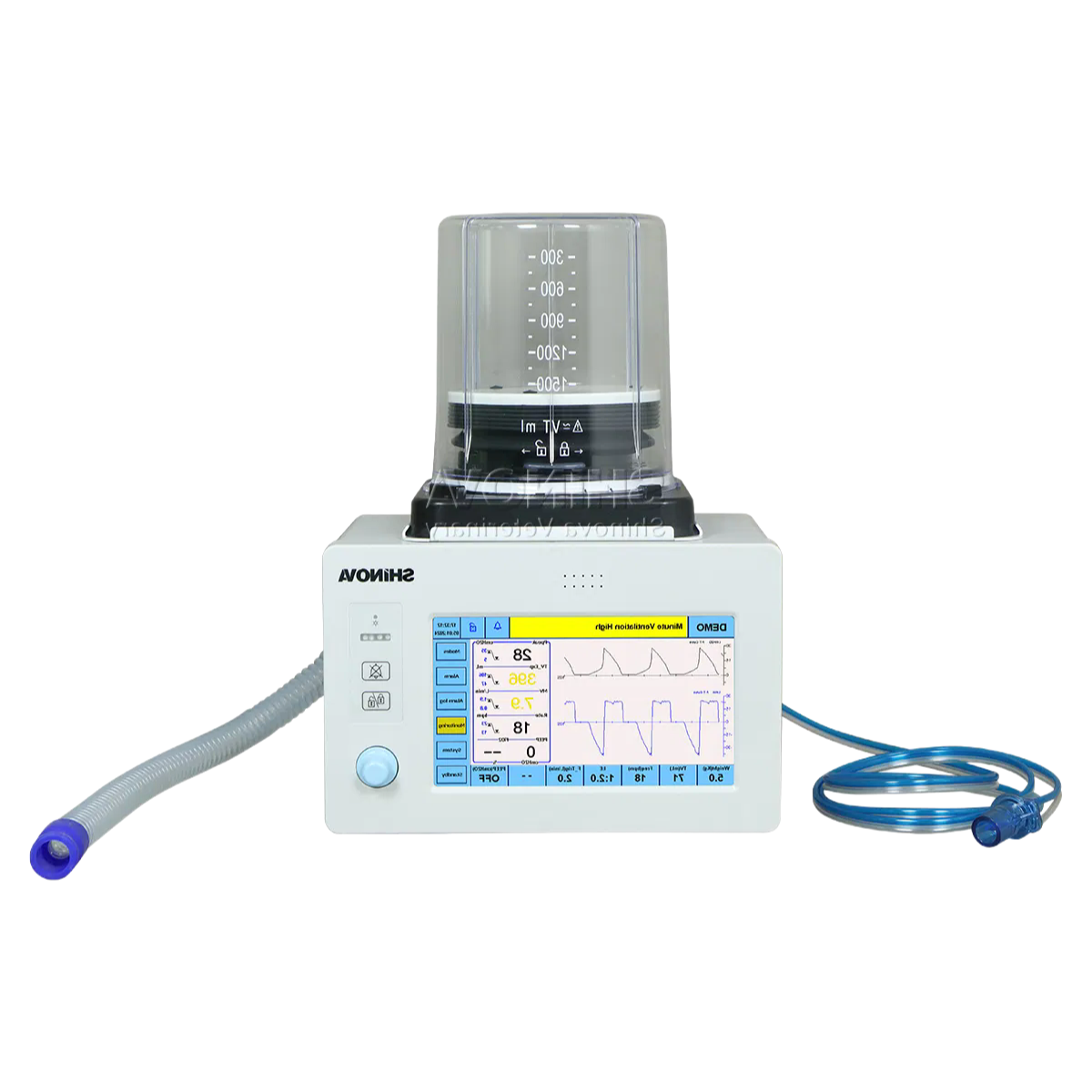

It’s not the smallest unit on the market, and at about 15kg it’s not something you’ll be moving around between rooms without a second thought — the 39×33×51cm footprint is pretty much standerd for a turbo-driven machine, but you’ll want a dedicated spot for it in OR or prep area.
That extra weight is actually a trade-off we hear about less; what it does is house a solid turbo system that pulls oxygen straight from a concentrator at 280-900kPa, so you’re never hunting for high-pressure tanks or worrying about line pressrue drops in a busy hospital.
VCV, PCV, SPONT, and SIMV are all on teh touch screen, and the tidal volume range of 20-1500ml covers everything from a 2kg cat to a 70kg dog, but most buyers go with the 20-1500ml range for routine procedures — the I:E ratio adjusts form 9.9:1 to 1:9, which is tighter than many ventilators we’ve tested for small animal work.
We usually have stock on these, but confirm lead time if you’re ordering outside the typical 20 days or so — the power supply is universal AC 100-240V, 50/60Hz, so you don’t need a transformer for internaional shipments, and the 15-100% oxygen concentration setting handles both maintenance and emergency situations.
One thing you’ll notice (and appreciate) after handling it is the electric PEEP adjustment rather than a manual dial — it’s 0-20cmH2O and holds the set value better than the spring-loaded systems we used to carry for large animal work, though it’s honestly not suited for neonates below roughly 1.5kg because the minimum tidal volume of 20ml still overventilates them.
We usually start at 2 units for first-time orders, but we can be flexible depending on your needs. Just reach out and we'll work something out.
Lead time is typically 15-20 working days after order confirmation, but we can expedite if you're in a hurry. Stock availability varies, so shoot us a message to check.
Yes, each unit ships with a calibration certificate and a quality inspection report. We can also provide CE or ISO documents if your hospital requires them for compliance.
Absolutely—the tidal volume range goes down to 20ml, so it's precise enough for kittens and other small pets. Just adjust the settings on the touch screen to match the patient's size.
Keep it in a clean, dry place with temperatures between -10°C and 55°C, and avoid direct sunlight. The unit weighs about 15kg, so a stable cart or shelf works fine.
