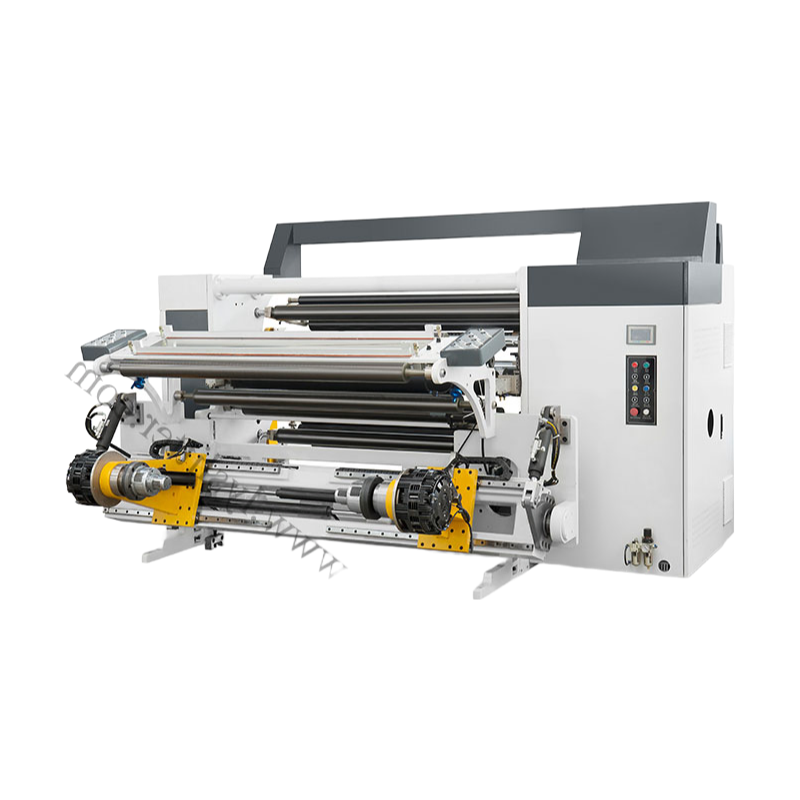

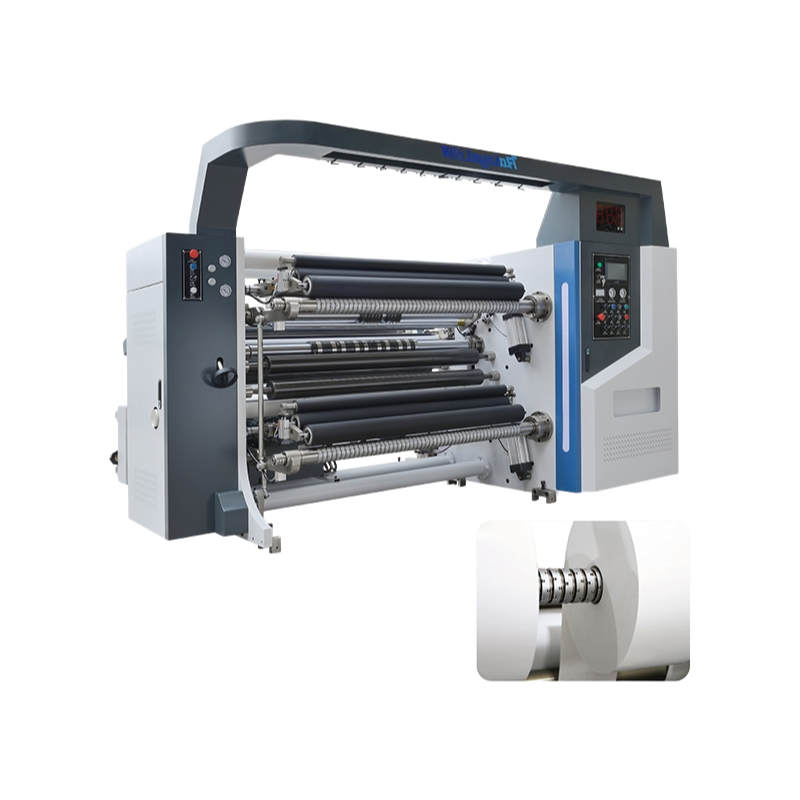

High-Speed Adhesive Tape Film Slitting Rewinding Machine for Label Paper Processing 1300mm Width

Runs at 400m/min max and handles rolls up to 1200mm diameter on the unwind — the 1300mm version weighs 3500kg, roughly 2700mm long by 2650mm wide. It's basically a workhorse for label stock, using PLC touchscreen control and automatic digital tension to keep things consistent, especially at those speeds.

2.2 Slits form 30mm up to the full 1300mm width with ±0.03mm precision, so it's tight enough for small-format labels. KOEAD circular knives do the, and there's ultrasonic edge detection for web guidance, and you'll get duplex rewinding shafts with a 2xΦ600mm capasity — optional up to 800mm if your rolls are bigger. The steel frame is 45mm thick, though; the 1600mm variant draws 21kW total.

Good on self-adhesive papers, PET, BOPP, PE films, and release liners — but you're basically wasting money running thin, non-sticky materials through it. What it's best for is adhesive label processing, where the precision payoff matters, since the difference between ±0.03mm and ±0.1mm is a lot of scrap over a long run.

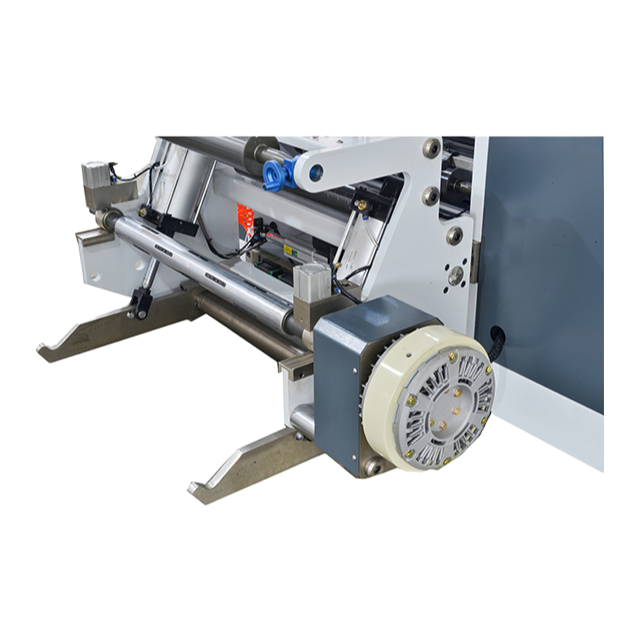

We usually have stock in about 20 days or so — but confirm lead time because it shifts with orders. Also, the 12-month warranty is standdard, and it ships with CE and TUV certs. One thing most buyers run into: friction shaft for unwinding is solid, (just make sure your roll core matches) or you'll get wobble at full speed.

Anyway, you're looking at a 3500kg machine — that steel frame isn't lightweight. Power consumption is 13kW for the 1300A and 21kW for teh 1600A, with the main motor at 5.5kW and 7.5kW respectively (plus separate rewinding motors). Most shoppers go with the 1300mm width unless they're processing webs wider than 1.3m continuously.
