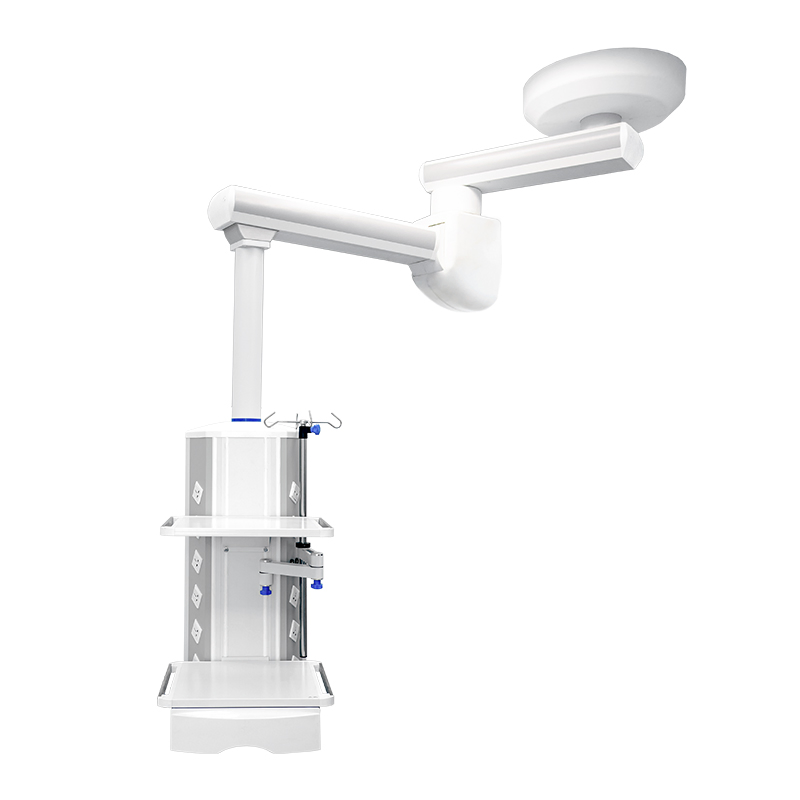

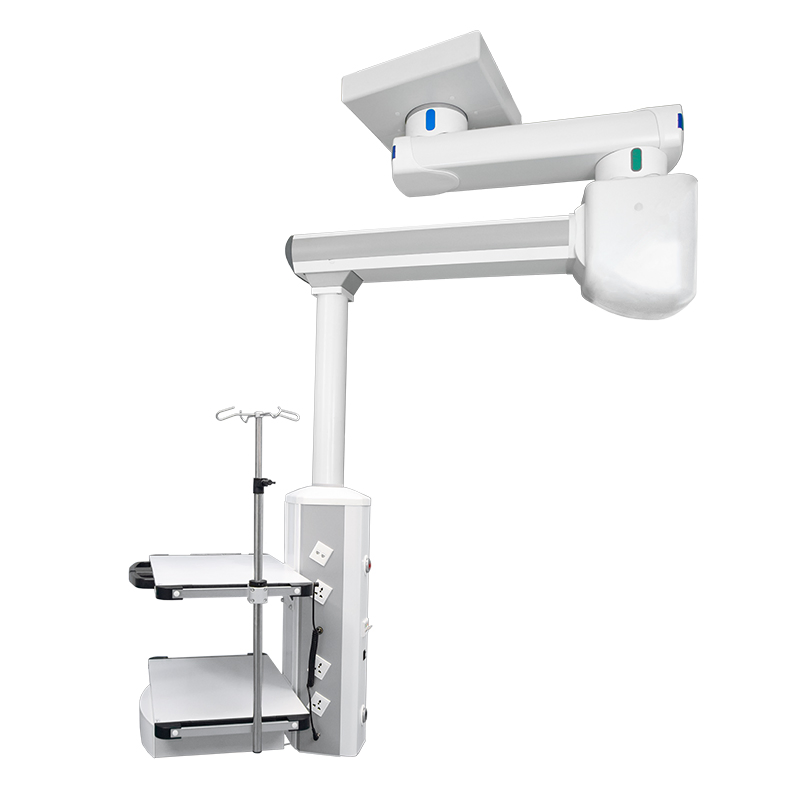

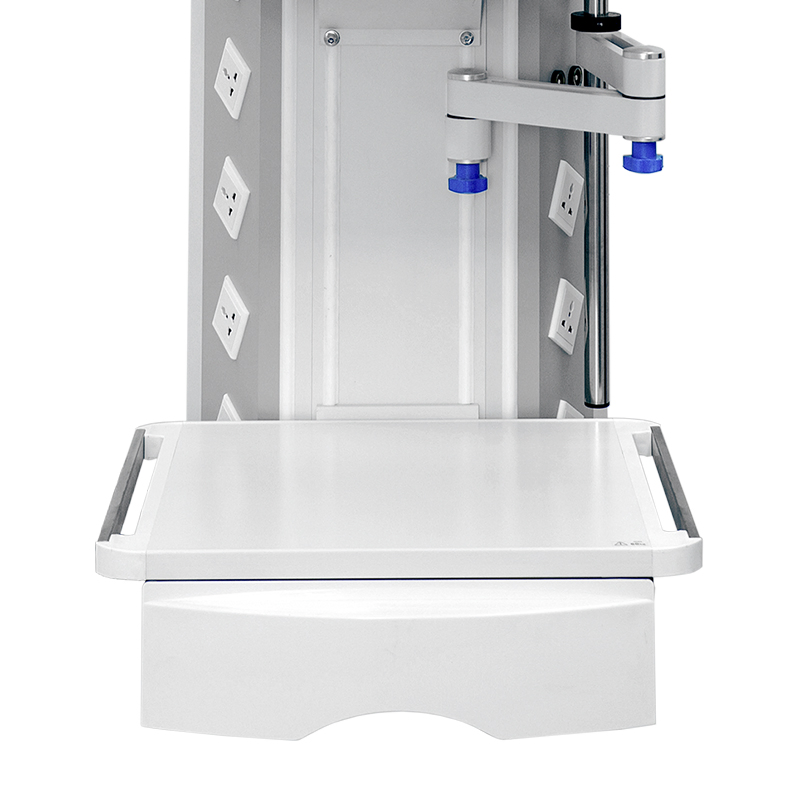

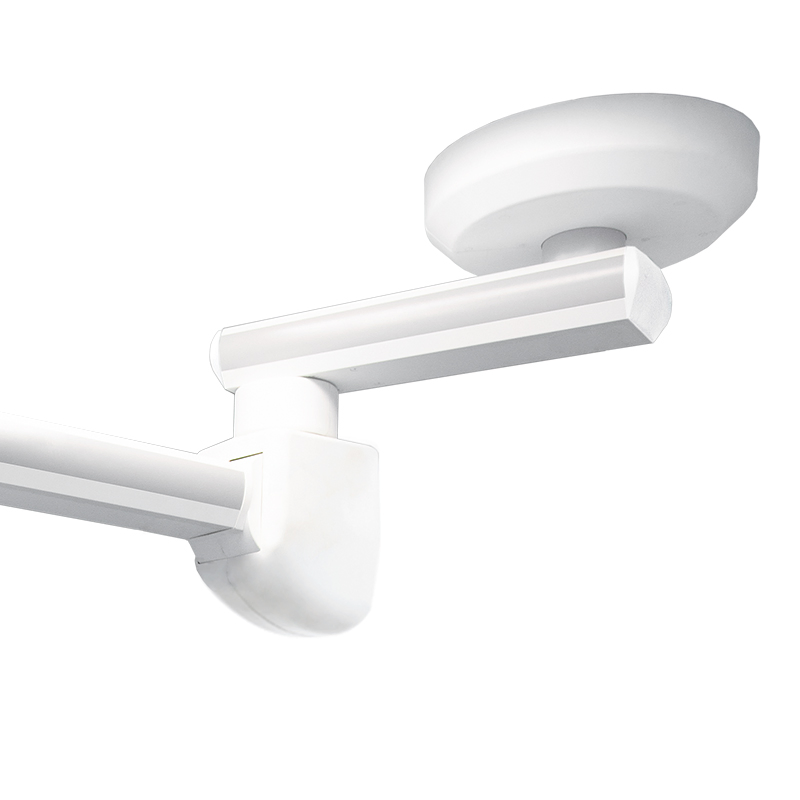

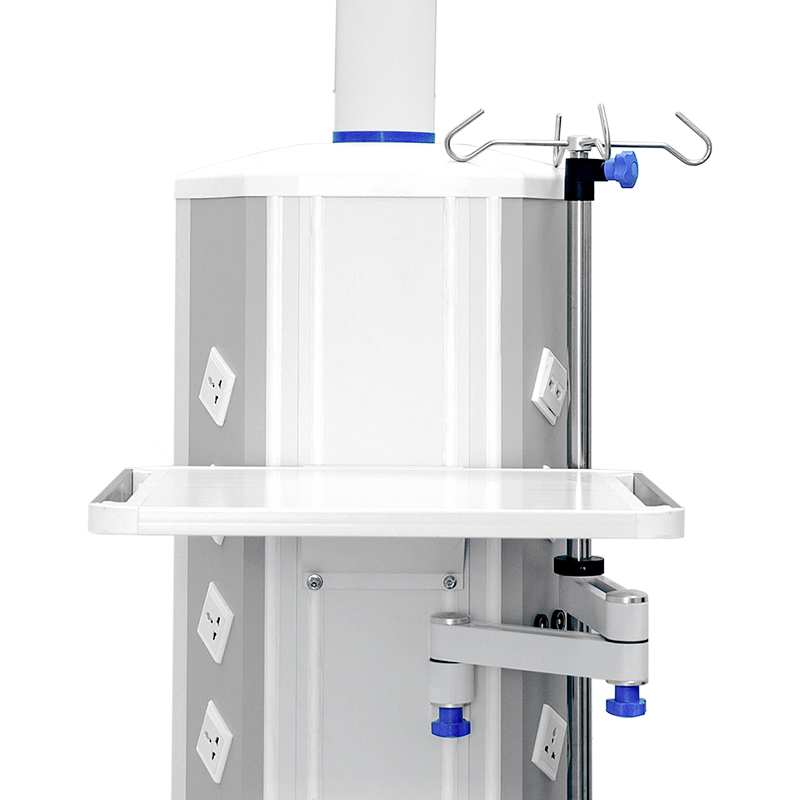

Basically the HM7200 can handle a 270kg load—that's tested, not theoretical—which means you can hang ventilators, monitors, and infusion pumps all at once without worrying about stability, and the 340° rotation lets you swing equipement right where the surgeon needs it. 2. We've seen these in busy ORs where the team needs to reconfigure quickly between procedures, and the electric braking system locks everything in place so nothing drifts mid-surgery. 3. The dual arms are 1100mm and 825mm, but our company can customize those lengths if your ceiling layout is tight, and the function column adjusts form 600 to 1000mm, usually within 2-3 weeks lead time (check stock). 4. it come with two instrument trays and a drawer, each tray holding up to 80kg, which is better than most pendants for heavy scopes or anesthesia carts. 5. Gas outlets are fully customizable—O2, VAC, AIR, N2O, CO2, N2, or AGSS—and you'll want to specify your configuration early because teh manifold layout changes with each option. 6. Instalation height is 2.6m to 3.2m, so it's not ideal for low ceilings under 2.4m without a custom bracket, but most ICU rooms fit fine.
Our standard MOQ is 5 units for the HM7200, but we can negotiate smaller trial orders if you're piloting a new ICU setup.
Typically 30-45 days from order confirmation for custom gas configurations and arm lengths. Standard models ship in about 20 days.
Yes, CE and ISO13485 certificates are included with every order, along with a test report verifying the 270kg load capacity.
It's electrically adjustable from 600mm to 1000mm on site, so you can fine-tune it for different ceiling heights or workflow needs.
Keep it in a dry, clean environment between -10°C and 50°C, with relative humidity under 80%. Avoid direct sunlight and corrosive gases.
