The X300 Automatic Pallet Wrapping Machine is designed for efficient industrial packaging applications across multiple sectors including food, beverage, medical, and chemical industries. This high-performance machine combines advanced technology with user-friendly operation for optimal packaging results.
Key features include a Siemens PLC control system for precise operation, SICK brand sensors for accurate detection, and a 300% pre-stretch rate that maximizes film efficiency. The machine offers automatic height measurement with color options (black/blue) and can handle loads up to 2000kg.
The X300 includes several innovative systems: an electric top pressure device with 500-2000mm stroke range, a pallet grip system that secures products during transport, and a fully automatic cut & clamp film mechanism. The remote control system enhances operational convenience.
Safety is prioritized with multiple protection features including a film carriage pressure-proof device, transparent board for easy troubleshooting, and belt deviation alarm system. The intelligent LED indicator system provides clear operational status (blue for ready, green for working, red for alarm).

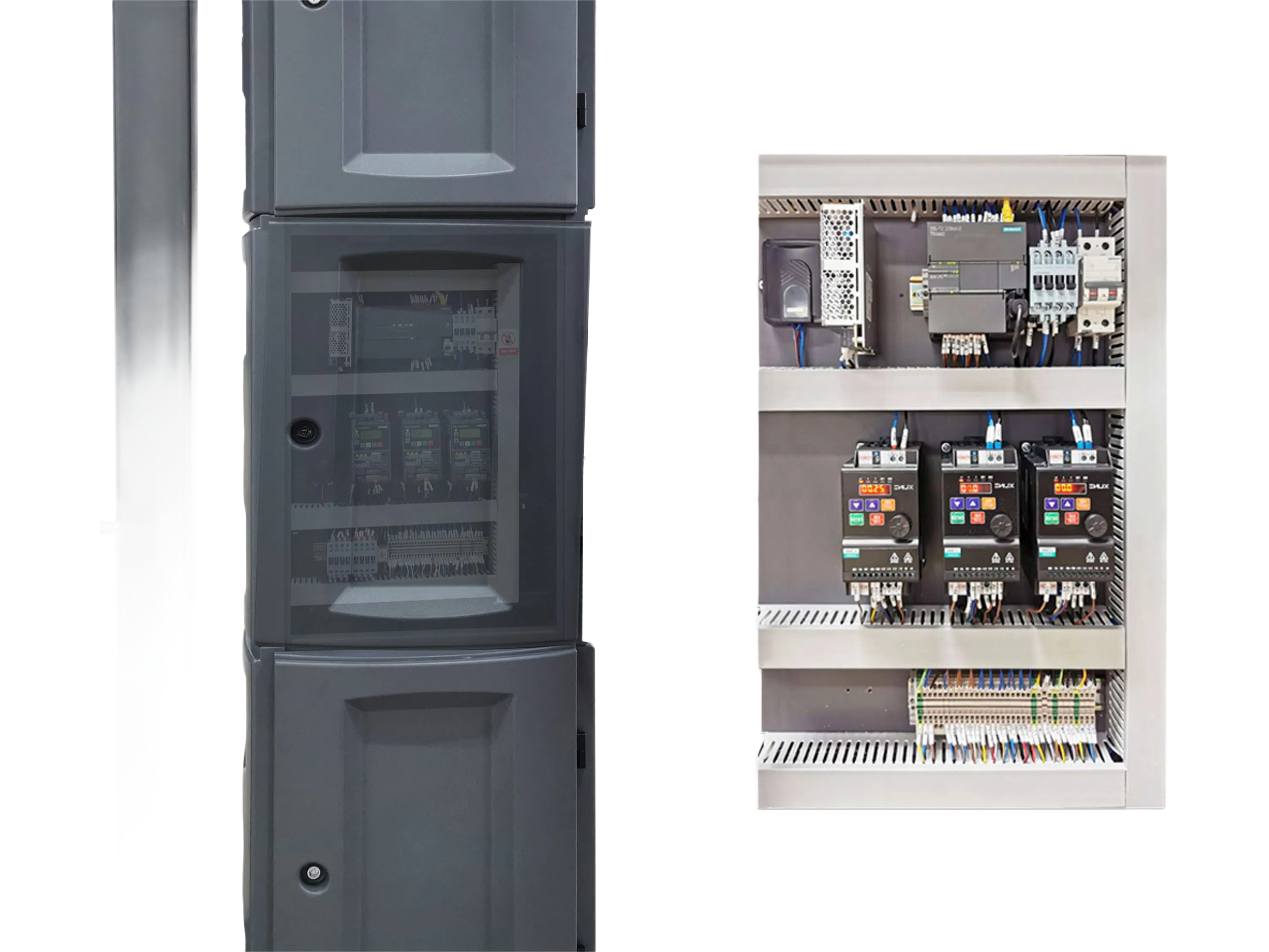

The machine uses premium components including Siemens PLC, SICK proximity switches, Autonics photoelectric switches, Weidmuller terminal blocks, X-LINE inverter, and OMRON 24DC power supply for reliable performance.
Customization options are available including turntable size (1650mm standard, 1800/2000mm optional), wrapping height (2400mm standard, 1800-3200mm optional), and film width (500mm standard, 750mm optional). Voltage options include 220V-240V/50-60Hz single-phase or 110V/50Hz configuration.
