Basically you're looking at 600m max depth on this one, with hole diameters ranging from 268mm up to 505mm depending on what you're drilling into — it handles rotary and DTH both, so you're covered for most ground conditions.
We've got the tower at either 6m or 8m height, and the load capacity on that tower runs 20T to 50T, which is better than a lot of rigs in this class for pulling pipe in harder formations.
Hydraulic torque sits at 8500-15500 N.M with rotation speed up to 90 RPM, and the mud pump flow (450-1200 L/min) is pretty much matched to the operating presure of 4-8 MPa — most buyers go with the 132KW power rating for general work, but the 165KW option gives you extra headroom in deep or hard rock situations.

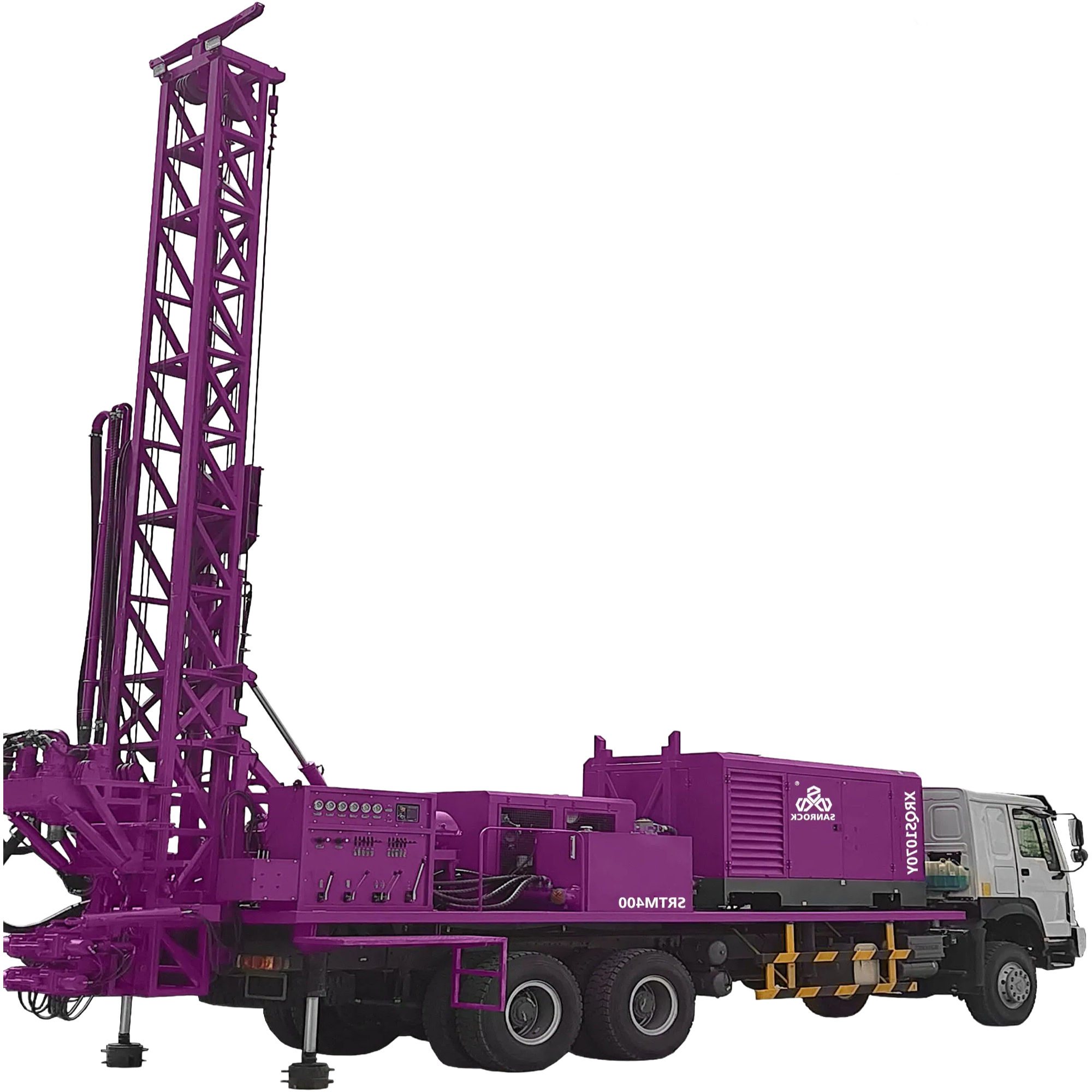

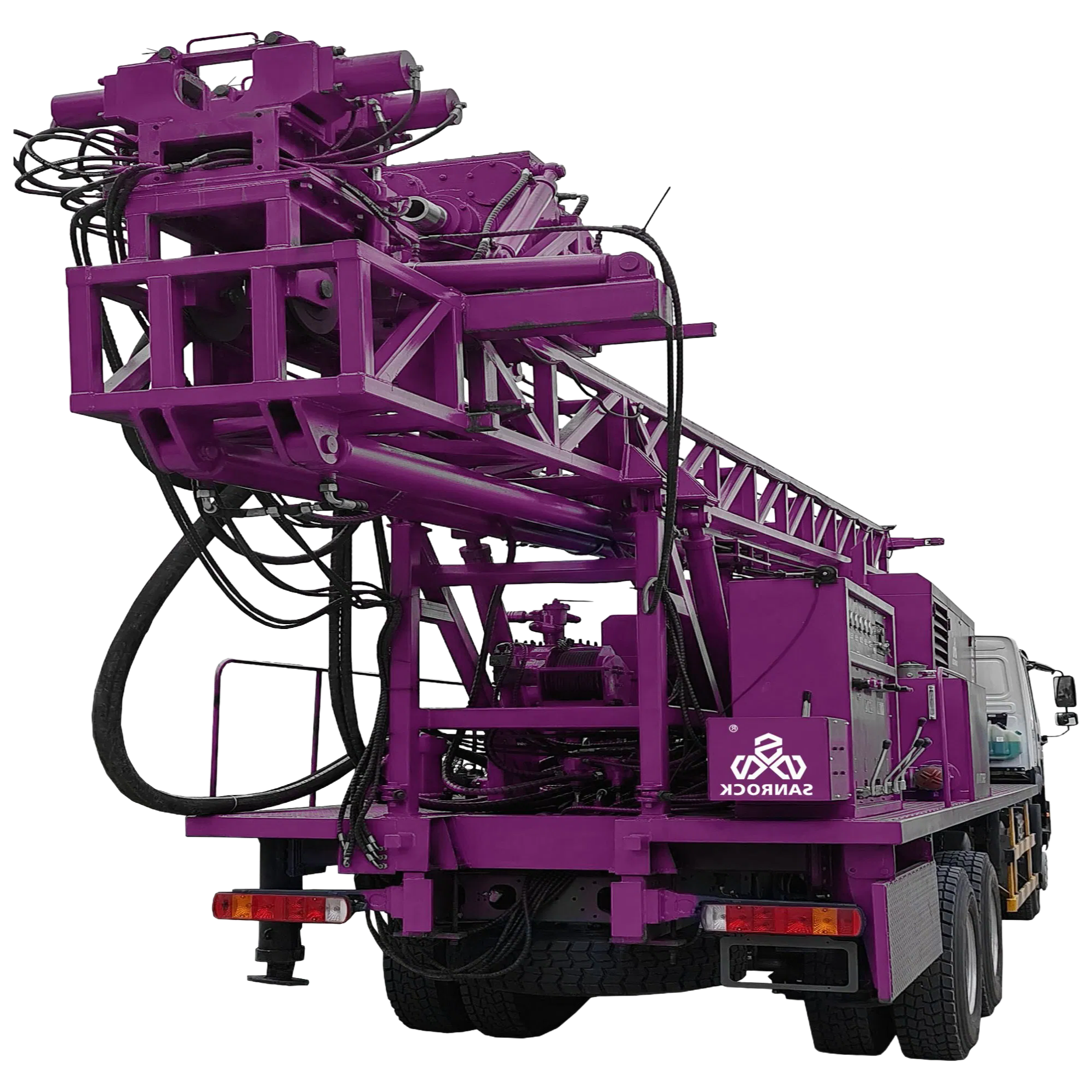

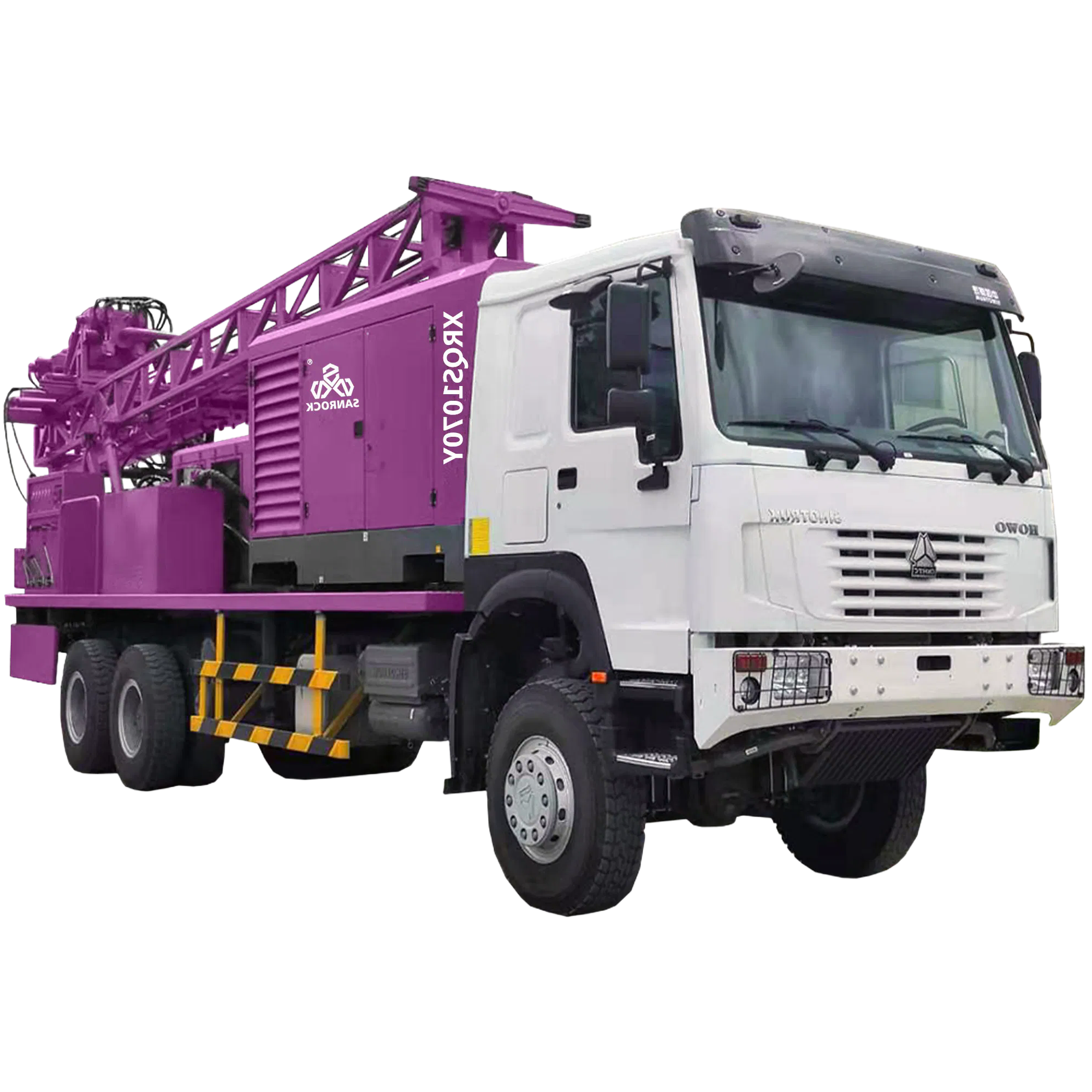

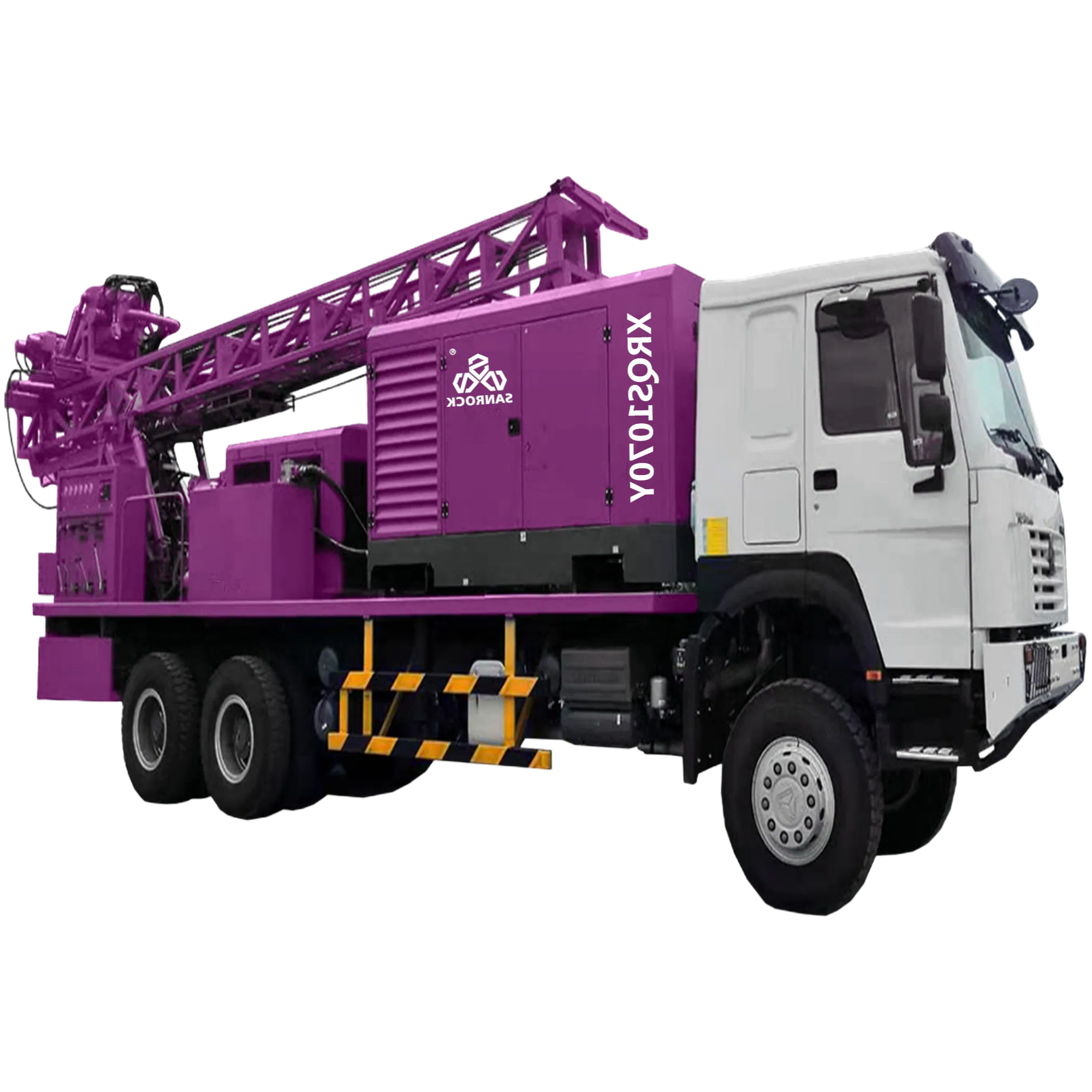

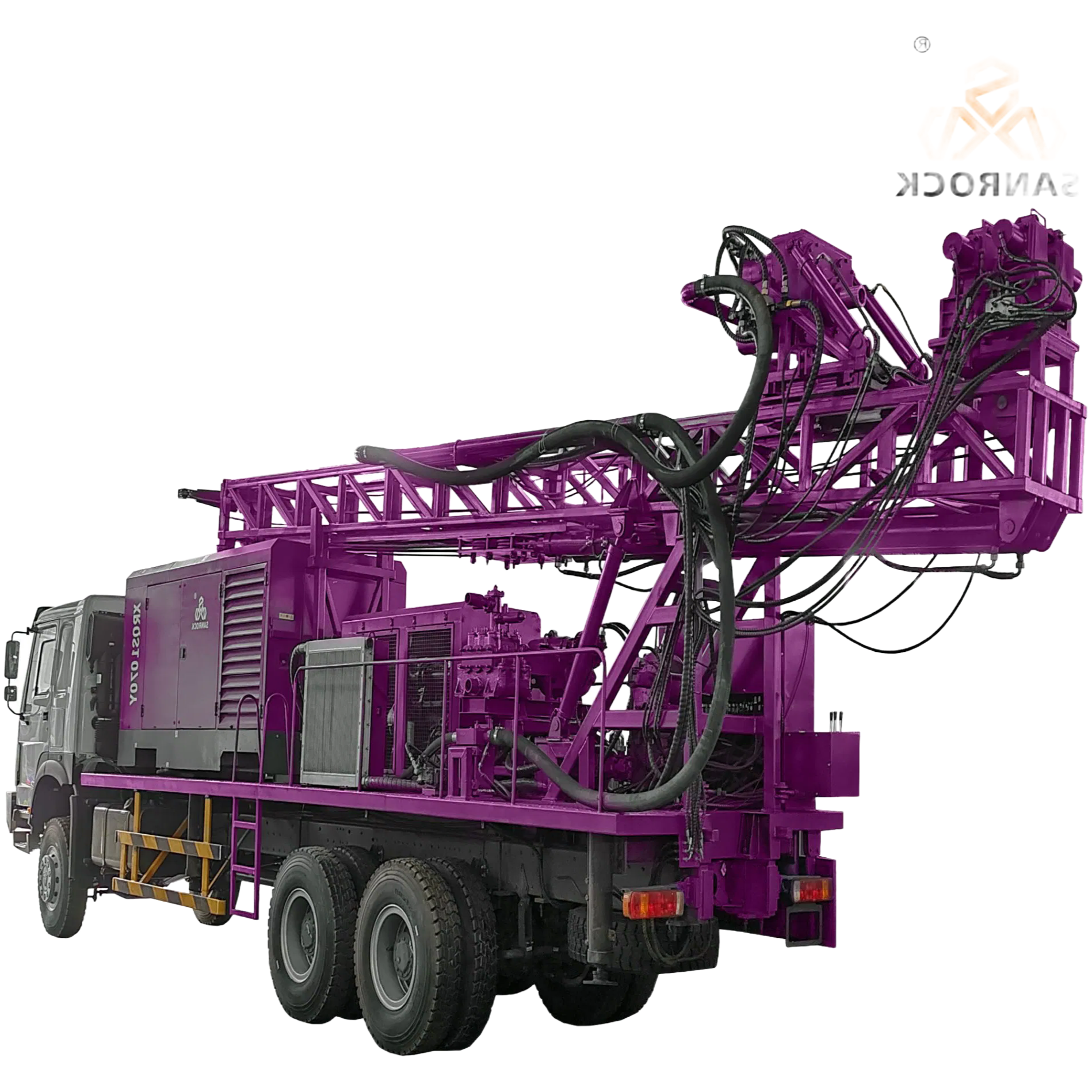

It's on a 6x6 truck chassis, overall dimnesions about 11500x2500x3800mm, so you'll need to check road transport clearances (usually fine for most countries but confirm local regs). CE and ISO 9001:2015 certified, and we give you a 1-year warranty as standard.
Pull up capacity is 20T-35T and pull down force is 7T-15T, so it's not ideal for very shallow, small-diameter wells where a lighter rig would be faster — this one's built for production water wells, geothermal projects, or industrial drilling where you're going deep and need consistent performence. Drill rod lengths come in 2.0m, 3.0m, or 6.0m with diameters of 102/108/114mm, and we usually stock the 3m rods as the most common choice.
Lead time is roughly 30-45 days depending on chassis availability, and MOQ is 1 unit obviously — we ship with full COA and operator manual. Also one thing buyers often miss: teh hydraulic control system is pretty straightforward but you'll want a trained operator for first week or so to dial in the torque settings properly.
We can do a single unit as the MOQ. Just let us know if you need one or a fleet.
Usually 30-45 days, depending on chassis availability. We'll confirm once we know your specs.
Yes, we include both CE and ISO 9001:2015 certificates with every rig. Just ask for copies before shipping.
It ships fully assembled on its own chassis, secured with lashing straps and covered for protection. We can arrange flat rack or container shipping based on your port.
Absolutely. You can choose 2.0m, 3.0m, or 6.0m rods to match your project depth and transport needs.
