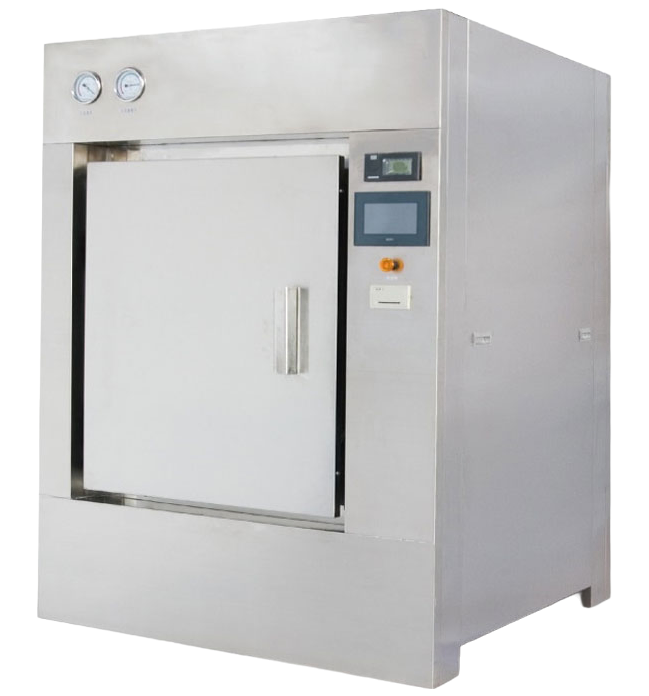

Factory Direct Animal Carcass Sterilizer with Multiple Models & Steam Pressure 0.3-0.5MPa for Oil Pollution-Free Sterilization

This series of animal carcass sterilizers is developed to address oil pollution issues during the sterilization process. Primarily used for sterilizing animal carcasses, it effectively resolves oil - related pollution and blockage of discharge pipes, while also featuring a cleaning function.

Main Features

1. The main body consists of inner and outer layers. The inner chamber is crafted from high - quality acid - proof 304 stainless steel, with automatic welding for one - time forming. The jacket is made of Q345R material, specifically designed for pressure vessels, and the decoration case uses a stainless steel wiring - drawing plate. Users have access to GMP confirmation for equipment verification.

2. It adopts a motor - driven sealing door, enabling easy and safe operation. The sealing strips are made of excellent heat - resistant silicon rubber, ensuring a long service life.

3. The control system integrates a touch screen, PLC, and mini - printer, guaranteeing stable operation and accurate temperature inspection.

4. It has complete functions for date recording, printing, and storing. Graphs of temperature, time, and pressure can be printed.

5. The inner chamber arc temperature is ≤40ºC, and the inner chamber undergoes mirror polishing.

Technical Parameters

Multiple models are available to meet different needs. For example:

- MR - DW - 0.24: Inner Chamber Size (L x W x H): 670x600x600; Overall Size (LxWxH) single/double Door: 950x1350x1800/1010x1350x1800; Net Weight: 600kg; Steam consumption: 20kg/cycle; Control Power: AC220/50Hz/0.5kw; Power supply: 3 - AC380/50Hz/1.5kw; Water consumption: 50kg/cycle.

- MR - DW - 0.36: Inner Chamber Size (L x W x H): 1000x600x600; Overall Size (LxWxH) single/double Door: 1280x1350x1800/1340x1350x1800; Net Weight: 700kg; Steam consumption: 25kg/cycle; Control Power: AC220/50Hz/0.5kw; Power supply: 3 - AC380/50Hz/1.5kw; Water consumption: 60kg/cycle.

- MR - DW - 0.6: Inner Chamber Size (L x W x H): 1170x610x910; Overall Size (LxWxH) single/double Door: 1450x1350x1900/1510x1350x1900; Net Weight: 1100kg; Steam consumption: 30kg/cycle; Control Power: AC220/50Hz/0.5kw; Power supply: 3 - AC380/50Hz/2.4kw; Water consumption: 70kg/cycle.

Other models (MR - DW - 0.8, MR - DW - 1.0, MR - DW - 1.2, etc.) have corresponding size, weight, and consumption parameters to adapt to various production scales and sterilization requirements.

Pressure & Temperature Parameters

- Steam Pressure: 0.3 - 0.5Mpa

- Designed Pressure: 0.25Mpa

- Water pressure: 0.15 - 0.3Mpa

- Working Pressure: 0.23Mpa

- Compressed Air Pressure: 0.5 - 0.7Mpa

- Working Temperature: 134ºC
