If you’re losing too much time on trips replacing worn bits in medium to hard rock, the issue is usually the structure and seal integrity. We’ve seen it happen — a bit that looks fine on the surface but can’t hold gauge past 50 hours or so in abrasive formations.

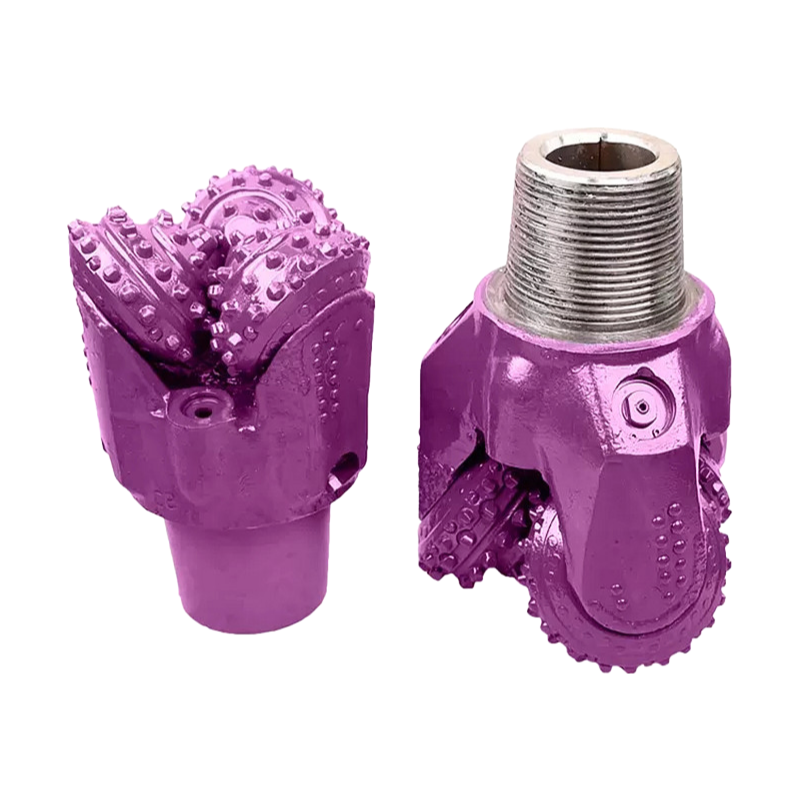

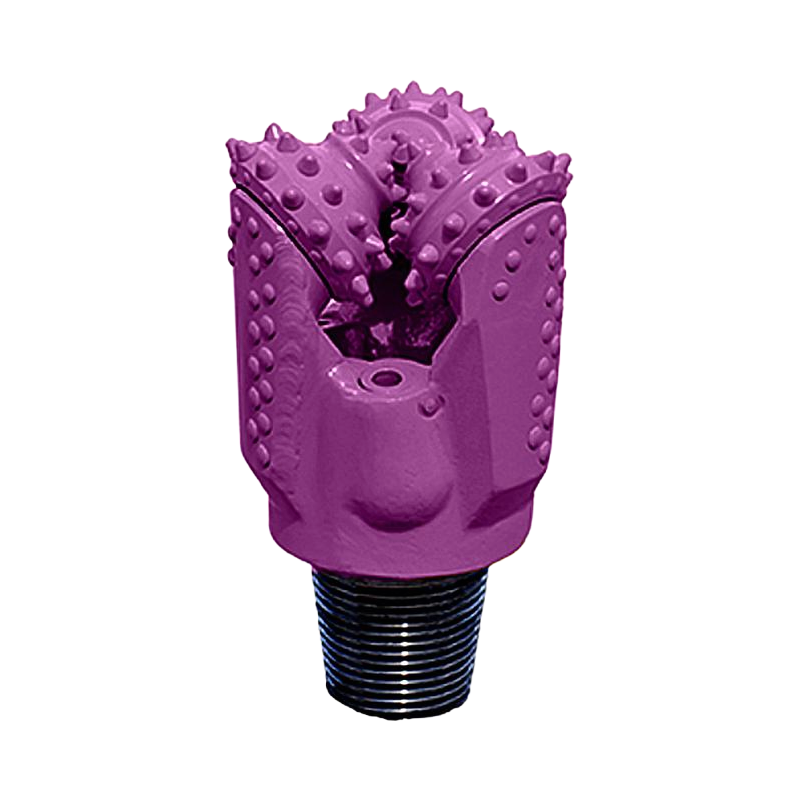

This one is a 165mm TCI tricone with 3 1/2" API REG thread, weighing 21kg, and the bearing can be open or sealed — rubber or metal seal depending on your preference. The inserts are tungsten carbide, with chisel shapes on heel and inner rows for faster penetration in medium rock, and hemispherical inserts on outer rows for gauge retention in hard, abrasive ground. HSN rubber O-rings handle sealing, and the hydraulics are optimized for efficient cuttings removal — basically, less regrinding and faster ROP.
What it does is give you a wear-resistant structure that holds up in formations form medium to hard, and the sealed bearing option extends life in water well or geothermal application where you can’t afford a washout. One thing most buyers don’t think to ask: the 3 1/2" API REG connection is standerd, but confirm your pin taper — we’ve had a few mismatches with older rigs.
We usually keep stock on teh 165mm size, but customization is avaliable if you need a different thread or insert configuration — lead time is roughly 20 days or so for non-standard orders. It’s not suited for very soft formations like clay or sand, where a PDC bit would outperform it anyway.
The weight is 21kg, which makes it manageable for one person to handle, but the box dimensions are about 400mm cube — check your transport limits if ordering multiples. COA and SGS certification are included with each bit, and we typically ship within 5-7 business days for standard models.
You can choose between open, sealed rubber, or sealed metal bearings. Open bearings are good for low-cost applications, while sealed rubber or metal bearings extend bit life in harder formations by keeping debris out and lubricant in.
Yes, the 3 1/2" API REG thread is a standard rotary connection that fits most conventional drill strings used in oil, water, and geothermal drilling.
Each bit is API and SGS certified, so you get documentation proving compliance with industry standards for materials and manufacturing.
Absolutely, we offer customization on insert grade, nozzle size, and seal type to match your medium to hard rock drilling requirements.
Lead time is usually 15-20 working days depending on order volume. MOQ starts at 5 pieces for standard specs, but we can discuss lower quantities for custom orders.
