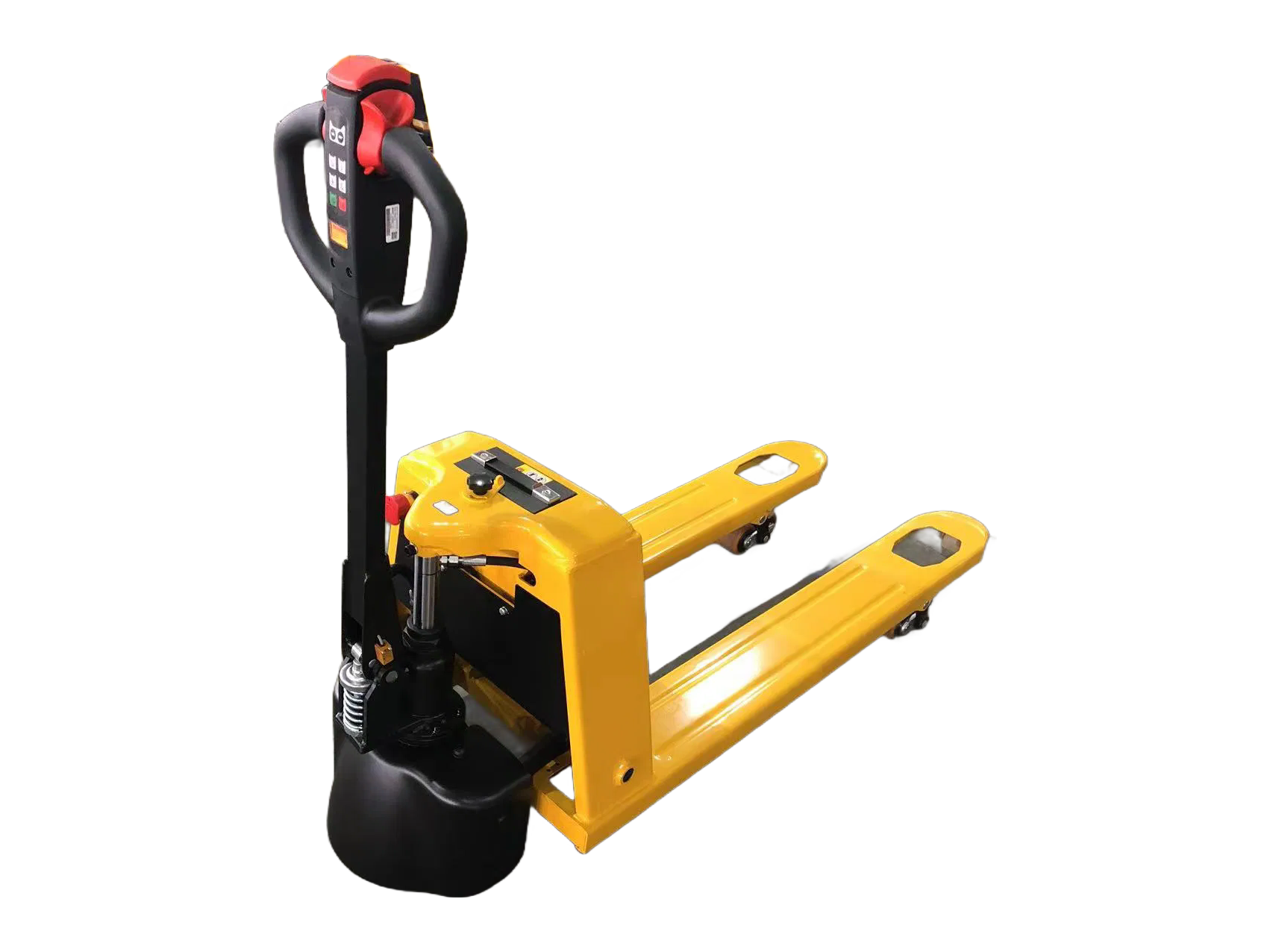

It's the kind of thing that keeps a loading dock moving when you've got 2000kg of pallets stacked up and a tight turnaround, and the 48V battery delivers about 15Ah of runtime—enough for a solid shift in most warehouses before you need to plug it in again.
Travel speed is 4.2km/h under load, which is pretty much what you'd expect for a machine this size, and the 0.8kw DC motor handles a 6-10% grade without struggling too much, though you wouldn't want to push it on steeper ramps.
The electronic combination lock replaces the old key system, so you won't be chasing lost keys across the floor, and the error code display actually tells you what's wrong instead of just flashing a warning light (usually a sensor or motor controller issue).
Fork dimnesions are 160×1150 or 1220mm depending on the option you pick, and the wheelbase sits at 1220mm, which gives it stable turning radius for narrow aisles—most buyers go with teh 1220mm forks for standerd euro pallets.
We usually have these in stock, but confirm lead time if you need more than one unit; the MOQ is just a single unit, and it ships at 138kg with the battery included, so it's manageable with a pallet jack or forklift on the receiving end.
Lifting speed is 22mm/s when laden, so it's not the fastest on market, but the Swiss pump station keeps it smooth for loading and unloading, and the slow-speed mode is actually useful for new operators who tend to jerk the controls.
You can order just 1 unit. No minimum quantity requirements.
The battery typically lasts for a full 8-hour shift under normal use, but actual runtime depends on load weight and frequency of lifts.
Yes, we include CE and ISO certificates with every unit. Just let us know if you need them before shipping.
Standard lead time is about 15-20 working days after order confirmation and payment.
The fork lengths are fixed at 1150mm and 1220mm options as standard. Custom lengths are not available for this model.
