So you're setting up a network and those connections keep giving you trouble—signal loss or reflection that just won't behave, and we've seen it happen more times than I can count when the patch cords aren't matched right to teh gear you're using.
We've got these in singlemode (9/125) or multimode (50/125 or 62.5/125), with polish types from PC up to UPC or APC depending on what your appliction needs, and the insertion loss runs ≤0.20dB for multimode or ≤0.30dB for singlemode—which basically means less signal drop than most generic cords you'll find.
Return loss is where it really matters for high-speed stuff, ≥50dB on UPC and ≥60dB on APC, and they'll handle over 1000 matings with only about 0.2dB variation before you'd even notice a change, so they're not the kind you replace every few months.
Also, operating temperture range is -40°C to +75°C, which is better than what you'd get from a lot of off-the-shelf options, and we can do cable diameters from 0.9mm up to 4.1mm with jacket materials like PVC, LSZH, or OFNR depending on where you're running them.

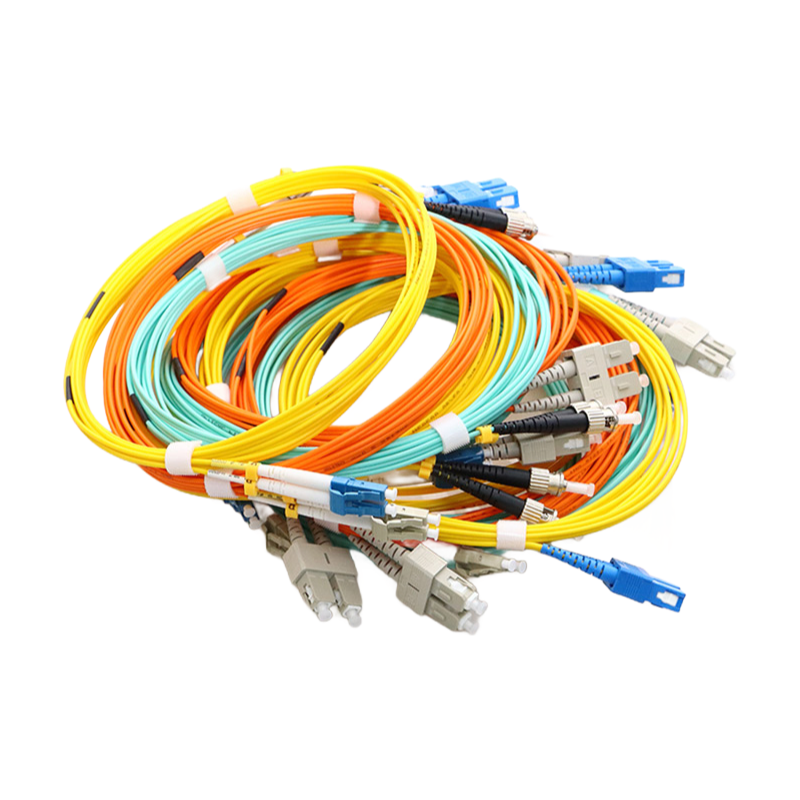

One thing buyers don't always ask about is the connector variety—SC, LC, FC, ST, even E2000 or MPO/MTP, and our company can mix ends on a single cord if your setup has different gear at each side, though we usually have stock on the common combos like LC to SC.
Lead time is typically 7-14 business days for standdard orders, but if you need a custom length or a specific polish combo, add a week or so—just confirm when you're ready and we'll get you a COA with the batch.
Yes, we can make custom lengths up to 100 meters. Lead time for custom orders is typically 5-7 business days.
For SC/APC singlemode, the MOQ is 100 pieces. If you need less, we can sometimes accommodate with a small upcharge.
Yes, we can include individual test reports for insertion loss and return loss with each shipment at no extra cost. Just let us know when you place the order.
Yes, we offer a 0.9mm cable diameter option, which is perfect for indoor patch panels. We also have 2.0mm and 3.0mm choices if you need more durability.
Absolutely. We offer LSZH jacket material as a standard option. It's RoHS and IEC compliant, so it's safe for plenum and public spaces.
