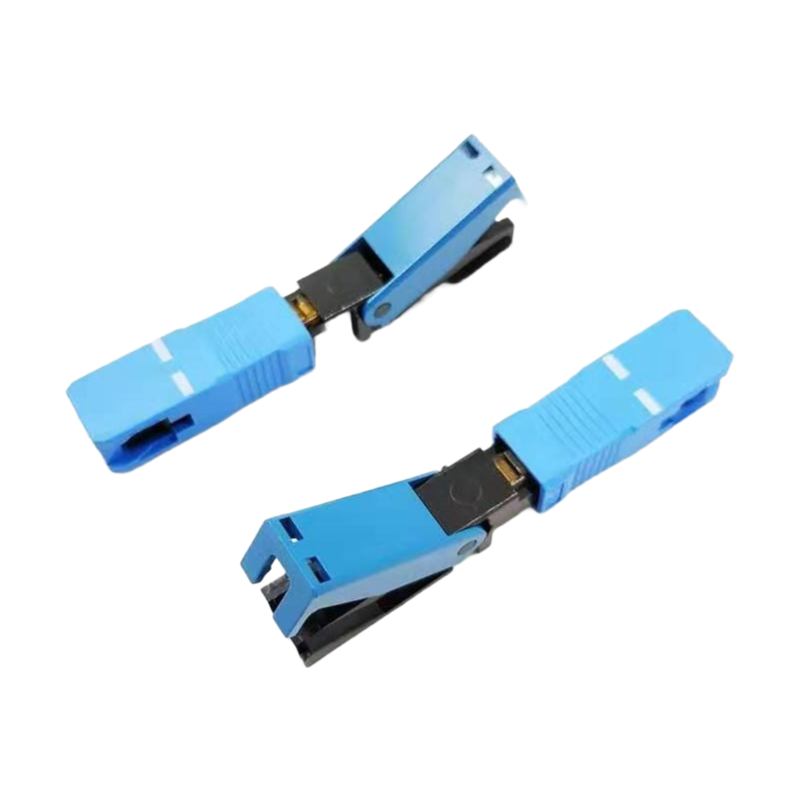

You’re terminating a fiber drop in a patch panel or at the wall outlet, and what you need is something that clicks into place without epoxy, curing, or polishing—basically, you push the fiber in, snap the housing shut, and you’re done in under a minute.

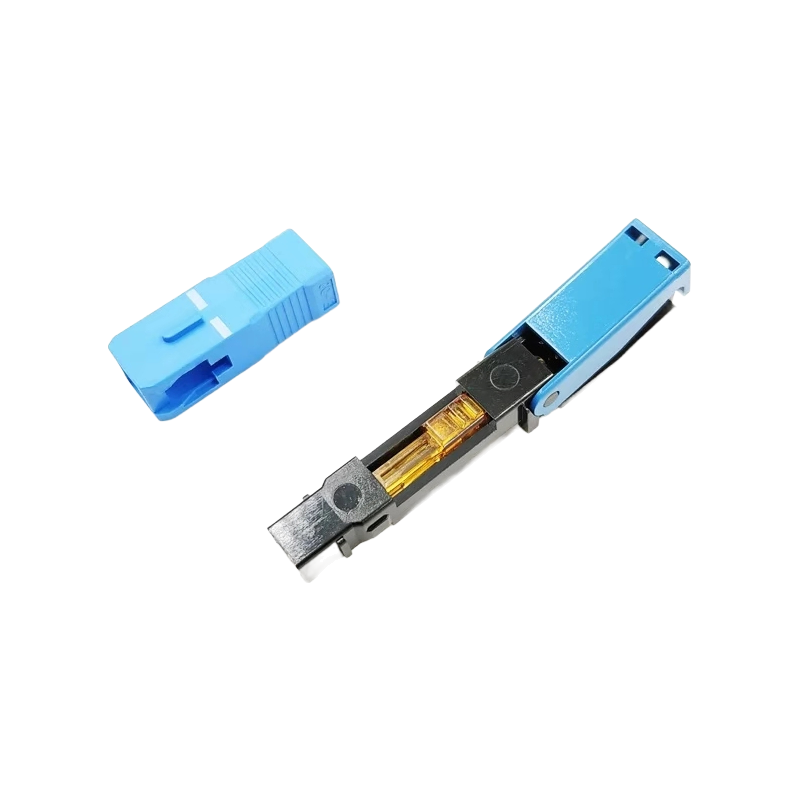

Insertion loss sits at 0.3 dB, which is tighter than what you’ll get form a field-polished connector in most cases, and the factory-installed fiber stub is what makes that possible; it’s already cleaved and polished, so you skip mess and teh guesswork.

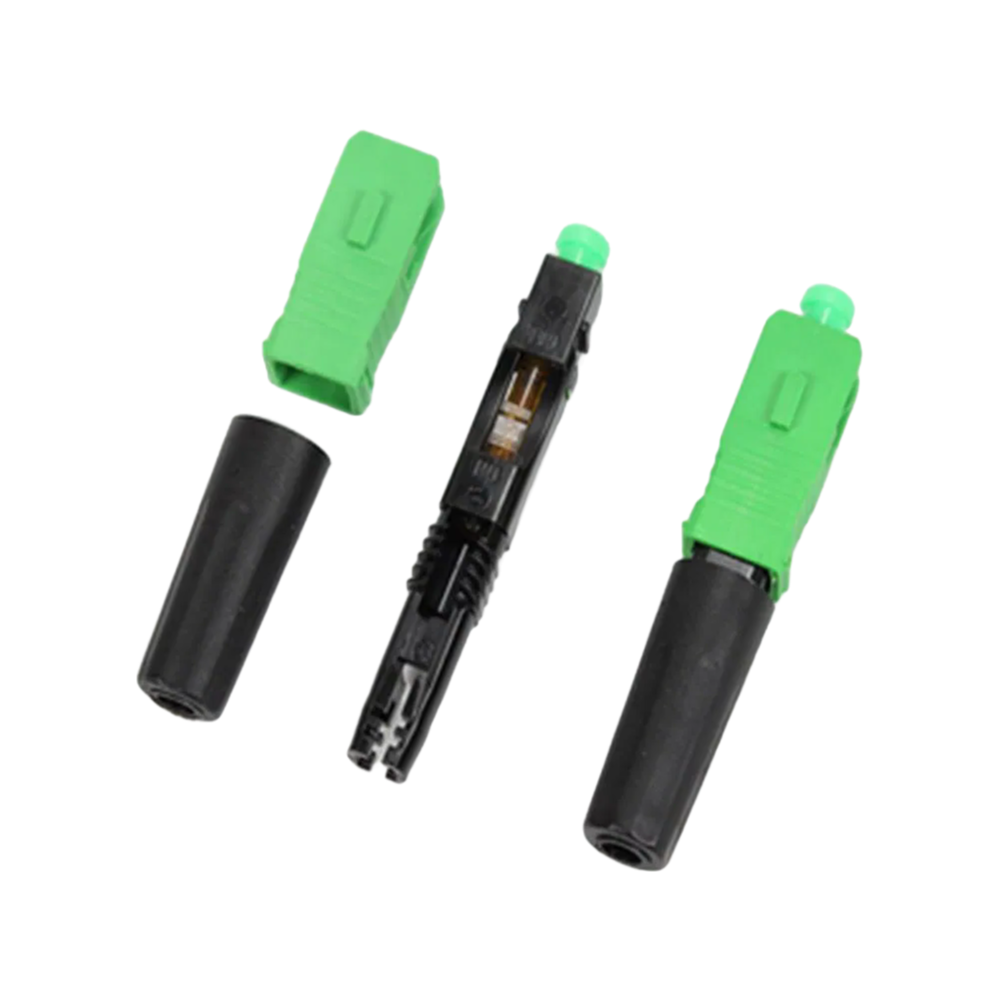

We’ve found the green and blue color options help with quick visual sorting on a crowded patch panel—usually the green ones go to the GPON side, and blue for standerd SC terminations, but that’s just how most buyers use them.
Operating range is -40 to +85 °C, so it’ll sit fine in an outdoor cabinet or a non-conditioned closet, though it’s not suited for direct burial or wet environments without a splice enclosure.

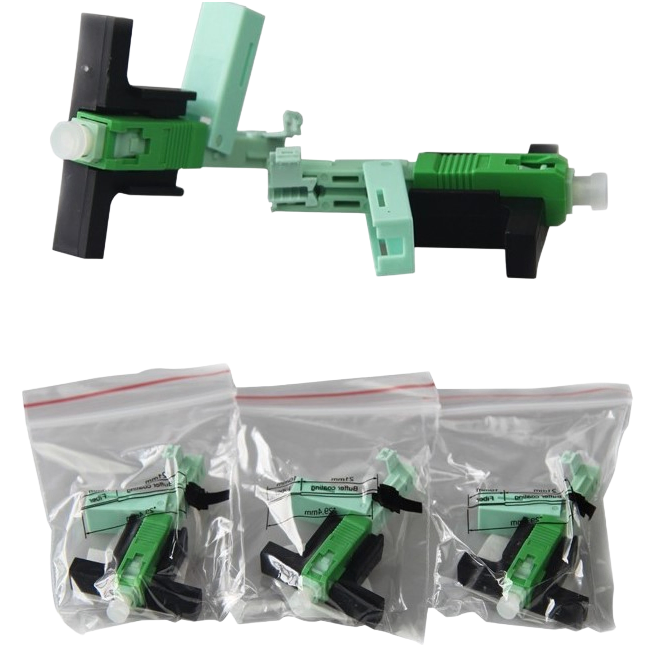

Each connector ships in a plastic box—the box is 330 by 240 by 100 mm—and we typically have stock for the SC quick connectors, but confirm lead time for the 900-micron version if you need more than 500 units or so.
Also, the HS code is 8528711000, and we’ve got CE and RoHS on file, so customs clearance for telecom gear is pretty straightforward.
Our MOQ is typically 1000 pieces per color, but we can negotiate smaller batches for first-time orders. Just let us know your volume.
Lead time is usually 15-20 working days after order confirmation and payment. We can expedite for urgent orders, just ask.
Yes, we include CE and RoHS certification copies with every shipment. They’re packed in the shipping docs envelope inside the plastic box packaging.
We can customize the color to your Pantone code and add your logo on the plastic box packaging. MOQ for custom colors is 5000 pieces.
Keep them in the original plastic box packaging, in a clean, dry place at room temperature. Avoid direct sunlight and temperatures above 85°C to keep the loss spec stable.
