Factory Direct 110V-220V PCR Instrument with Aluminum Block and Rapid Temperature Control

US$ 2500.00 ~ 2800.00
Min.Order: 1
Product origin: Jinan, Shandong, China
Category: Medical Equipment
Product Name: Medical Equipment
Availability:In Stock
Product Review : 1 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : TEC01
  • Classification : Biochemical Apparatus
  • Instrument Type : Gene Amplification System
  • Certification : CE Certified
  • Application : Molecular Biology Research
  • Capacity : 96 Wells
  • Reaction Volume : 10-200μl
  • Compatible Tubes : 0.2ml PCR tubes/plates
  • Temperature Range : 4°C to 105°C
  • Temperature Accuracy : ±0.5°C
  • Gradient Range : 30-99°C
  • Temperature Differential : 1-42°C
  • Programming Capacity : 30 steps, 99 cycles
  • Display : 7" Color Touch Screen
  • Block Material : High-grade Aluminum
  • Power Requirements : 110V-220V, 50/60Hz
  • Dimensions : 398×280×257mm
  • Net Weight : 11kg

You're running a PCR setup and the old machine is giving you uneven heating across the block, so some wells work great while others fail, and that's the core problem we see most often.

What this handles is that tempearture uniformity issue with the aluminun block and digital control—it keeps variation across all 96 wells under 1°C, which basically means your samples in the corners amplify just as reliably as ones in the middle, and the gradient feature lets you test 12 different annealing temps in one run, so you're not guessing on teh setting.

TEC01 PCR Thermal Cycler Front View

It covers 4°C to 105°C with ±0.5°C accuracy, the 7-inch touch screen is actually responsive, and you've got 30 programmable steps with up to 99 cycles, which is more than enough for most protocols we've seen; power input is universal at 110V-220V so no transformer needed, and it weighs 11kg so it's not too heavy to move around.

PCR Machine Temperature Control System

We stock these pretty regularly, MOQ is usually 1 unit, and (this might catch new labs by surprise) the 0.2ml tubes or plates are sold seperately—check if you need the 10–200μl volume range before ordering.

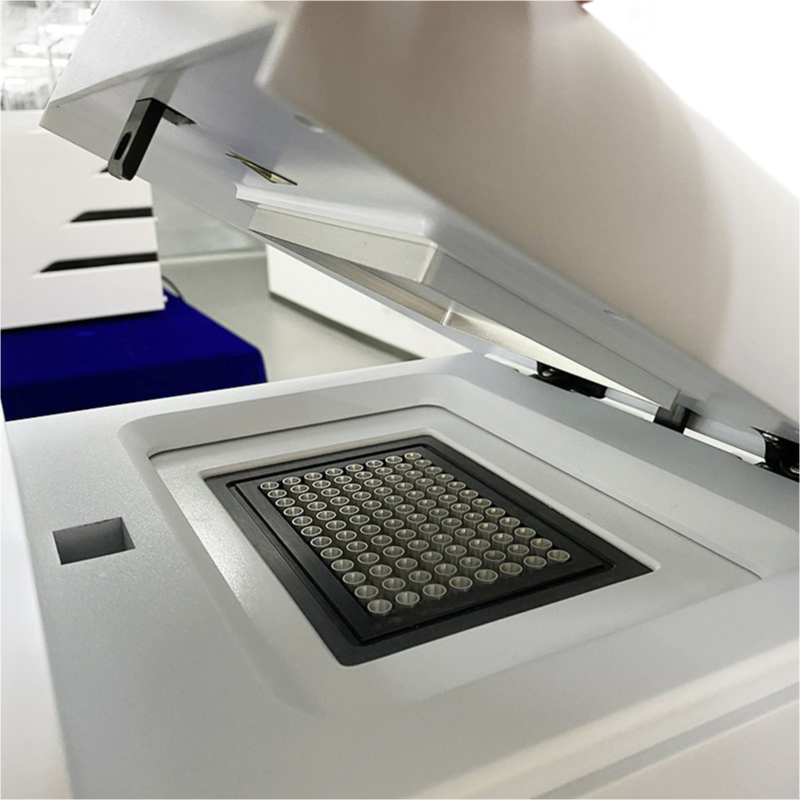

96-Well PCR Block Close-up

One thing that comes up is that the gradient differential goes up to 42°C, which is better than some pricier models, but it's not suited for ultrafast protocols that need sub-0.1°C uniformity—that's just a fact of the price point.

CE certified with each unit, we usually have the COAs on hand, roughly 2-3 weeks lead time unless we've got a batch in the warhouse, give or take.

Frequently Asked Questions

What is the minimum order quantity (MOQ) for the TEC01 PCR instrument?

Our MOQ for the TEC01 is 10 units per order, but we can discuss smaller quantities for first-time buyers or sample orders.

What is the typical lead time for shipping the TEC01?

Lead time is usually 15-20 working days after order confirmation, depending on stock levels and order size.

Is the CE certificate available for the TEC01, and can you provide a copy?

Yes, the TEC01 is CE certified, and we can provide a copy of the certificate upon request for your compliance records.

Can the TEC01 handle both 0.2ml PCR tubes and 96-well plates without adapters?

Yes, the TEC01 is compatible with both 0.2ml PCR tubes and standard 96-well plates, and no extra adapters are needed—just load them directly into the aluminum block.

What kind of packaging does the TEC01 come in for export shipping?

The TEC01 is packed in a sturdy foam-lined carton with additional bubble wrap to protect the touch screen and block during transit.
