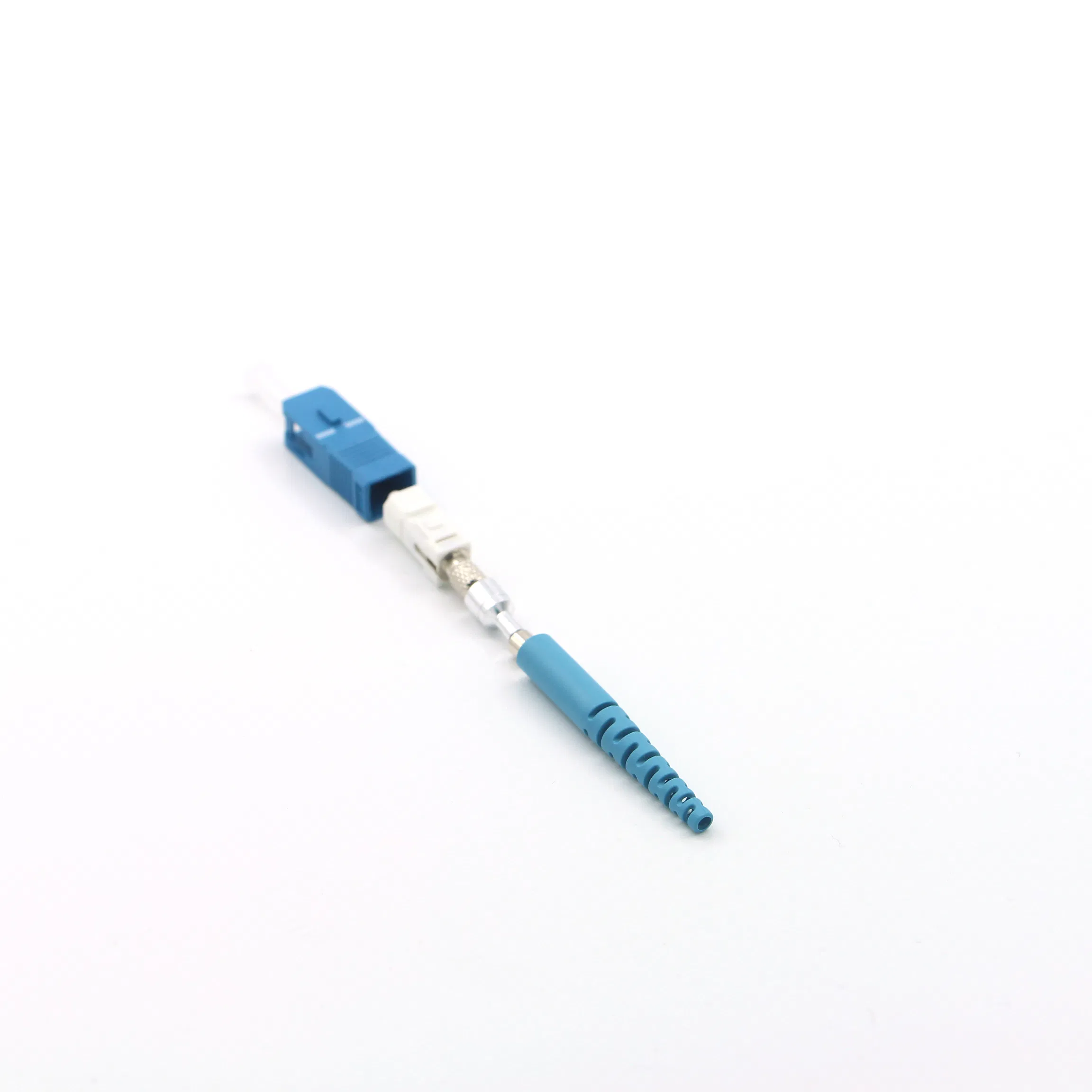

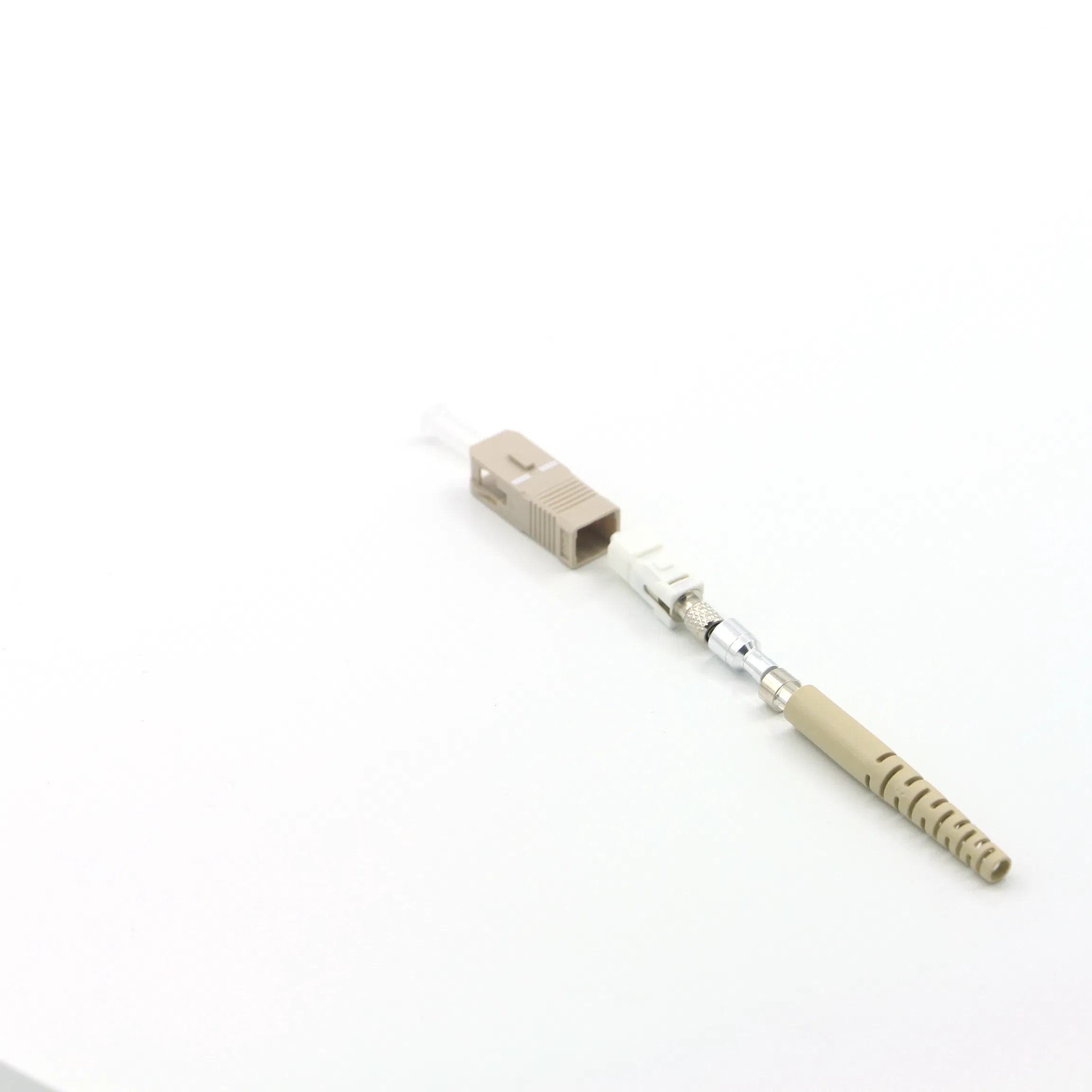

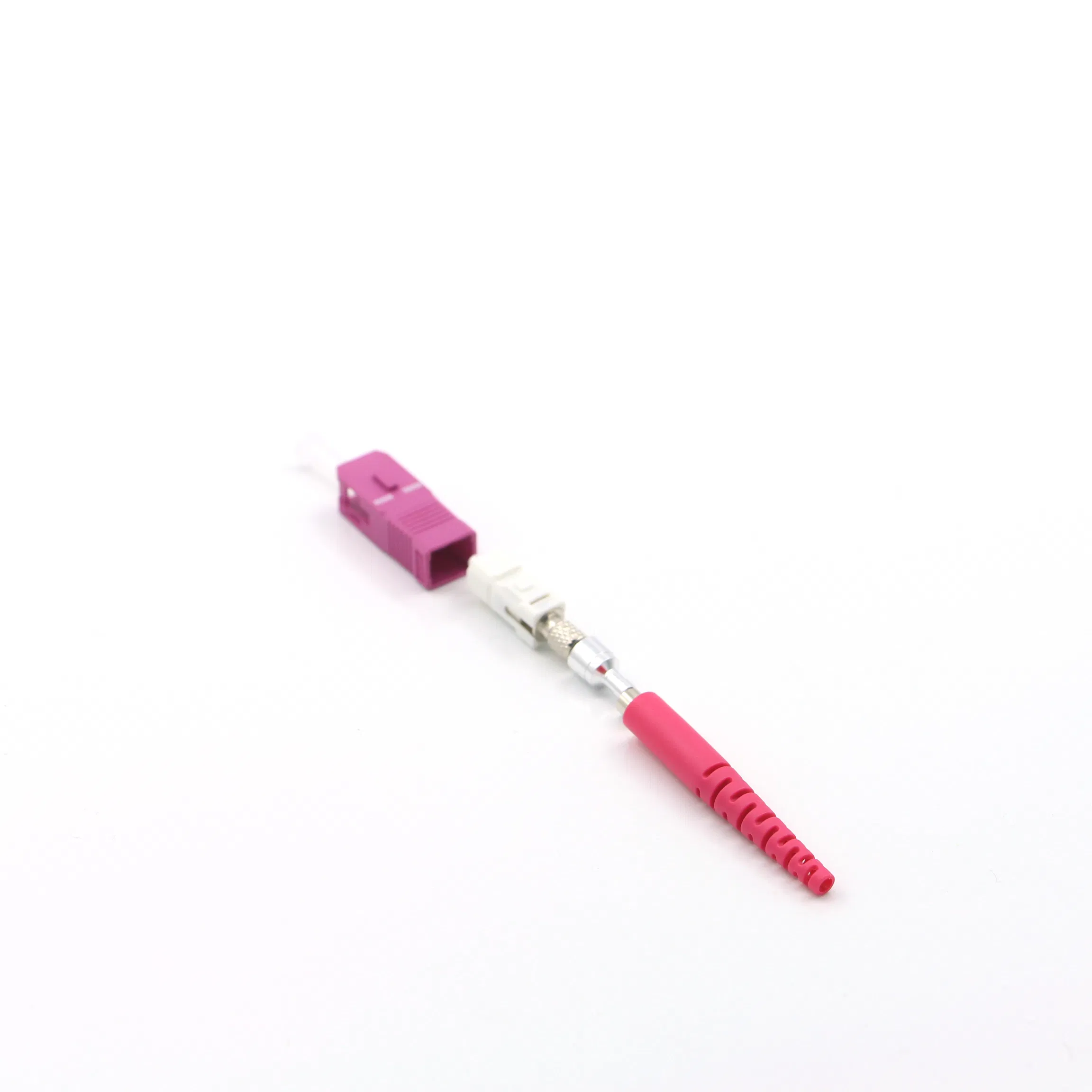

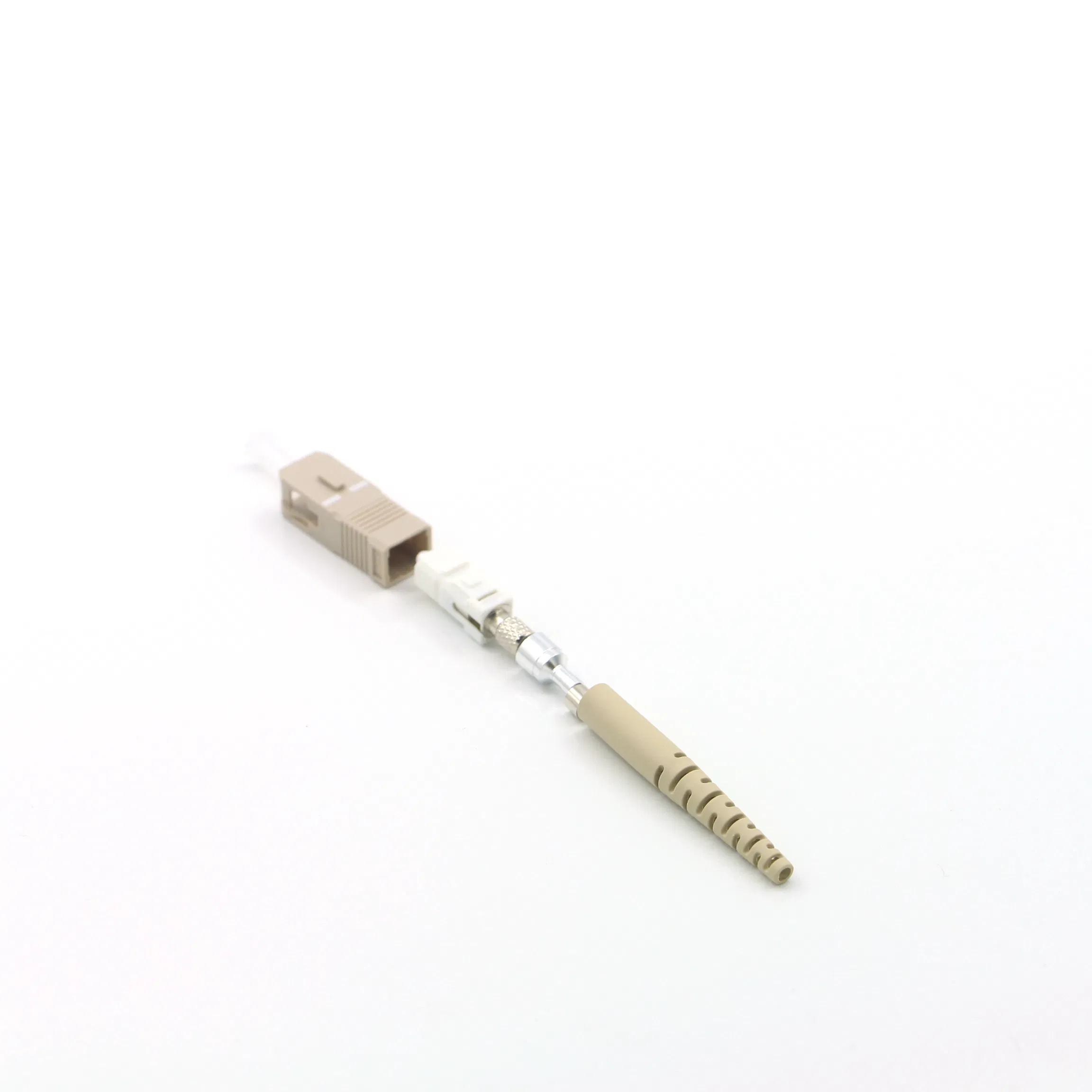

Look, it's a SC APC/UPC duplex connector, so you're already dealing with a narrower applicaion window than LC connectors, especially in high-density environments, but for FTTH and a lot of legacy telecom gear it's basically the standard—most buyers go with the SC duplex anyway for drop cables.
Insertion loss runs at ≤0.30dB, which is tighter than the cheap stuff you'll find on generic patches, and teh return loss hits ≥50dB on single-mode, so you're not chasing ghost losses on a 30km run or so.
We usually have stock on the ceramic ferrule version (2.5mm diameter, concentricity ≤0.5μm for single-mode), but the multimode spec is looser at ≤3μm—if you're doing long-haul single-mode, that tight concentricity is what saves you from extra splice loss.
Operates form -40°C to +85°C, 1000 mating cycles rated, tensile strength >10kg—handles the outdoor FTTH deployment where a truck might yank the cable or a tech steps on the connector in a pedestal.
One thing: the plastic UL-rated housing won't stand up to a direct sledgehammer hit (tested that by accident once), but for a 5g actuator cycling in an ODF frame it's more than fine, and the boot is color-coded (usually for drop cable ID, not just looks).
Lead time is about 2-3 weeks on standdard orders—anyway, we ordered a batch of 200 pieces base on the typical FTTH site pull, and the COA covers insertion loss and return loss per batch.
UPC gives you a flat polish with good return loss, while APC uses an 8-degree angle for even higher reflection control. For single-mode FTTH, APC is typically preferred to minimize back reflections, especially with high-power lasers.
Yes, it's fully compliant with Telcordia GR-326-CORE, plus TIA/EIA and IEC specs. That means it's been tested for reliability and performance in network environments.

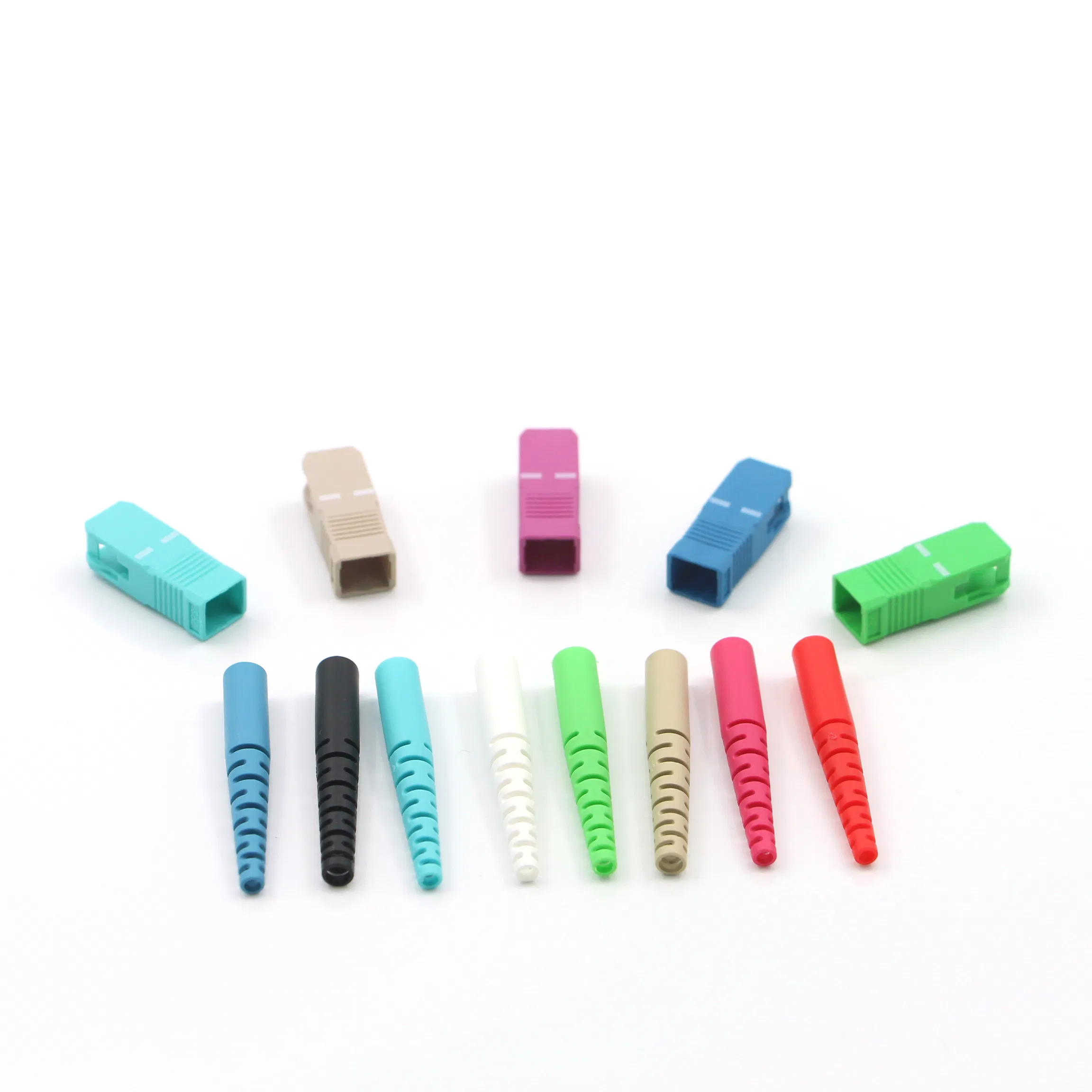

We don't have a strict MOQ for custom boot colors—just let us know what you need and we'll work it out. For standard colors like blue or green, any quantity is fine.
Yes, the connector supports both transmission mediums. Just pick the right ferrule bore size—single-mode uses a 2.5mm ferrule with tight concentricity under 0.5μm, while multimode allows up to 3μm.
For a standard SC duplex order of 1000 pieces, lead time is usually about 2 to 3 weeks. If you need it faster, we can sometimes expedite—just ask.
