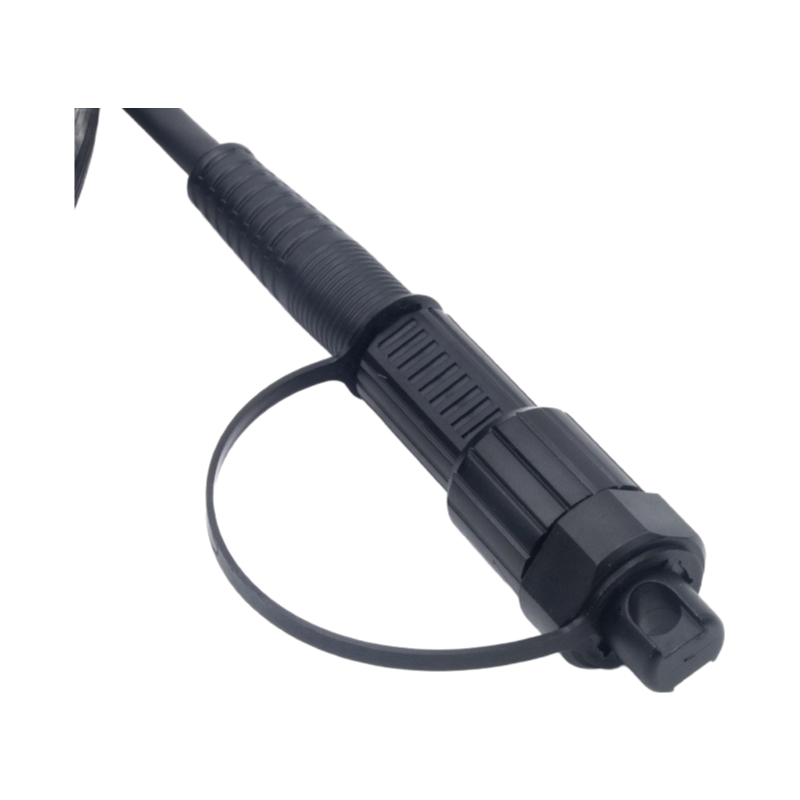

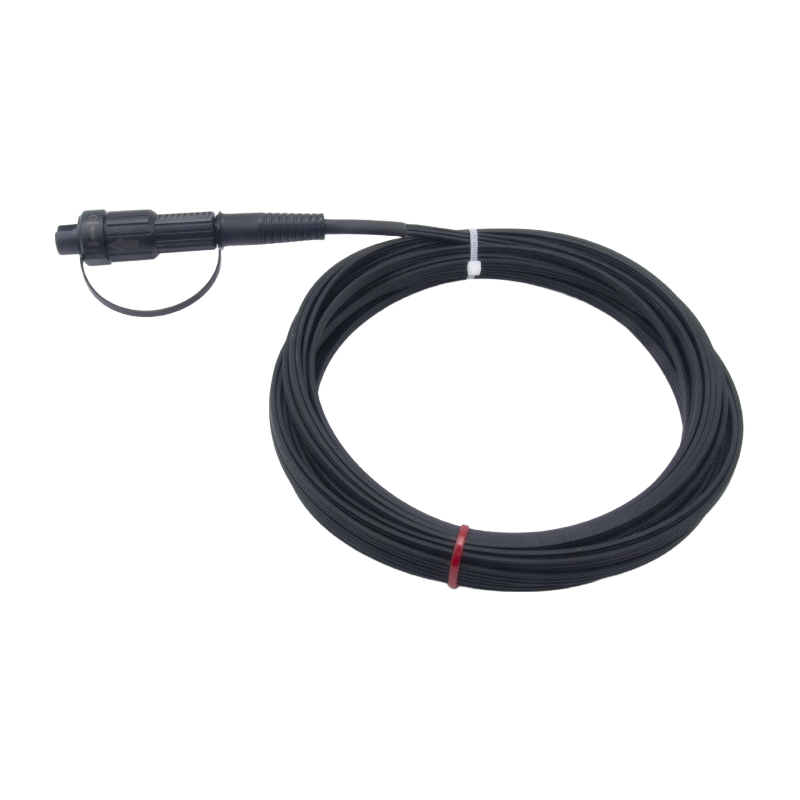

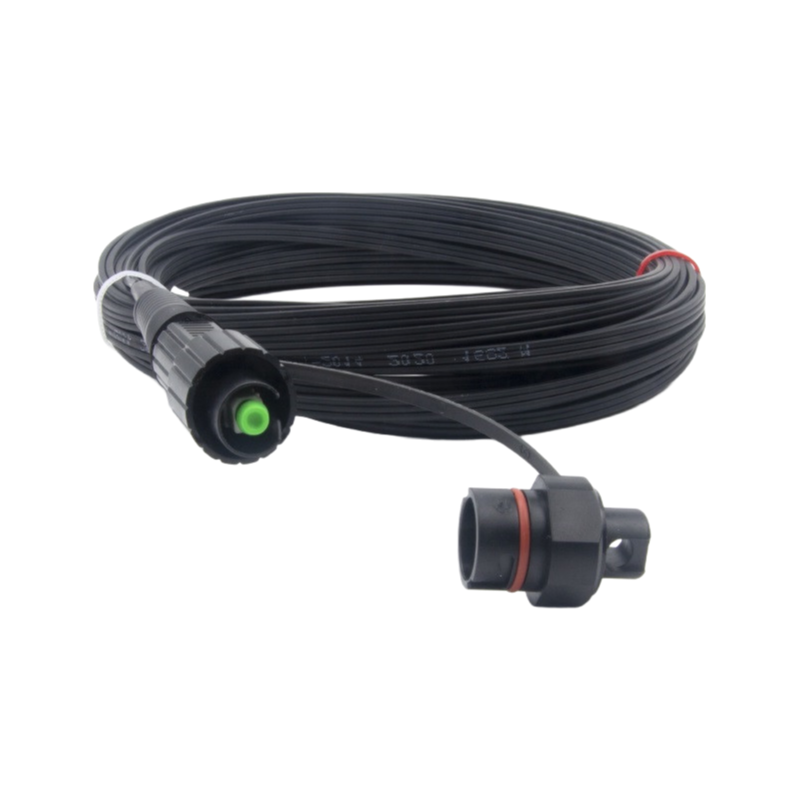

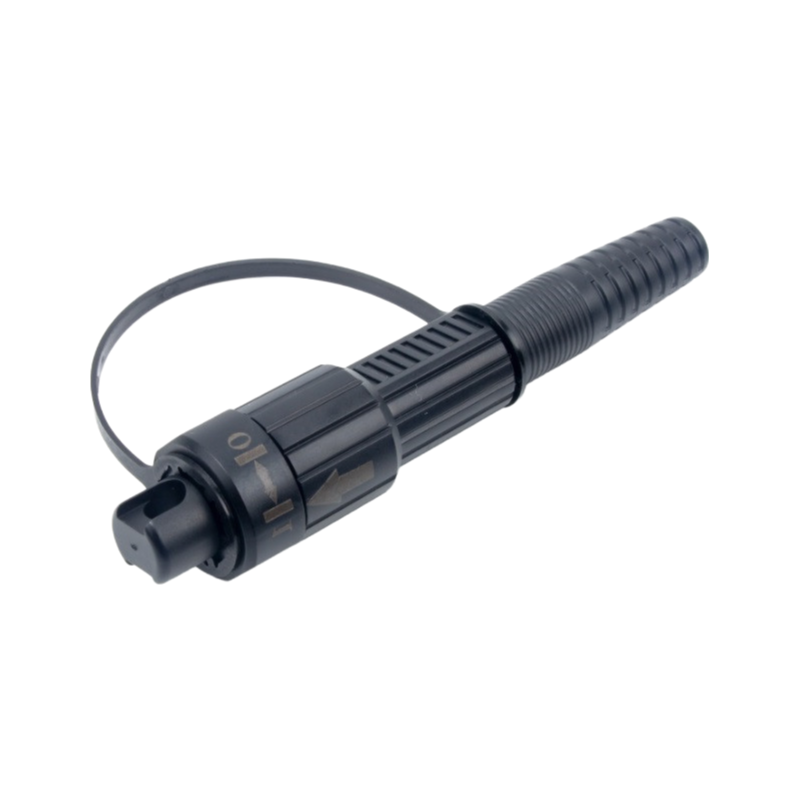

Customizable SC Waterproof Fiber Optic Connector for FTTX Network Deployment

We're looking at about 2000 units at a time for a standard order, give or take, and delivrey usually runs 20 days or so after payment. It basically handles single mode or multimode fiber with a ≤0.3dB insertion loss and ≥50dB return loss—pretty reliable numbers for keeping your signal clean in FTTX work. The bend radius hits 7.5mm minimum, so you can route it through tight spots without killing the signal, which matters more than you'd think in those crowded outdoor boxes.

And people use these mostly for outdoor access networks where moisture and UV are constant problems—think underground vaults or remote base stations that get cooked in the sun all day. That IP67 rating means it'll sit submerged or rain-soaked for a while without sweating it, which a standdard connector would choke on. It's not great for indoor patch panels though, where that zinc-alloy body is just overkill and harder to manage in a dense rack.

The 2.0mm cable diameter is the default but you can customize that if needed for thicker or thinner jacketing, and we've got it with a PC boot that holds up well under constant flexing. Actually, one thing we don't always put in the spec sheet is that the UV-resistant materail does slightly stiffen at -40°C, but it doesn't crack—so it still works, just feels less pliable. Most buyers don't ask about that until they've been burned by something cheaper.

Durability is rated at ≥500 mating cycles, which is fine for installation and occasional unplugging, but it won't survive daily plugging like a lab-grade connector would. For quantty you're ordering, our company can typically ship within 25 days or so—though large custom orders might push that to 30 days depending on teh PVC color or cable diameter tweaks. Also, it meet IEC 61754-4 and is RoHS compliant, so you're clear on those industry checks without extra paperwork.

So honestly, if you need something for FTTX deployment that won't fail after the first heavy rain, this is one of those connectors that gets the job done without surprises. We do have COAs for each batch if you need them, just say so upfront—usually doesn't change the price. Way better than the cheaper IP67 knockoffs that claim the rating but corrode after a season or two.
