We've got these in stock at the warehose so lead time is just a few days, especially if you need the 2.0mm or 3.0mm diameter variants — the 62.5/125 OM1 is the one most buyers go with for existing campus rings, but the 50/125 OM2 handles tighter bends if you're running new drops.
They're for comms networks, data centers, and telecom racks mostly, not outdoor trunk lines or anything with high pull tension, so keep that in mind if you're planning riser pulls, the ceramic ferrules actually hold up better than the composite ones we used to order.
850/1300nm testing is what it does, insertion loss is ≤0.3dB and return loss is ≥35dB, which is tighter than most generic patch cords (usually we see ≤0.5dB on the cheap stuff) and the operating temp range of -10°C to +70°C covers typical IDF closets pretty well, storage goes -40°C to +85°C.
packging is just a poly bag, so if you're sending these to a cleanroom enviornment you'll want to spec individual sleeves or a lidded box — that's one detail we found out the hard way after a batch got dusty in transit.

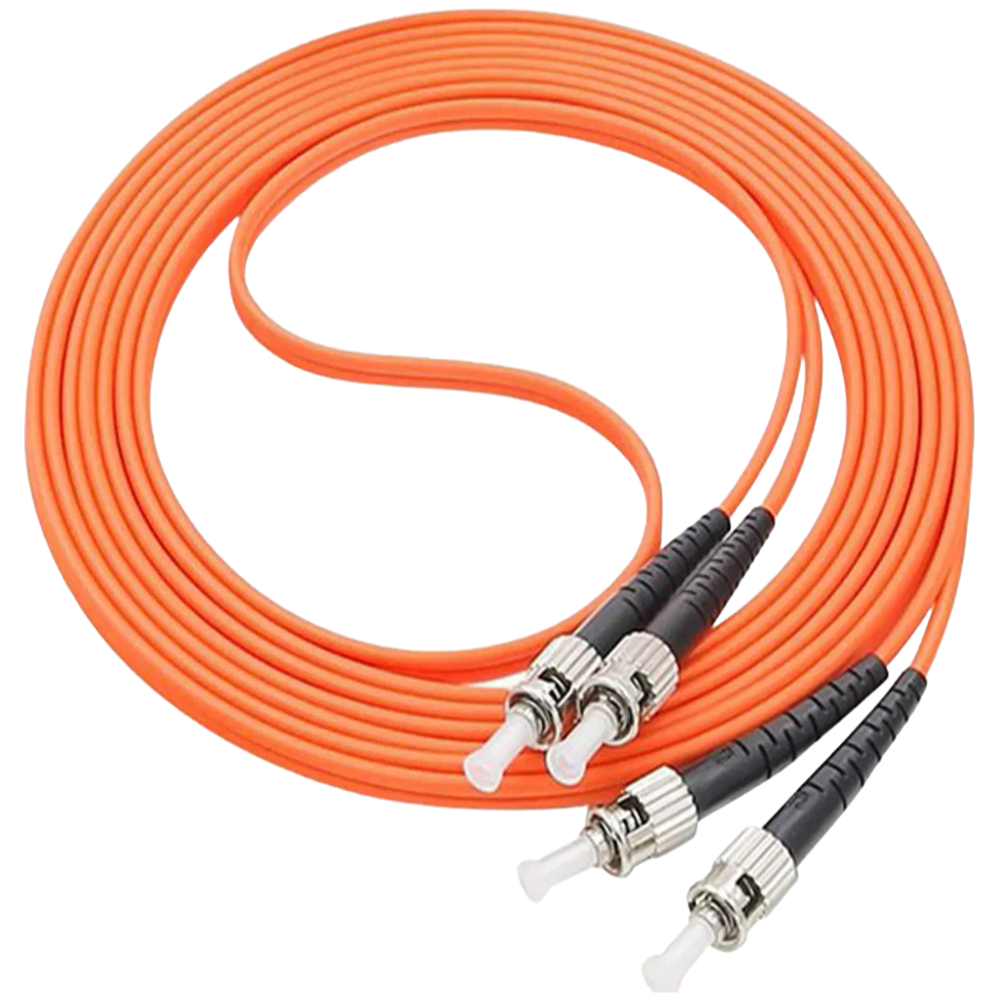

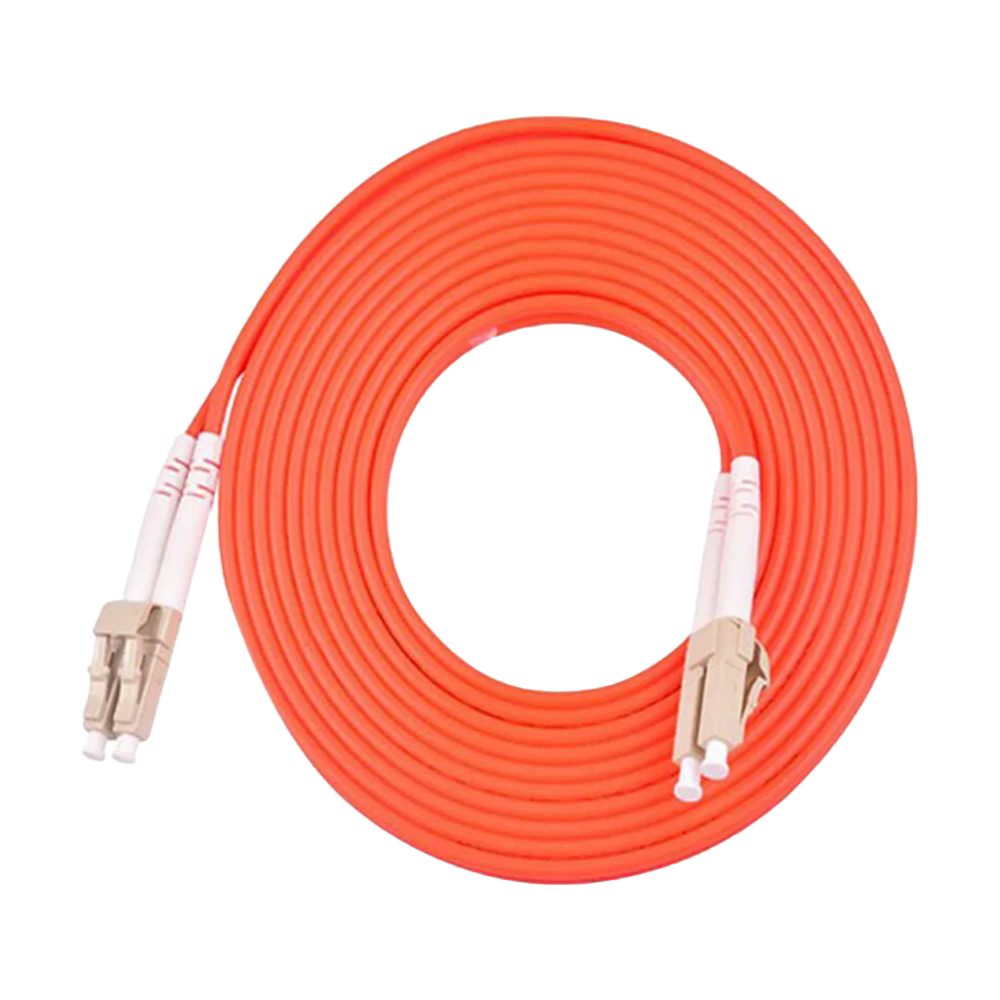

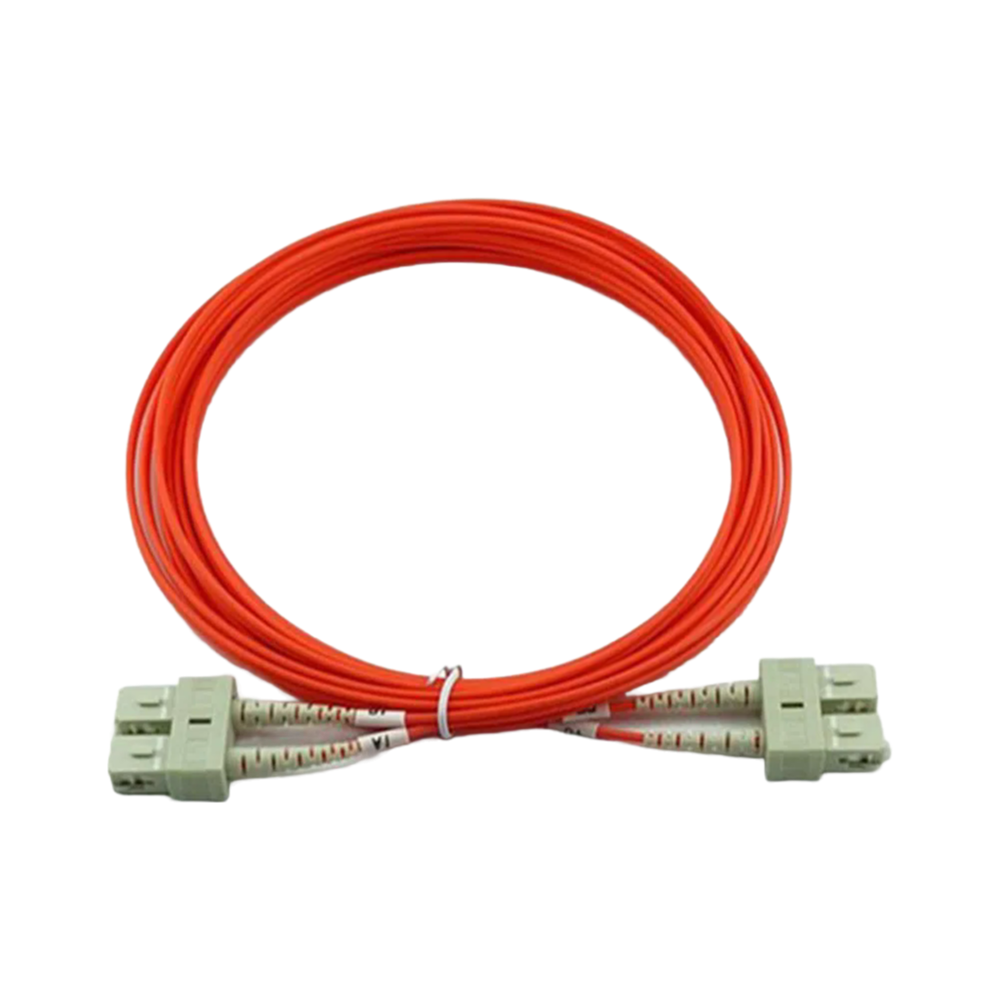

Also, the connector config is fully customizable — SC, FC, LC, ST in either UPC or APC polish, so you're not locked into one pin style, but confirm the polish type when you order because APC won't mate with UPC without adapters and that catches people out.
You can get them with either LSZH or PVC jacket, the orange color is standerd for multimode, which basically makes cable identification trivial when you're patching alongside singlemode yellow runs, and we've got RoHS and CE on file if compliance needs paperwork.
We don't have a set MOQ—you can order as few as 1 piece for testing. Bulk orders get better pricing, just let us know the quantity.
Standard orders ship within 3-5 business days. Custom combos like SC to LC or APC to UPC take about 7-10 days, depending on the mix.
Yes, we include RoHS, CE, and ISO9001 compliance docs on request. We can also supply insertion loss and return loss test data for each cord if you need it.
Absolutely. Both 2.0mm and 3.0mm diameters are available, and you can choose LSZH or PVC jacket. Just specify when you place the order.
Each cord comes in an individual poly bag, clean and protected. For larger shipments, we bundle them in boxes with proper cushioning to avoid damage.
