DIN46234 Tinned Copper Cable Terminals for Electrical Equipment UL/CE Certified

Basically everyone I’ve talked to in heavy industiral, from panel builders to machinery installers, asks about these right away, and what it come down to is the conductivity hitting ≥99.9% IACS while tensile strength holds at least 200 N/mm²—that matters when you’re torquing down cable lugs and don’t want creep failures at 150°C which is the actual working limit here.

We’re seeing them mostly on power distribution cabinets and motor connections (usually the 1.5-630mm² range covers everything form control wiring to main feeds), though honestly they’re overkill for light-duty signal lines unless a spec requires UL 486A-B compliance.

The tin plating handles corrosion pretty well in humid environments, but if you’re putting them near salt spray like coastal substations or offshore gear it’s worth checking the coating thickness (we normally can provide data on that, but it’s not on the standard spec sheet).

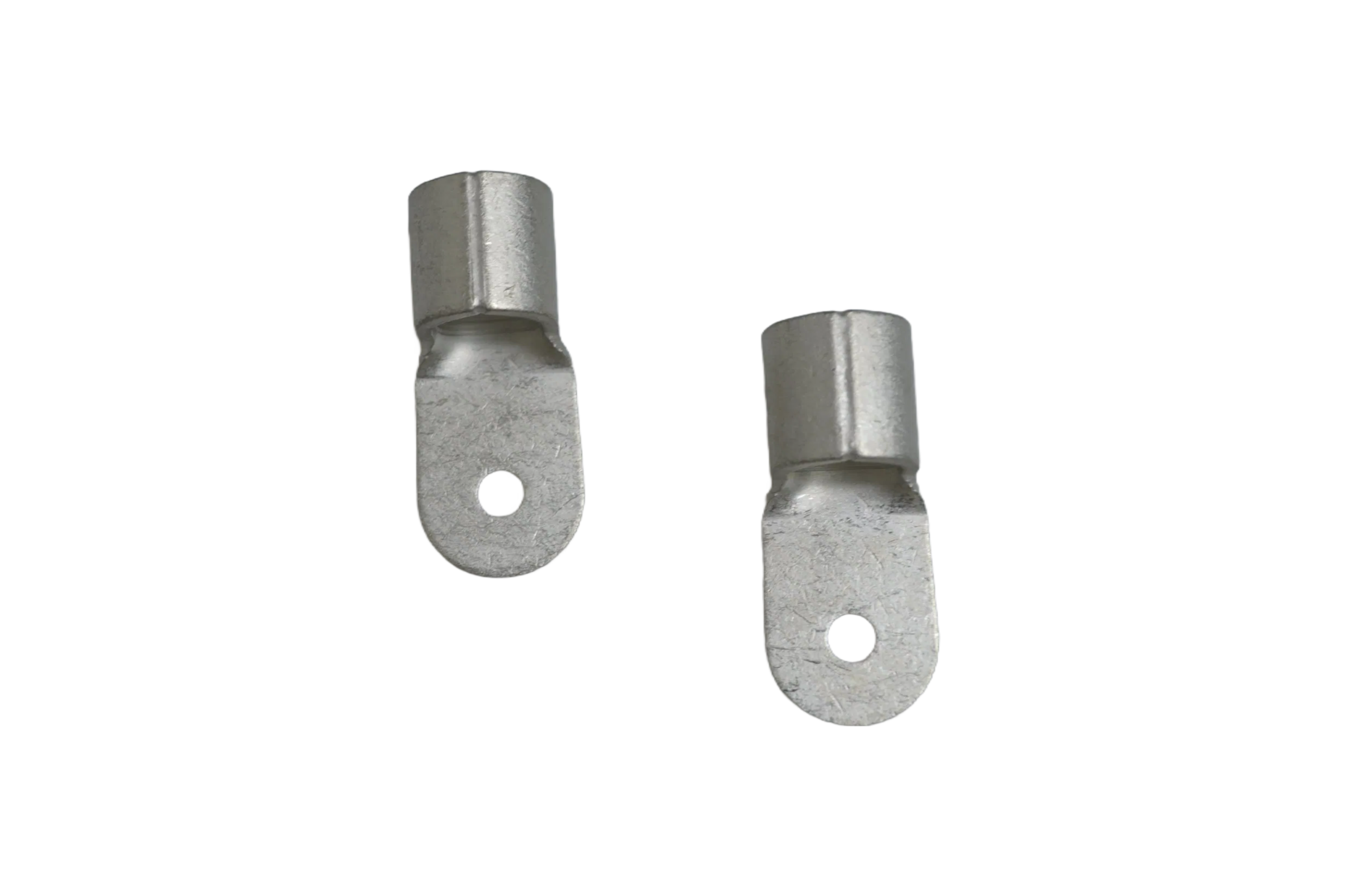

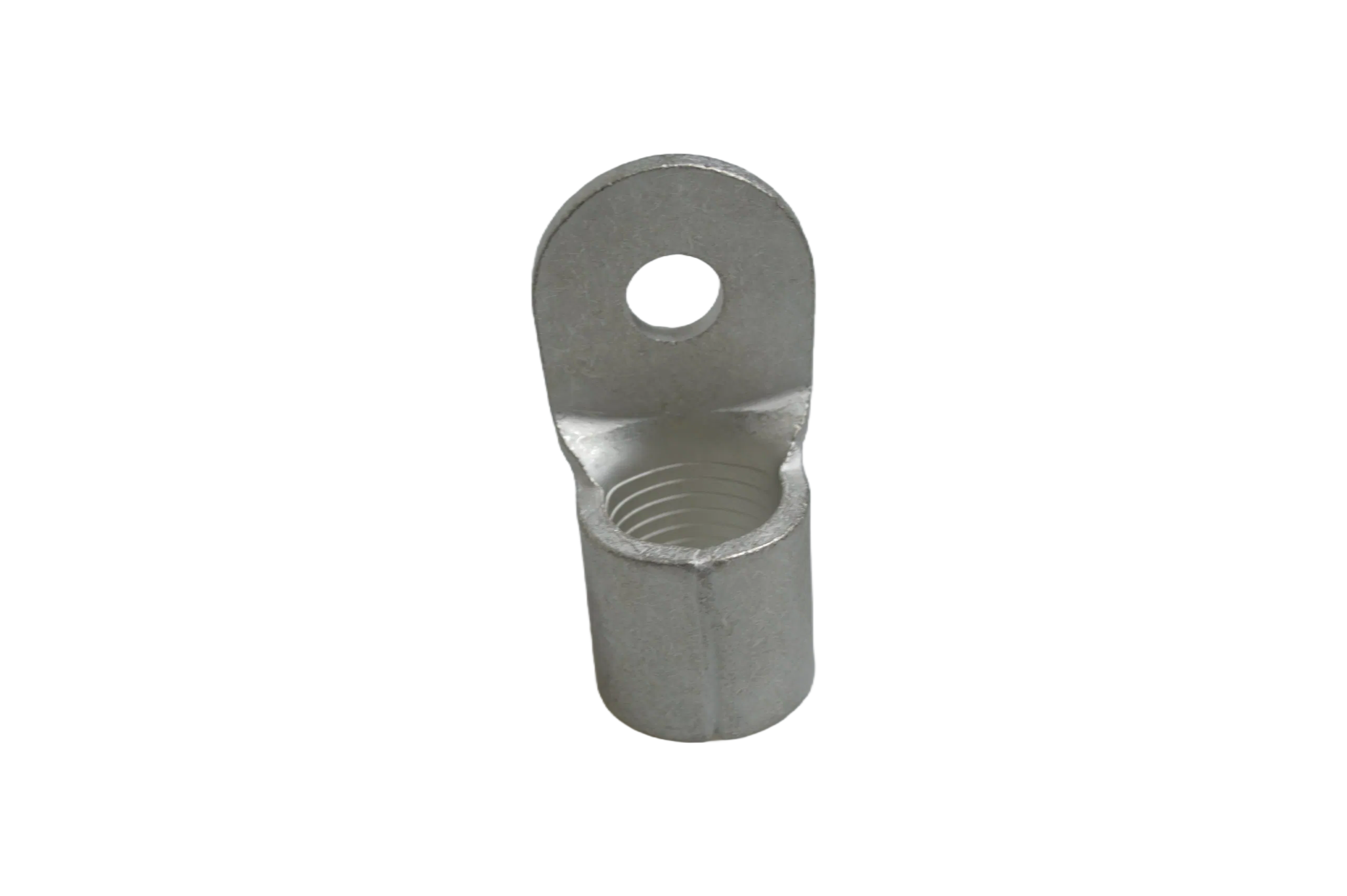

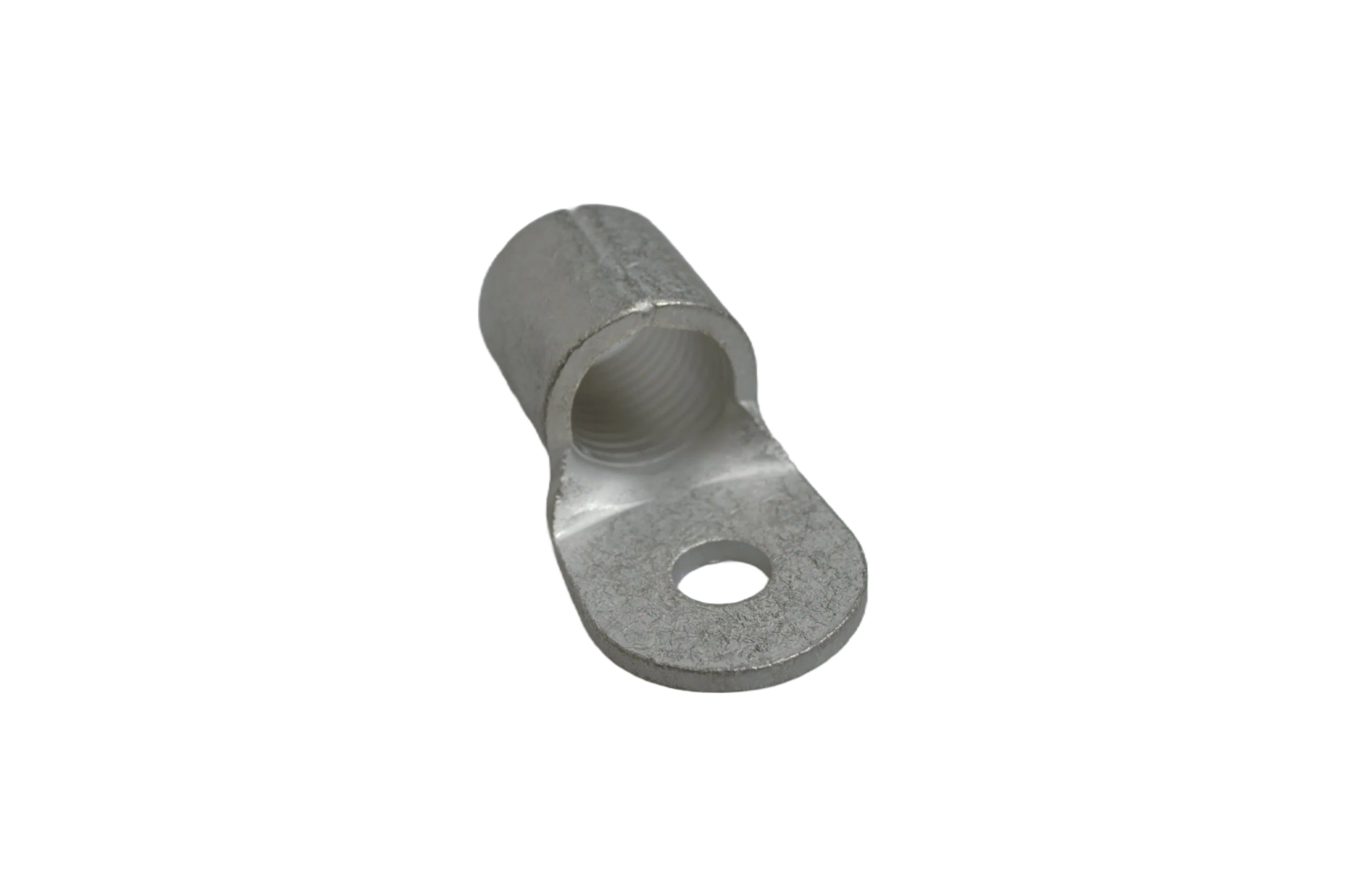

Cold pressing is the standard process for these single-hole non-insulated ring terminals, and what it gives you is better grain structure than hot stamping—about 30% elongation means they crimp without cracking, which a few buyers discovered the hard way with cheaper stamped lugs.

So lead time is usually 20 business days or so for first orders, maybe 50-100 pieces for an MOQ depending on the gauge you need, and the acid washing step adds a day but drops oxide risk noticeably—we typically have the 10-16mm² sizes in stock unless raw copper prices swing suddenly.

Also the standard export packaging stacks neatly for shiping, but if you’re dealing with 630mm² lugs those come in smaller quantities anyway because they’re roughly 4-5 kilograms each.
