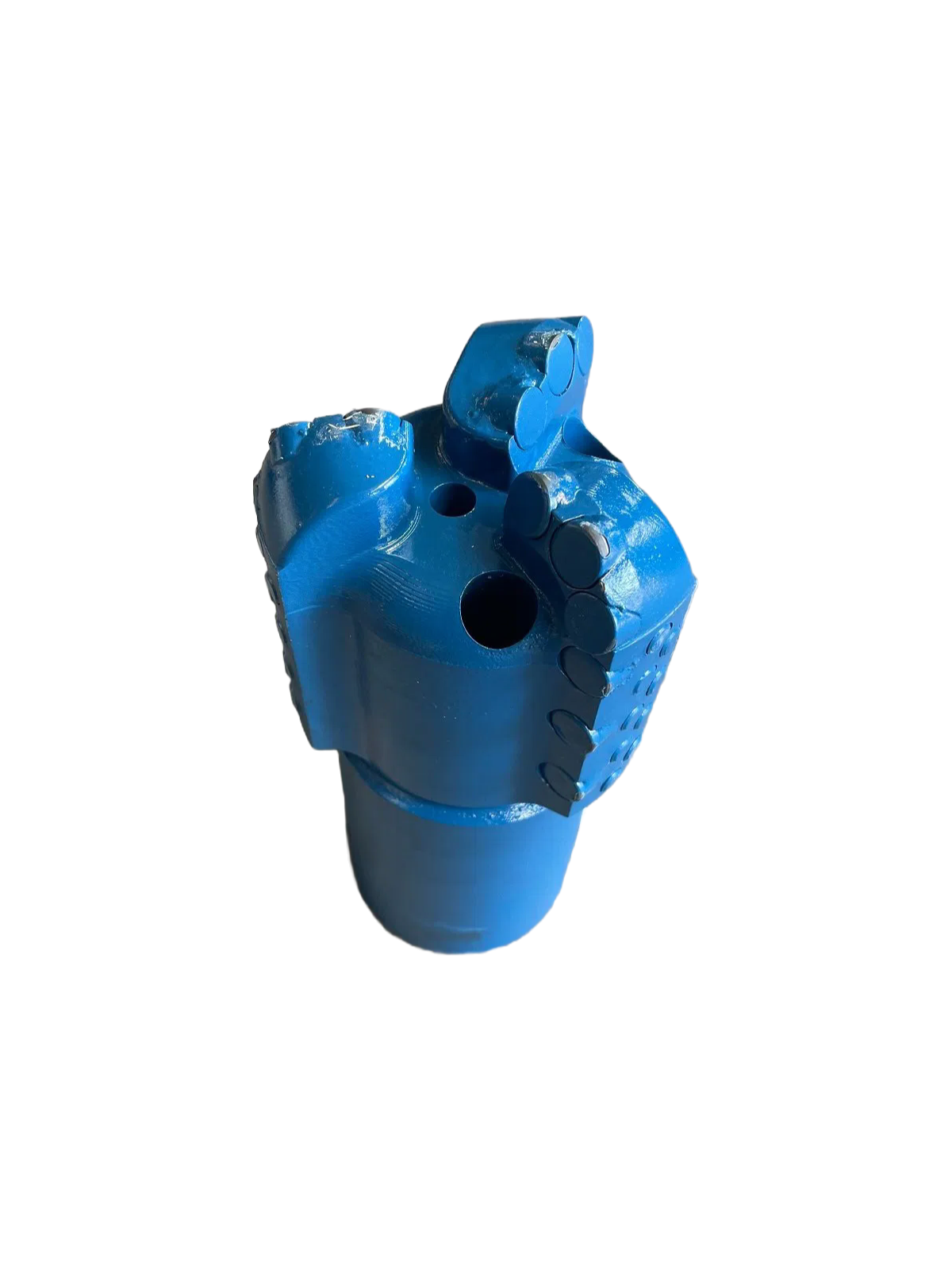

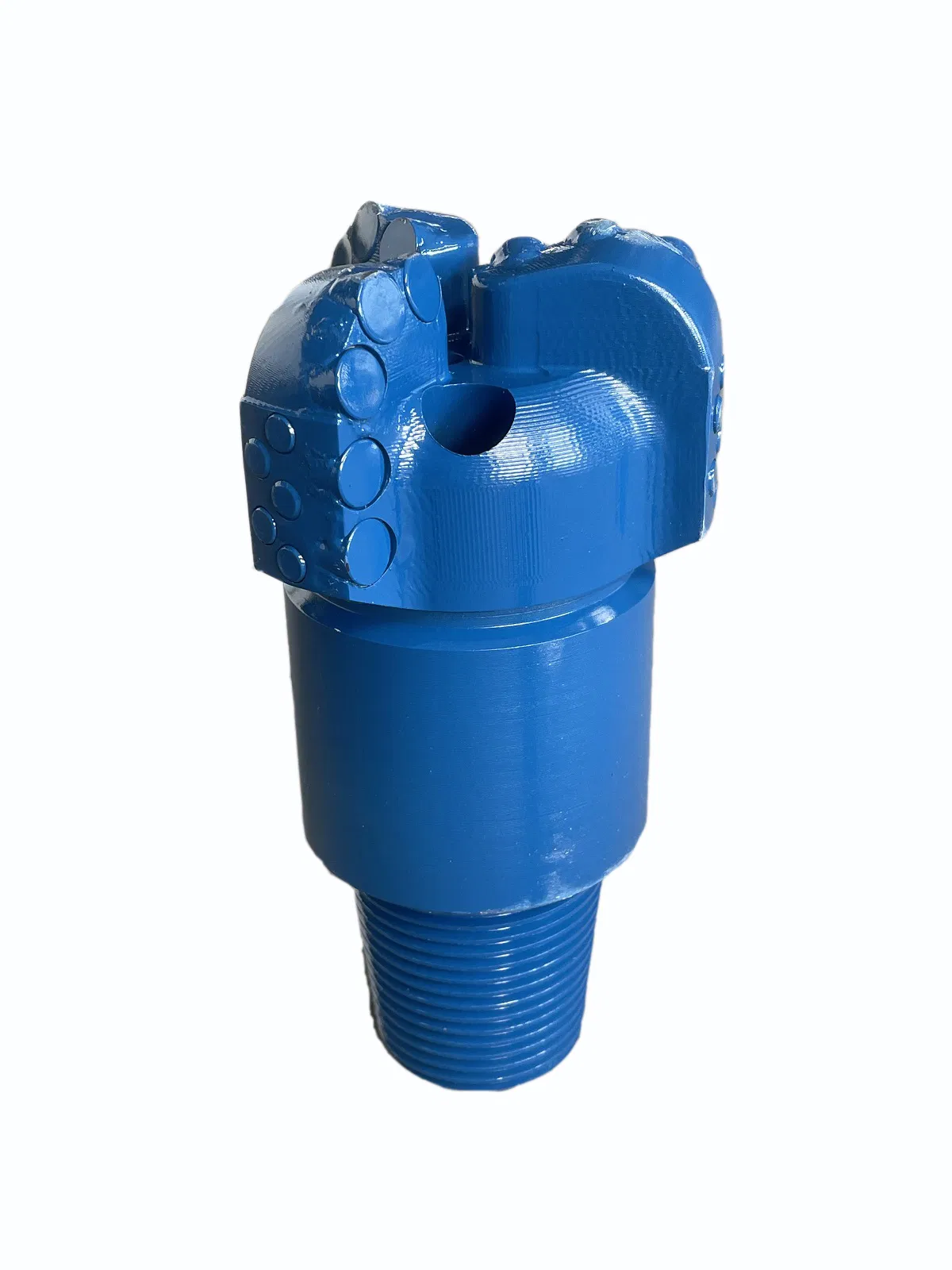

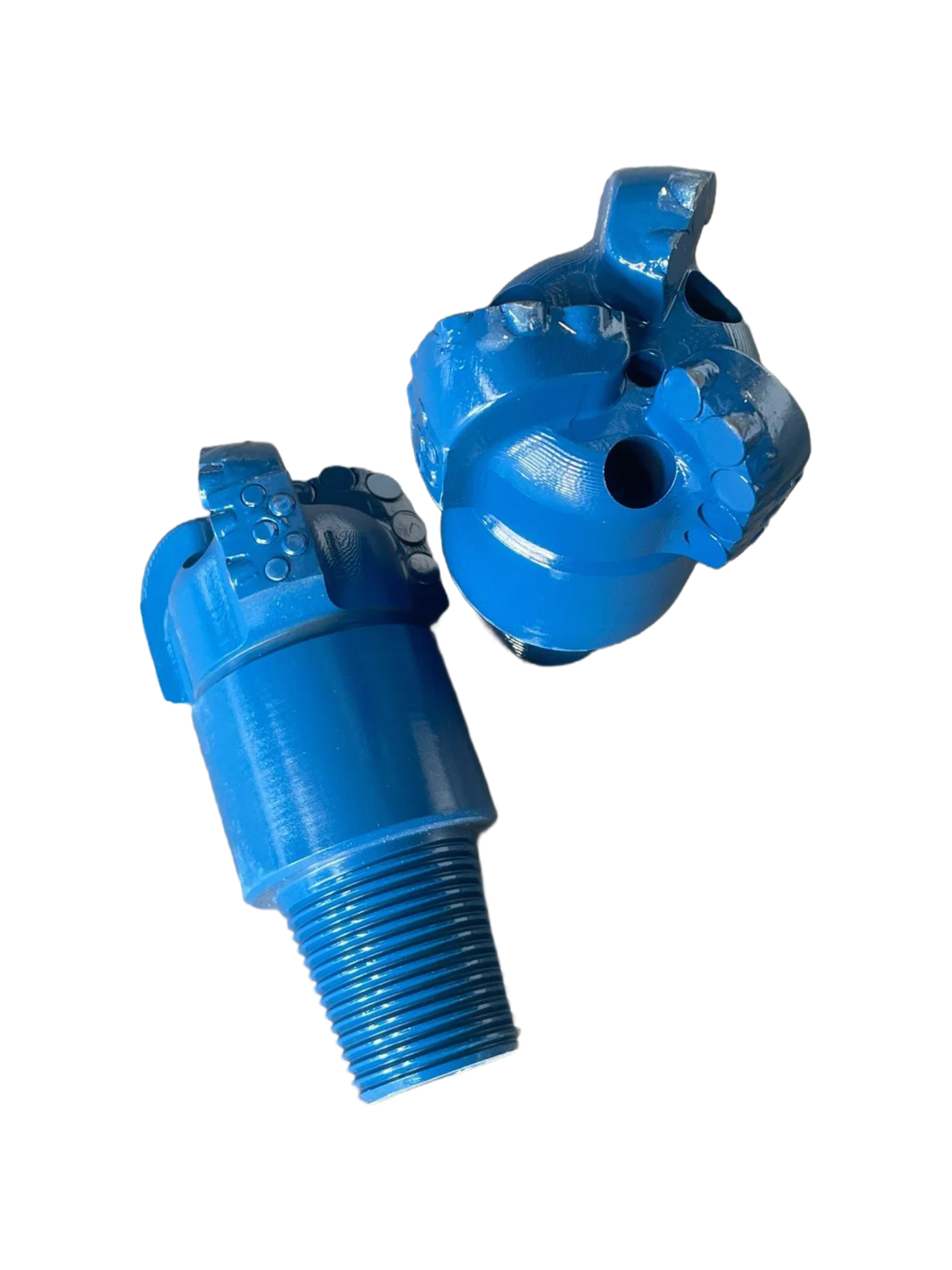

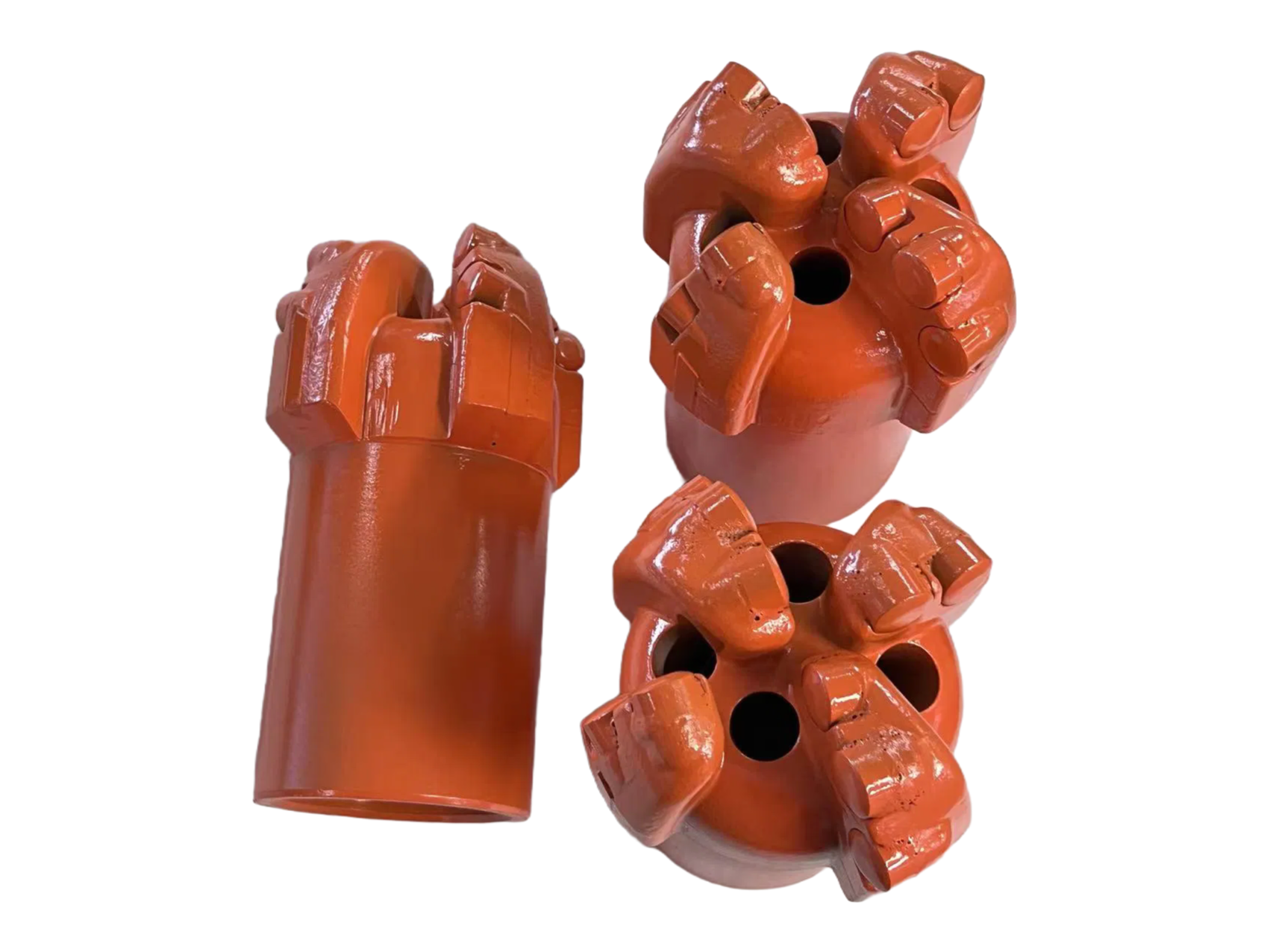

Basically what sets these apart is the cutter grade—we're using premium PDC inserts that actually hold up in fractured formations where cheaper bits lose their edge after a few meters, and the thermal stability means you're not watching the diamond table delaminate when the mud system takes a hit.
The matrix body options handle abrasive interbedded sequences better than steel body for most sandstone-shale transitions, though steel body gives you more impact resistnce if you're running through chert stringers or cobble beds; weight distribution is balanced so the bit doesn't hang on one shoulder, and the blade design channels fluid to prevent balling in sticky clays—usually within 8-10 nozzles depending on the size.
API compliant across the board, but check the IADC code we assign per batch because teh exact profile (016, 117, 217, etc.) shifts with formation targeting—we've run 7 7/8" at 30% less torque in a West Texas pad than the previous suplier's steel body bit, though that's anecdotal form one drilling superintendent.
Lead time for custom work runs about 6-8 weeks (depending on the cycle for the steel body), and we typically hold stock on the common sizes like 8 1/2", 12 1/4", and 17 1/2" if you need 50 units or so within two weeks—MOQ is 5 bits for standdard diameters, but our company can mix sizes in one wooden case if you're consolidating a multi-pad order.
Not ideal for high-RPM top-drive systems where you'd want a more aggressive backrake angle, and the premium cutters actually increase cost per meter if you're just drilling soft claystone all day—in that case a lower-grade PDC or even a roller cone would save you money.
We can do single-bit orders for stock sizes, but custom builds typically require a minimum of 3-5 pieces depending on the design. Just let us know the specs and quantity you're working with.
All bits are API compliant, and we include material certificates and a dimensional inspection report with each shipment. Third-party testing can also be arranged if needed.
Yes, we offer full customization on blade count, cutter layout, and fluid flow channels to match your target formation. Just share the formation data or your existing design parameters.
For a custom steel body bit around 8-12 inches, lead time is usually 3-4 weeks from design approval. Standard sizes ship faster, often within 10-15 days.
Each bit comes in a sturdy wooden case with internal bracing to prevent movement during transit. The case is also sealed against moisture to protect the cutters on longer shipments.
