H07RN-F is a highly flexible and durable rubber insulated cable suitable for a wide range of low voltage applications. The cable is constructed with a stranded bare copper conductor compliant with IEC 60228, EN 60228, VDE 0295 class 5, ensuring excellent conductivity and flexibility. The insulation is made of synthetic rubber (EI4 as per DIN VDE 0282 part 1 + HD 22.1), providing robust protection against environmental factors. The jacket is also synthetic rubber (EM2 acc. to DIN VDE 0282 part 1 + HD 22.1) in black color, enhancing durability and safety.
This cable is rated for a nominal voltage of 450/750 volts with a testing voltage of 2500 volts according to DIN VDE 0282 part 2 + HD 22.2. It operates efficiently within a temperature range of -25°C to +60°C, making it suitable for various climatic conditions. The minimum bending radius is 15 times the outer diameter, ensuring easy installation in tight spaces. Applications include overhead, underground, construction, and industrial uses, where flame retardancy and flexibility are critical.

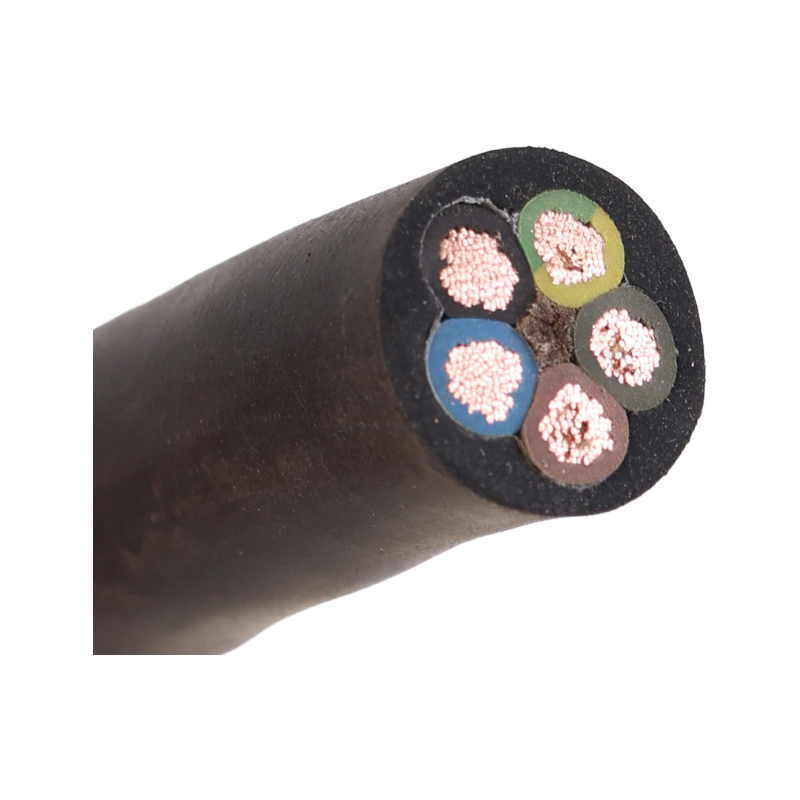

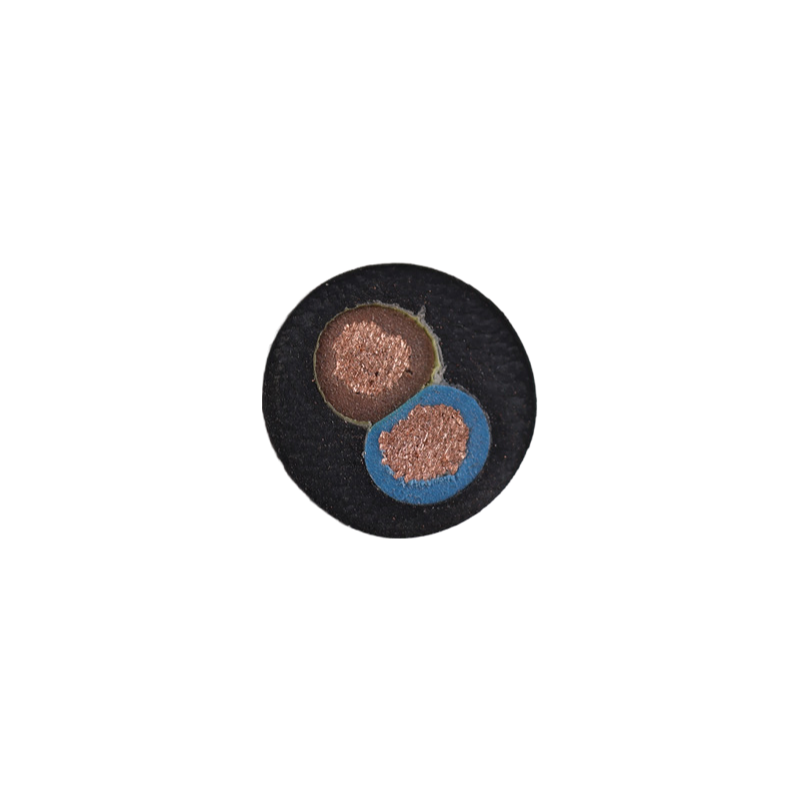

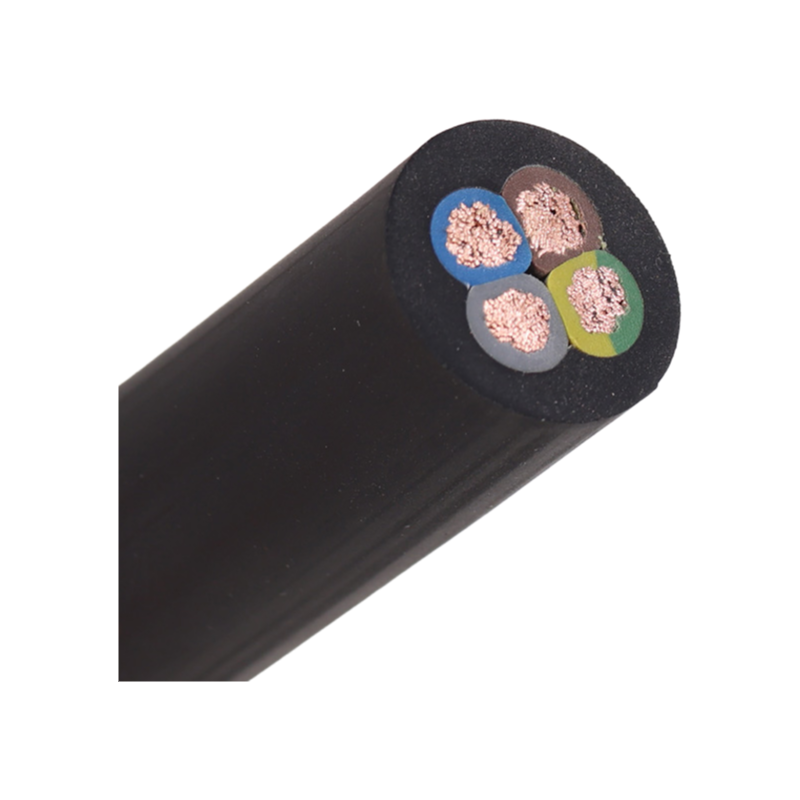

H07RN-F cables are available in multiple configurations, from 1 to 5 cores, with nominal sections ranging from 1.5mm² to 4mm² as detailed in the technical specifications. Each variant is designed to meet specific resistance and diameter requirements, ensuring optimal performance for different electrical setups. The cable is certified with ISO9001, CE, and CCC, guaranteeing quality and safety standards. It is ideal for bulk orders, custom specifications, and OEM requirements, with free samples available for quality verification.
