Automatic Door Vertical Plasma Sterilizer with H202 Fungicide and 50°C Sterilization Temperature

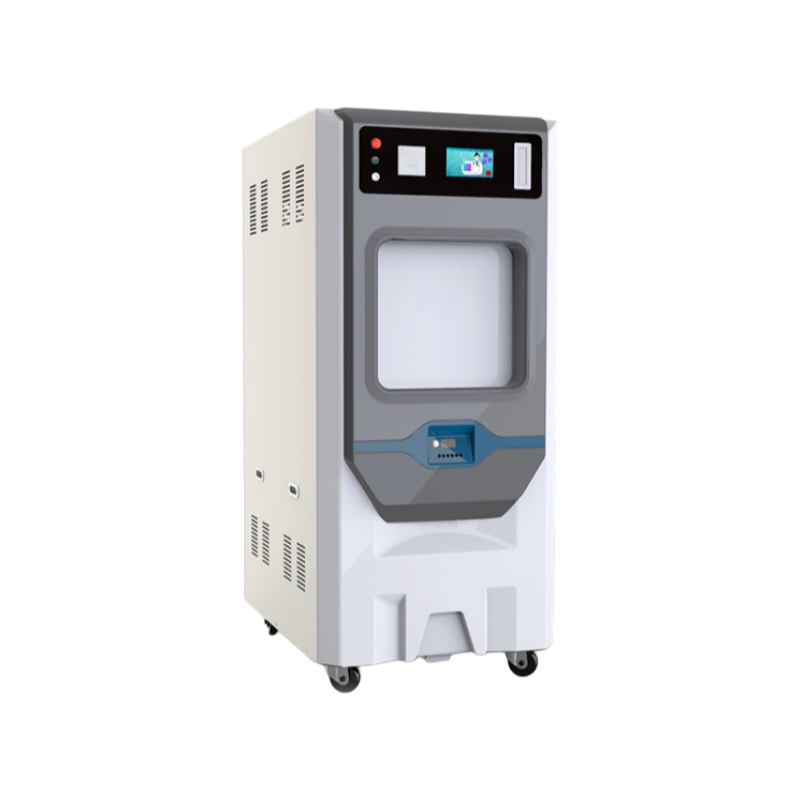

The THR-PSD130-D Low Temperature Plasma Sterilizer is a state-of-the-art device engineered for effective sterilization in medical and research environments. It utilizes low-temperature plasma technology combined with hydrogen peroxide (H202) to achieve thorough sterilization without damaging sensitive equipment. The sterilizer features an automatic electric lift door with infrared sensing for user convenience and safety, including a door guard gripper function to prevent accidents.

With a generous inner tank size of 750×450×400mm and an available capacity of 135L, this model supports efficient processing of medical instruments and other items. The sterilization process operates at a controlled temperature of 50°C, with cycles ranging from 30 to 50 minutes depending on the selected program. The device includes both enhanced and fast cycle options, ensuring flexibility for different sterilization needs.

Constructed with high-quality materials, the sterilization chamber is made from 304 anticorrosive stainless steel or aluminum 5052, thickness ≥8mm, offering excellent thermal conductivity and durability. The outer box is crafted from carbon steel with a powder-coated finish and glass fiber reinforcement for added strength and corrosion resistance. The electrode mesh and sealed door are made from aluminum alloy 5052, ensuring longevity and performance.

The control system is built around a Siemens PLC and a 7-inch color touch screen, providing intuitive operation and real-time monitoring of temperature, pressure, and cycle status. Data logging is comprehensive, with a micro printer and U disk storage capable of holding up to 1 million sterilization records. Additional features include a biological indicator culture device for effect verification, pressure and temperature sensors from Japan for precision, and an oil mist filtration system to maintain environmental safety.

This sterilizer is designed with multiple protection mechanisms, including over-voltage and over-temperature alarms, displayed clearly on the LCD screen for quick troubleshooting. It is certified CE and ISO13485, complying with international standards for medical devices. Ideal for hospitals, laboratories, and manufacturing facilities, the THR-PSD130-D ensures reliable, efficient, and safe sterilization processes.
