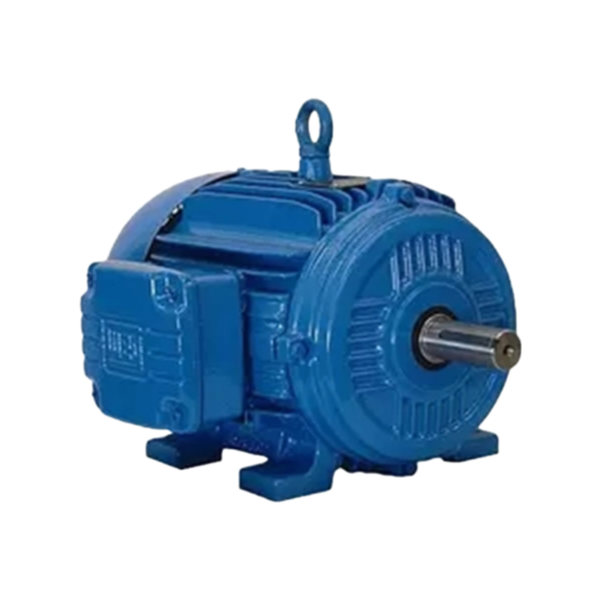

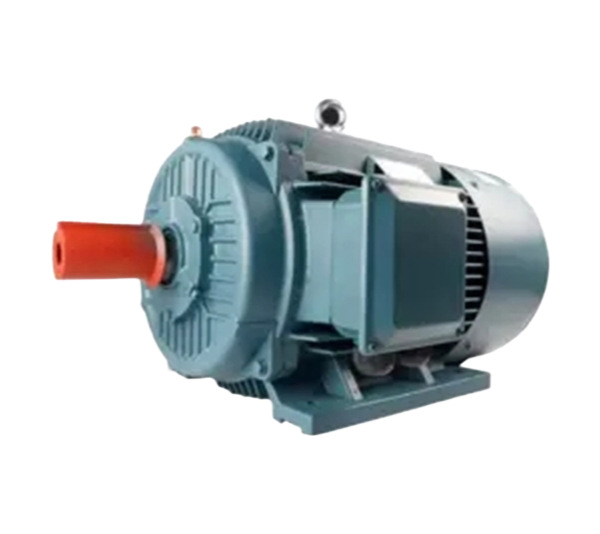

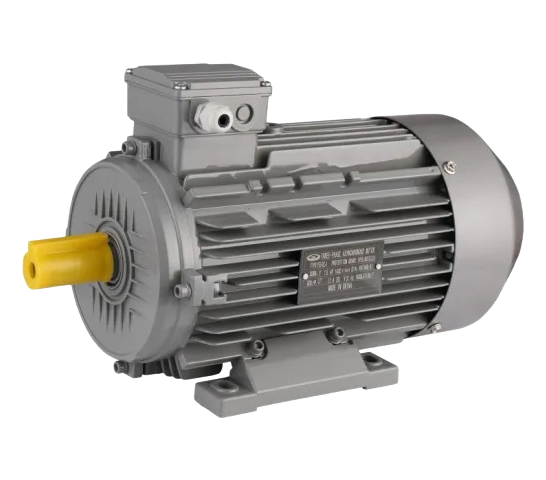

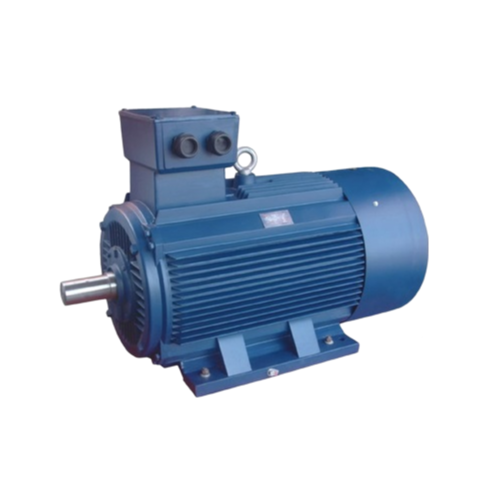

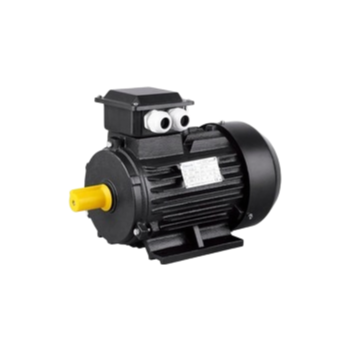

High Efficiency Y Series Three-Phase Asynchronous AC Motor for Industrial Applications

The Y Series Three-Phase Asynchronous AC Motor is designed for optimal energy efficiency and reliable performance in industrial applications. With compliance to international efficiency standards including IE3 classification, this motor series offers superior power output while minimizing energy consumption.

Available in multiple power ratings from 0.37kW to 400kW (1HP-460HP), the motor features a robust construction with options for cast iron, aluminum, steel or stainless steel housing materials. The motor operates at various speeds including 740rpm, 960rpm, 1400rpm and 2800rpm, with multiple pole configurations (2, 4, 6, 8, 10 poles) to suit different application requirements.

The motor comes with copper wire winding and offers multiple protection classes (IP22 to IP66) for different environmental conditions. It supports various mounting types including B3, B5, B14, B34, B35 and C Face configurations. The insulation class options include E, B, F and H for different temperature requirements.

Compatible with multiple voltage standards (220V-660V) and frequencies (50Hz/60Hz), this motor series meets international standards including IEC, UL, GOST and DIN. The work duty options include S1 (continuous), S2 (short-time) and S3 (intermittent periodic) operation modes.

With certifications including ISO9001 and CCC, the Y Series motor is suitable for various industrial applications requiring reliable power transmission with high energy efficiency. The motor's design ensures optimal performance in normal operating conditions while meeting the latest energy efficiency regulations.
