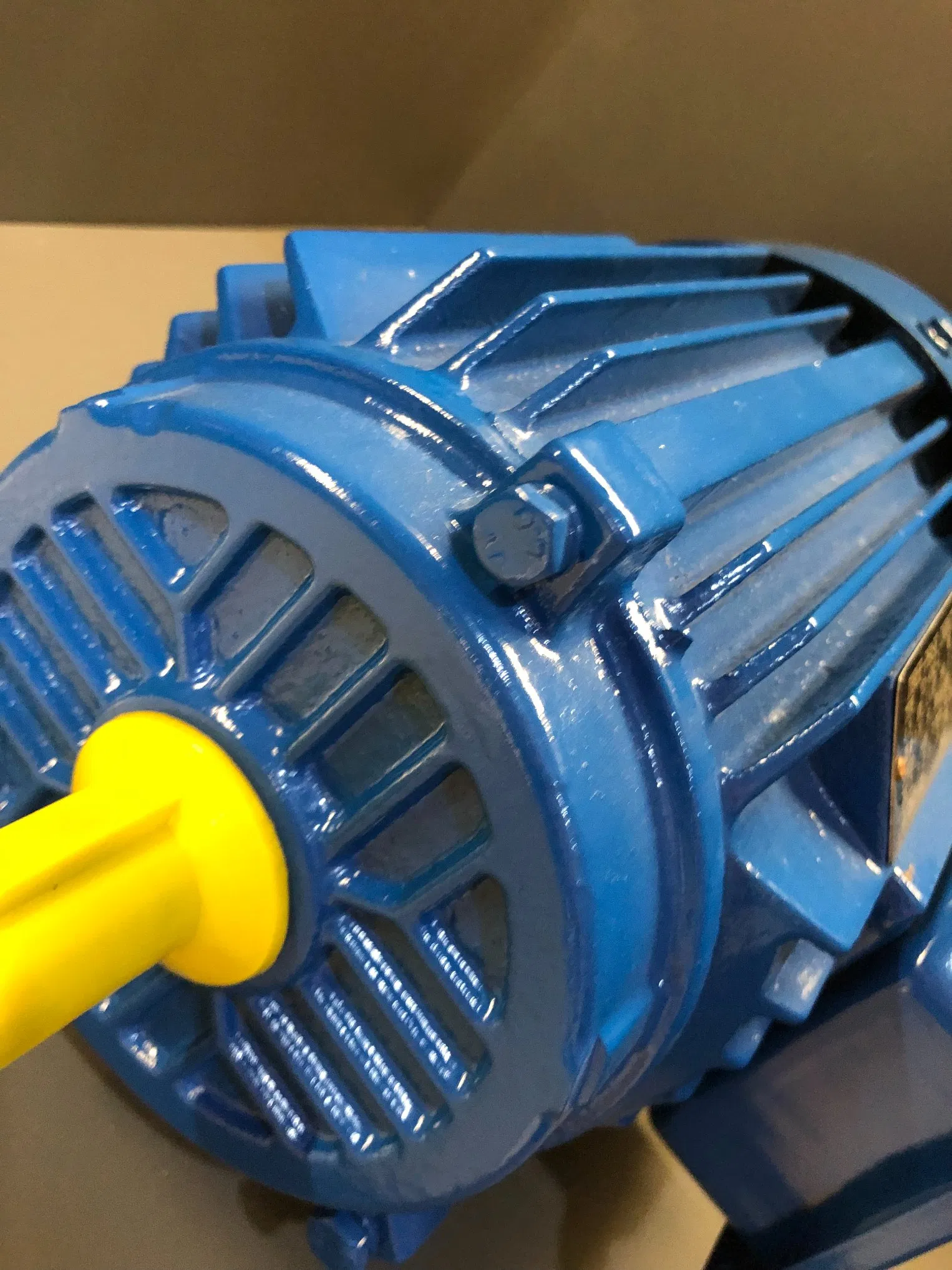

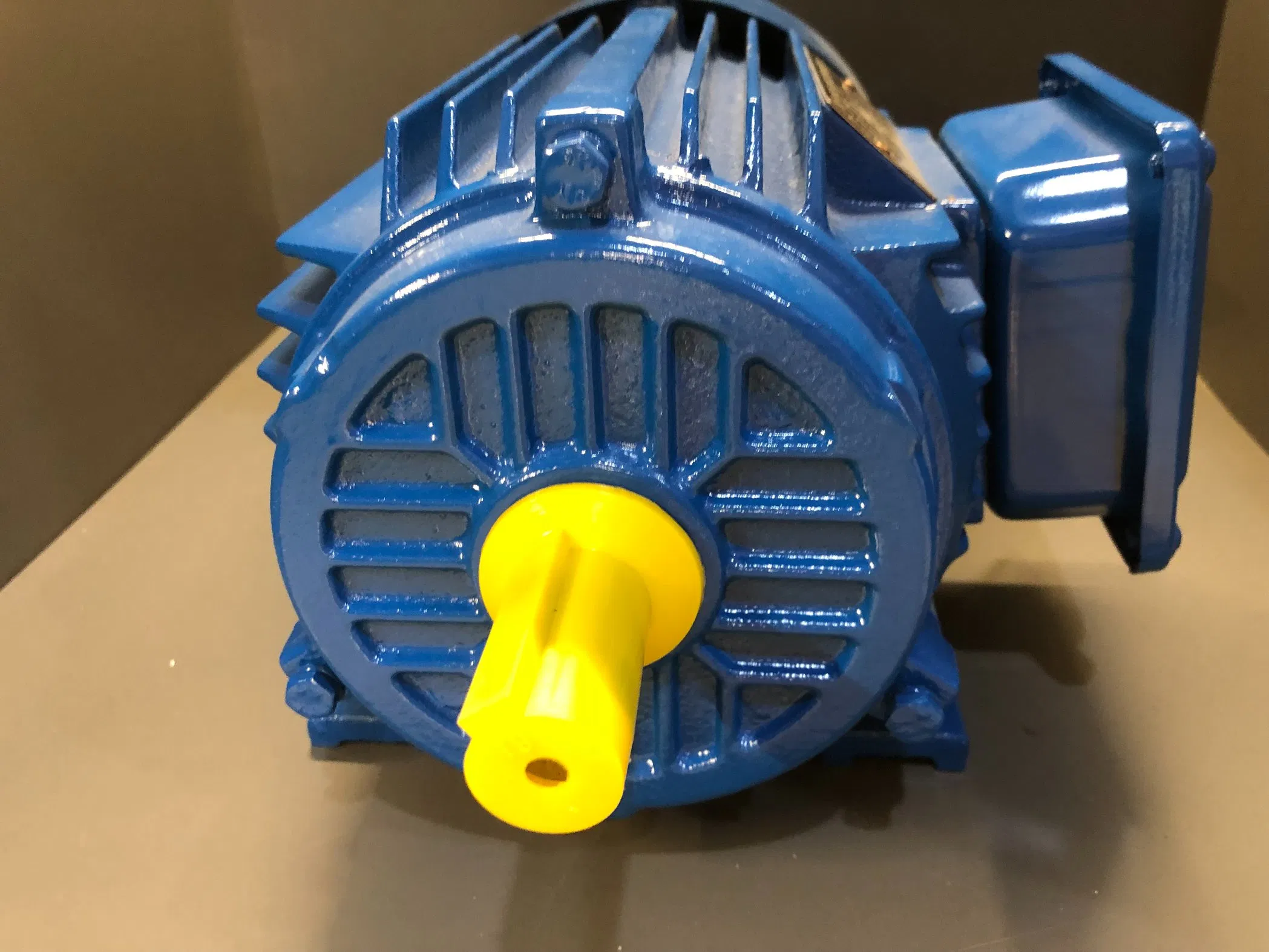

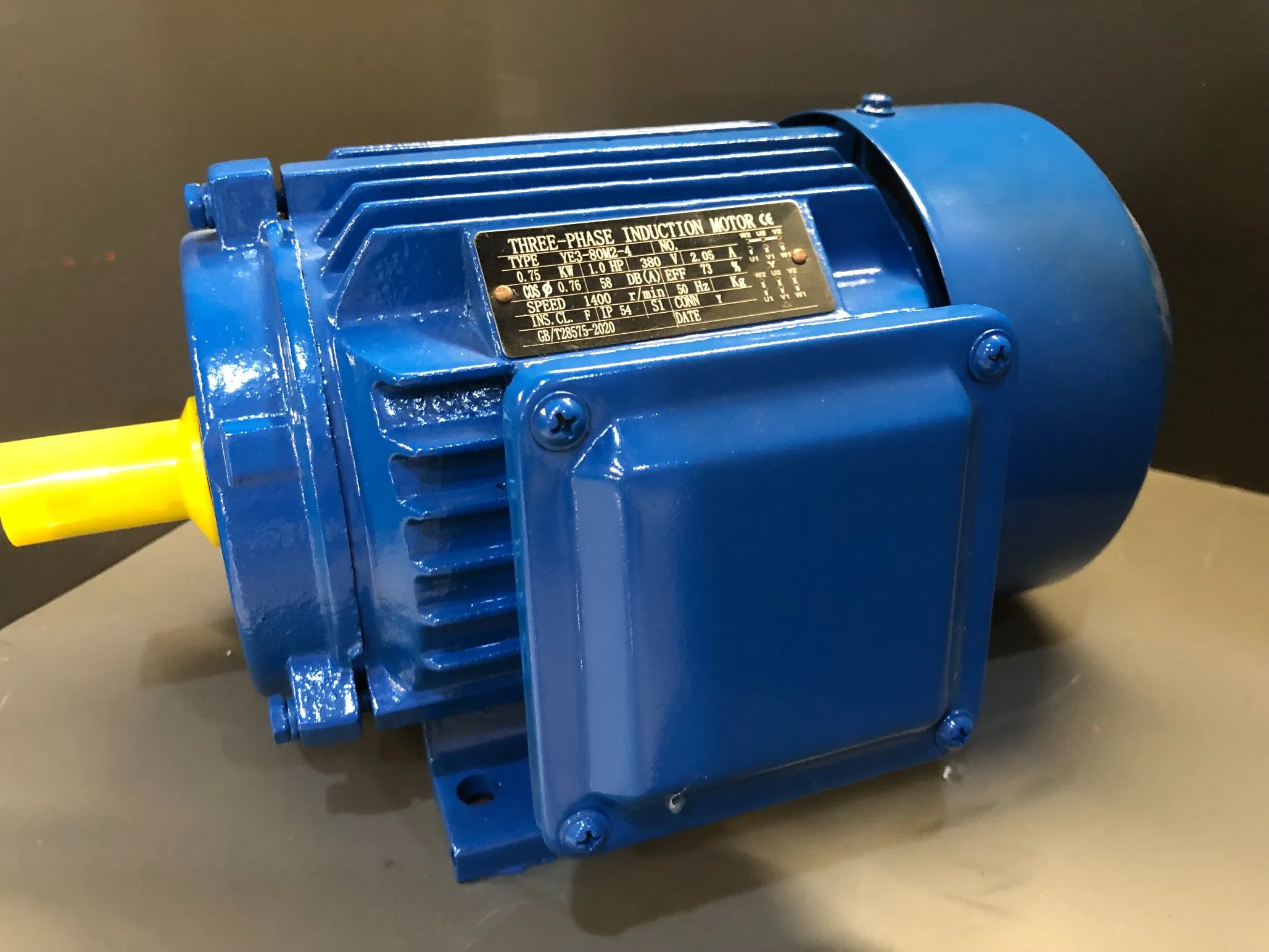

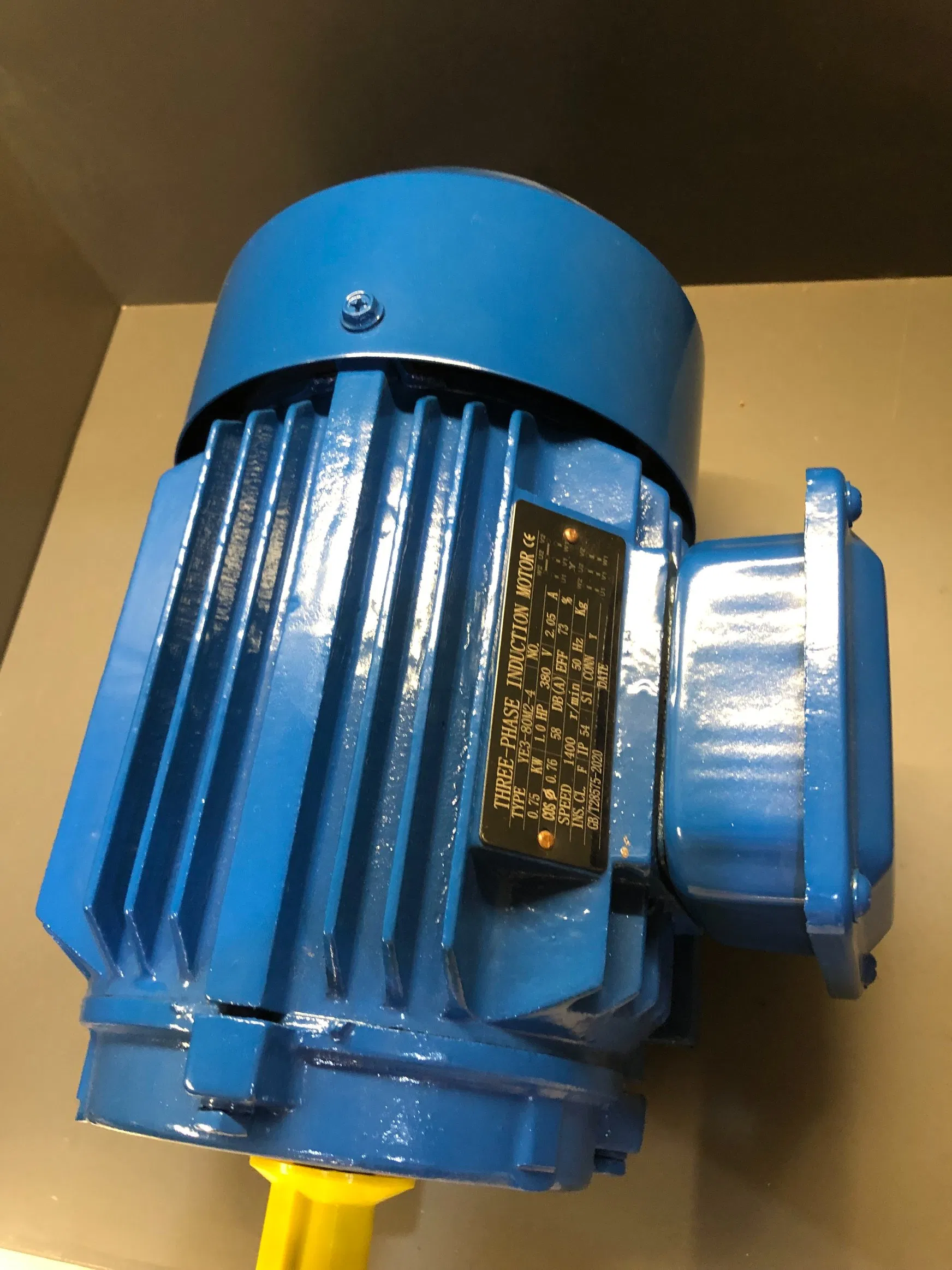

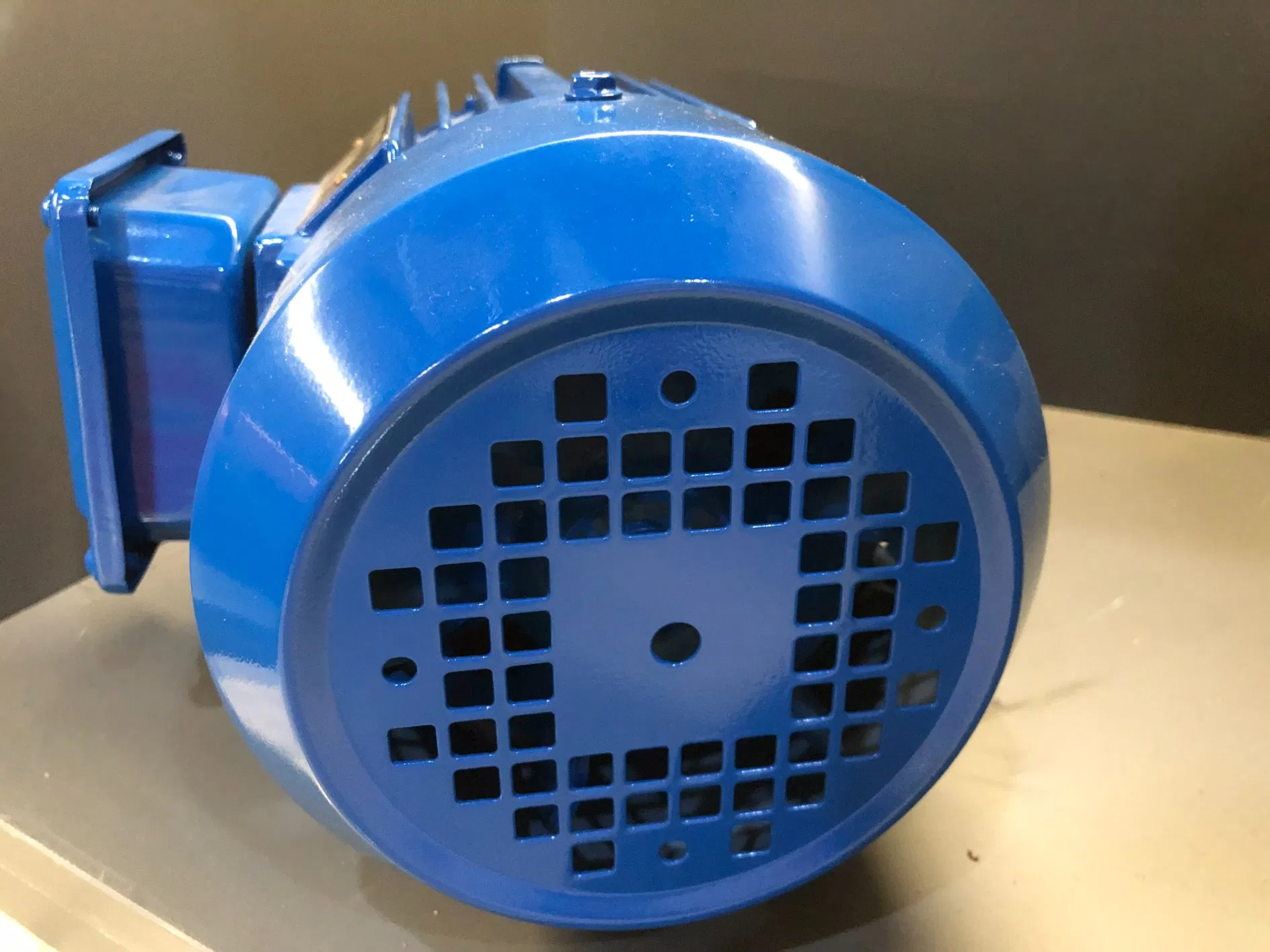

The YE3 series three phase asynchronous motor is designed for industrial applications requiring high efficiency and reliable performance. Available in both cast iron and aluminum housing options to meet different application requirements.
The cast iron housing version provides excellent durability and complete production specifications from 80-355 frame sizes. The aluminum housing version offers lightweight construction (80-132 frame sizes) with superior heat dissipation and reduced vibration.
This motor series complies with GB18613-2012 energy efficiency standards (Level 3) and international IEC60034-30 IE2 requirements, making it an energy-saving solution for various industrial applications.
Typical applications include: fans, water pumps, air compressors, injection molding machines, transportation equipment, mixing equipment, printing machinery, agricultural machinery, and food processing equipment. Suitable for environments without flammable, explosive or corrosive gases.
The motor features B class insulation, IP44 protection grade, and IC411 cooling type. Standard operating conditions include ambient temperatures from -15°C to 40°C and altitudes up to 1000m. Available in both 50Hz and 60Hz versions with S1 continuous duty operation.
