Customizable IP55 Protection Three-Phase Asynchronous Electric Motor with 100% Copper Winding Customizable IP55 Protection Three-Phase Asynchronous Electric Motor with 100% Copper Winding
Customizable IP55 Protection Three-Phase Asynchronous Electric Motor with 100% Copper Winding Customizable IP55 Protection Three-Phase Asynchronous Electric Motor with 100% Copper Winding
Customizable IP55 Protection Three-Phase Asynchronous Electric Motor with 100% Copper Winding Customizable IP55 Protection Three-Phase Asynchronous Electric Motor with 100% Copper Winding
Customizable IP55 Protection Three-Phase Asynchronous Electric Motor with 100% Copper Winding Customizable IP55 Protection Three-Phase Asynchronous Electric Motor with 100% Copper Winding
Customizable IP55 Protection Three-Phase Asynchronous Electric Motor with 100% Copper Winding Customizable IP55 Protection Three-Phase Asynchronous Electric Motor with 100% Copper Winding
Customizable IP55 Protection Three-Phase Asynchronous Electric Motor with 100% Copper Winding Customizable IP55 Protection Three-Phase Asynchronous Electric Motor with 100% Copper Winding

Customizable IP55 Protection Three-Phase Asynchronous Electric Motor with 100% Copper Winding

US$ 100.00 ~ 600.00
Min.Order: 2
Product origin: Taizhou, Zhejiang, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 0 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : YX3-180L-4
  • Application : Industrial, Universal
  • Motor Type : Three-Phase Asynchronous
  • Power Range : 0.17HP to 430HP
  • Frame Size : 56 to 355
  • Mounting Types : B3, B5, B14, B34, B35
  • Voltage Options : 110V, 120V, 220V, 240V, 380V, 400V, 660V
  • Frequency : 50Hz/60Hz
  • Protection Class : IP44, IP54, IP55
  • Insulation Class : F (H optional)
  • Cooling Method : IC411
  • Rotor Type : Squirrel Cage
  • Starting Method : Direct-on-line, Y-Δ
  • Duty Cycle : S1 (Continuous), S4
  • Winding Material : 100% Copper
  • Stator Core : Silicon Steel DR510/800/600/360
  • Shaft Material : 45# Steel (Stainless Steel Optional)
  • Certifications : ISO9001, CE, CCC, CQC
  • Warranty : 12 Months

Our YX3 series three-phase asynchronous electric motors are designed for industrial applications with power range from 0.17HP to 430HP. These motors feature high efficiency and reliable performance for various industrial machinery applications.

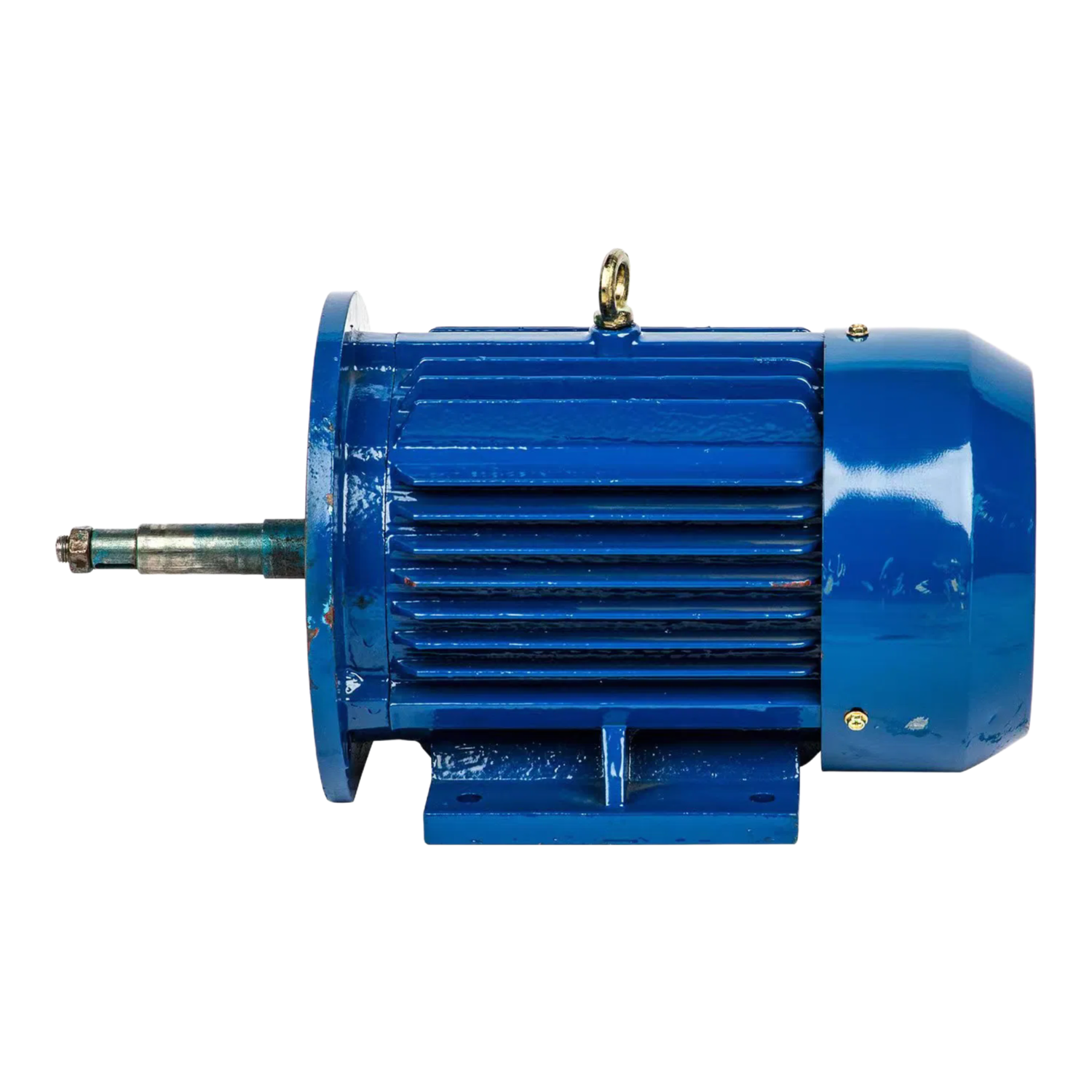

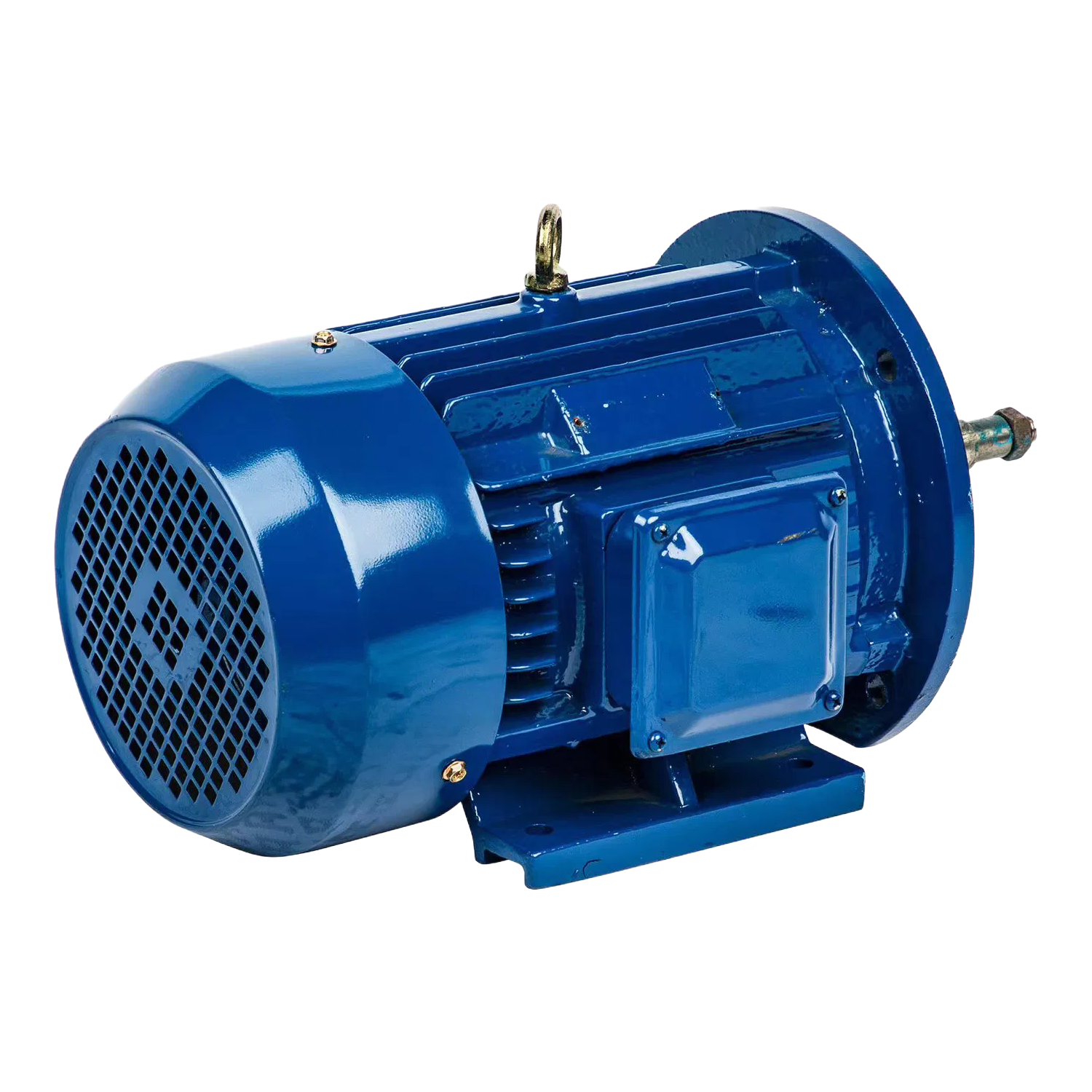

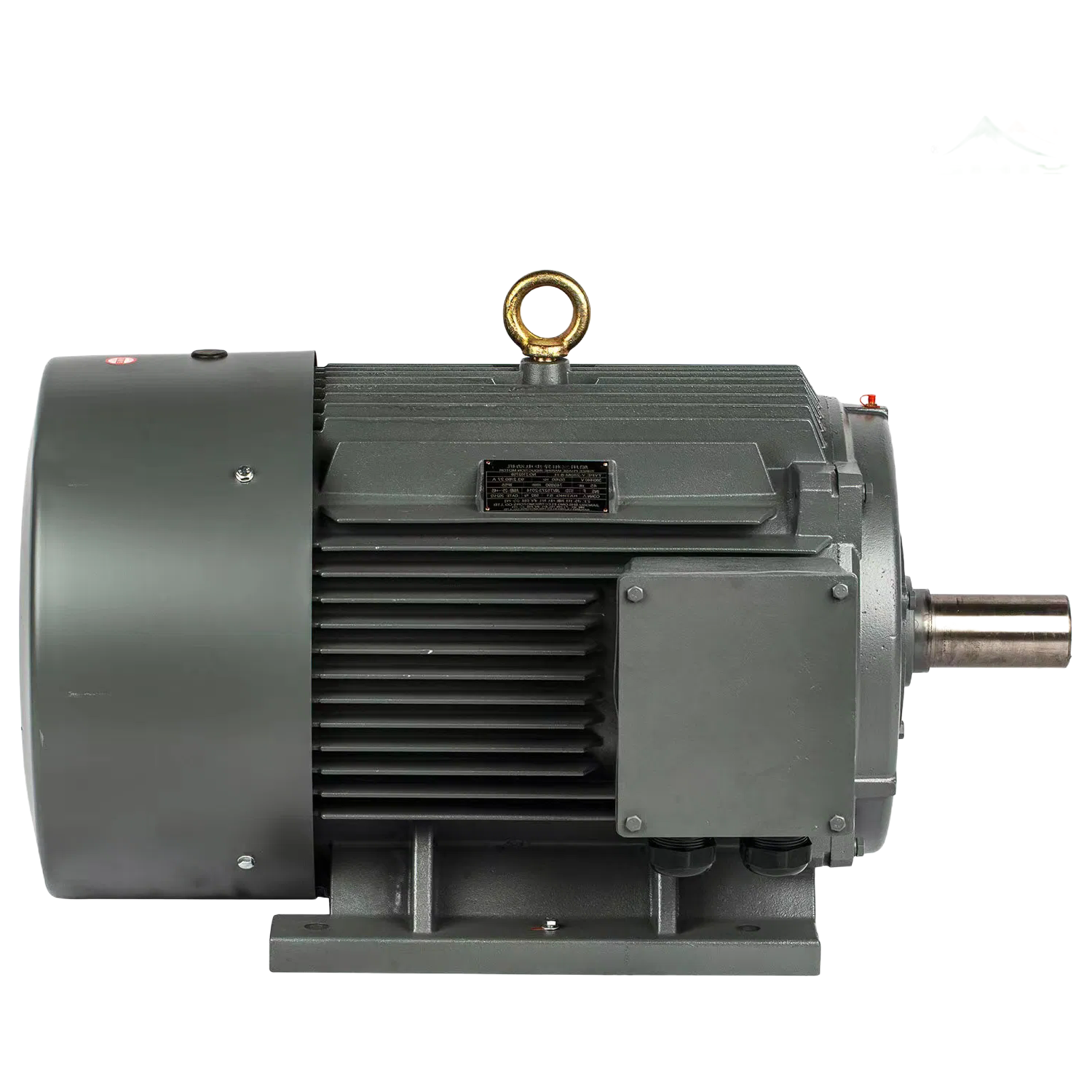

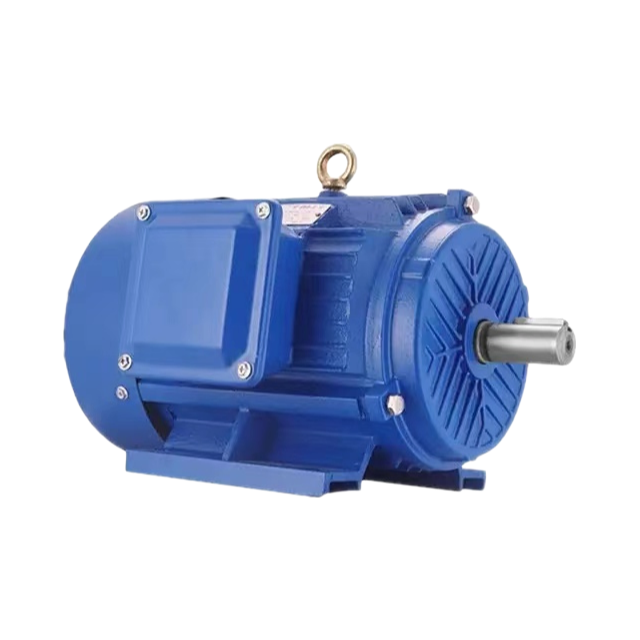

YX3 series electric motor

The motors are constructed with premium materials including 100% copper winding and high quality silicon steel sheets (DR510, 800, 600, 360 standard) for optimal performance and durability. The stator undergoes vacuum impregnation process to ensure excellent insulation properties.

Motor internal structure

Available in various mounting types including B3, B5, B14, B34, B35 to suit different installation requirements. The motors can be customized with different voltage options (110V, 120V, 220V, 240V, 380V, 400V, 660V) and frequency (50Hz or 60Hz).

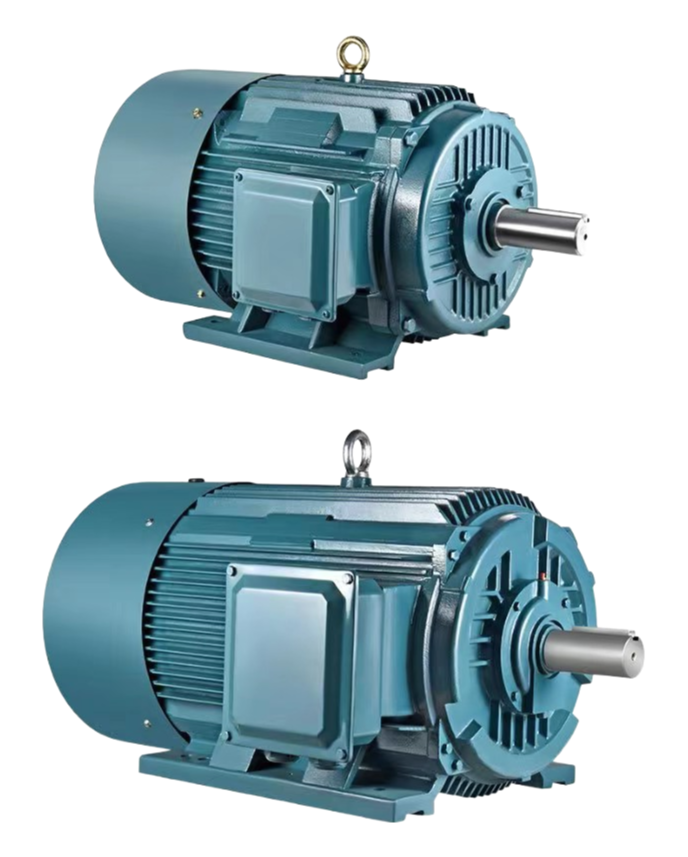

Motor mounting options

Our production process includes strict quality control at every stage from material selection to final testing. Each motor undergoes comprehensive testing including output power, voltage, current measurement under different load conditions (no-load, 50% load, 75% load, 100% load) before shipment.

Motor testing process

The motors feature class F insulation (class H optional) and various protection levels including IP44, IP54, IP55. With corrosion resistant paint finish and sturdy construction, these motors are built for long service life in demanding industrial environments.
