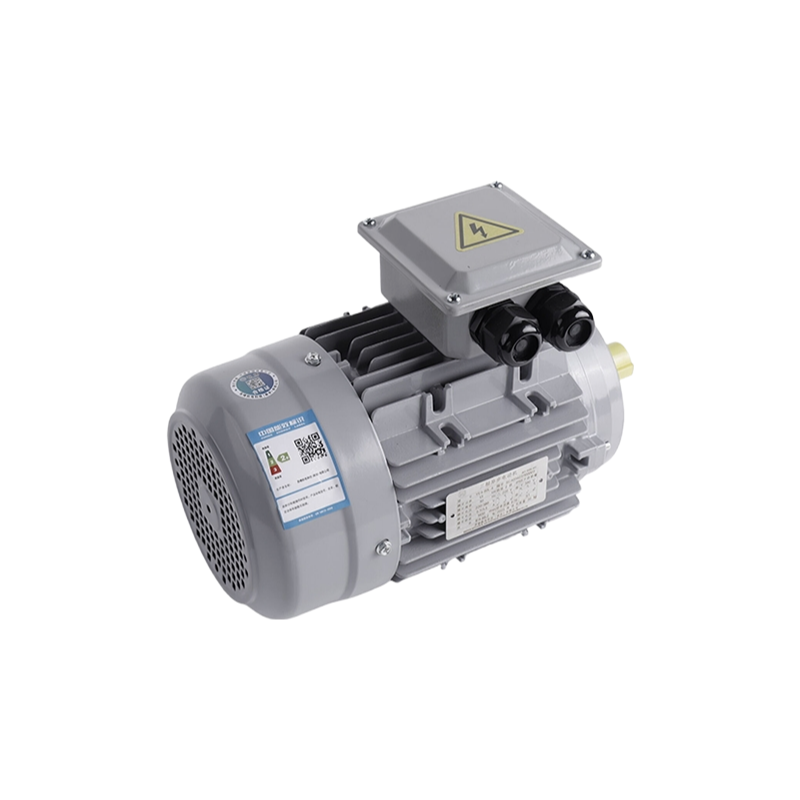

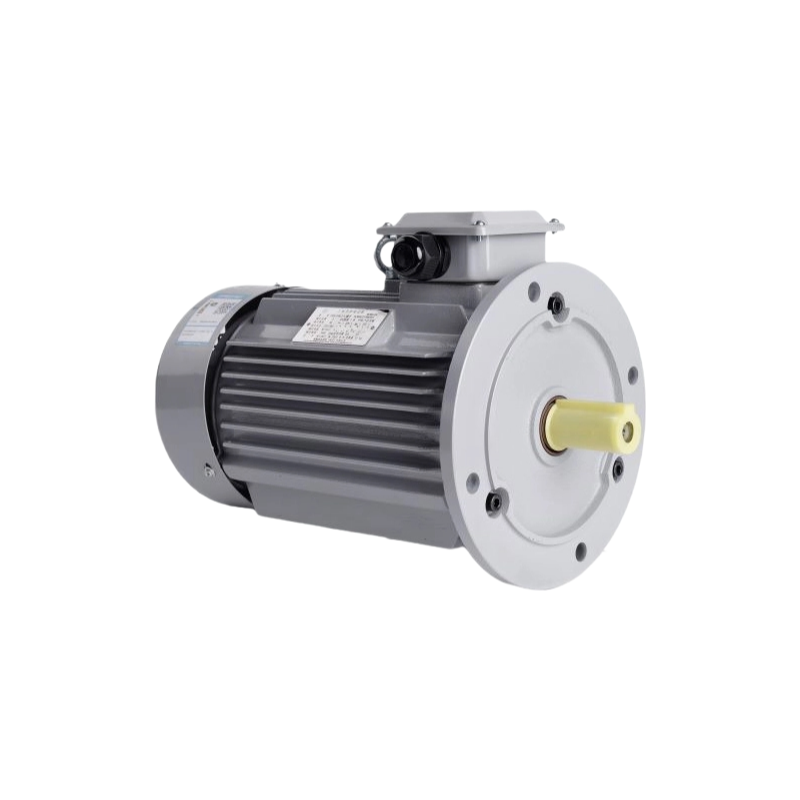

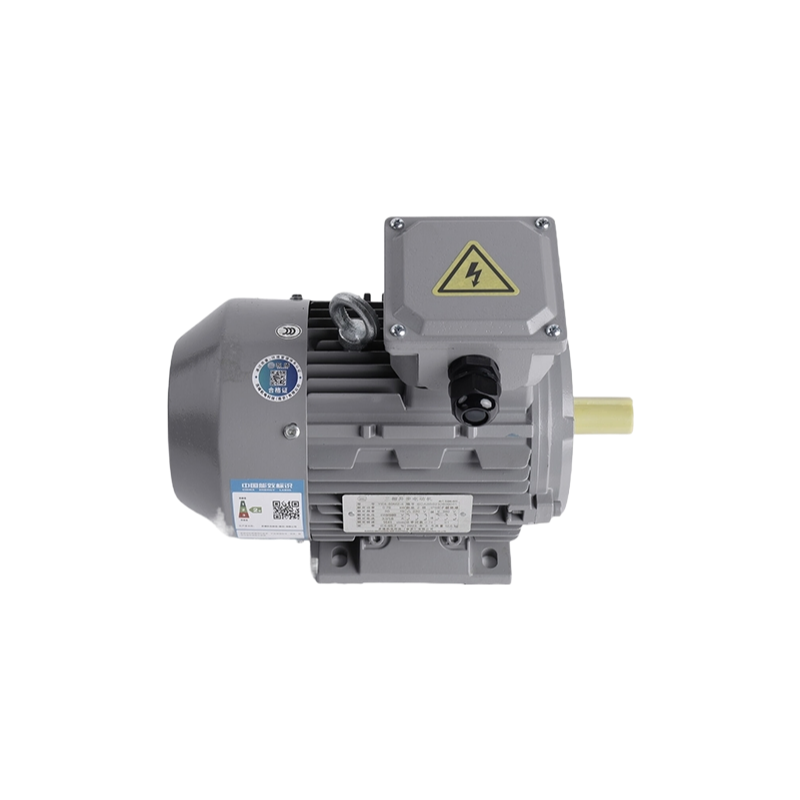

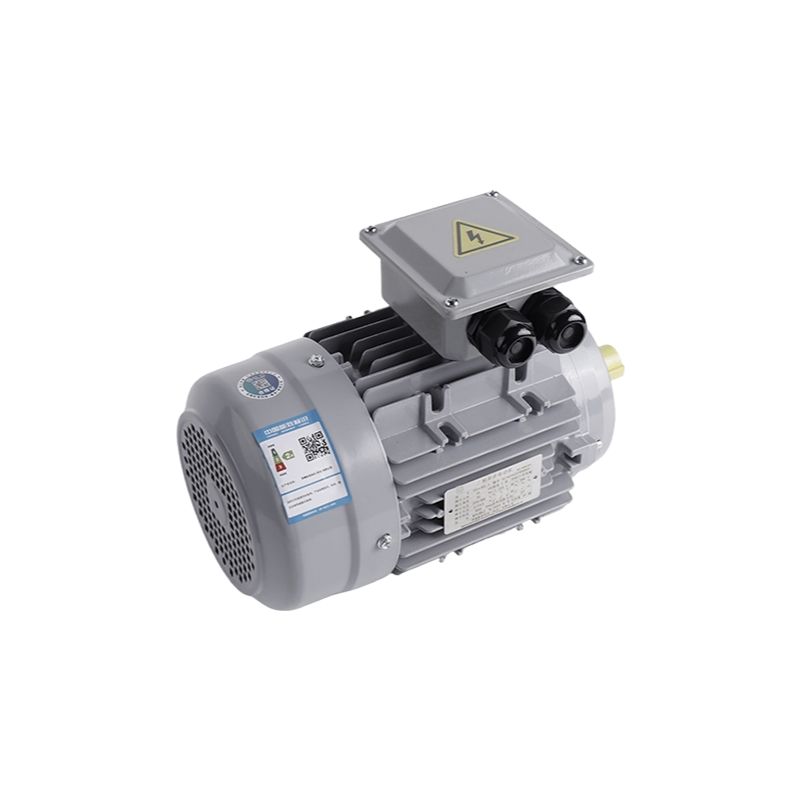

High Efficiency Three-Phase Asynchronous Motor 220V/380V for Industrial Applications

High Efficiency Three-Phase Asynchronous Motor 220V/380V for Industrial Applications

US$ 30.00 ~ 1000.00

Min.Order: 10

Product origin: Nanjing, Jiangsu, China

Category: Electrical Equipment & Supplies

Product Name: Electrical Equipment & Supplies

Availability:In Stock

Product Review : 0 Reviews

Infringement complaint:

* Please contact the supplier via whatsapp first before placing an order

YE3-112M-4KW High Efficiency Three Phase AC Induction Motor 1500RPM 50Hz Cast Iron Electric Motor for Industrial Pumps

US$ 350.00 ~ 360.00

55kw 75HP High Efficiency Three Phase Asynchronous AC Induction Motor for Industrial Applications

US$ 30.00 ~ 4000.00

YVF2 Variable Frequency Three Phase Induction Motor | High Efficiency AC Asynchronous Motor

US$ 50.00 ~ 100.00

High Efficiency Three-Phase Asynchronous Motor 220V/380V for Industrial Applications

US$ 30.00 ~ 1000.00

Three Phase Asynchronous Motor 220V/380V - High Efficiency IE3/IE4/IE5 Industrial AC Motor with Copper Winding

US$ 30.00 ~ 1000.00

Model Series : YE3/YE4/YE5
Rated Voltage : 220V/380V
Power Range : 0.75KW-90KW
Frequency : 50Hz/60Hz
Phase : Three-Phase
Speed Options : 3000/1500/1000/750 rpm
Efficiency Level : IE3 (IE4/IE5 available)
Insulation Class : F
Protection Class : IP55
Cooling Method : IC411

Rotor Structure : Winding Type
Starting Method : Direct on-line
Certifications : ISO9001, CCC
Warranty : 12 months

Our high-efficiency three-phase asynchronous motor series represents the latest advancement in industrial motor technology. Designed for demanding applications, these motors deliver exceptional performance while meeting strict energy efficiency standards.

The motor features a robust construction with copper windings and cast aluminum housing, ensuring durability and efficient heat dissipation. With multiple mounting options (B3, B5, B14, B35) and various speed configurations (3000rpm, 1500rpm, 1000rpm, 750rpm), it offers versatile installation possibilities for different industrial requirements.

Key advantages include:

- Complies with GB18613-2020 and IEC60034-30-2020 efficiency standards

- Achieves IE3 energy efficiency level (with IE4/IE5 options available)

- Totally enclosed design with IP55 protection rating

- Suitable for direct on-line starting

- Available in power range from 0.75KW to 90KW

- Compatible with 50Hz/60Hz power frequency

These motors are ideal for various industrial applications including material handling systems, packaging equipment, textile machinery, and more. The explosion-proof variants provide additional safety for hazardous environments.
