So the IP40 rating means these aren't sealed against water ingress—any liquid exposure will compromise the winding insulation pretty quickly, and the B class insulation (130°C max hot spot) limits your sustained duty cycle. What it does well is deliver that 8000-12000rpm band under load, and the direct on-line start means no soft-start circuitry needed for your test jig. The ball bearings handle the axial thrust better than sleeve-type could at these speeds, and you'll see about 10-12% voltge-related speed droop across the 110-240VAC range. 50/60Hz compatibles.
For continuous duty applicaions where the ambient is above 50°C or where you'd expect condensation, we'd recommend stepping up to the IP44 version (we usually have stock, but confirm lead time). The torque ripple at the lower end of the power band—100W or so—is pretty much nonexistent for this winding configuration. We don't have full FEA data on cogging torque, we usually just run a quick load cell test before shipment. Roughly 0.15Nm at 600W.

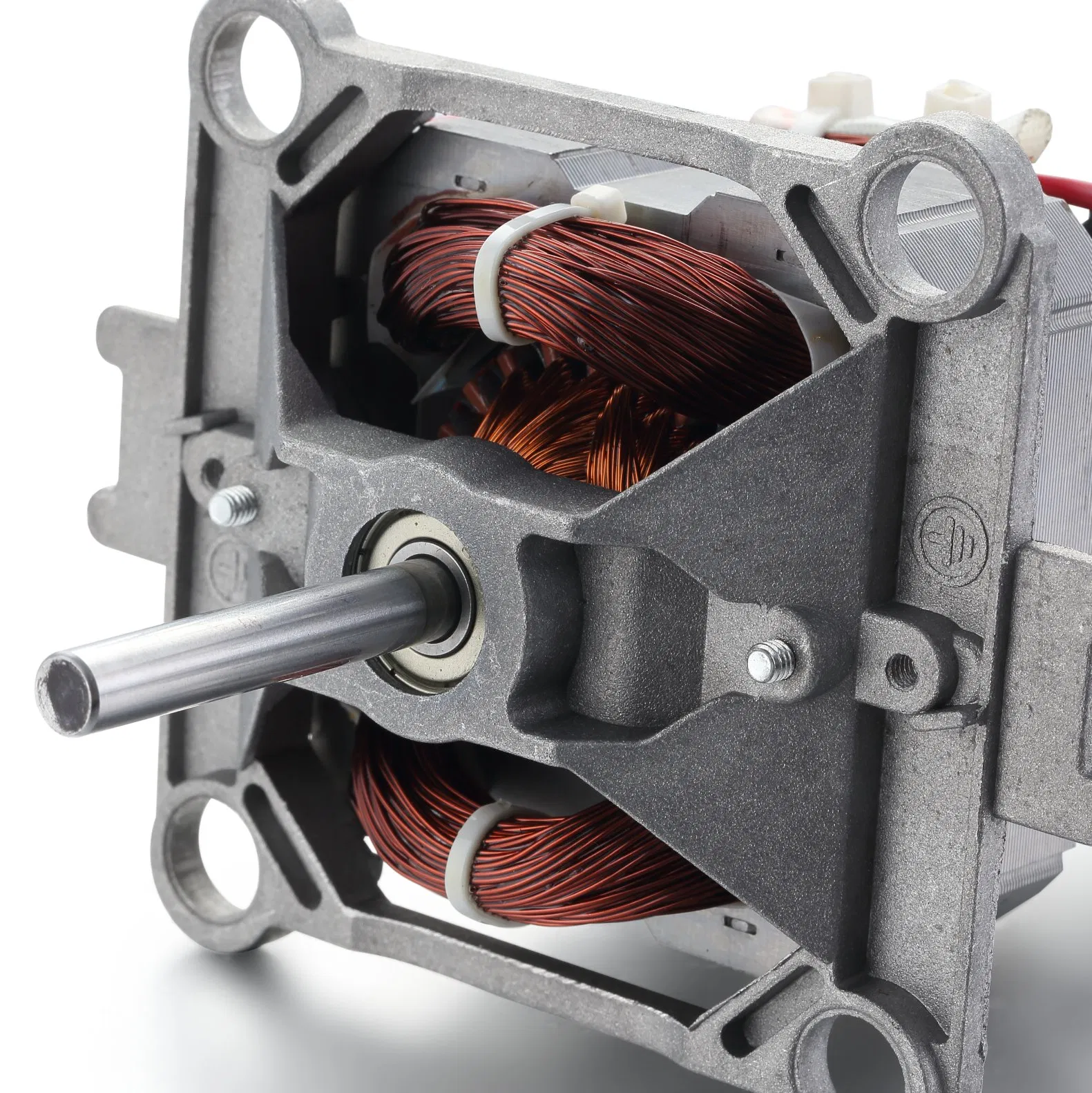

Actually, what a lot of buyers don't think to check is teh shaft runout. The spec says 4-5mm diameter (COA shows wet-ground tolerance to within 0.05mm TIR), but the longer shafts tend to flex slightly under full torque—not an issue for fan or pump couplings, but if you're direct-mounting a gear, keep the overhung load under 20N. For standard 4mm shaft, that's usually fine.
Noise is listed at ≤70dB unloaded, but we've measured 68dB at 10000rpm with the CCW winding and a fresh bearing pack (ABEC-3, the standard). The 1000-1500h lifespan is under rated load at 40°C ambient—if you're cycling on/off every few minutes or running at -20°C for extended periods, expect to derate that to 700-800h. That's just lubrication kinematics with sealed ball bearings.

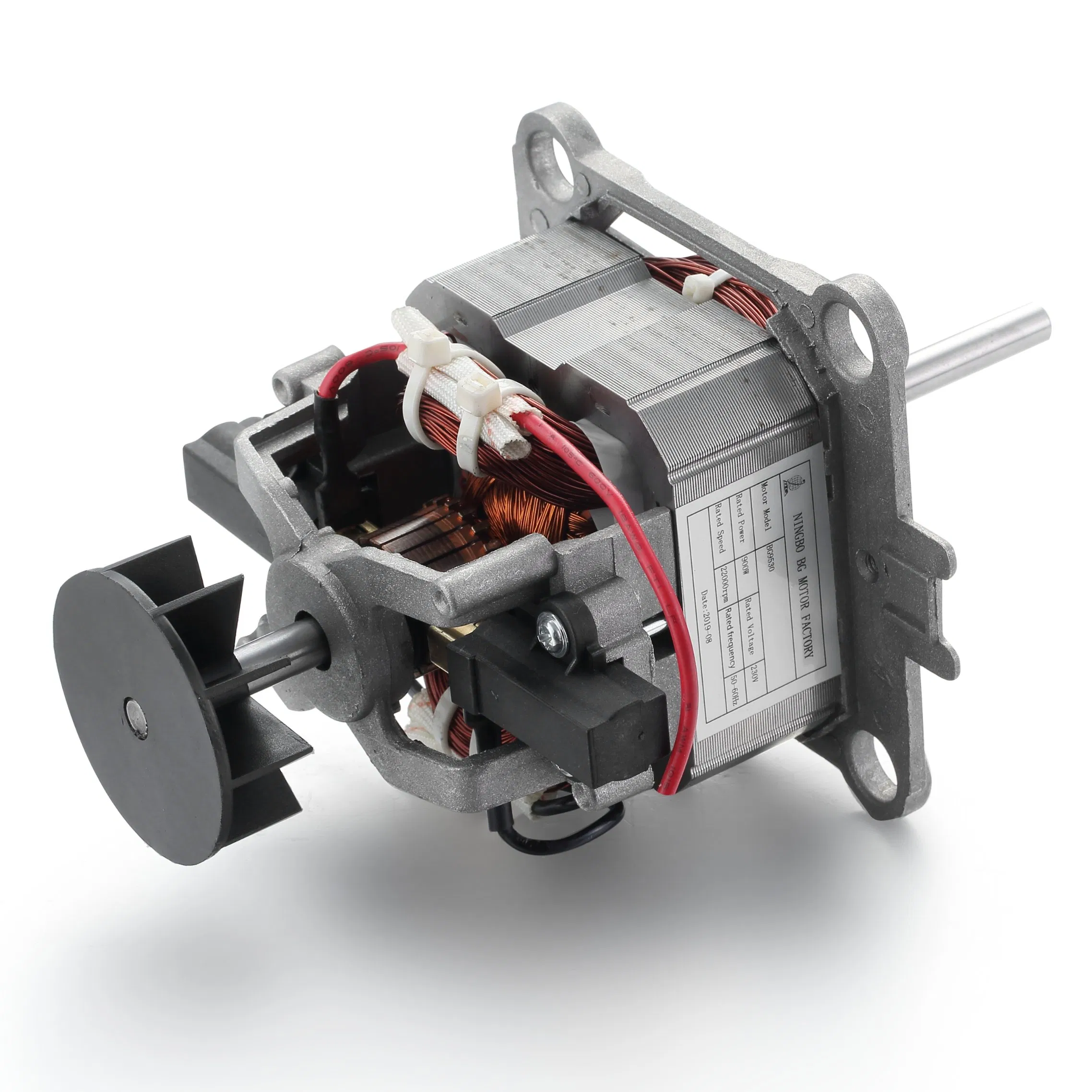

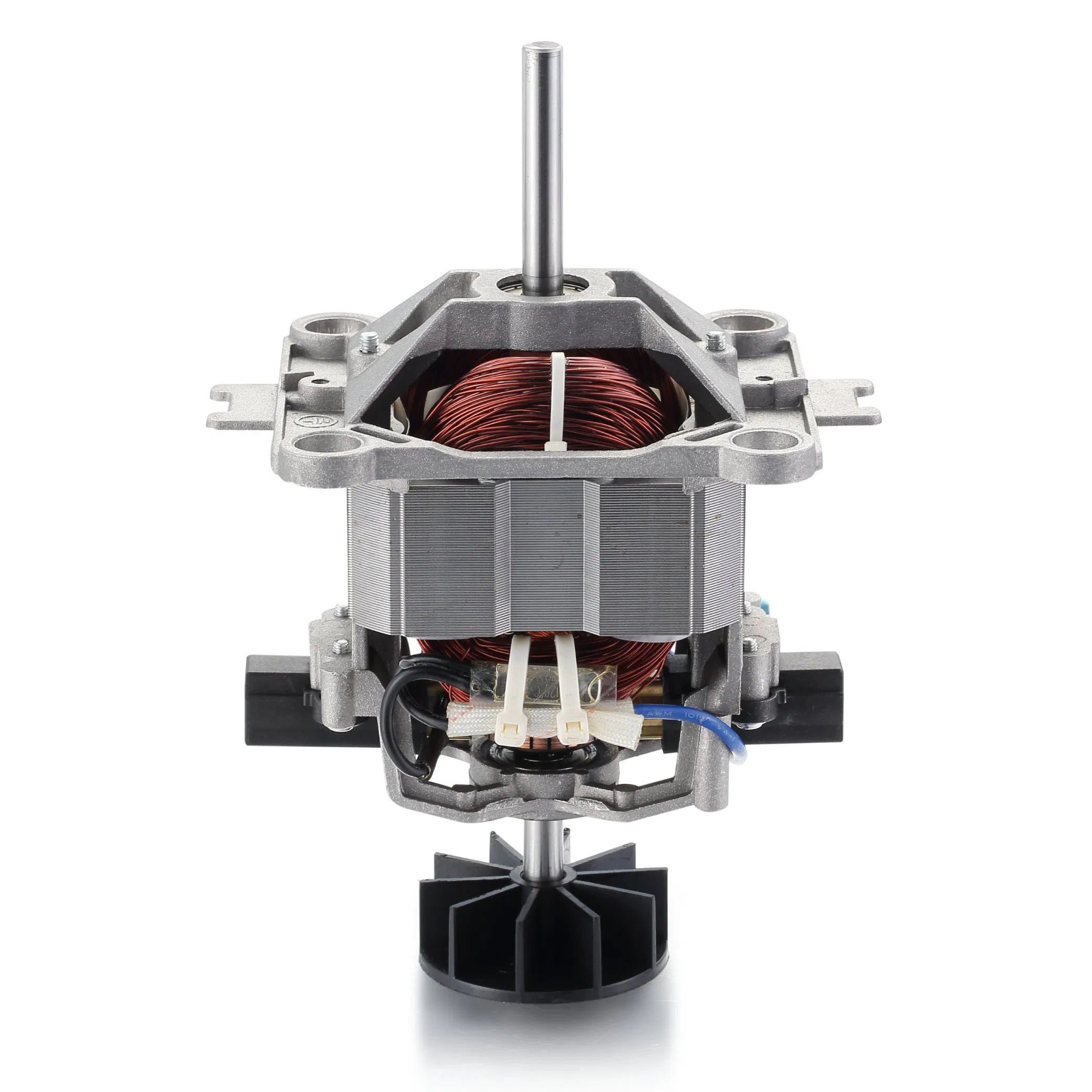

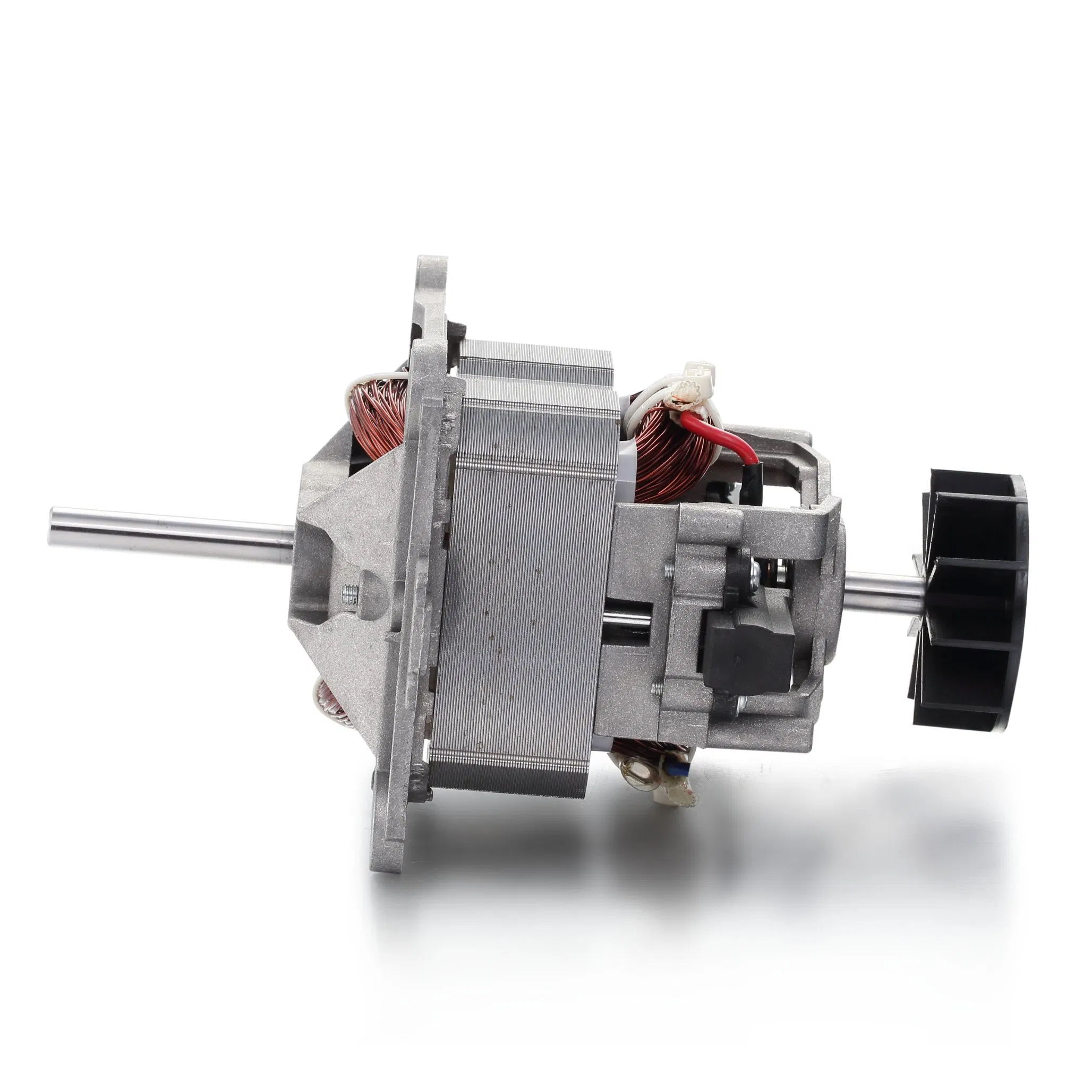

The CCC and FCC certs are current through 2026, and we can provide HPLC-grade cleaning reports if you're mounting it near sensitive optics. MOQ is 10 units for the 100-600W range. Motor only, no capacitors. BGAC88-80-10 is the model number for the 8000-12000rpm version with the 4mm shaft.
We usually start at 100 pieces for this model, but we can discuss lower quantities for first-time buyers or sample orders.
Standard lead time is around 25-35 days after order confirmation, depending on the quantity and current production load.
Yes, we can provide both CCC and FCC certificates for the BGAC88-80-10 upon request, along with test reports.
We can adjust the shaft diameter to your specs, but it may affect the lead time and require a custom tooling fee for non-standard sizes.
Keep it in a dry, ventilated area at -20°C to 50°C, away from dust and moisture, and avoid stacking heavy items on top to prevent damage.
