Customizable Industrial Electric Motors 380V 50Hz with Reliable Braking System

US$ 600.00 ~ 1000.00
Min.Order: 2
Product origin: Taizhou, Zhejiang, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 71 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Series : YEJ Series
  • Frame Size : H80-H250mm
  • Power Range : 0.12KW-315KW
  • Voltage : 380V 50Hz (Customizable)
  • Protection Grade : IP44, IP54
  • Insulation Class : F (H optional)
  • Cooling Method : IC411
  • Mounting Types : B3, B5, B35
  • Efficiency Class : IE1, IE2, IE3
  • Braking Type : Electromagnetic
  • Shaft Material : 45# Steel (Stainless Optional)
  • Certifications : CE, ISO9001, CCC
  • Ambient Temperature : -15°C to +40°C
  • Altitude : ≤1000m
  • Winding Material : 100% Copper
  • Stator Material : Silicon Steel DR510/600/800
  • Rotor Type : Squirrel-Cage
  • Connection Type : Star/Delta (≤3KW), Delta (>3KW)
  • Weight Range : 15kg-450kg

The YEJ Series Electromagnetic Brake Motors feature compact design, reliable performance and excellent braking capability. These motors are specially designed for applications requiring rapid stopping, precise positioning and anti-slip operations in various industrial environments.

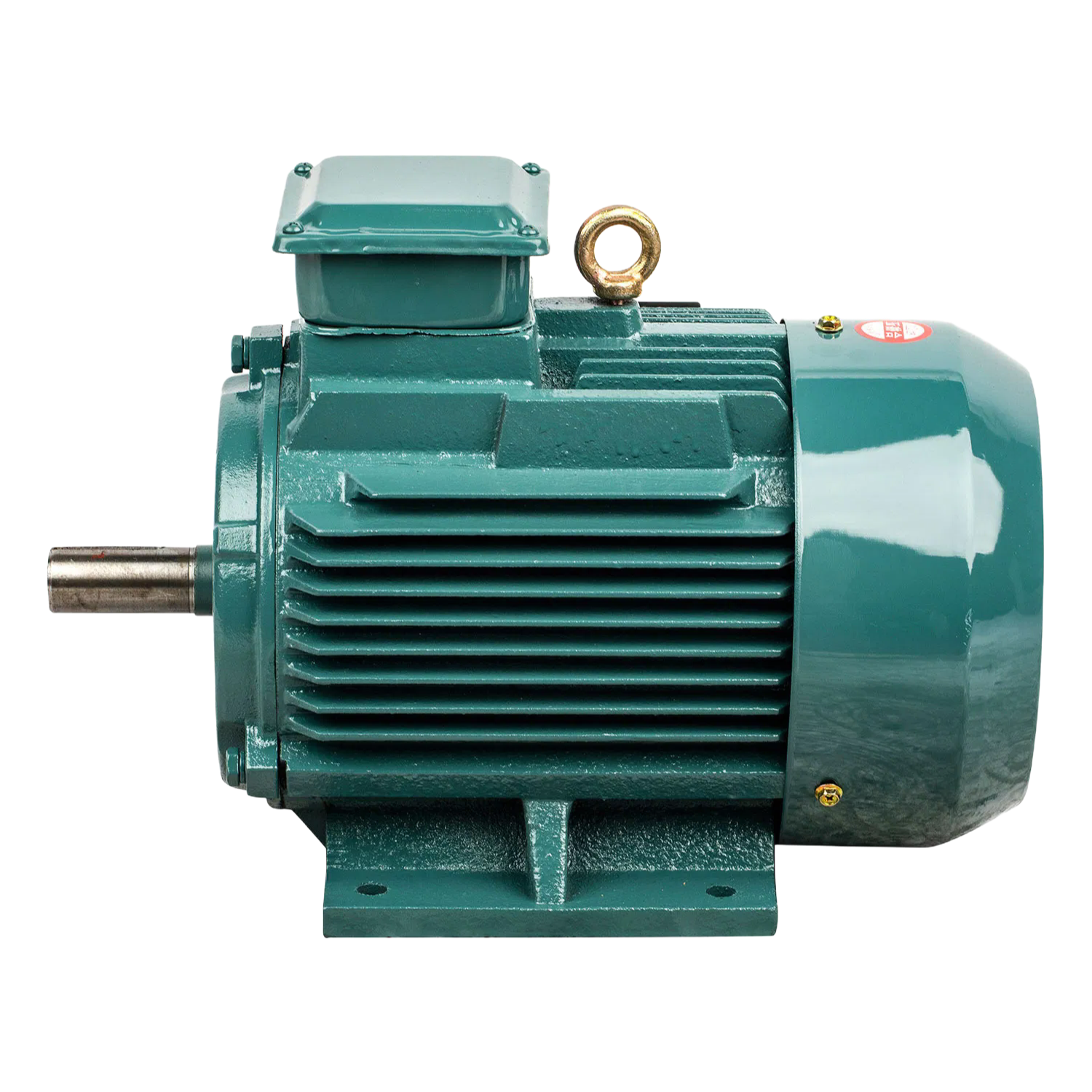

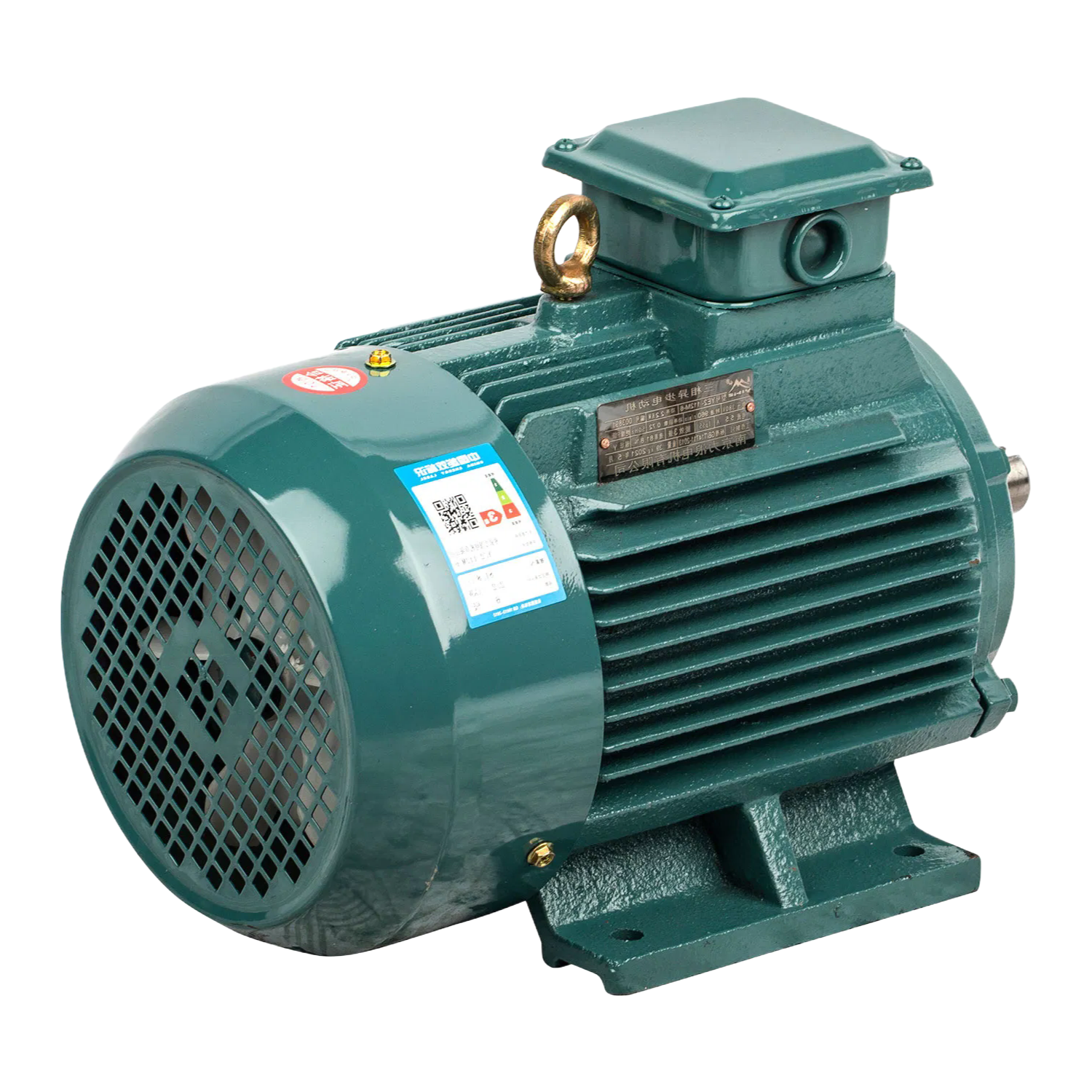

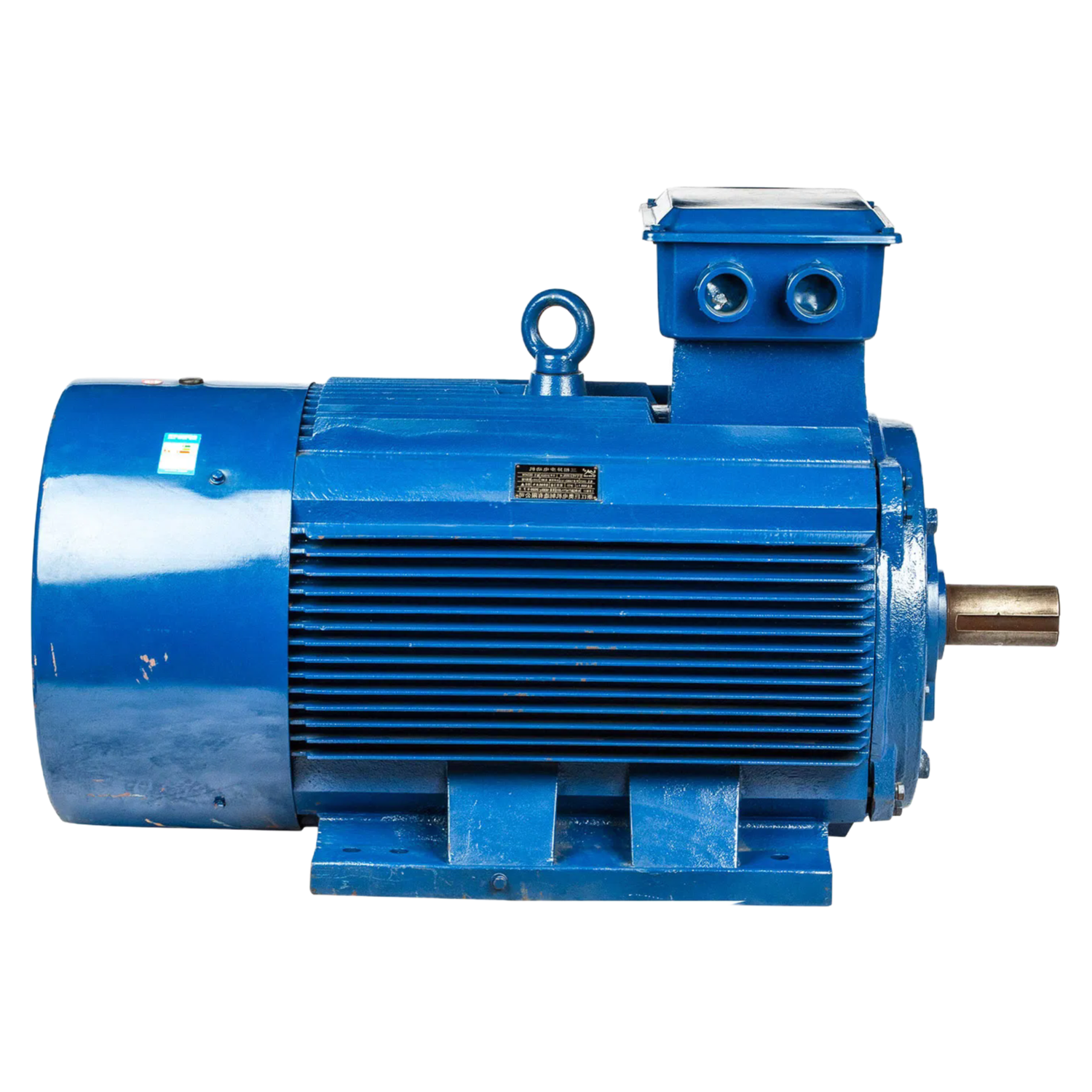

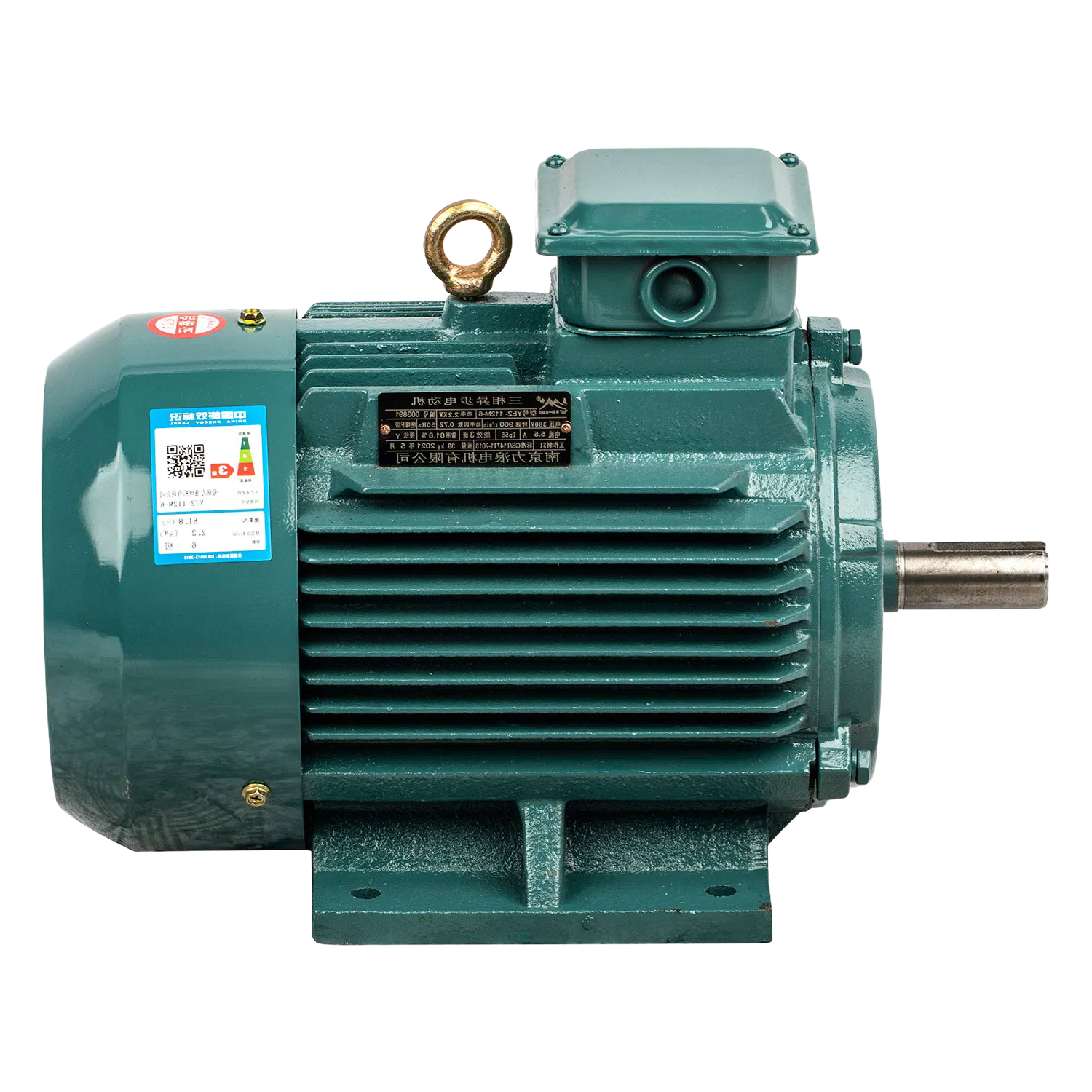

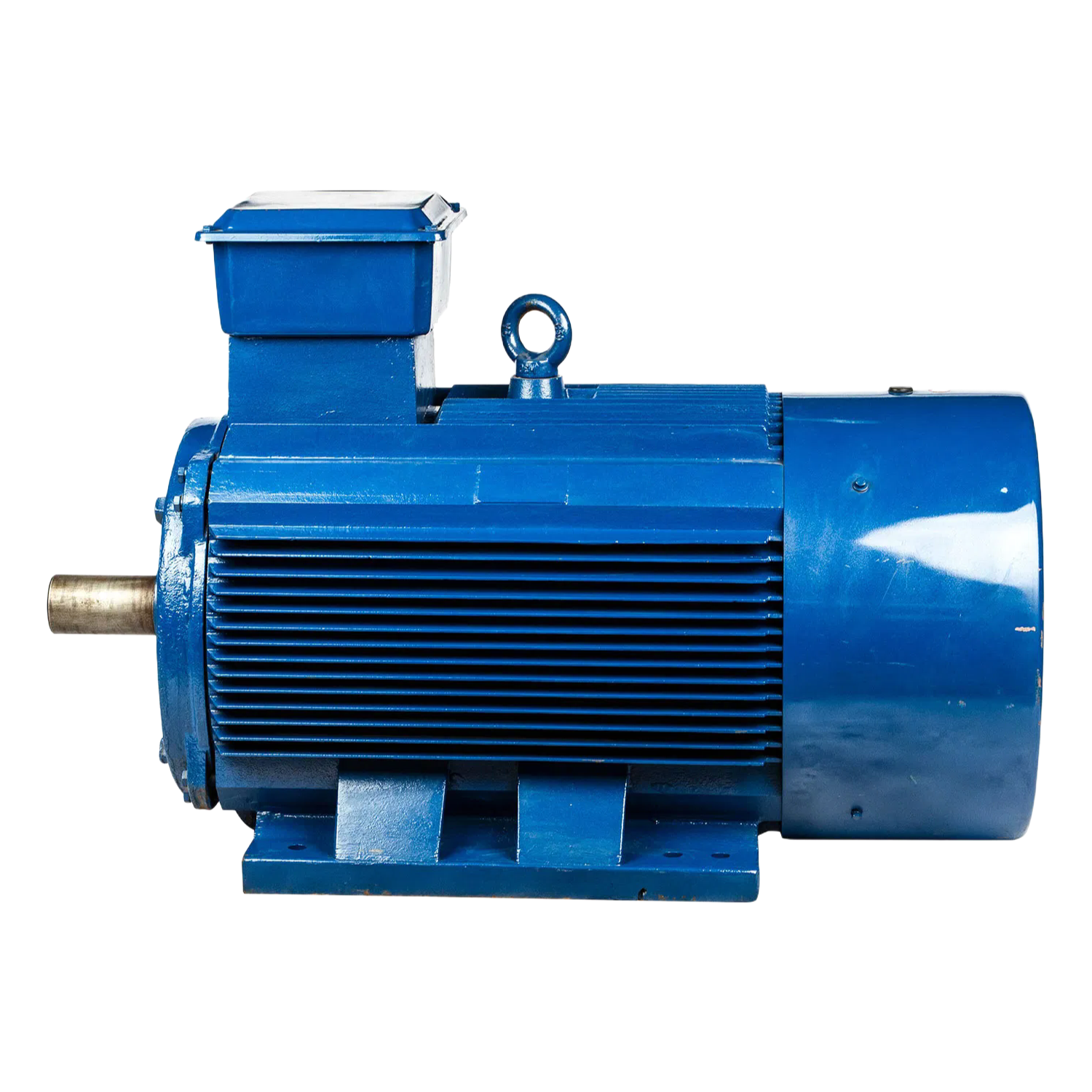

YEJ Series Electromagnetic Brake Motor

With frame sizes ranging from H80 to H250mm, our motors offer flexible mounting options including B3, B5 and B35 configurations. The robust cast iron construction ensures durability while the vacuum impregnated windings provide superior insulation performance.

Motor Internal Components

Key advantages include:
- Immediate braking when power is interrupted
- Low noise operation with smooth performance
- Multiple protection grades available (IP44/IP54/IP55)
- Class F insulation (Class H optional)
- Compliance with international standards including CE, ISO9001

Motor Assembly Line

Our manufacturing process involves precision CNC machining of all components, 100% copper windings, and rigorous quality control at every production stage. Each motor undergoes comprehensive testing including load testing at various levels before final inspection and packaging.

These motors are widely used in:
- Machine tools and woodworking equipment
- Packaging machinery and textile industry
- Construction equipment and chemical plants
- Wind power generation yaw systems

Motor Application Examples

We offer customization options including:
- Various voltage and frequency combinations
- Different mounting arrangements
- Special paint finishes
- OEM branding and labeling

For specialized requirements, control cabinets can be custom designed to match specific operational needs.
