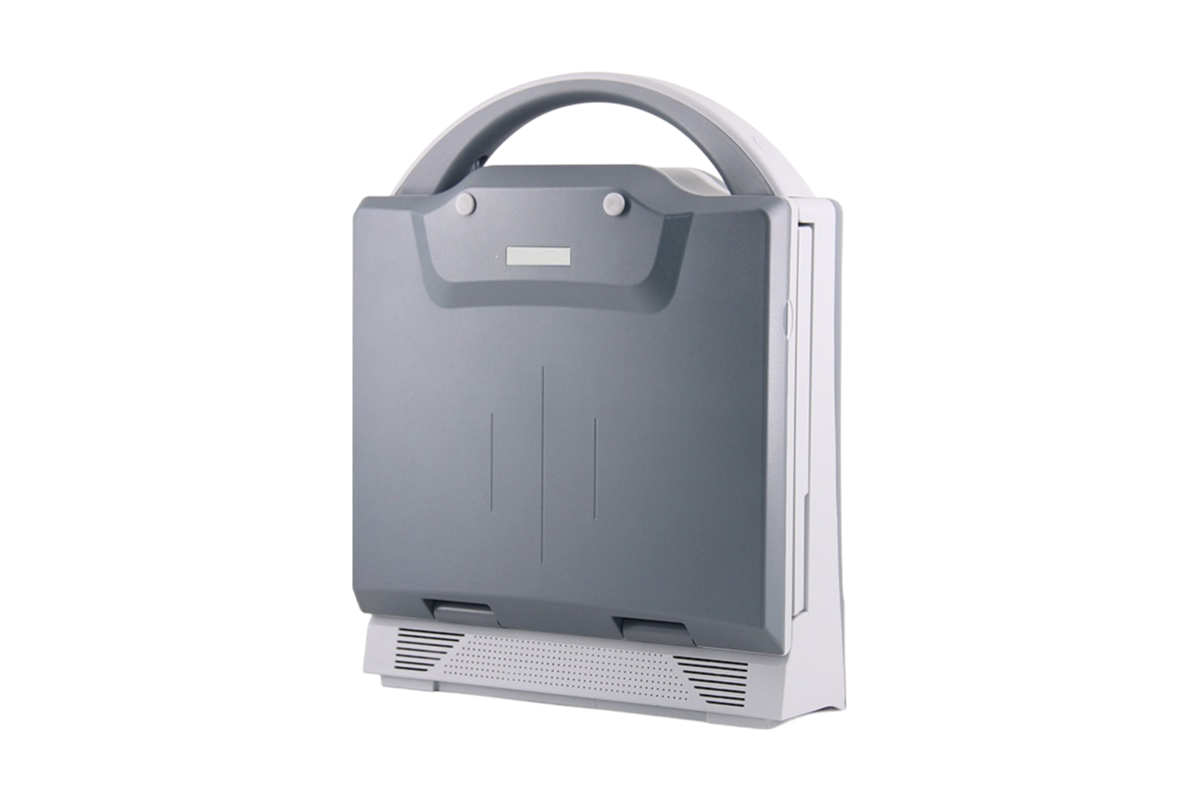

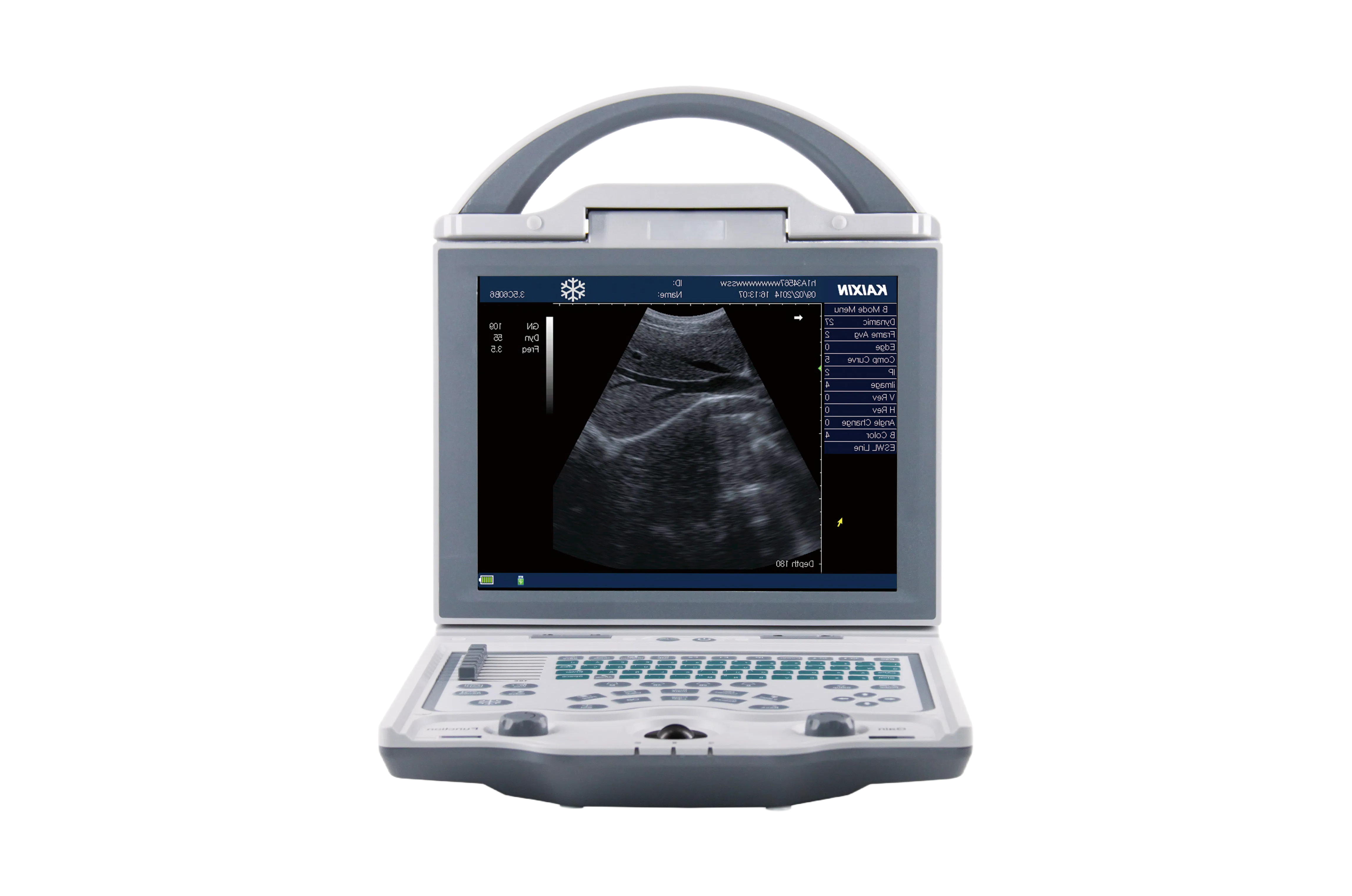

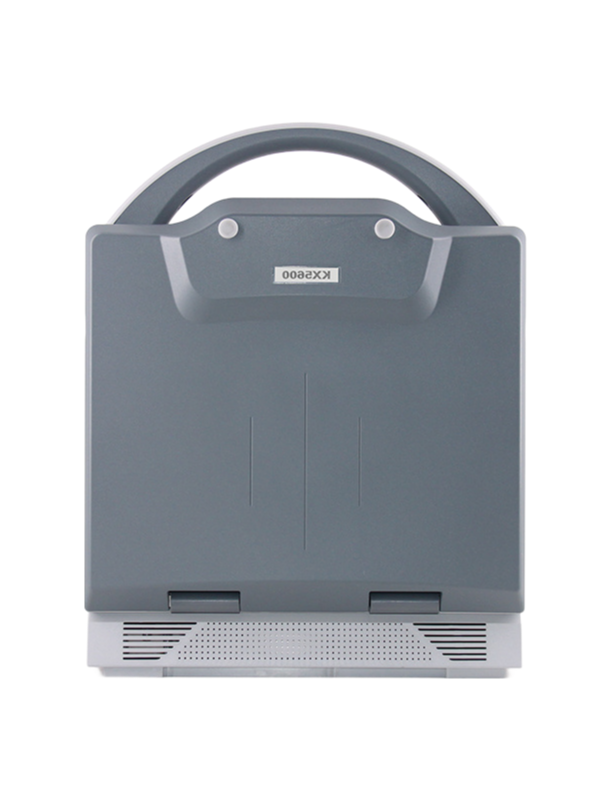

The KX5600 Portable B/W Ultrasound Scanner represents advanced medical imaging technology designed for various diagnostic applications. This compact yet powerful unit features a 10.4-inch high-resolution color LED backlight display that delivers exceptional image contrast and wide viewing angles, ensuring clear visualization during examinations.
Engineered with user convenience in mind, the scanner incorporates an intuitive menu operation system that supports multiple language options including English, Spanish, French, Russian, and Portuguese. The system boasts two intelligent probe sockets that automatically identify different optional probes, streamlining the examination process.
With 64 body marks for precise probe positioning and multiple display modes (B, 2B, 4B, B/M, M), the KX5600 offers versatile imaging capabilities. The adjustable depth settings provide 10 levels of control with a maximum depth of 236mm, while the gain range spans from 0 to 127dB for optimal image adjustment.
The system's 256 gray scale levels and 8 types of pseudo colors enhance image differentiation, supporting accurate diagnostics. A substantial 4GB hard disk allows permanent storage of approximately 5000 frames, with data protection during power outages.
Specialized measurement functions include standard measurements, cardio measurements, gynecology measurements and analysis, obstetric measurements, and urology measurements and analysis. The one-key operation system simplifies storage, review, printing, and image transfer functions, while the exclusive light keyboard facilitates use in dark environments.

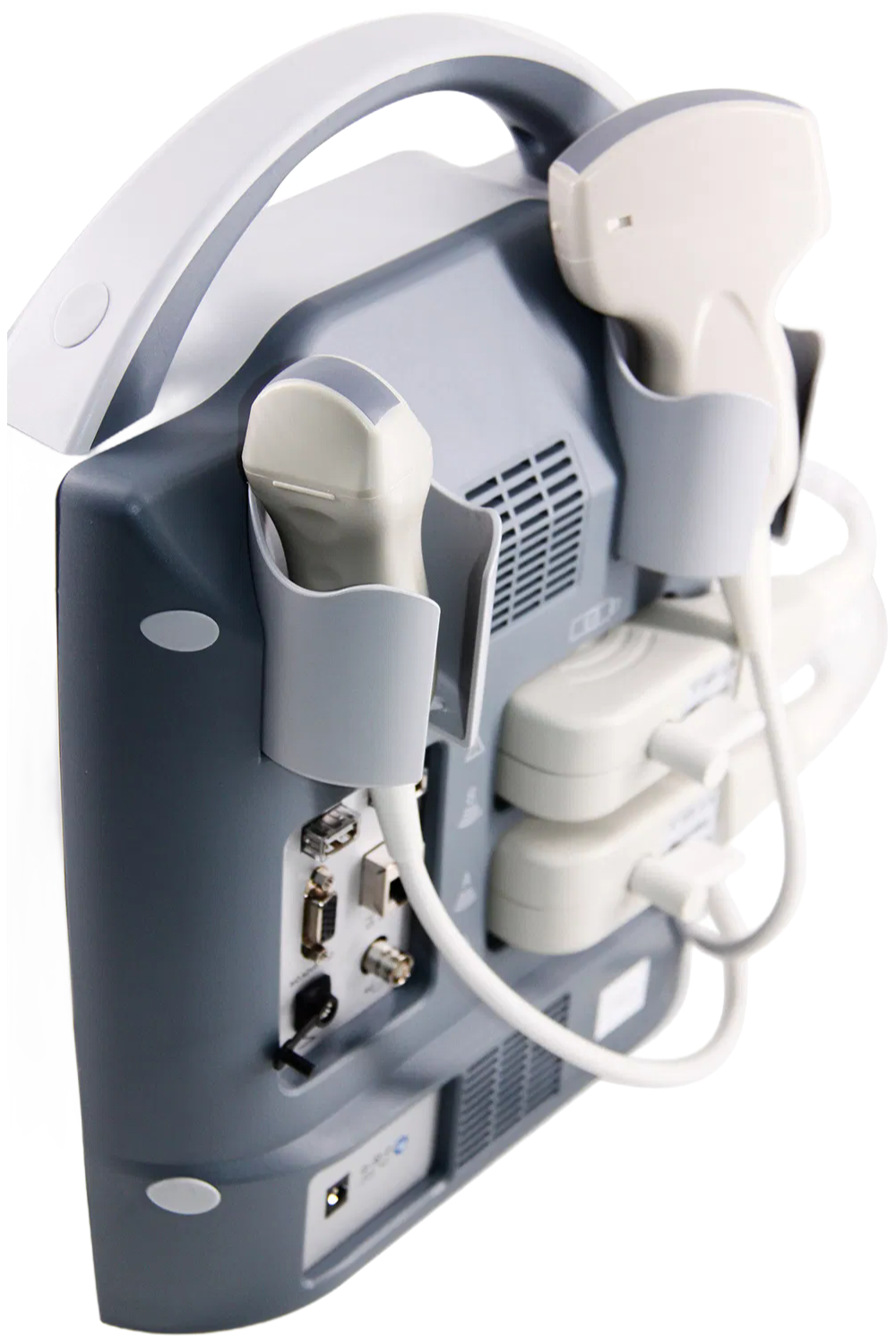

The standard configuration includes the main unit, a 3.5MHz convex probe, power supply adaptor, reticle, and two probe sockets. Optional accessories available include various frequency probes (6.5MHz trans-vaginal, 7.5MHz linear, 7.5MHz cavity), battery charger, 4400mAh Li-battery, trolley, and video printer.
