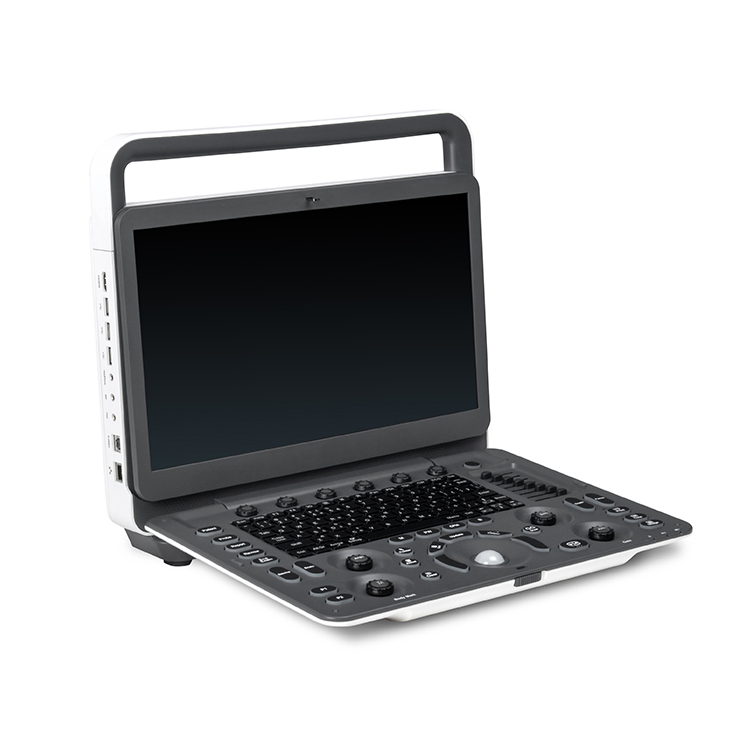

The Sonoscape E2pro portable ultrasound system represents the latest advancement in medical imaging technology. This compact yet powerful device combines cutting-edge features with user-friendly operation for superior diagnostic performance.
Key technologies incorporated in the E2pro include Full Digital Super-wide Band Beam Forming, Digital Dynamic Focusing, and Multi-Beam Parallel Processing. These advanced features work together to deliver exceptional image clarity and diagnostic accuracy.
The system's 15.6" widescreen high-resolution color LCD monitor provides excellent visualization, while the anti-flickering LED backlight ensures comfortable viewing during extended scanning sessions. The display can be rotated both vertically and horizontally for optimal positioning.
Special imaging capabilities include Wide-Scan for enlarged real-time views of large lesions, Panoramic Imaging for extended field visualization, and Vis-Needle technology for improved needle guidance during procedures. The Screen Zoom function maintains high resolution when magnifying images for detailed examination.
The E2pro's compact design (378mm × 352mm × 114mm) and lightweight construction (approximately 6.5kg including battery) make it highly portable for various clinical settings. The system features two probe ports, with one configurable to specific requirements.

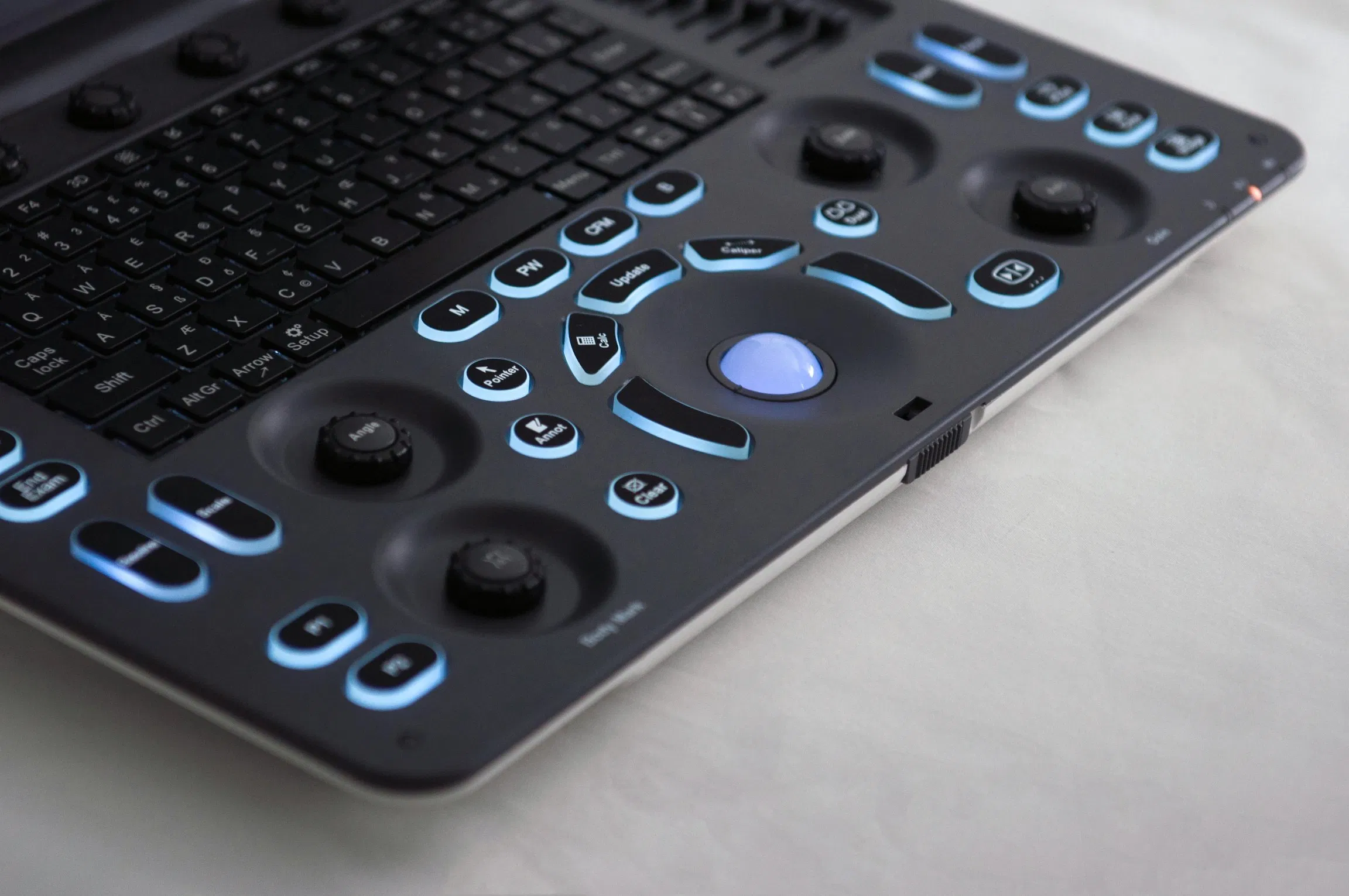

With 256 grayscale levels and frame rates up to 80fps (probe dependent), the E2pro delivers smooth, detailed imaging. The system includes 8 levels of TGC (Time Gain Compensation) slider controls for optimal image adjustment.
Built on computer technology with a Linux operating system, the E2pro offers stability and flexibility. System maintenance and feature updates can be performed through software updates, ensuring the device remains current with technological advancements.
