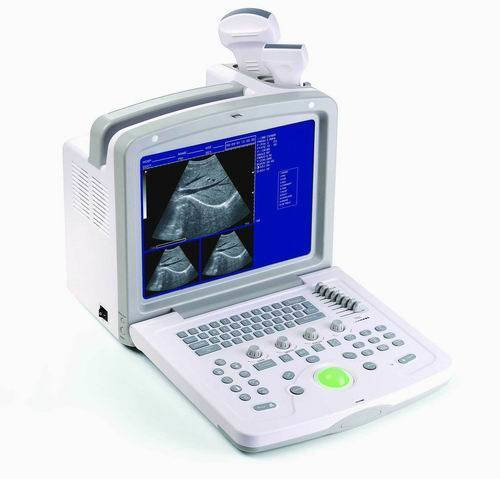

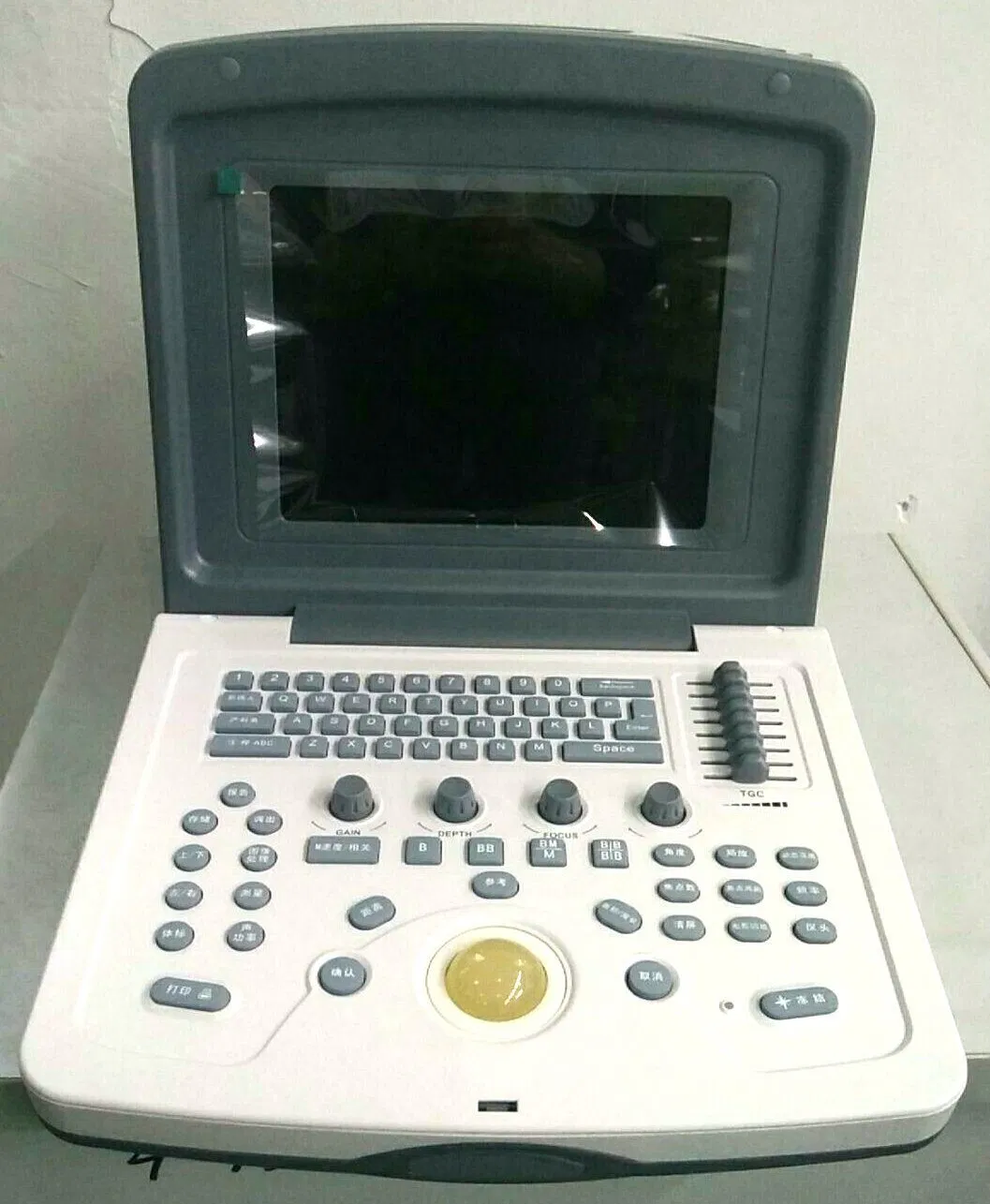

The MS-9000AB is a fully digital portable ultrasound scanner designed for professional medical applications. With its lightweight design (6.1kg) and 12.1" TFT color LCD display (1024*768 resolution), this device offers excellent portability without compromising image quality.
This advanced ultrasound system features Tissue Harmonic Imaging (THI) technology for enhanced image clarity and automatic report generation for both normal and OB examinations. The device includes two probe connectors with automatic identification capability and scanning angle adjustment for convex probes.
The MS-9000AB supports multiple scanning modes including Convex, Linear, and Micro-convex with scanning depth ranging from 40mm to 240mm. The 256 gray scales provide superior image contrast, while the ≥500 frame cine-loop allows for detailed examination review.
For measurement and analysis, the system includes comprehensive tools for distance, circumference, area, volume, EF rate, and heart rate calculations. OB measurements cover all standard parameters including EDD, GA, FW (BPD, GS, CRL, FL, HC, AC).
The device features 64 frames of image permanent storage and various image conversion options (up/down, left/right, black/white). Additional features include 3 pseudo color options, 2x local zoom (both real-time and frozen), and 40 body marks for accurate documentation.
With its wide application range including abdominal, OB/GYN, urology, cardiology, and small parts examination, the MS-9000AB is a versatile diagnostic tool for medical professionals.
