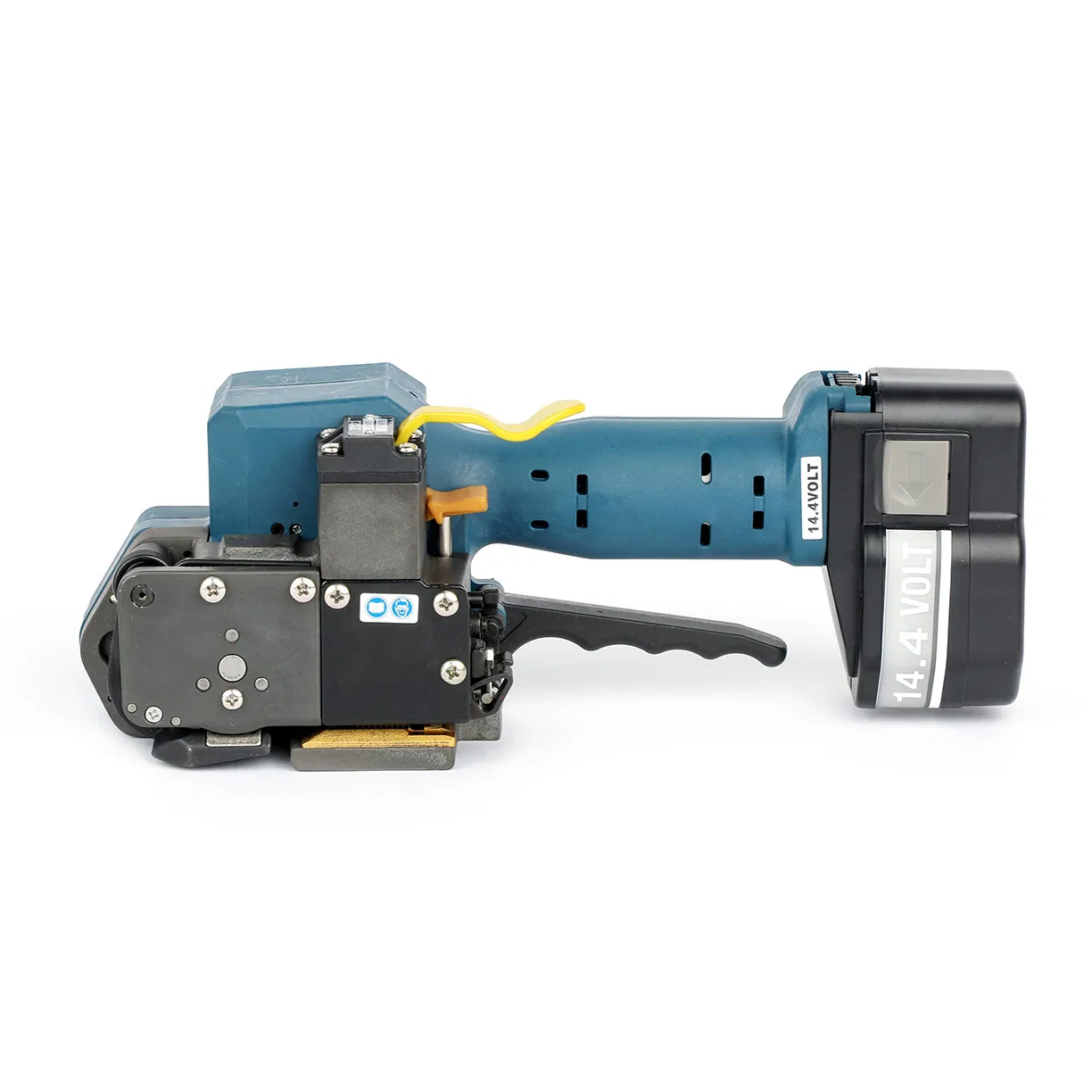

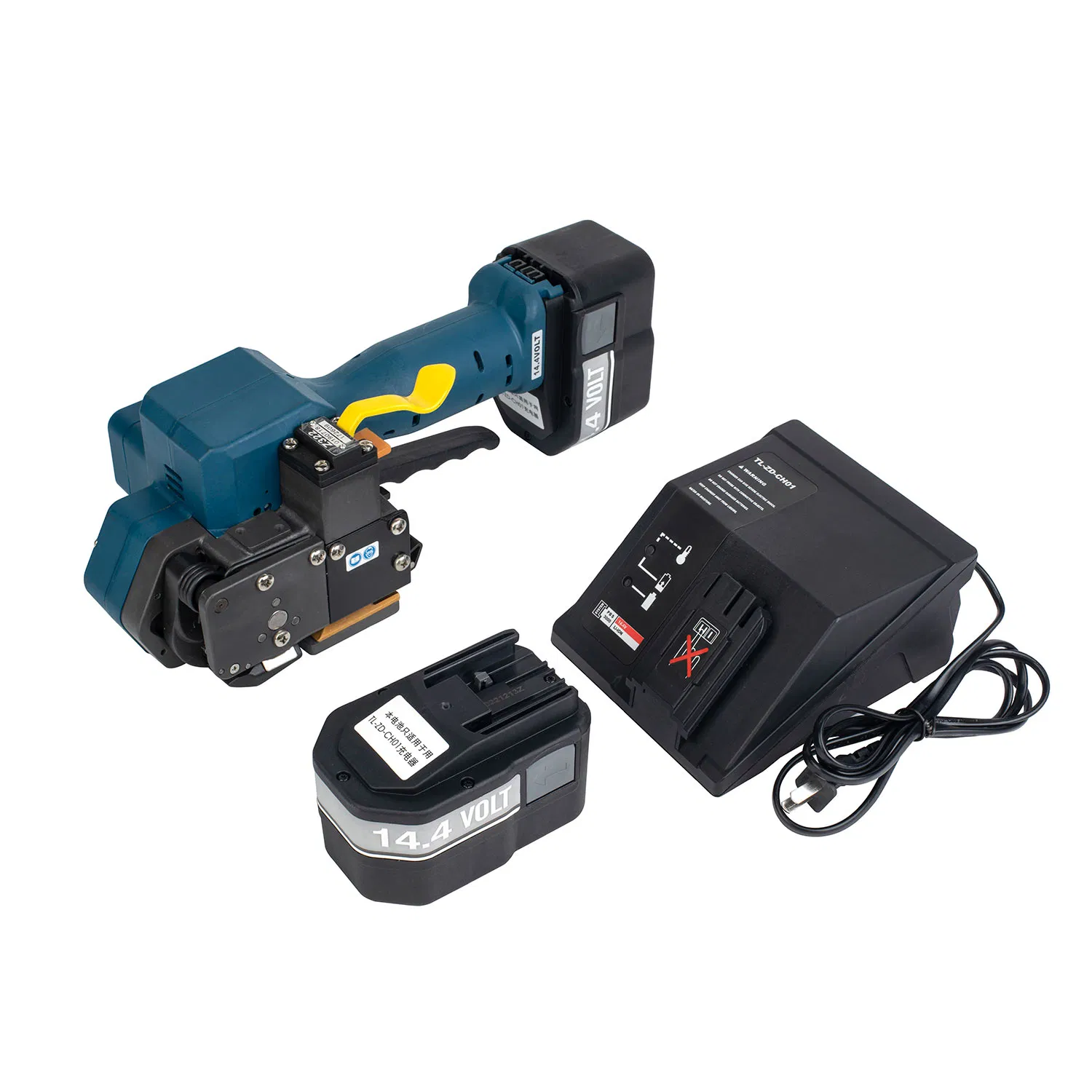

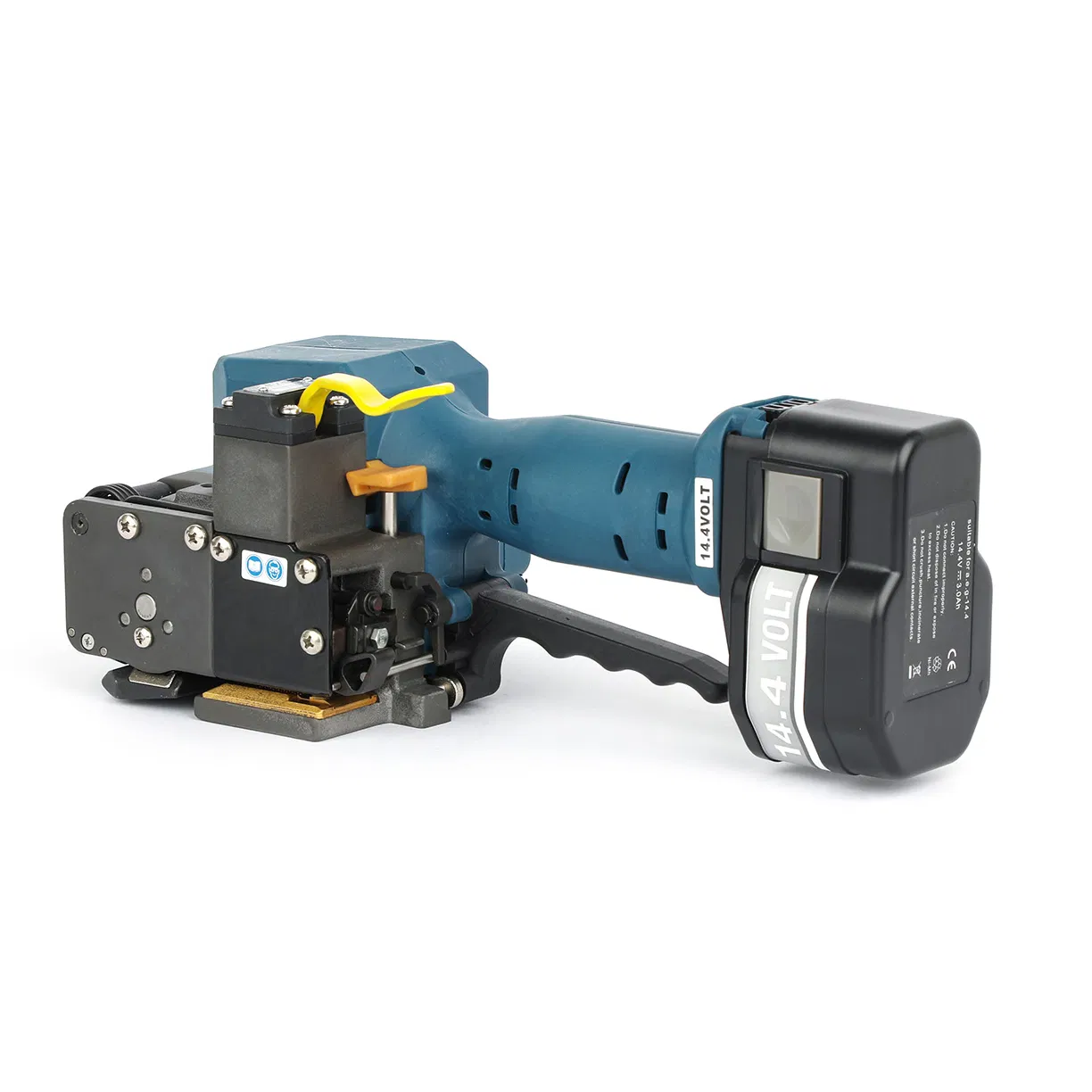

It’s basically a cordless tensioner and welder in one, running off a rechargeable battery pack so you’re not tethered to a wall outlet or dragging an air hose around the warehouse floor. The 3000N max tension force is enough to handle heavy loads like stone slabs or bundled timber without slipping, and the semi-automatic cycle means you pull the trigger, it tensions, welds, and cuts the strap in one go.
We see these mostly in paper mills and carton sealing lines where operators need to move between pallets quickly—the 4.5kg weight is manageable for a full shift, though you’ll want the shoulder strap it ships with. It handles PP and PET strapping from 13mm up to 19mm wide, and the thickness range of 0.5-1.2mm covers most common grades. One thing to watch: the welding time varies with battery charge, so if you’re running back-to-back straps on a cold morning, the first few welds might need a 2-second hold before releasing the trigger.
The dimnesions are 335×165×135mm, so it fits in a standard toolbox or on a cart shelf, and the 220v-110v charger means you can top up the battery on any mains outlet. Battery runtime is roughly 200-300 straps per charge depending on tension setting—most buyers go with the 16mm strap width for the best balance of hold and feed speed. It’s not suited for steel strapping or continuous high-speed lines, but for mixed industrial packging it’s pretty much the standdard.

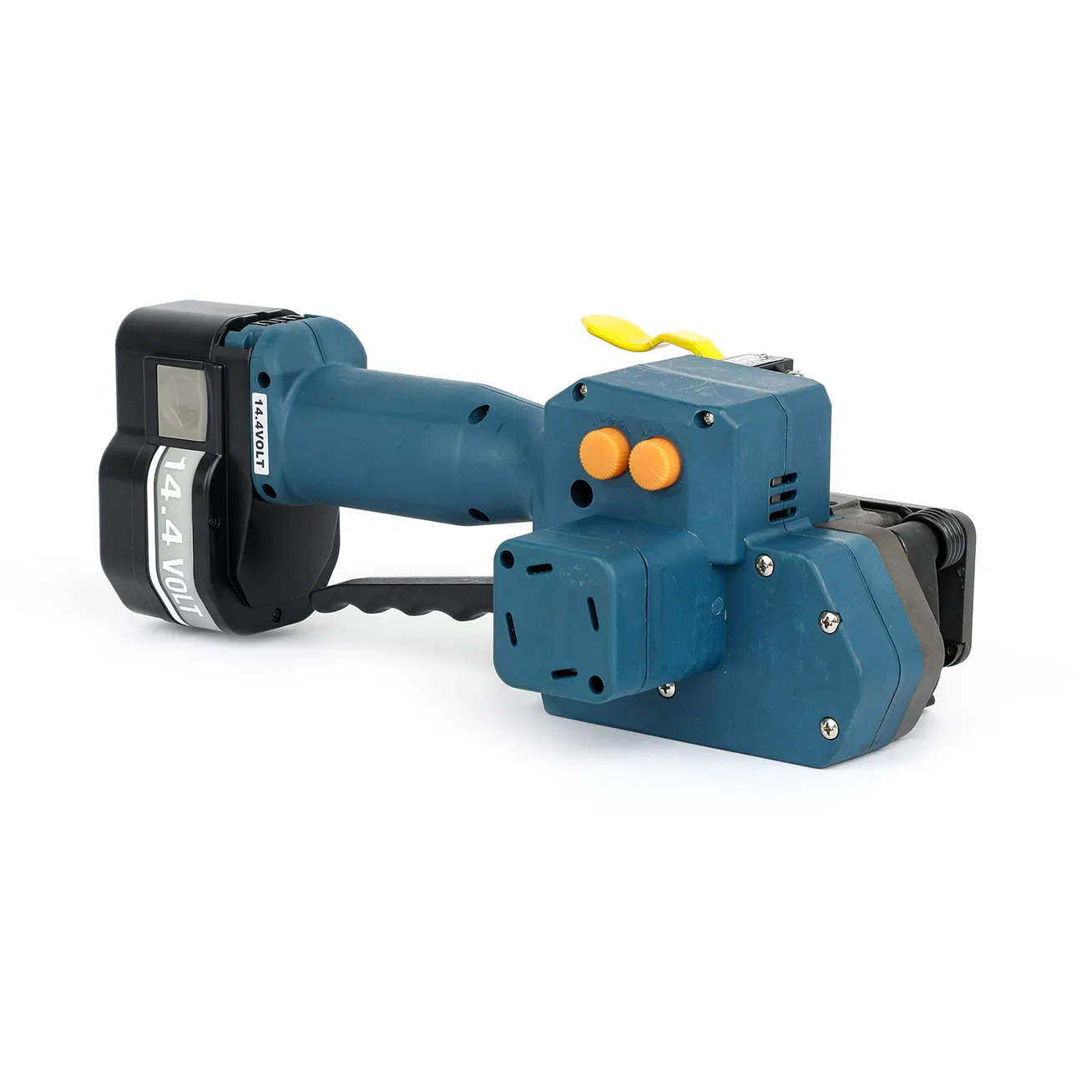

We keep a few units in stock for immediate shipment, usually within 3-5 business days, and the 1-year the motor and electronics—battery cells are typically 6 months. The CE cert is on nameplate, and we include a COA with each unit if you need it for audit trails. Also, the tension adjustment knob is on the side, not buried under a cover, so you can dial it from 500N to 3000N without tools.
What it does is cut your per-strap time by about 40% compared to manual tensioners, and the weld joint consistently holds above 80% of strap break strength on PET material. We’ve had customers running it on cardboard bales and stone slabs alike—the only real limitation is the battery won’t last a full 8-hour shift under max tension, so plan for a mid-day charge or a spare pack.
We typically require a minimum order of 10 units for the Z323 model, but we can discuss if you need a smaller trial order first.
Lead time is usually 15-20 working days from order confirmation, depending on current stock levels. We'll confirm the exact timeline after your order.
Yes, each Z323 unit ships with CE certification. We can provide the certificate and test reports upon request.
The Z323 works with 220v-110v power input for charging the battery. Yes, the charger is included in the package.
The Z323 works with both PP and PET plastic straps, no need for a separate tool. Just switch the strap material as needed, and it handles widths from 13mm to 19mm and thicknesses from 0.5 to 1.2mm.
