High Efficiency TP-800 Pallet Strapper with Welding Type Technology for Various Industries High Efficiency TP-800 Pallet Strapper with Welding Type Technology for Various Industries
High Efficiency TP-800 Pallet Strapper with Welding Type Technology for Various Industries High Efficiency TP-800 Pallet Strapper with Welding Type Technology for Various Industries
High Efficiency TP-800 Pallet Strapper with Welding Type Technology for Various Industries High Efficiency TP-800 Pallet Strapper with Welding Type Technology for Various Industries

High Efficiency TP-800 Pallet Strapper with Welding Type Technology for Various Industries

US$ 7600.00 ~ 6600.00
Min.Order: 1
Product origin: Shanghai, China
Category: Tools
Product Name: Tools
Availability:In Stock
Product Review : 2 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : TP-800
  • Power Supply : DC 23.6V-33.6V
  • Dimensions : 95×75×125 cm
  • Weight : 105 kg
  • Chain Length : 9300 mm
  • Packing Volume : Width: <200mm, Height: <3000mm
  • Applicable Straps : PP or PET
  • Strap Thickness : 0.6-1.3 mm
  • Strap Width : 12-19 mm
  • Minimum Pallet Height : 75 mm
  • Charging Time : 2.5 hours
  • Packing Size : 1200×1000×1400 mm
  • Automatic Grade : Semi-Automatic
  • Strapping Mode : Welding Type
  • Driven Type : Electric
  • Structure : Hand Strapping
  • Warranty : 1 Year
  • After-sales Service : Online Support

If you're strapping pallets day in and day out—say in a warhouse shiping beverage containers or steel pipe—the bending and manual tensioning get old fast, and that's where this comes in.

It runs on a DC battery pack (23.6V to 33.6V, charging in about 2.5 hours) so there's no cord dragging across the floor, and it handles both PP and PET strap from 0.6mm to 1.3mm thick by 12 to 19mm wide.

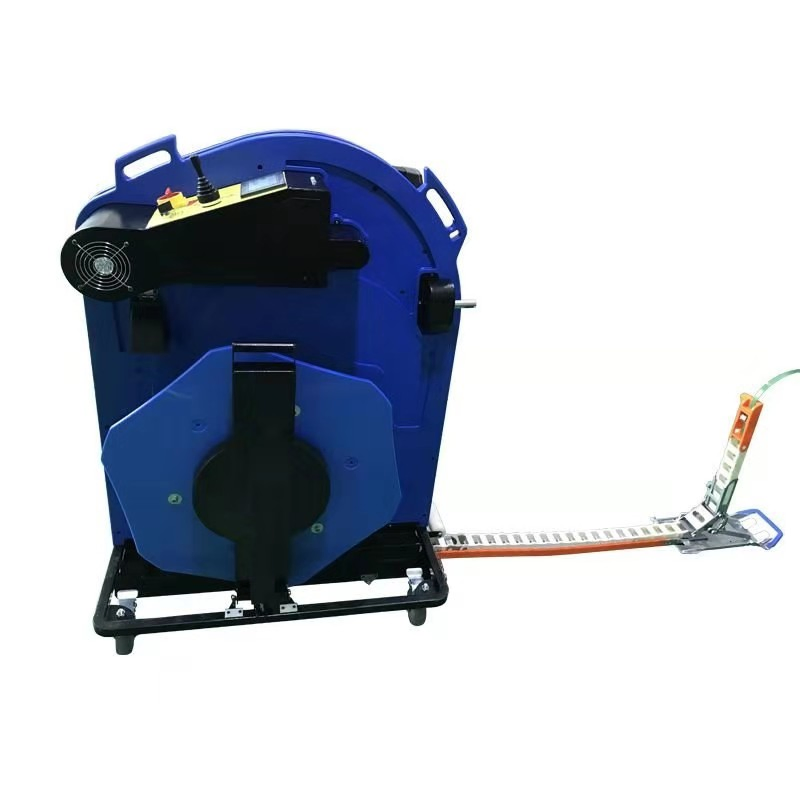

TP-800 Pallet Strapping Machine

We typically stock these for US, EU, and UK buyers, and what that means for you is our company can usually provide the compliance docs (CE, COA, packing list) without much fuss—just confirm lead time when you order.

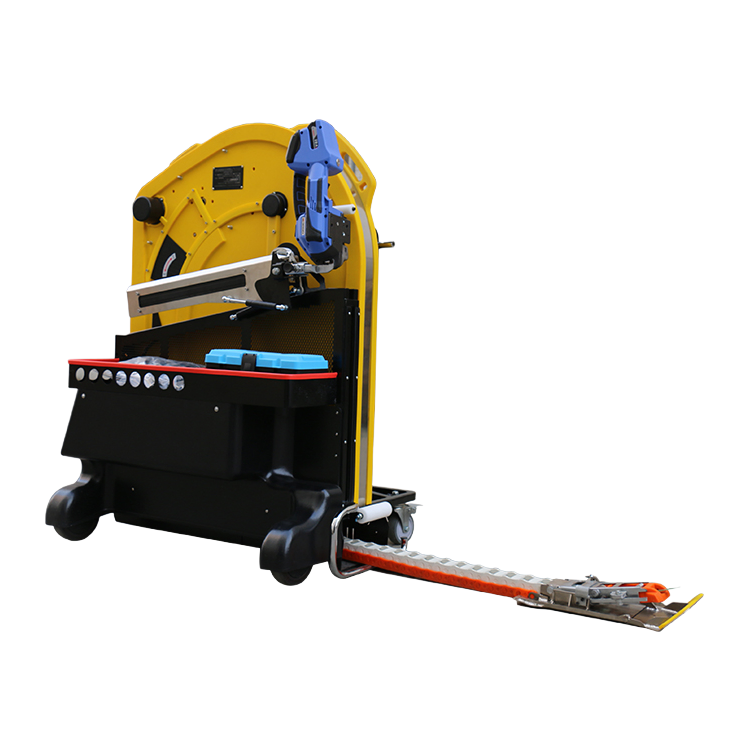

TP-800 in operation

welding type technology fuses the strap ends together, which is basically a stronger seal than a mechanical clip in most cases, but it's not ideal for loads that get jostled a lot during transit—something to keep in mind.

TP-800 close-up view

Minimum pallet height is 75mm, width needs to be at least 200mm, and teh unit itself weighs 105kg on its wheels, so you'll want a dolly or two people to position it.

Anyway, for a semi-automatic strapper that doesn't require compressed air, this is a solid workhorse—MOQ is usually one unit, and we ship via LCL or air depending on your timeline.

Frequently Asked Questions

What is the minimum pallet height and width this TP-800 can handle?

The minimum pallet height is 75 mm, and the minimum width is 200 mm. If your pallet is smaller than that, it won't fit.

Does the TP-800 work with both PP and PET straps, and what thickness range does it support?

Yes, it works with both PP and PET straps, and it handles thicknesses from 0.6 to 1.3 mm. For width, it accepts 12-19 mm straps.

How long does the battery take to fully charge, and what's the voltage range?

Charging takes about 2.5 hours, and the battery operates on DC 23.6V-33.6V. You'll need to keep the charger handy for extended use.

What kind of after-sales support and warranty do you offer for the TP-800?

We provide a 1-year warranty and online support for any issues. Just reach out via our service channels, and we'll help troubleshoot.

Can the TP-800 handle straps wider than 19 mm or thicker than 1.3 mm?

No, it's designed for straps between 12-19 mm wide and 0.6-1.3 mm thick. Using straps outside this range could damage the welding mechanism.
