It's not a magic wand is the honest truth—the 100W output and 50dBm gain sound impressive on paper, but the 420-450MHz frequency range means you're really looking at a specific niche for countering consumer-grade and mid-range drones that operate in that band, not military-comms hardened UAVs, and it's basically a jammer with some suppression smarts.
What it does well though is clutter suppression hitting ≥65dBm, which at airport security is where the real money is because you're filtering out legitimate aircraft transponders, ground radar reflections, and general RF noise while locking onto drone control links, and most buyers who handle event protection or perimeter defense find the -25°C to +55°C tolerance means it'll run through a harsh winter without a hiccup.
You're looking at harmonic suppression at ≥11dBm, which isn't class-leading but it's enough to stay on the right side of local spectrum compliance—roughly 2-3 weeks lead time for the CE and RoHS certified units, and we usually keep about 50 units in stock for airport contracts but confirm that when you're ready.

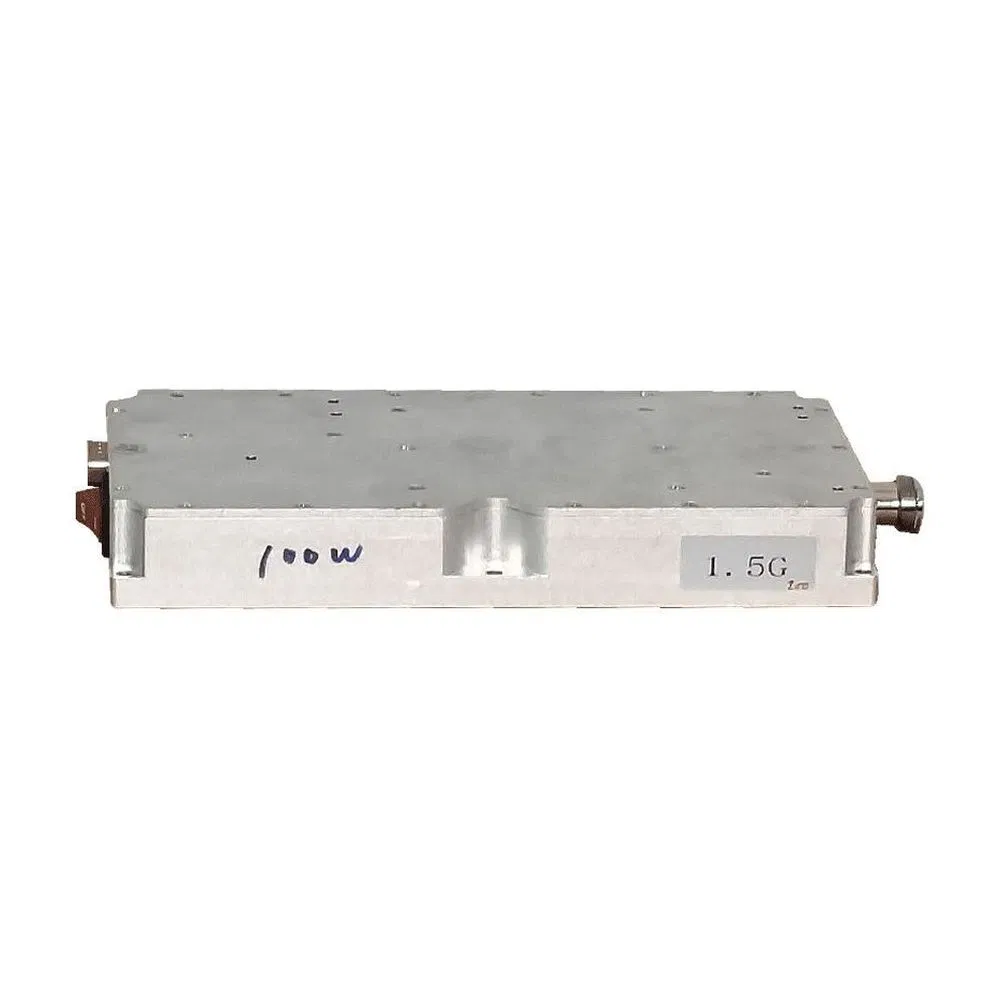

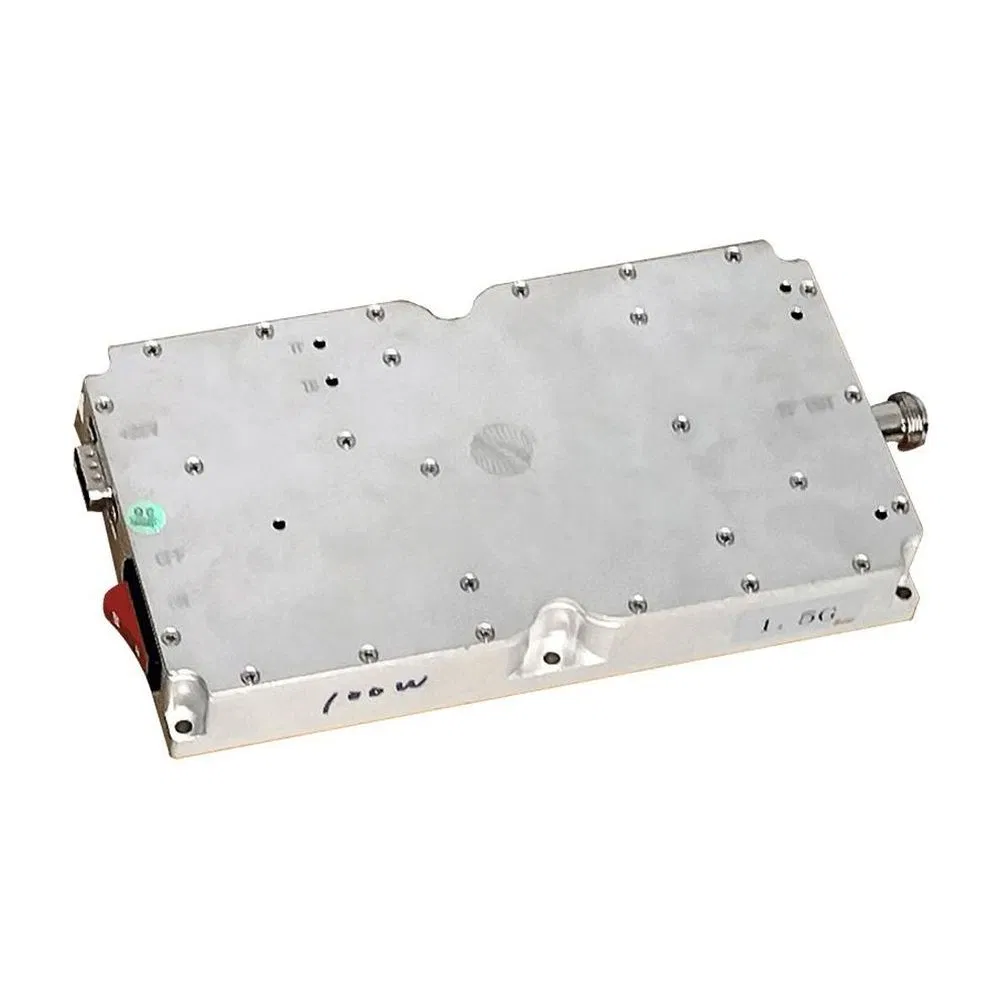

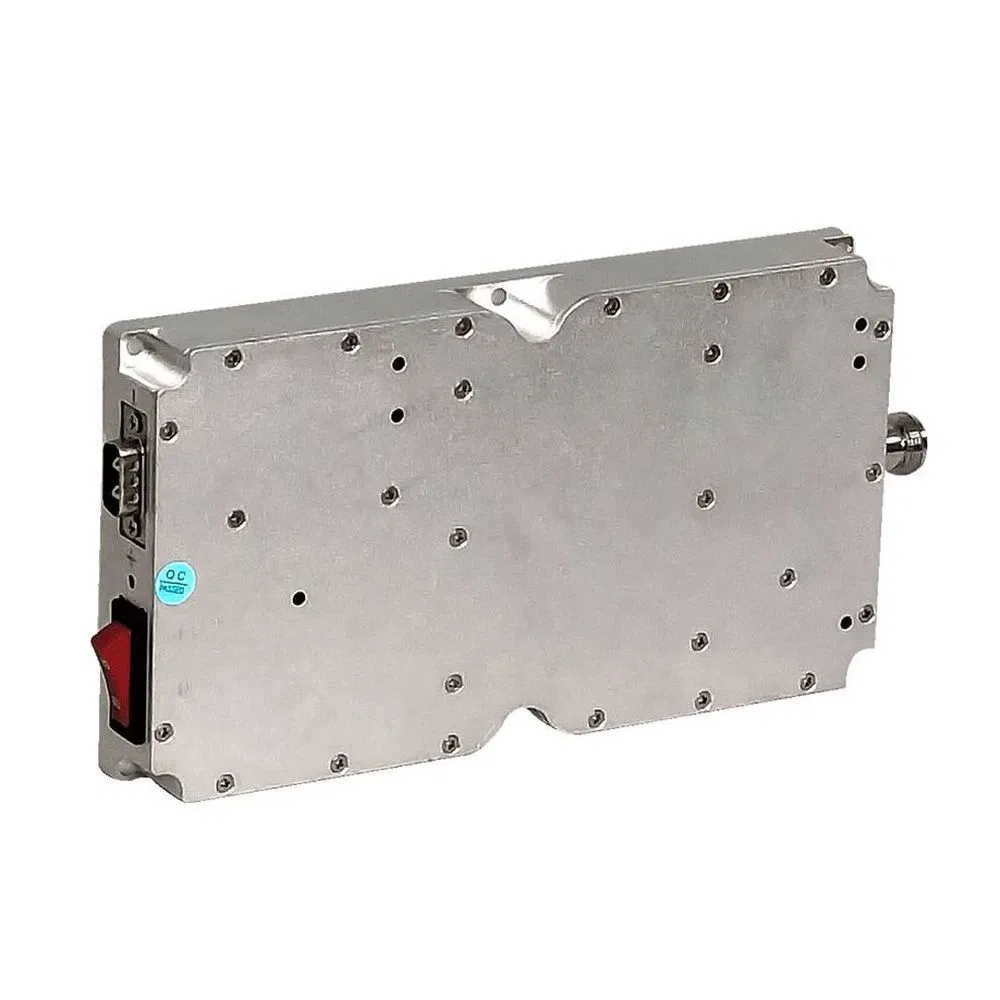

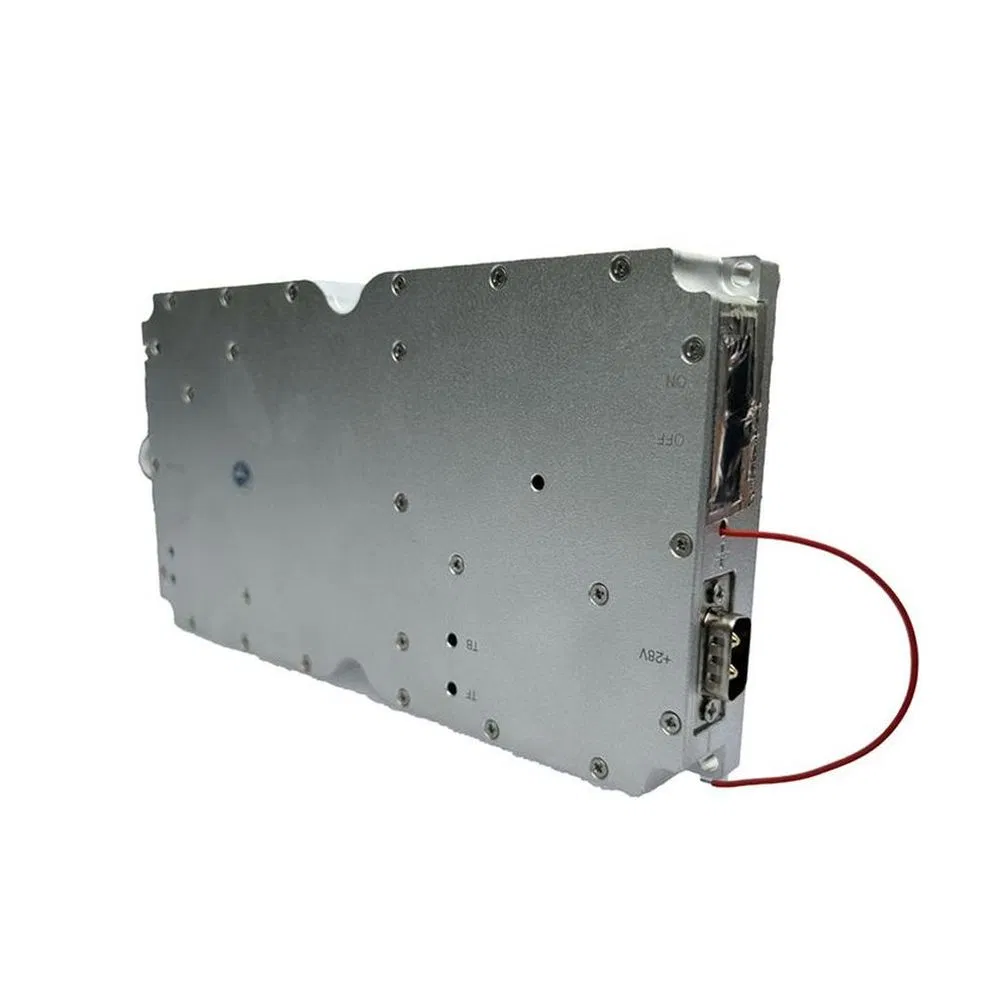

The dimensoins are 199 by 110 by 28mm at about 1kg, so it's basically a brick you can mount on a tripod or fence post easily without needing a bracket heavy enough to anchor a ship, but the operating voltage at 24-27V means you'll want a regulated supply since pushing voltge spikes near 30V could degrade output stage.
Also, it's not suited for indoor areas with lots of multipath reflections because the gain figure assumes a clean line of sight—we've had buyers try it in stadium parking lots and teh interference performnce drops noticeably, better to reserve this for open perimeter or tower-mounted setups with that wider suppression margin.
The 199×110×28mm package doesn't include a heatsink compound either, so if you're running continuous 100W output in 55°C ambient you'll want to bolt it to a decent metal surface or add active cooling, let me know if you want rough pricing or sample COA form the last batch.
We typically start at 10 units for this module, but we can discuss smaller orders depending on stock availability.
Yes, all certifications including CE, ISO, RoHS, and GS are included with every order. Just let us know if you need copies ahead of time.
We can adjust the voltage range slightly, but it would require a custom order with a minimum of 50 units. Let us know your target voltage and we'll check feasibility.
For stocked units, lead time is about 7-10 business days. For larger orders or custom specs, expect 3-4 weeks.
Keep it in a dry, cool place between -25°C and +55°C, ideally in its original packaging to avoid dust or moisture damage.
