28V DC 1.5GHz RF Power Amplifier with Analog Sweeping Speed 200KHz for Industrial Applications

28V DC 1.5GHz RF Power Amplifier with Analog Sweeping Speed 200KHz for Industrial Applications

US$ 1 ~ 88

Min.Order: 1

Product origin: Shenzhen, Guangdong, China

Category: Electronics

Product Name: Electronics

Availability:In Stock

Product Review : 0 Reviews

Infringement complaint:

* Please contact the supplier via whatsapp first before placing an order

High Performance Wireless Repeater with Smart Chip and Optical Fiber Transmission Medium

US$ 33.45 ~ 29.28

Professional Grade Portable Signal Jammer - 5-20m Coverage for Conference Rooms Vehicles

US$ 0.10 ~ 1

Customized Anti-Drone Jamming Device SC-J3000+ with 300MHz-6GHz Frequency Range

US$ 500.00 ~ 20000.00

Portable RF Interference Solution GW-6067 for Border Control and Checkpoint Security

US$ 1 ~ 10

Portable 16.8kg Manpack Jammer with Li-Ion Battery for Law Enforcement Applications

US$ 2000.00 ~ 2420.00

Model NO. : 1.5G
Frequency Range : 1550-1650 MHz
Bandwidth : ±10MHz
Working Voltage : 28V (24-30V)
Analog Sweeping Speed : 200KHz (50KHz-300KHz customizable)
Output Power (Max) : ≥47dBm (50W)
Gain (Max) : 47±1dB
Ripple in Band : ≤3dB
Bandwidth Adjustment : Yes (By screw)
Center Adjustment : Yes (By screw)

Working Temperature : -20°C ~ +65°C
Gain Stability : ±1dB at -20°C~+55°C
Power Stability : ±1dB at -20°C~+55°C
Working Current : ≤4.2A @+28V DC (CW output 50W)
RF Output Connector : SMA-Female
Dimension : 117×58×16mm
Weight : 230g
Certification : ISO
Origin : China

The 1.5GHz RF power amplifier module is designed for professional wireless communication applications. This high-performance amplifier delivers up to 50W output power with excellent gain stability across the operating temperature range.

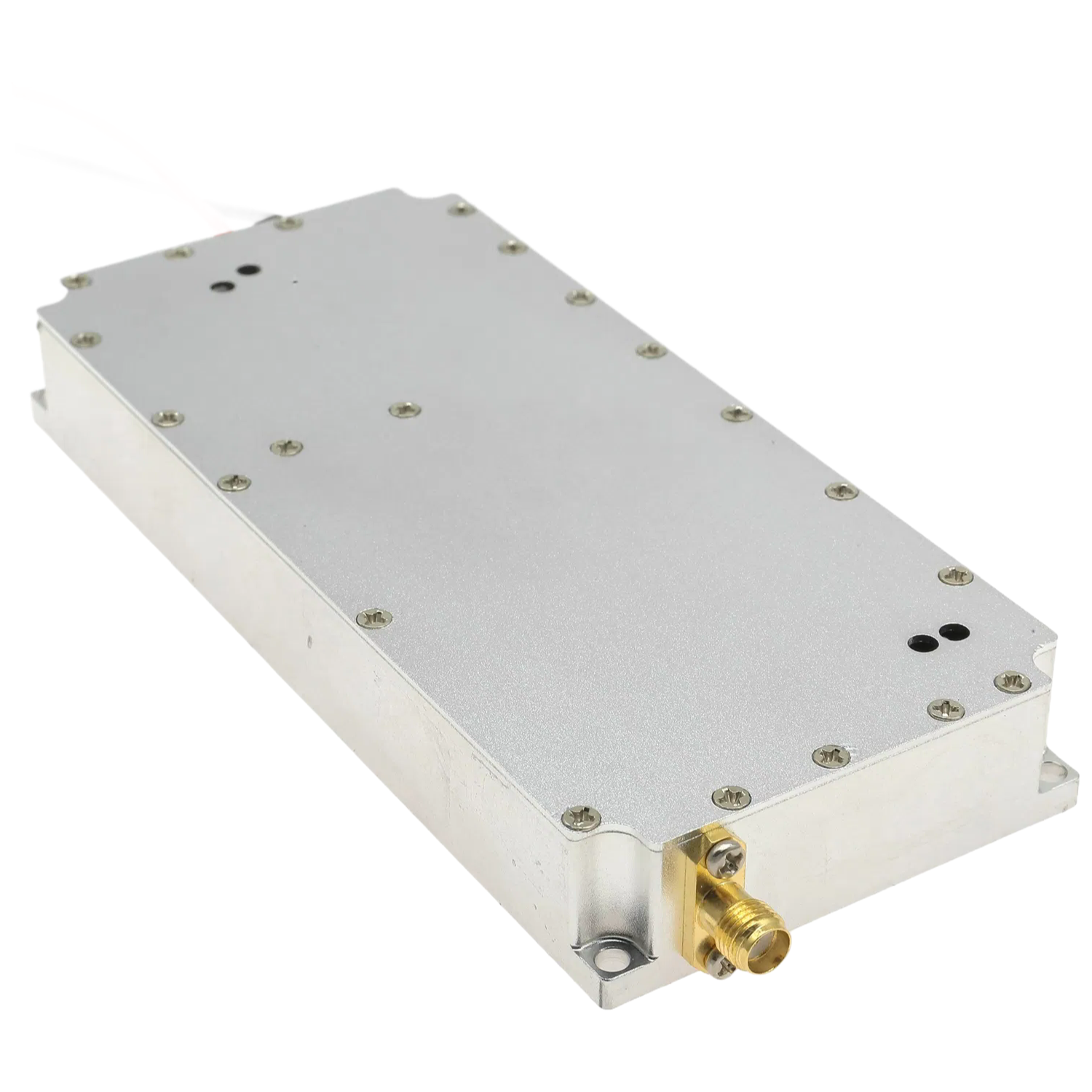

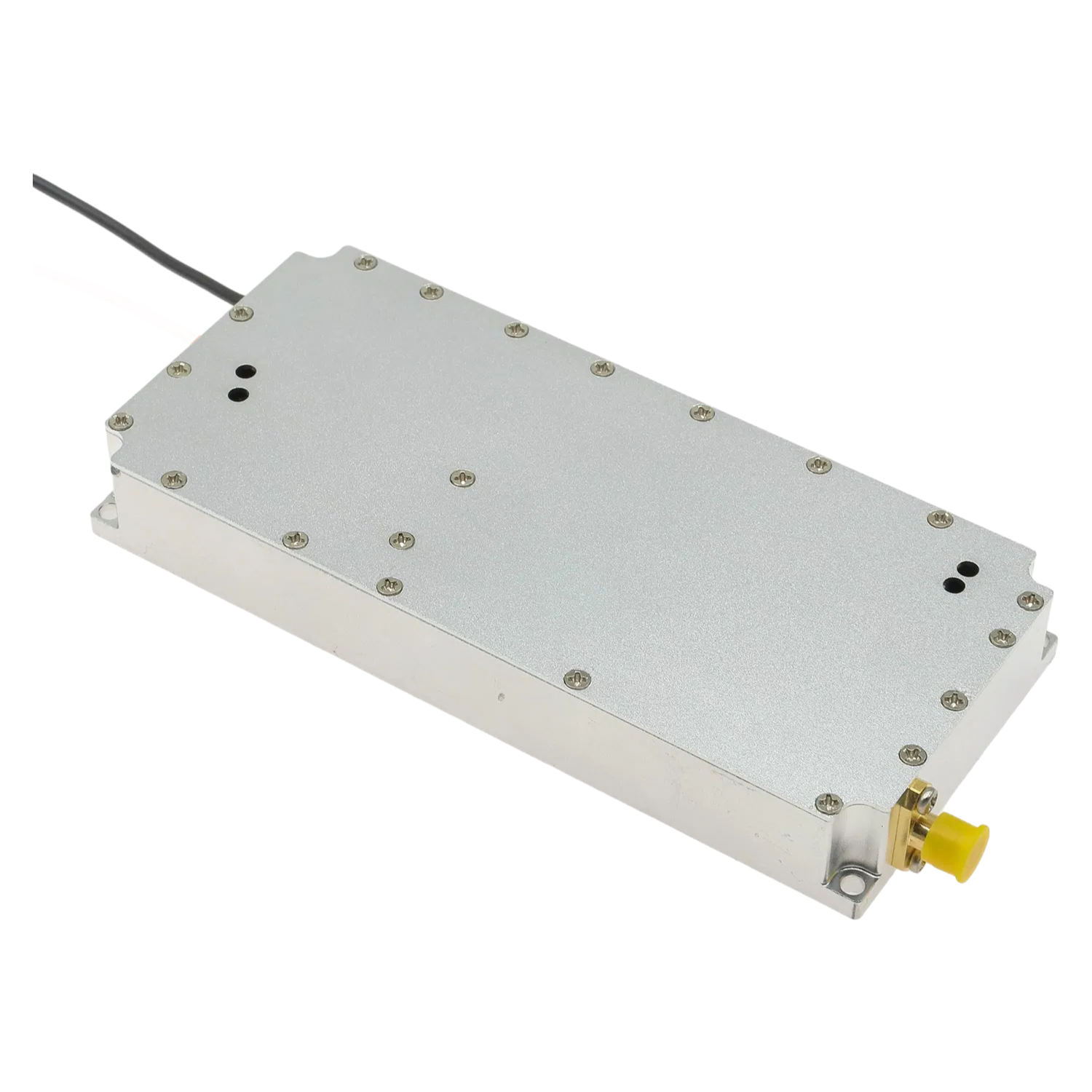

1.5GHz RF Amplifier Module

Featuring a compact size of 117×58×16mm, this amplifier module operates in the 1550-1650MHz frequency range with ±10MHz bandwidth. The analog sweeping speed can be customized between 50KHz to 300KHz to meet various application requirements.

RF Amplifier Internal Structure

The module includes convenient adjustment features with screw-based center frequency and bandwidth controls. A clear LED indicator provides visual power status confirmation. The SMA-Female RF output connector ensures reliable signal transmission.

With excellent thermal performance, the amplifier maintains ±1dB gain stability and ±1dB power stability across the full operating temperature range from -20°C to +65°C. The efficient design keeps working current below 4.2A at 28V DC when delivering 50W CW output power.

RF Amplifier Performance Chart

This ISO certified amplifier module is ideal for GPRS workstations, data transmission systems, and other professional wireless communication applications requiring high power output in the 1.5GHz band.
