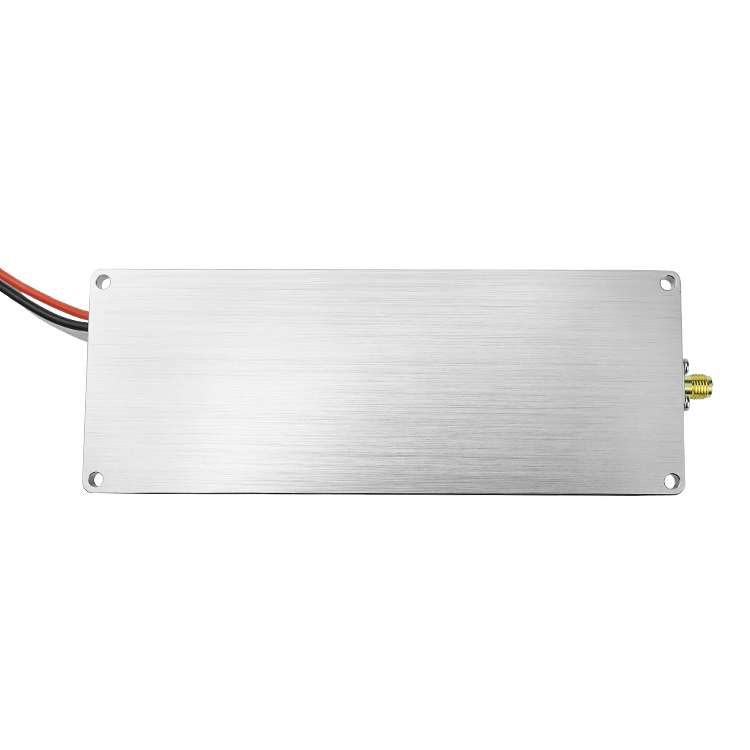

FPGA Controlled RF Amplifier Module for Anti-Drone Systems and Security Applications

This advanced RF power amplifier module operates in the 700-800MHz frequency range, specifically engineered for drone threat mitigation and UAV signal inhibition applications. With an impressive output power of 50W (47dBm), this module delivers sufficient power for effective signal blocking of drone ground station transmissions.

The module demonstrates exceptional performance characteristics including excellent in-band flatness, minimal offset between upper and lower sidebands, and highly efficient sweep interference capabilities with minimal temperature drift. These features make it particularly effective against frequency-hopping drones, providing superior countermeasure performance compared to conventional source modules.

At the heart of this advanced system lies an FPGA logic chip that controls and connects frequency-locking VCO technology, ensuring outstanding frequency stability for drone jammer control digital signals. The module employs linear spread spectrum modulation technology, generating chirp signals through linear frequency modulation where the carrier frequency of each data packet changes linearly with time.

This sophisticated approach delivers significantly higher efficiency than standard source modules, particularly effective in the LoRa frequency band and for FPV drone applications. The module's advanced design ensures reliable performance in various challenging environments.

The RF power amplifier module finds applications across multiple security scenarios including protection for leaders, politicians, VIP convoys, law enforcement operations, stadium events, large competitions, public entertainment activities, and high-security environments requiring privacy and confidentiality protection.

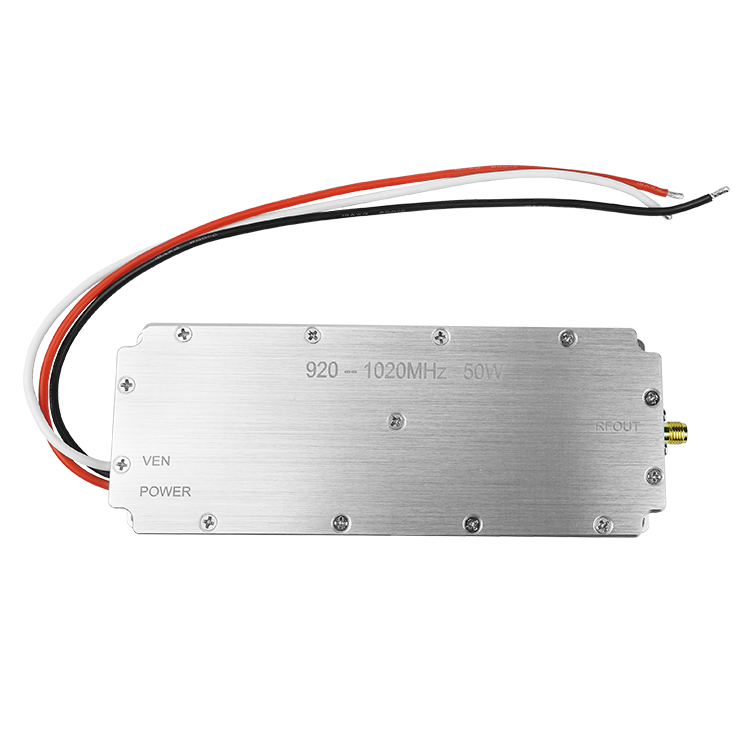

Important operational notes: The red wire indicates the positive pole, black wire represents the negative pole, and white wire serves as the enable control. Always connect the antenna before powering on the module to prevent potential damage. Verify that the power supply voltage remains within the specified allowable range before operation.

This product is designed for professional security applications and is intended for research and authorized use only. Not for personal consumer applications.
