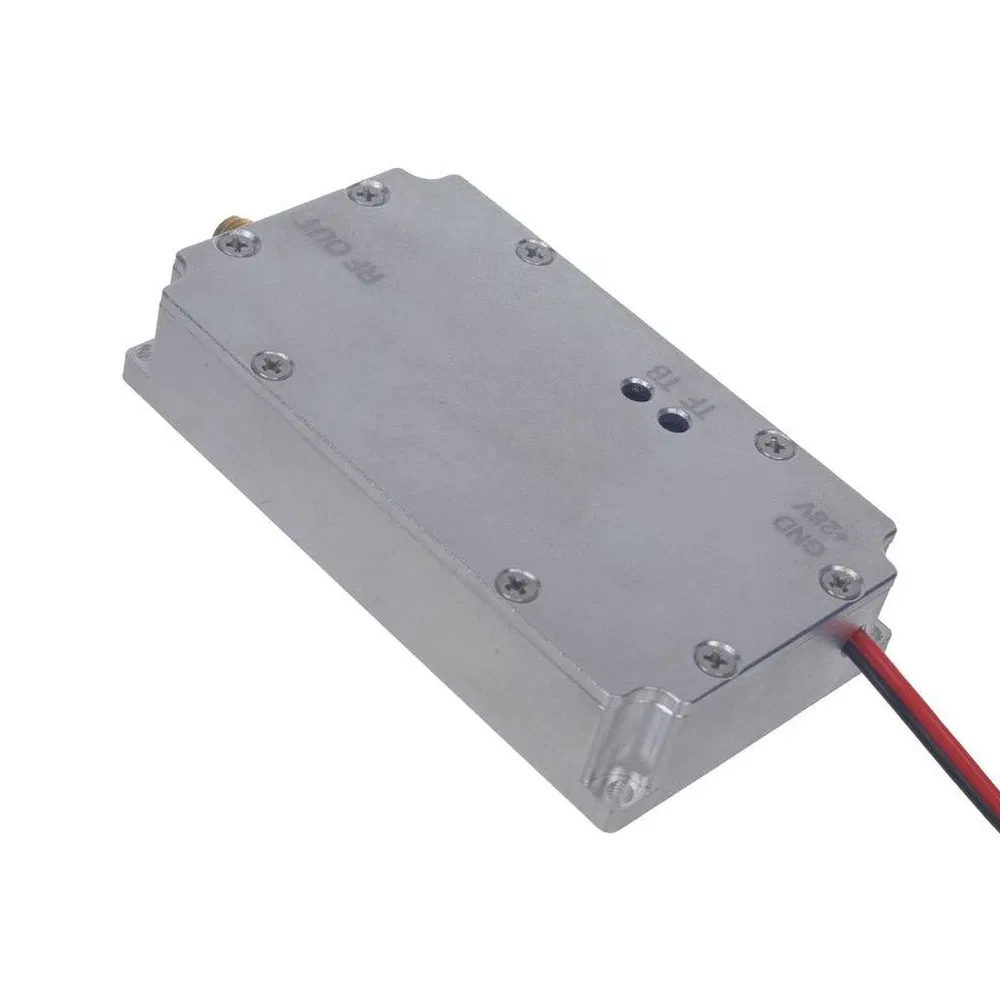

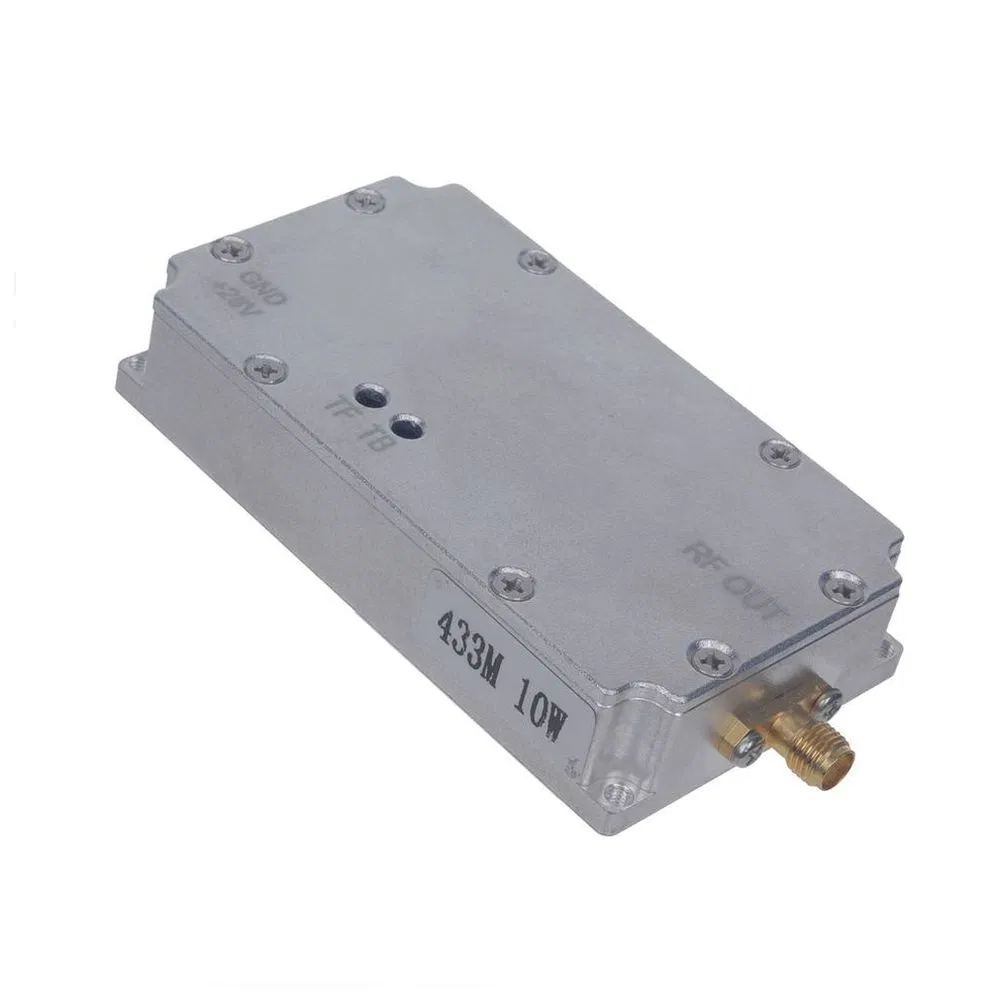

If you're building a UAV defense system that needs to cover the 420-450MHz range, this module gives you a solid 10W of jamming power with output hitting ≥40dBm—most buyers don't realize how much interference zone that actually creates until they test it in teh field.
Sweep frequency sits between 60-250kHz, so you're not locked into one fixed tone, and the clutter suppression at ≥65dBm means it won't bleed into adjacent bands as much as some cheaper modules we've tested, though harmonic suppression is only ≥11dBm so keep that in mind if you have sensitive gear nearby.

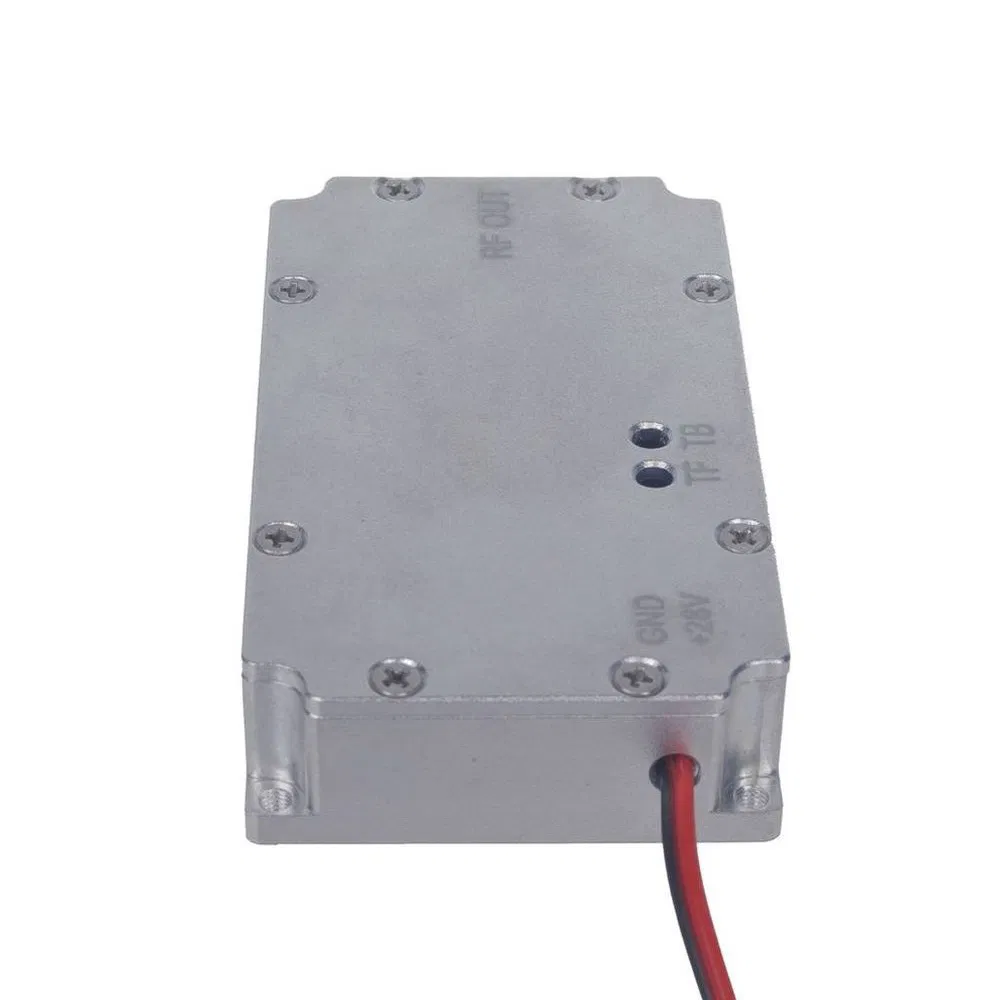

We've shipped these for perimeter protection setups and vehicle-mounted systems, but it's not really suited for indoor use unless you have proper cooling since the power supply needs a steady 24-27V and pulls ≤1A—pretty much standdard for this class, but the 0.1kg weight makes it easy to integrate into compact enclosures.

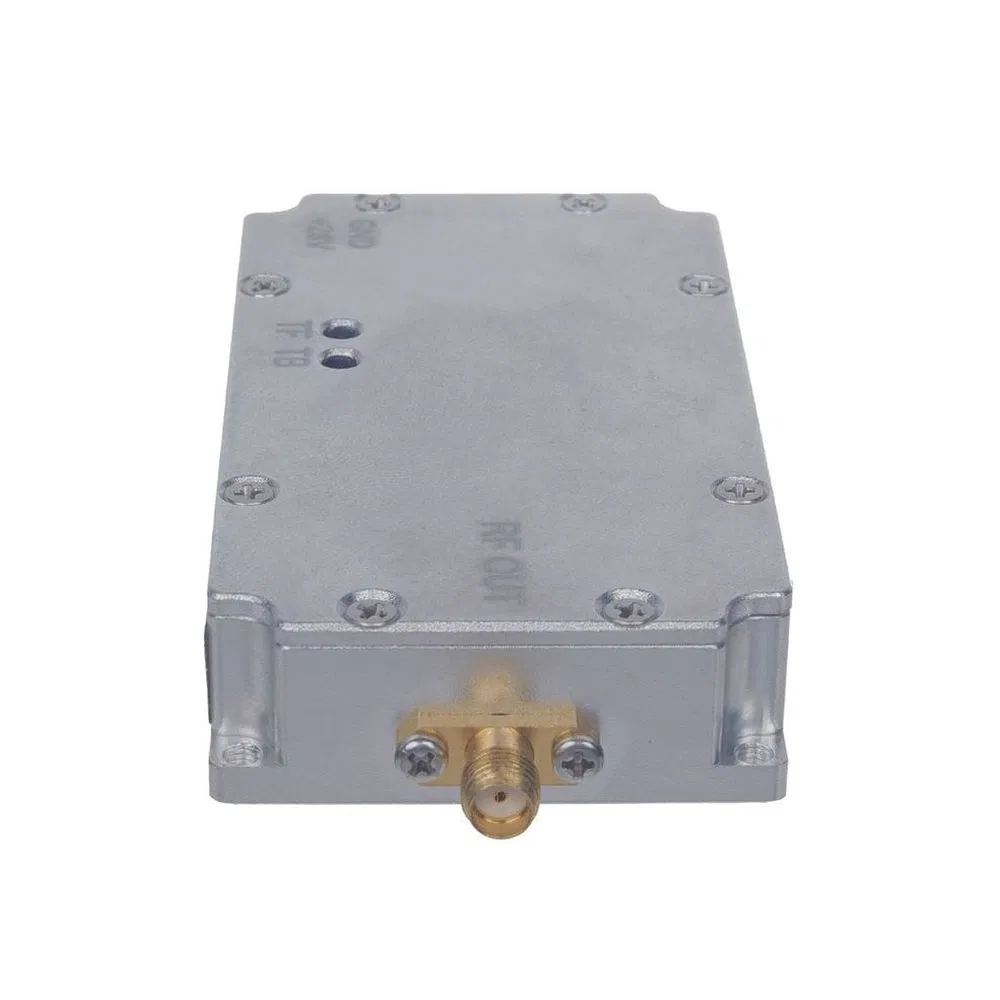

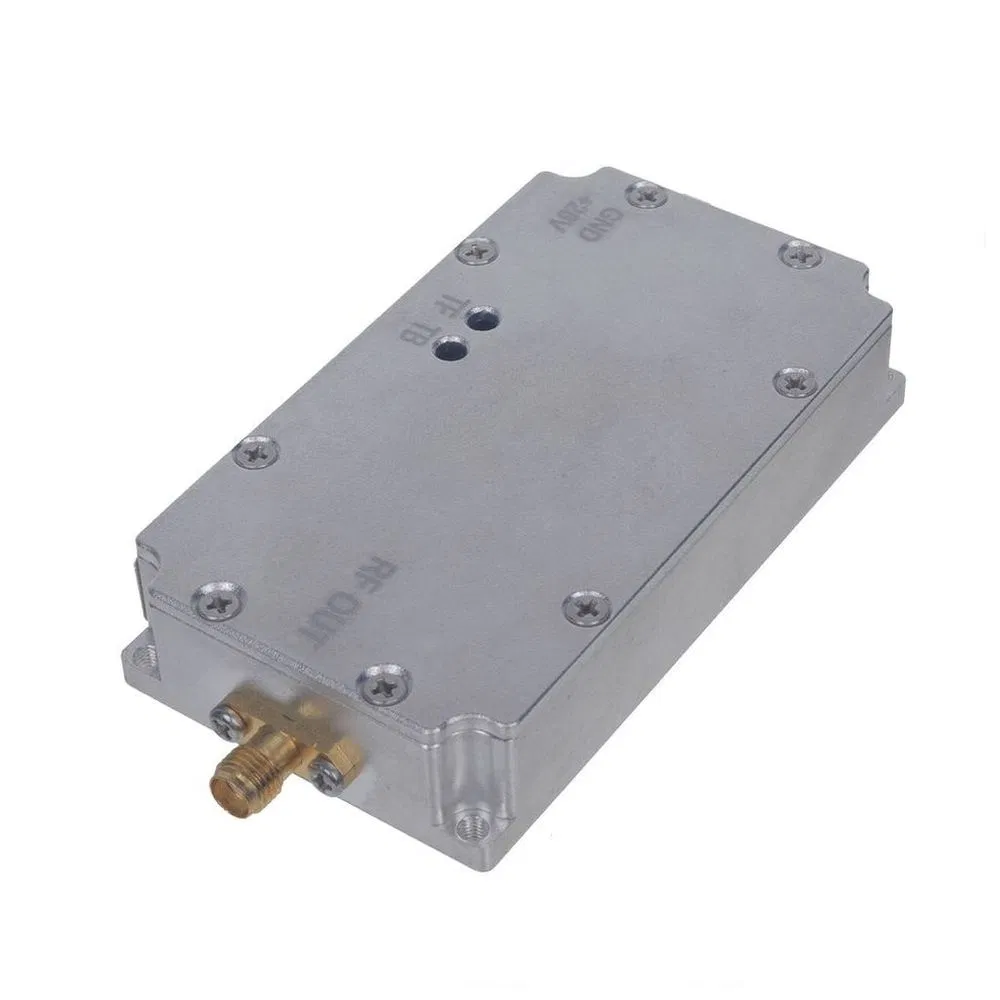

It's CE, ISO, RoHS, and GS certified, so compliance is usually straightforward for most markets, and the SMA RF output interface is common enough that you can match antennas without adapters 90% of the time, but check lead time because we usually have stock but confirm for orders over 50 units or so.
One thing we've seen buyers miss is that output port standing wave needs to stay ≤2.0, otherwise the gain figure drops noticeably—if you connect a mismatched antenna, you'll lose half the effective power, so don't skip that step.
Anyway, the dimnesions are 82×45×18mm, so it fits in most standard chassis, and the operating temperture range of -25°C to +55°C covers most outdoor setups we see.
Yes, the output power is ≥10W, with a gain of ≥40dBm and max output also ≥40dBm. It delivers stable power across the whole 420-450MHz frequency band, as long as you supply 24-27V and keep the standing wave ≤2.0.
It's certified with CE, ISO, RoHS, and GS. We can send you digital copies of the certificates upon request—just let us know what you need for your compliance review.
MOQ is typically 10 pieces for stock items, but we can discuss lower quantities for first-time orders or samples. Contact us and we'll work something out.
The sweep frequency range lets the module hop across the band to disrupt drone control signals effectively. It covers the typical 420-450MHz spectrum used by many UAVs, making it hard for drones to lock onto a clean channel.
It operates from -25°C to +55°C, and we recommend storing it in a dry, cool place within that range. Avoid prolonged exposure to humidity or extreme temps to keep the SMA connector and internals in good shape.
