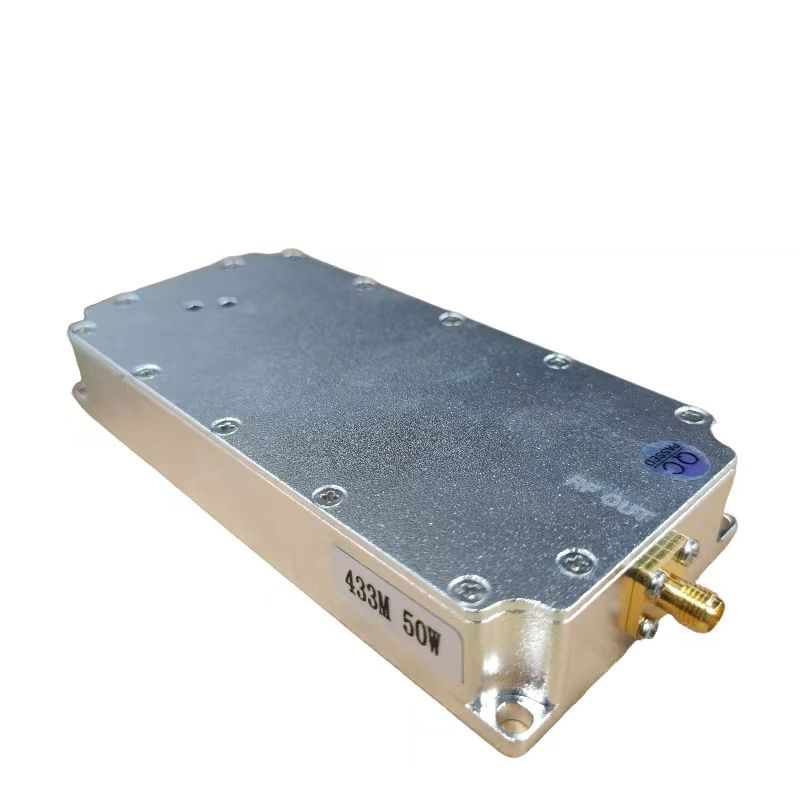

The 433MHz 50W RF Power Amplifier Module is a high-performance solution designed specifically for anti-drone applications. This professional-grade module operates in the 420-450MHz frequency range, delivering exceptional output power and signal clarity for effective UAV countermeasures.
With a maximum output power of 50W and gain of ≥47dB, this amplifier ensures strong signal transmission for drone detection and disruption systems. The module incorporates advanced LoRa wireless technology, making it suitable for various anti-UAV applications where reliable long-range communication is essential.
The amplifier features comprehensive protection mechanisms including standing wave protection that automatically shuts down when no antenna is connected, and temperature protection that activates when operating temperatures exceed 80°C. These safeguards ensure long-term reliability and prevent damage during operation.
For system integration and monitoring, the module includes RS485 communication capability, allowing for real-time data monitoring of temperature, standing wave, power, and current. The RF power can be precisely adjusted through the RS485 interface, providing flexible control options for different operational scenarios.

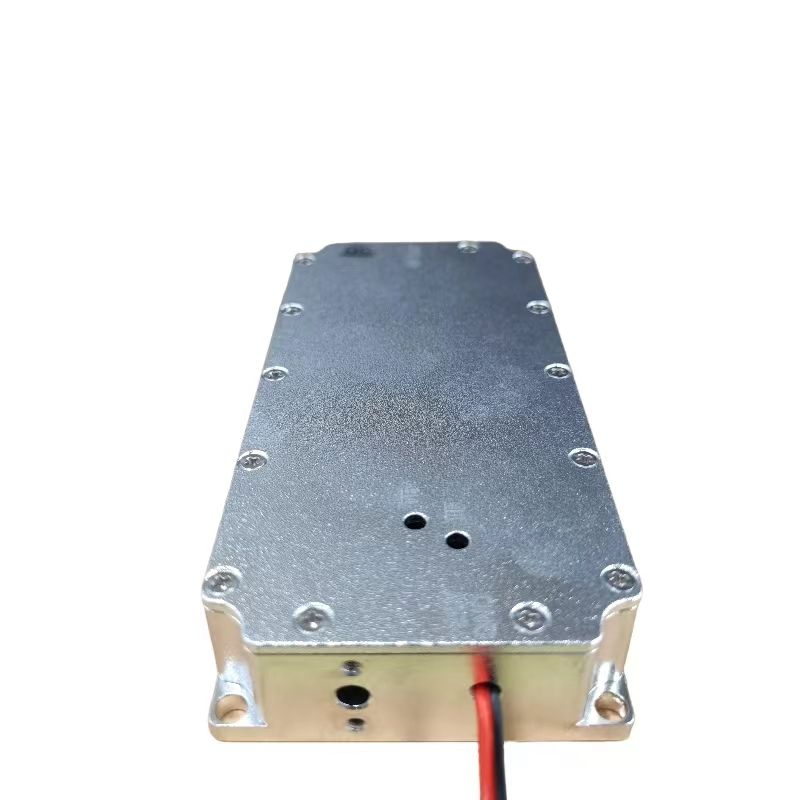

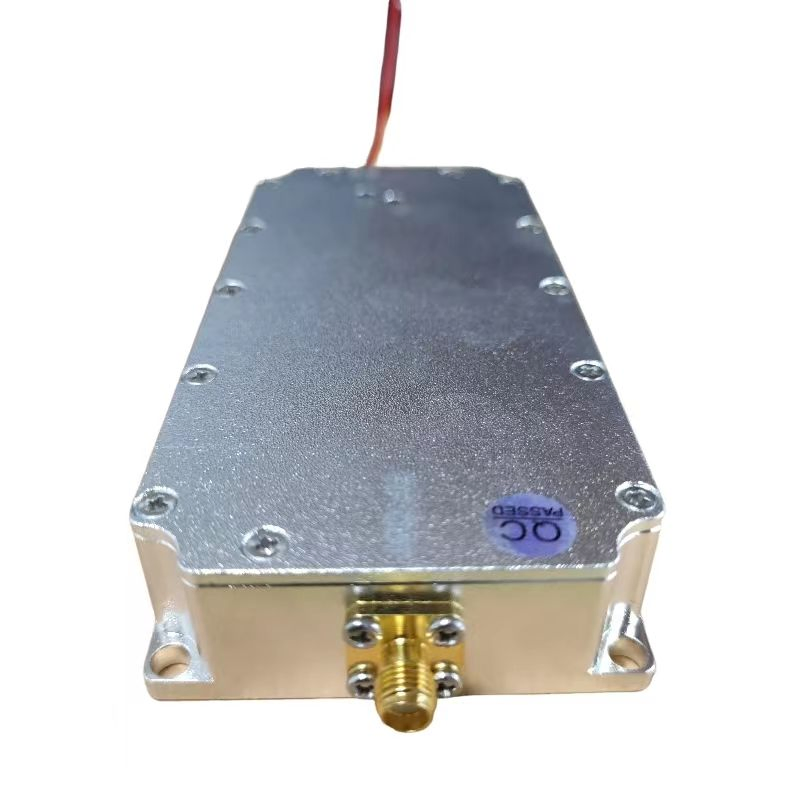

The compact design measures just 127×60×22mm and weighs only 0.35kg, making it suitable for portable anti-drone systems. Despite its small size, the module delivers exceptional performance with ≤1.5 output port standing wave and ≥65dB clutter suppression for clean signal transmission.
