High Gain 45dBm 30W RF Power Amplifier Module for Anti-Drone Systems

US$ 75.00 ~ 55.00
Min.Order: 1
Product origin: Shenzhen, Guangdong, China
Category: Electronics
Product Name: Electronics
Availability:In Stock
Product Review : 33 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Frequency Range : 420-450MHz (433MHz center)
  • Output Power : 30W
  • Gain : 45dB
  • Dimensions : 29.7×131×15.5mm
  • Weight : 136g
  • Passband Ripple : ≤2dB
  • Input/Output VSWR : 1.5dB
  • Operating Voltage : 24-32V DC
  • Current Consumption : 2.1-2.4A
  • Operating Temperature : -10°C to +55°C

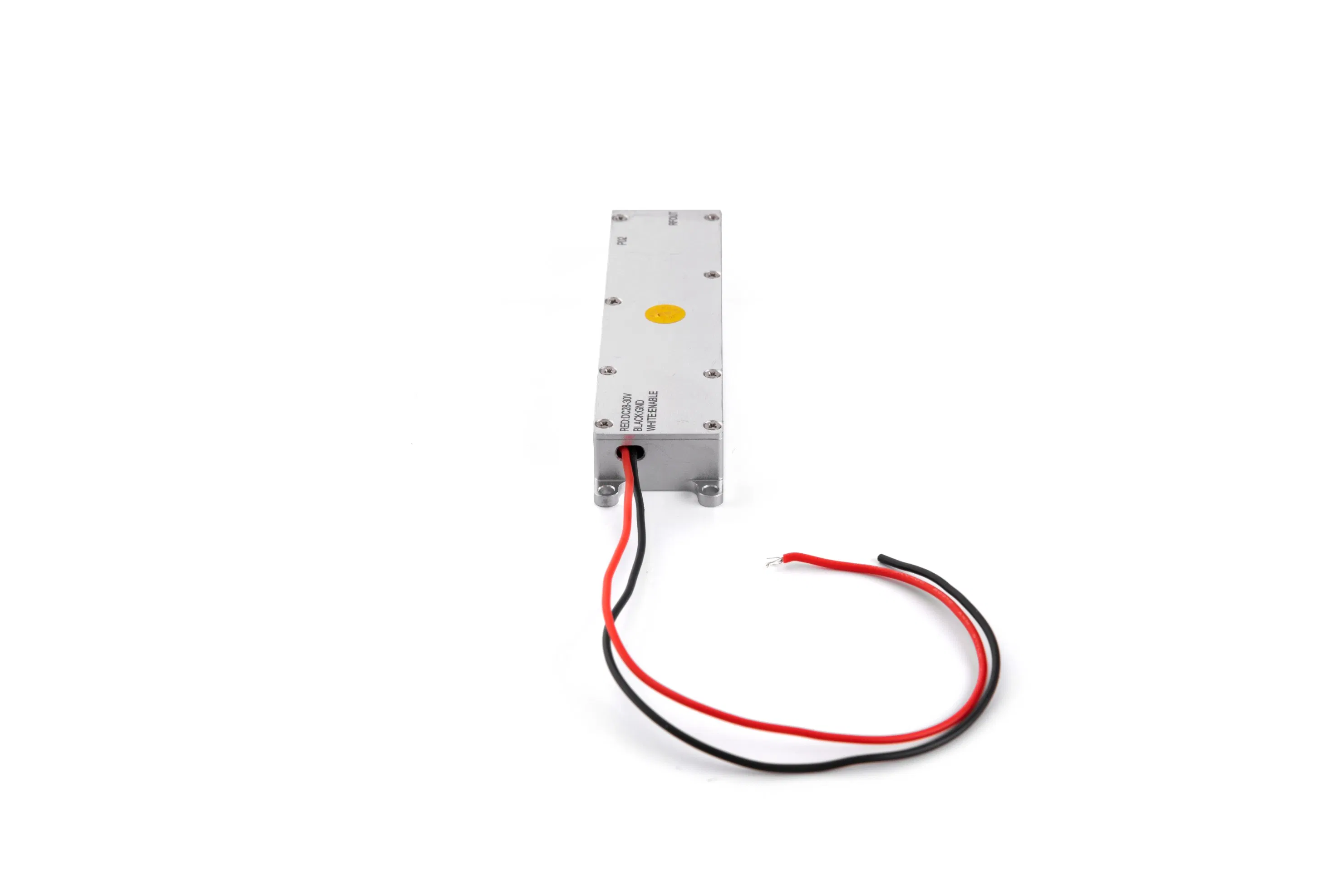

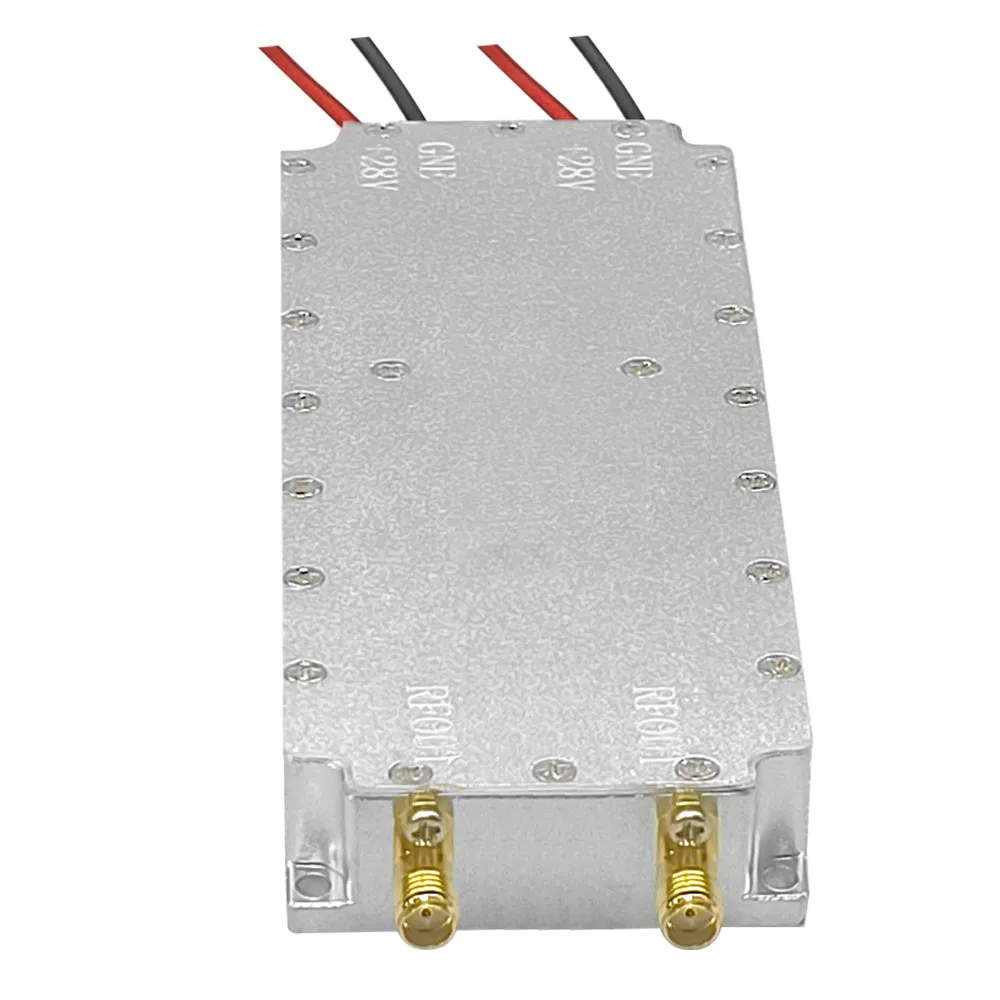

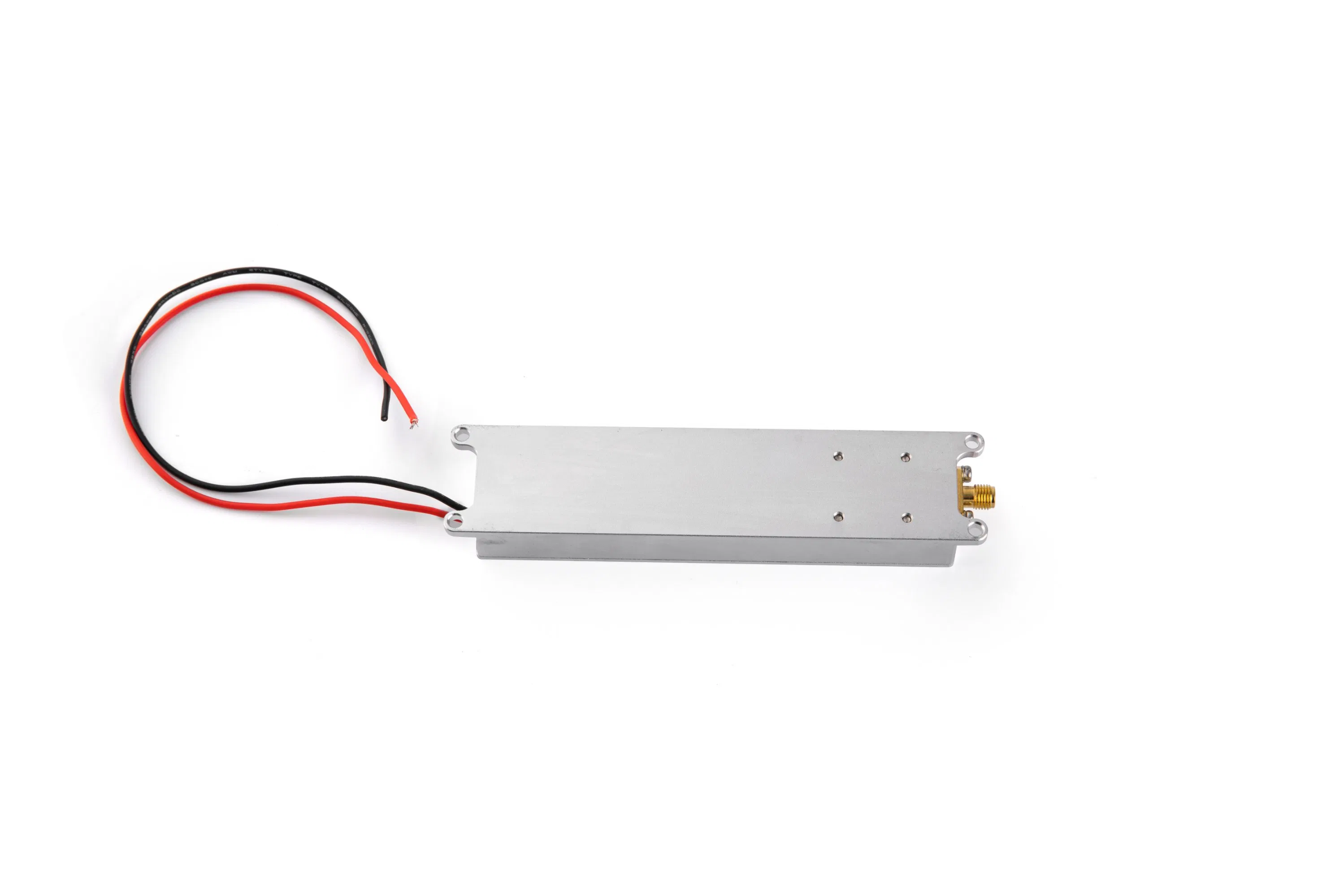

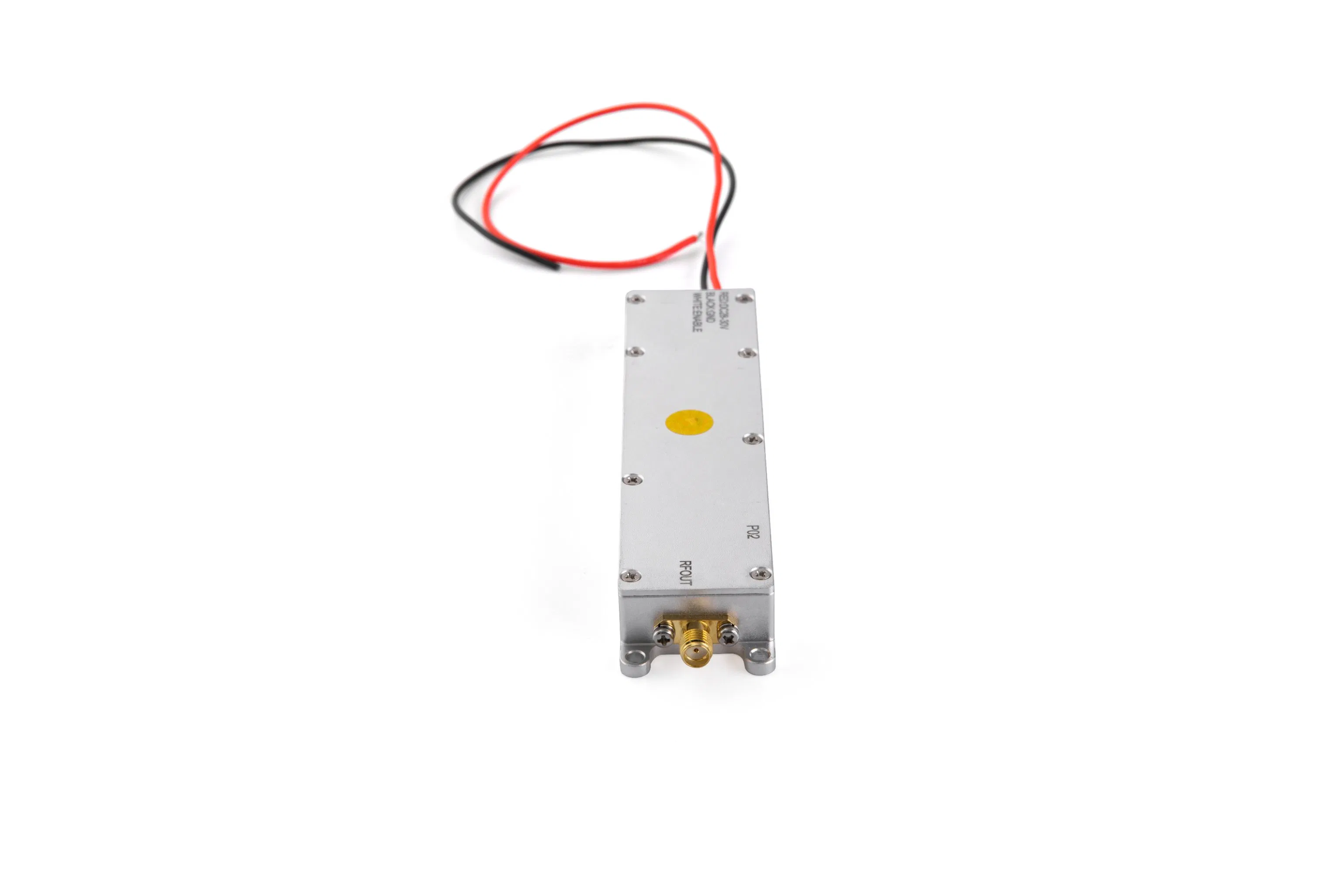

Right out of gate, 45dB of gain is a lot for a module this size—30W output at 433MHz center, and it's barely 136 grams, measuring 29.7 by 131 by 15.5mm, which basically means it drops into a system without needing a redesign.

433MHz RF Power Amplifier Module

What it does is push a clean, stable signal in the 420-450MHz band, typically used for those anti-drone countermeasure setups, with passband ripple under 2dB and input/output VSWR around 1.5 so you're not wasting power on reflections.

RF Power Module Dimensions

Power Amplifier Module Connection Diagram

You'll need a 24-32V DC supply pulling 2.1 to 2.4 amps, and it'll handle -10°C to +55°C without fuss—but it's not suited for extended outdoor exposure in freezing rain unless you box it properly.

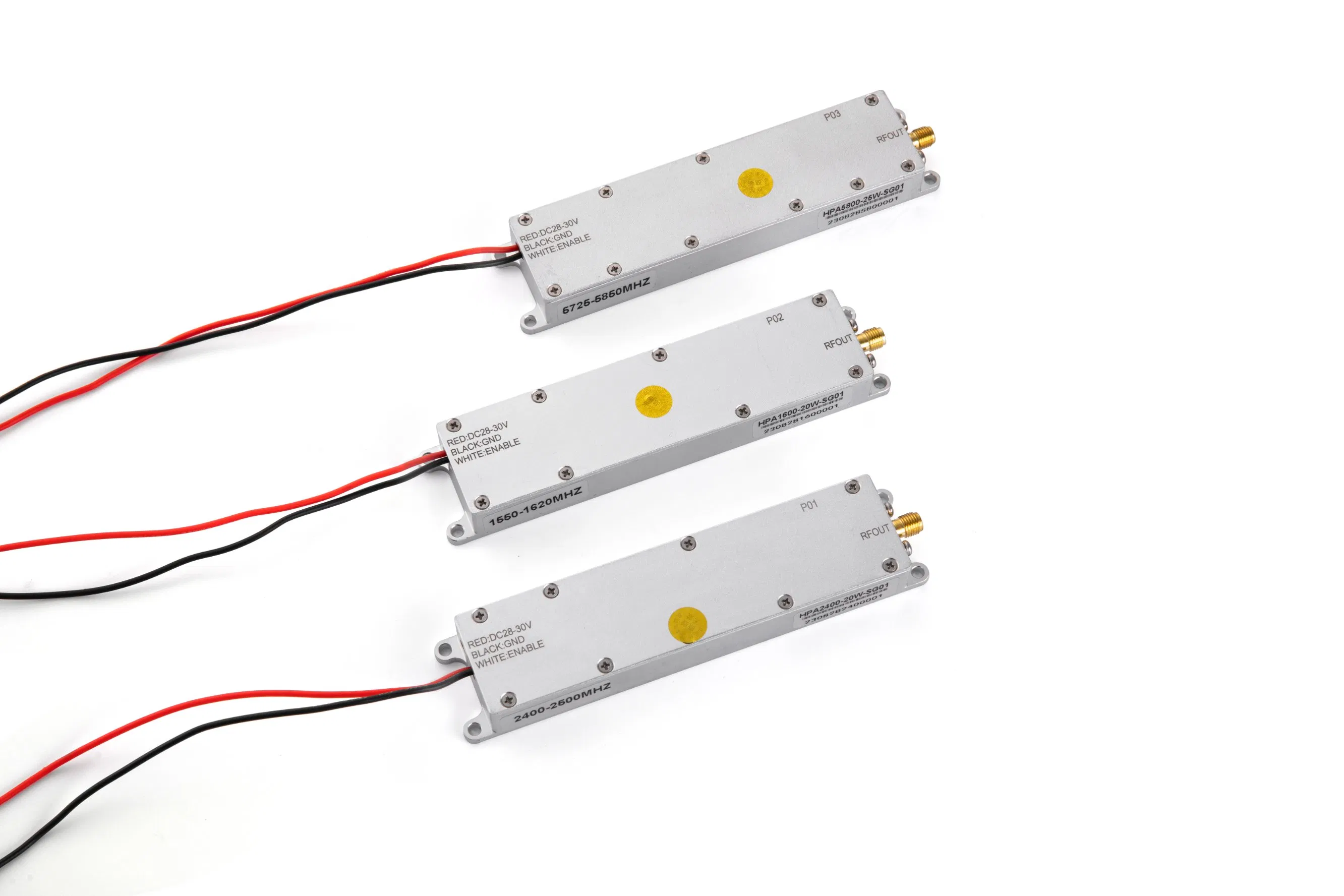

Custom RF Power Module Options

Most buyers go with the 30W version for standerd jamming tasks, but we can customize power from 10W to 100W and frequency from 380MHz up to 5.8GHz depending on your appliction (check lead time, usually 2-4 weeks).

Anti-Drone System Integration

Probably isn't the best choice if you need ultra-wideband coverage—this thing is pretty much locked to that narrow 433MHz sweet spot, and teh 2.1A draw is a hard floor for thermal management.

Frequently Asked Questions

What's the minimum order quantity for this 30W module?

We can do samples starting at 1 unit for testing, but standard MOQ is 10 pieces for production orders.

Can you customize the frequency to 915MHz for our application?

Yes, we offer frequency customization from 380MHz to 5.8GHz, so 915MHz is no problem. Just let us know the exact band you need.

Do you provide any certification documents like CE or FCC for this module?

We can supply test reports for performance specs like gain and VSWR, but CE or FCC certification is done by the integrator. We can share design files to help with your certification process.

What's the typical lead time for a 50-piece order of the 30W version?

Lead time is around 15-20 working days for a 50-piece order, depending on component availability. Custom frequency tuning may add 5-7 days.

How should I store these modules if I'm not using them right away?

Store them in an anti-static bag, in a dry environment below 40°C and under 60% humidity. They're fine on the shelf for up to 12 months.
