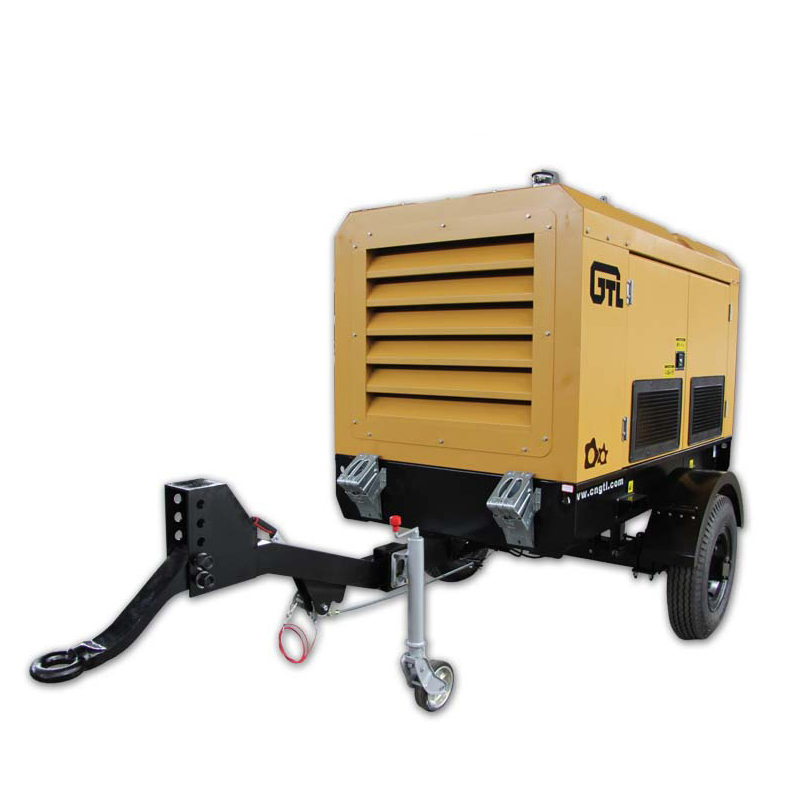

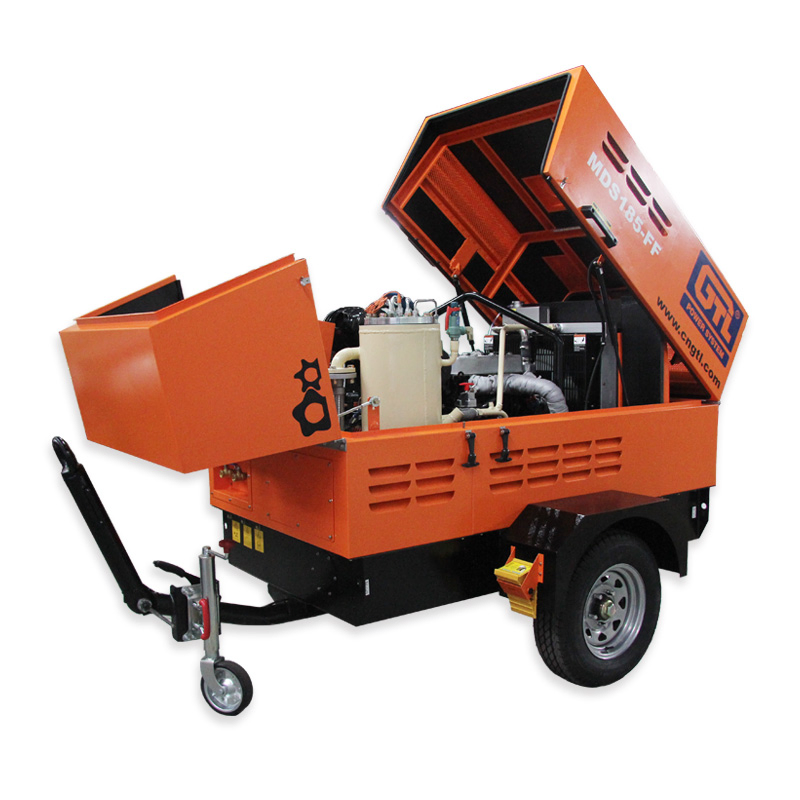

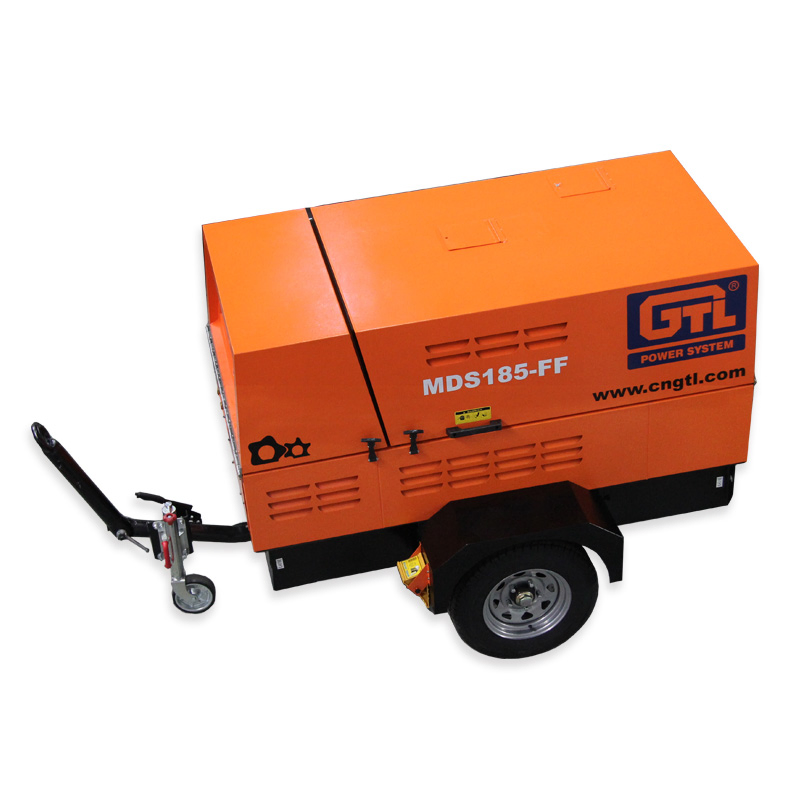

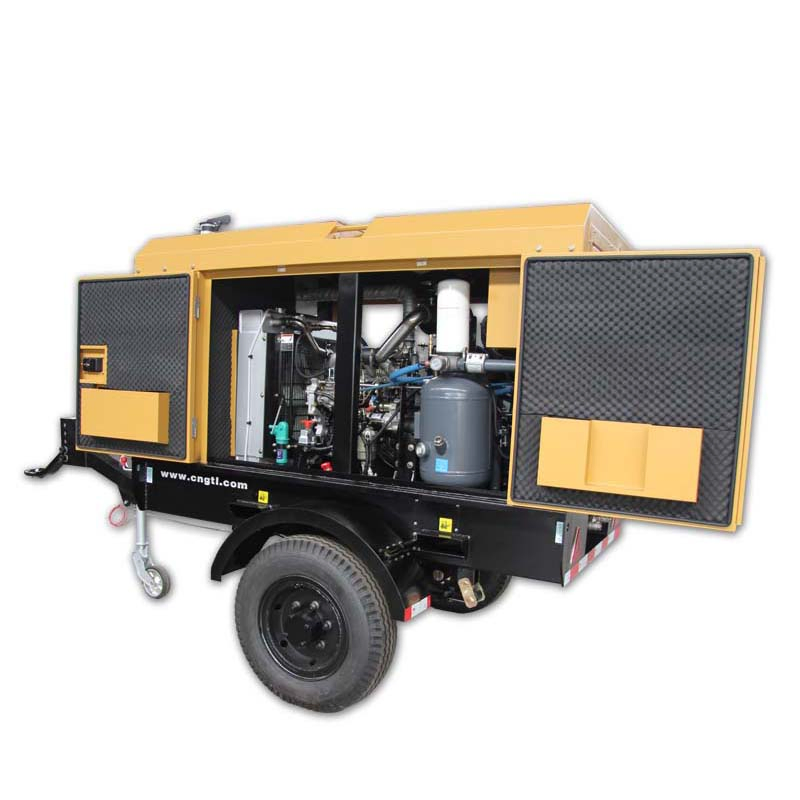

7bar 5.18m³/min MDS185-FF Portable Diesel Air Compressor with Vertical Oil Tank and 50°C Radiator

The MDS185-FF diesel screw air compressor is engineered for demanding industrial applications where reliable compressed air is essential. This robust machine delivers 5.18 cubic meters per minute (185 CFM) at 7 bar (101.5 PSI) discharge pressure, making it suitable for various heavy-duty operations.

Powered by a Foxair-4027DF-005 diesel engine with 42KW rated power, this compressor features a 4-cylinder design operating at 2650 RPM. The unit comes with a comprehensive lubrication system including a 23L oil capacity, oil thermostatic valve, and lubricating oil radiator to ensure optimal performance in various working conditions.

The compressor's twin-screw rotor is directly connected to the diesel engine through a highly flexible coupling, providing efficient energy transfer and reduced maintenance requirements. The two-stage air filtration system achieves 99.8% filtration efficiency, protecting the compressor from dust and dirt particles.

Designed for versatility, the MDS185-FF operates effectively in temperature ranges from -20°C to 50°C. The unit features a user-friendly control panel with one-button start functionality and clear operational parameters, allowing for easy operation without extensive training.

Standard configuration includes multiple safety and performance features such as a suction valve, oil separator, safety valve, emergency stop button, and 50°C radiator. The vertical air/oil tank design and powder-coated canopy provide durability and protection in harsh working environments.

This compressor is particularly suitable for construction sites, road maintenance, drilling operations, and abrasive blasting applications. The pressure and flow selection controls allow operators to adjust output according to specific job requirements, minimizing fuel consumption.

The MDS185-FF represents a reliable compressed air solution for contractors and industrial operations requiring consistent performance in challenging conditions. Its robust construction and high-quality components ensure long service life with minimal downtime.
