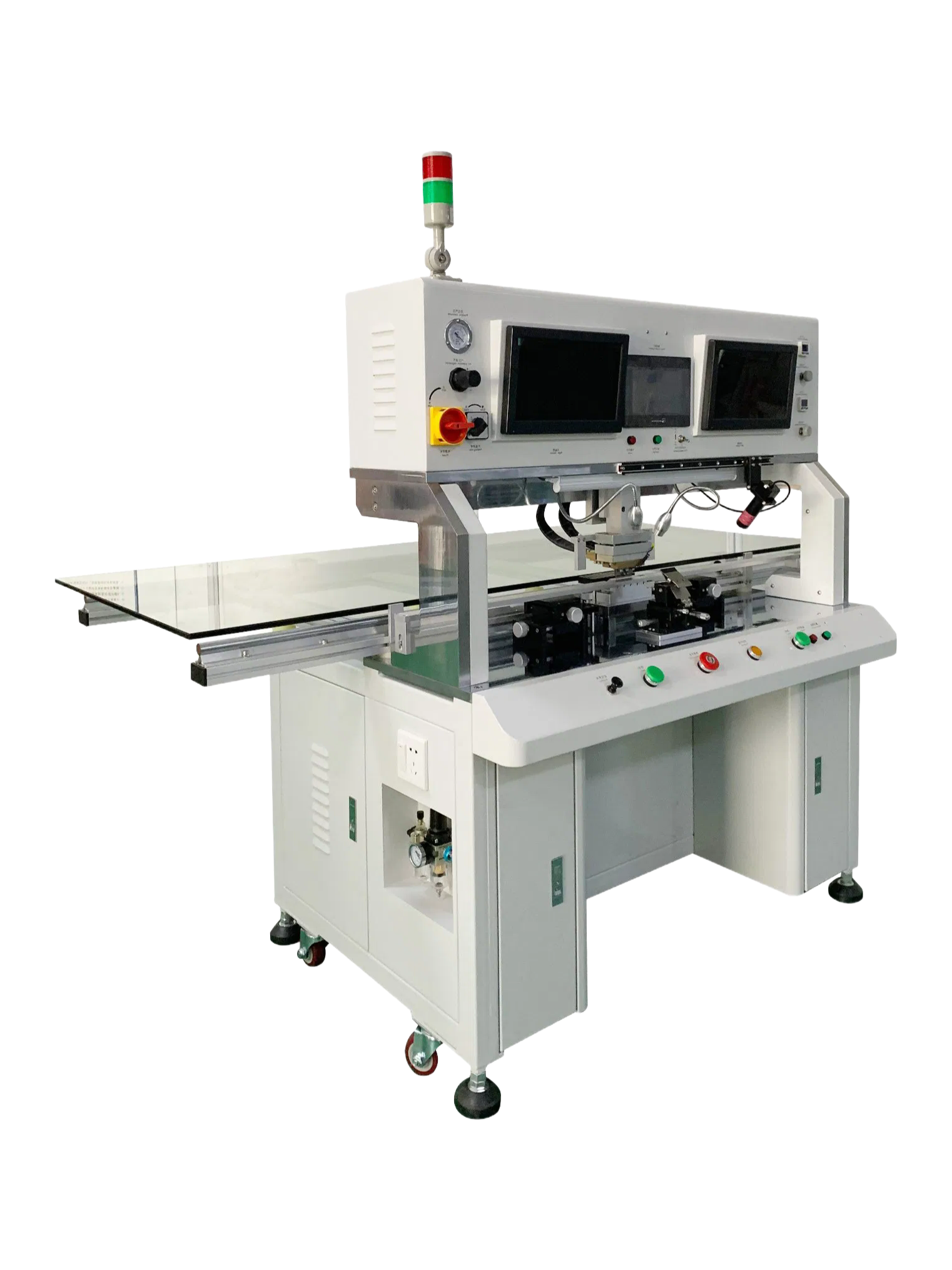

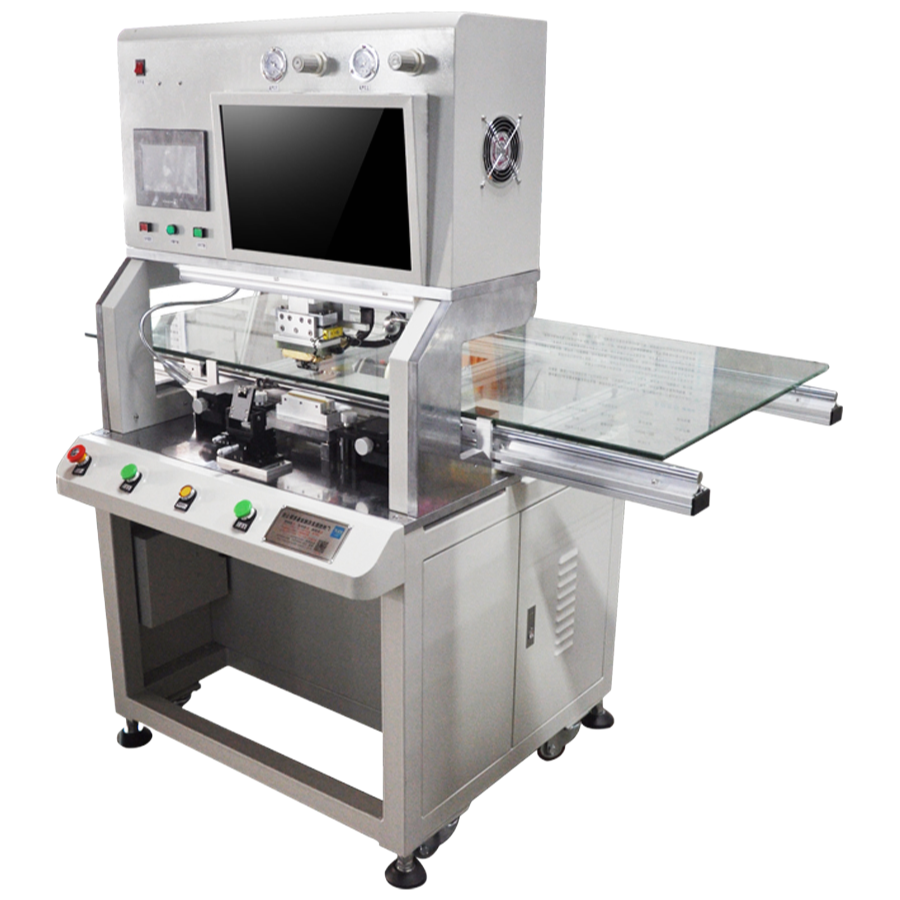

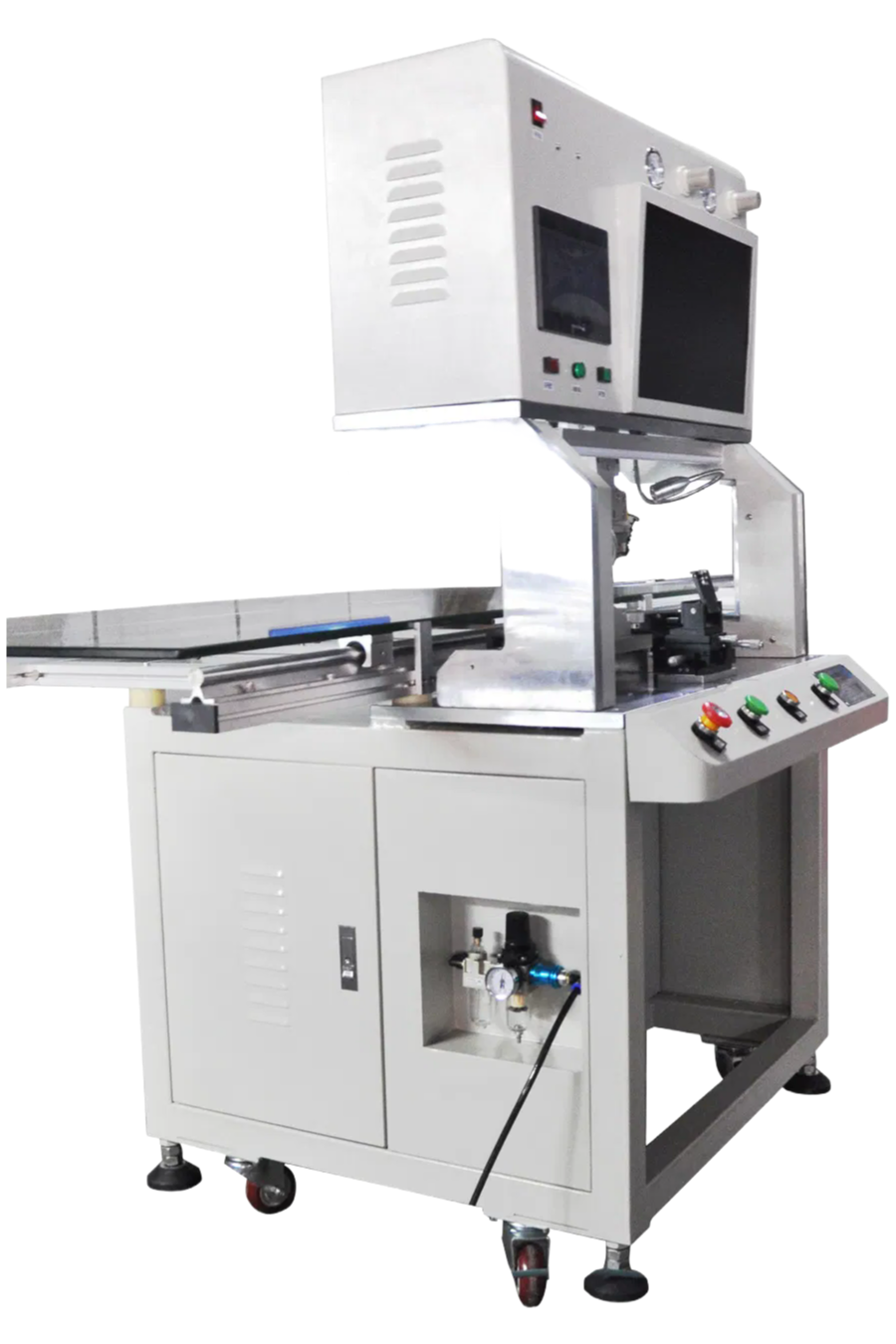

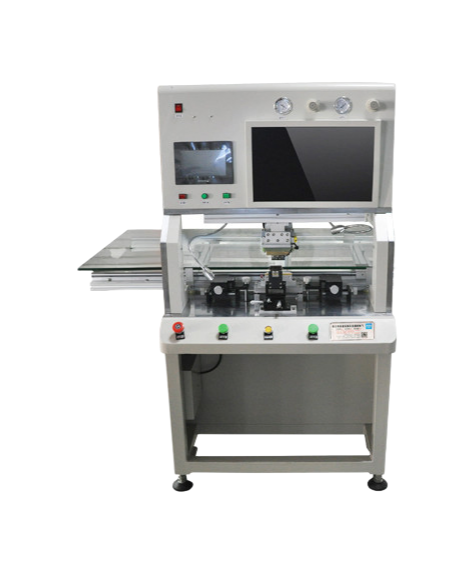

You're looking at roughly 350kg of precision tooling here, the 610DH, with a 1200W peak pulse system that hits 180°C in about 2 seconds — that's fast enough to avoid cooking the surrounding panel. It runs on AC220V and the temperature stays within ±0.3°C, which matters when you're working on those thin ribbons.
Basically, this is for refurbishing LCD panels up to 60 inches, handling black belts, color lines, and ribbon repairs with a titanium alloy hot-press head that has 0.005mm plane precision. Most buyers go with the 20-100x microscope for alignment, but you can also run it without if you're just doing quick COF trimming — the trimming unit comes from Taiwan anyway.
It uses a Siemens module for temperature control and a Delta PLC for the industrial side, with a Panasonic image processing system that feeds into touch screen plus phyiscal buttons. The bonding accuracy is rated at ±1.5μm, which is tighter than what you'd get from a standerd press, but don't expect miracles on cracked glass.
We usually have stock, but confirm lead time for teh 610DH — it's built to order in batches (20 days or so). The working presure needs to be 0.3-0.4MPa from your air supply, so check that before it arrives. Also, this isn't suited for curved screens or flexible OLEDs, just flat panels.
Our MOQ is 1 unit, so you can order just one to start with.
Standard lead time is about 30 days after order confirmation and deposit.
Yes, we can supply certificates of origin and quality docs for the Siemens temperature module and Delta PLC upon request.
No, the max panel size is 60 inches — anything larger won't fit the work area.
Keep it in a dry, clean environment at room temperature, and cover it to prevent dust buildup on the titanium alloy head and optics.
