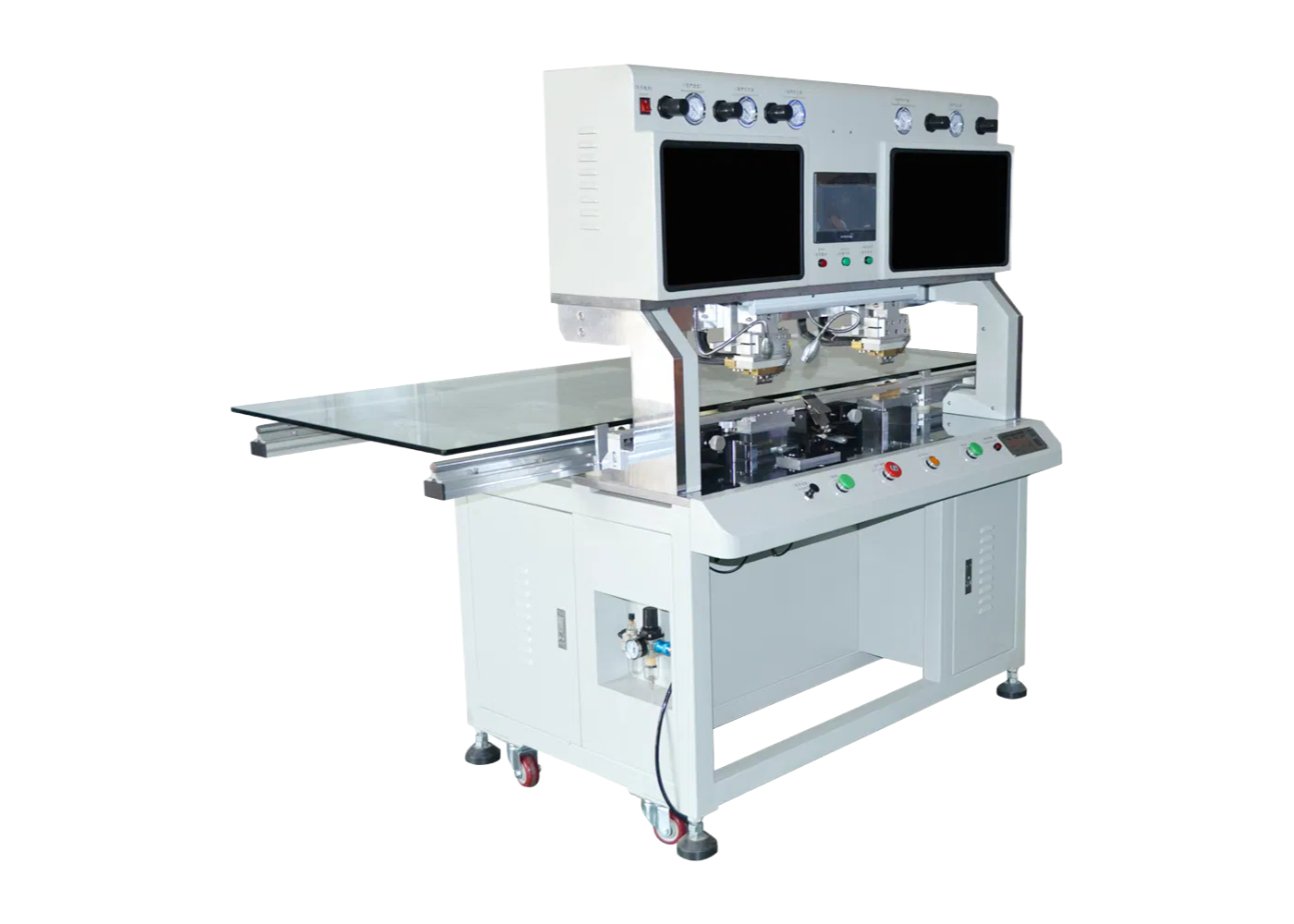

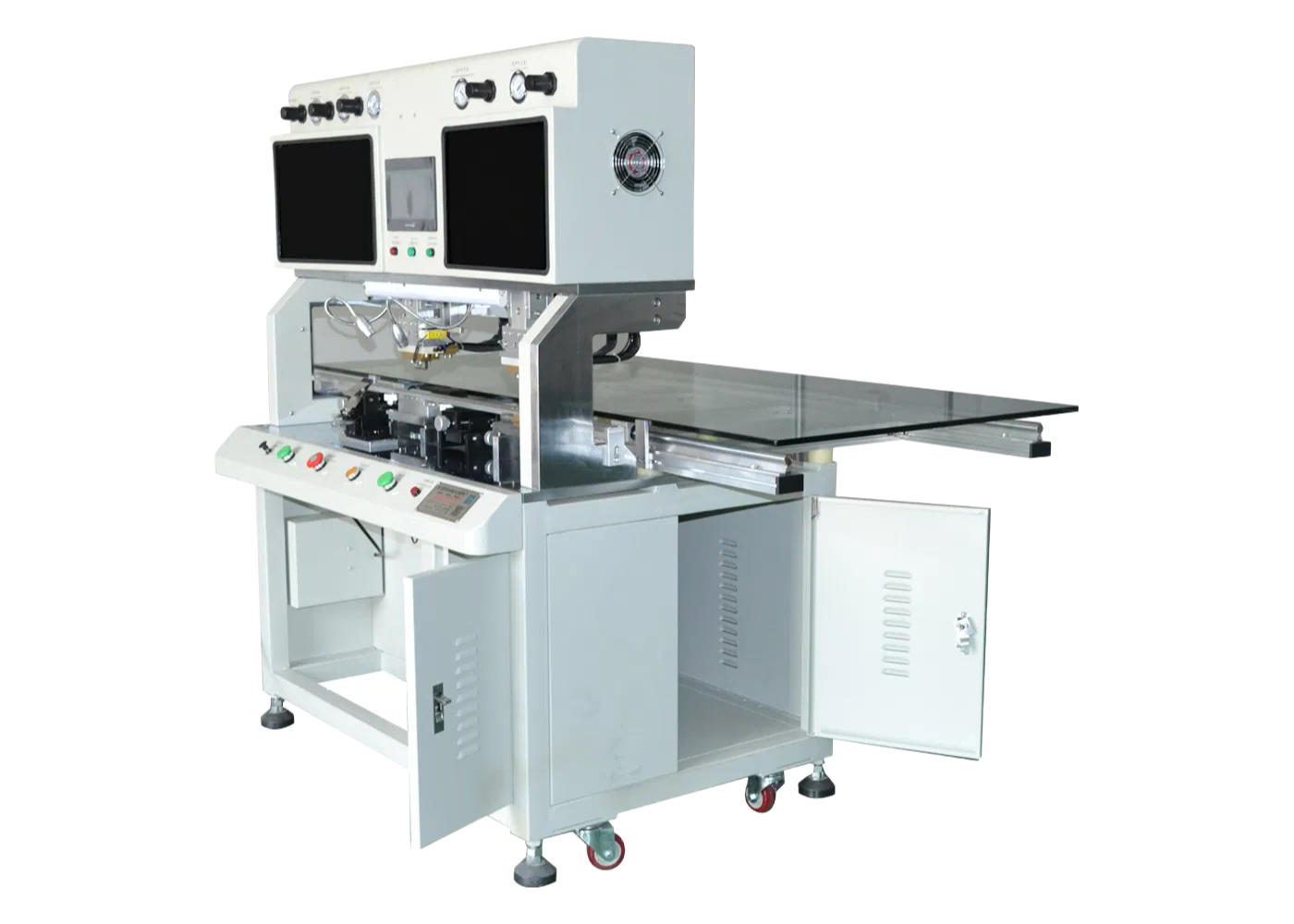

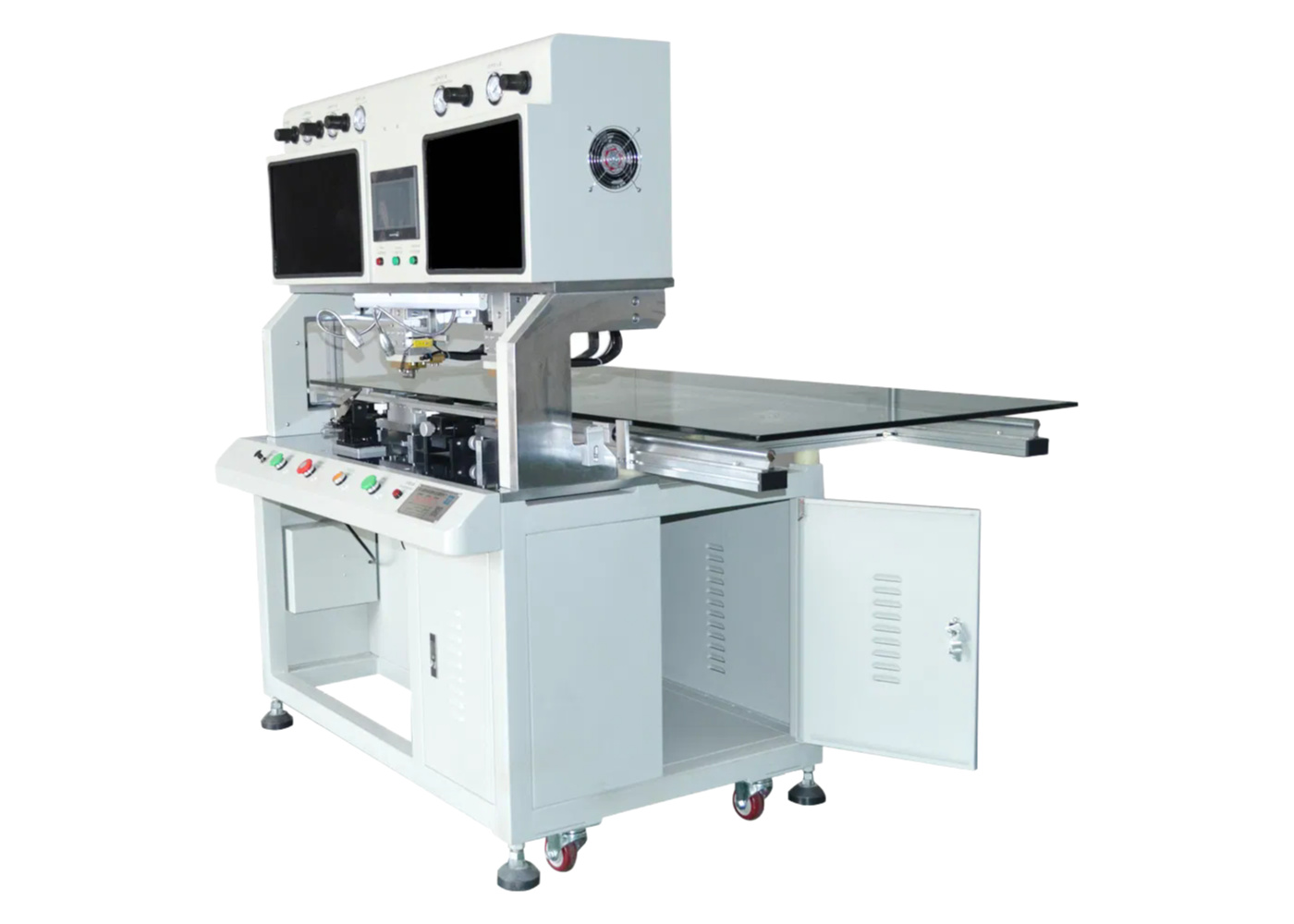

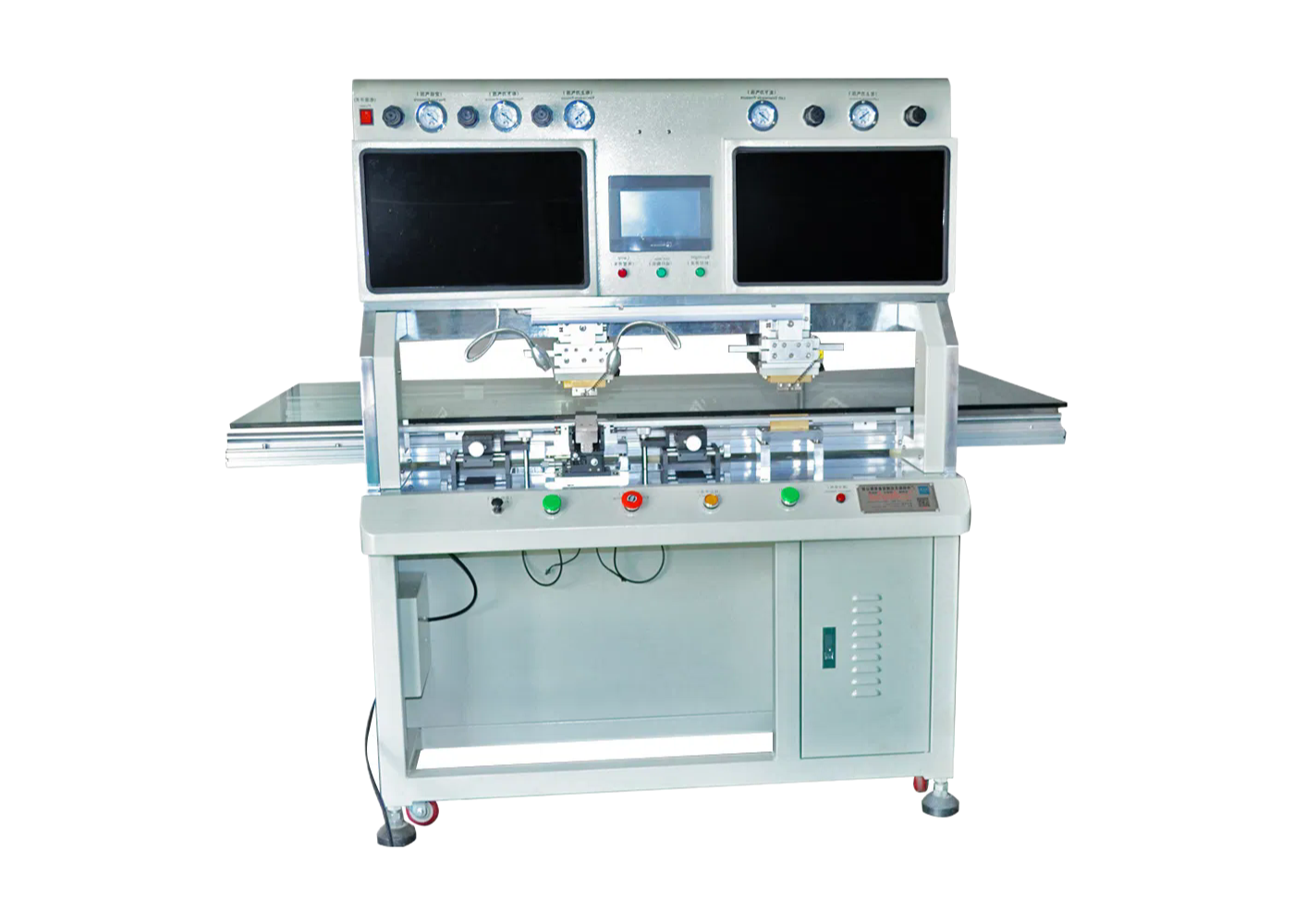

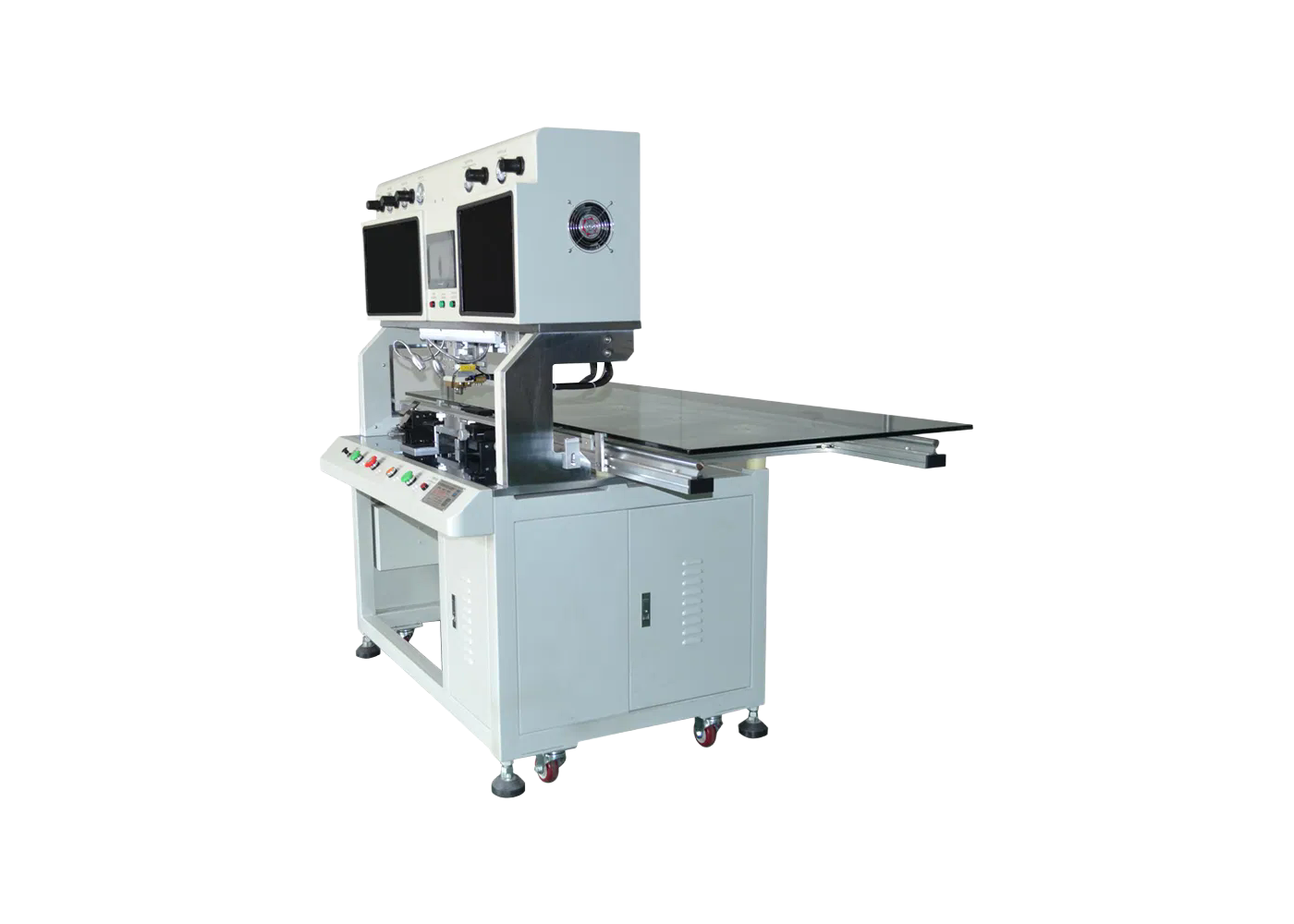

Customizable 618SH LCD Panel Bonding Machine with Siemens Temperature Control Module

The 618SH LCD Screen Repair Bonding Machine is engineered for efficient and precise repair of LCD screens up to 100 inches. It handles various screen issues such as black belts, color lines, and ribbons, providing a reliable solution for screen refurbishment. The machine incorporates advanced pulse heating technology with a precision of ±0.3°C, ensuring consistent temperature control during the bonding process.

Equipped with a Siemens PID temperature control module, the 618SH offers rapid heating from room temperature to 180°C in just 2 seconds. The hot-pressing head is made from titanium alloy, sourced from the United States, and achieves a plane precision of 0.005mm on the hot-pressing side. This high level of accuracy minimizes repair rates and enhances operational efficiency.

The machine includes a COF trimming unit from Taiwan, featuring a V guide rail with an accuracy of 0.01mm and adjustable directions in X, Y, and R axes. The COF fixture allows mechanical clamping with adjustable tilt and horizontal angles, facilitating precise alignment. The lens fine-tuning unit uses a precise cross rail and micrometer control for X, Y, and Z adjustments, supported by a 19-inch display for COF counterpoint.

For industrial control, the 618SH utilizes a DELTA PLC and Weinview imaging unit, ensuring reliable performance and easy parameter setting. The machine supports storage of multiple hot-pressing parameter groups, allowing customization based on specific repair needs. It operates on AC220V with a peak power of 1500W and has a compact size of 1800mm (L) x 1200mm (W) x 1520mm (H), weighing 450kg.

Additional features include an alarm system for temperature and pressure anomalies, manual position detection for silicone skin/Teflon changes, and options for sliding or fixed LCD drive platforms. The control interface combines touch screen and button operation for user convenience. This machine is ideal for factories and businesses involved in LCD repair, offering high durability and precision for various bonding applications.
