Wholesale TD4-9.4 Terminal Blocks Manufacturer for PCB Wiring and Voltage Connections

US$ 0.10 ~ 0.20
Min.Order: 500
Product origin: Chuzhou, Anhui, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 56 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : TD4-9.4
  • Pitch : 9.4mm
  • Rated Voltage : 400/690VAC
  • Nominal Current : 25/13.5A
  • Surge Voltage : 5.0kV/1.2/50μs
  • Withstanding Voltage : 2500VAC/min
  • Insulation Resistance : ≥500MΩ
  • Contact Resistance : ≤20mΩ
  • Insulation Class : III
  • Overvoltage Category : III
  • Wire Section (Internal/External) : 0.5-4.0mm²
  • Stripping Length : 5.0-7.0mm
  • Operating Temperature : -40°C to +130°C
  • Storage Temperature : -25°C to +55°C
  • Conductive Material : Brass with nickel tin plating
  • Insulation Material : PC (UL 94V-0)
  • Connection Type : Pluggable Terminal Block-Sockets
  • Termination Form : Welding Connection
  • Flammability Rating : UL 94V-0

The TD4-9.4 terminal blocks represent a premium solution for current and voltage connections in industrial applications. These UL-certified components feature a compact 9.4mm pitch design that optimizes space utilization while maintaining robust performance.

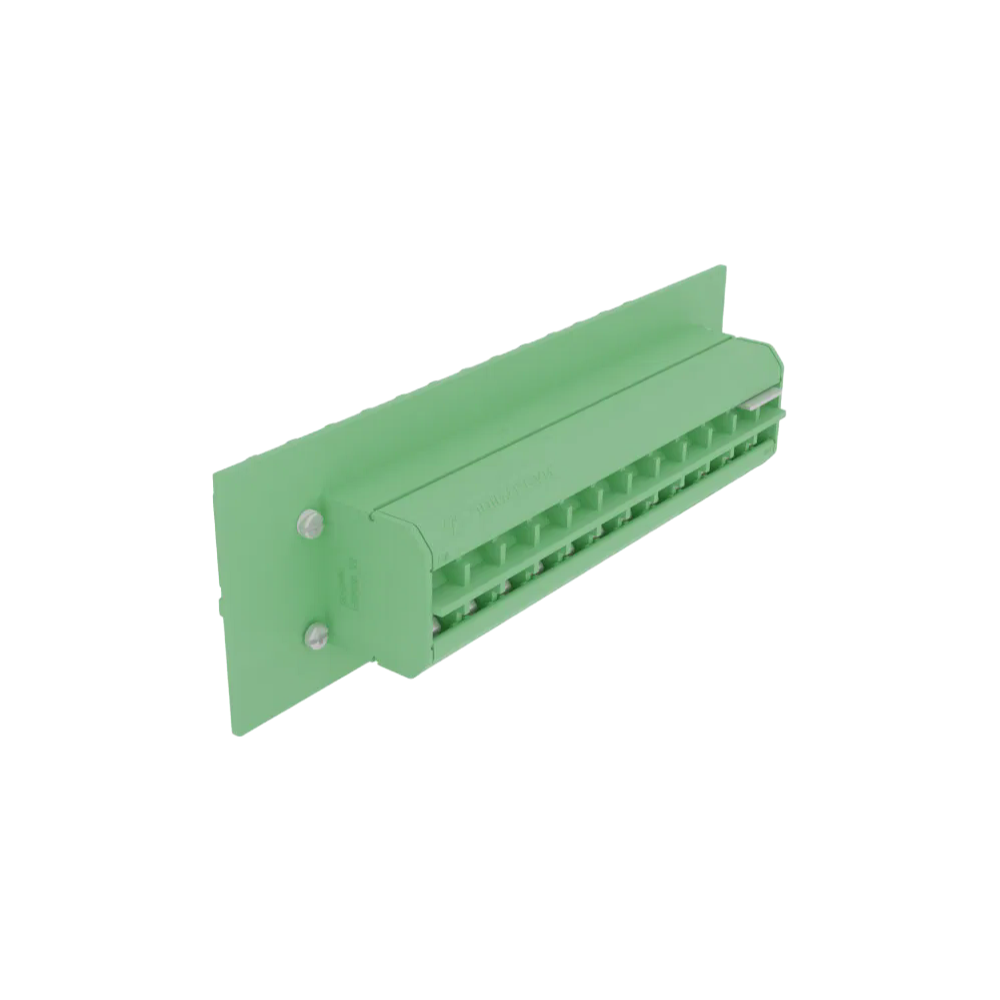

TD4-9.4 Terminal Block Front View

Engineered for reliability, these terminal blocks accommodate flexible conductors with a sectional area up to 1.5mm². The innovative plug and socket design incorporates anti-misplacement protection, ensuring secure connections in demanding environments.

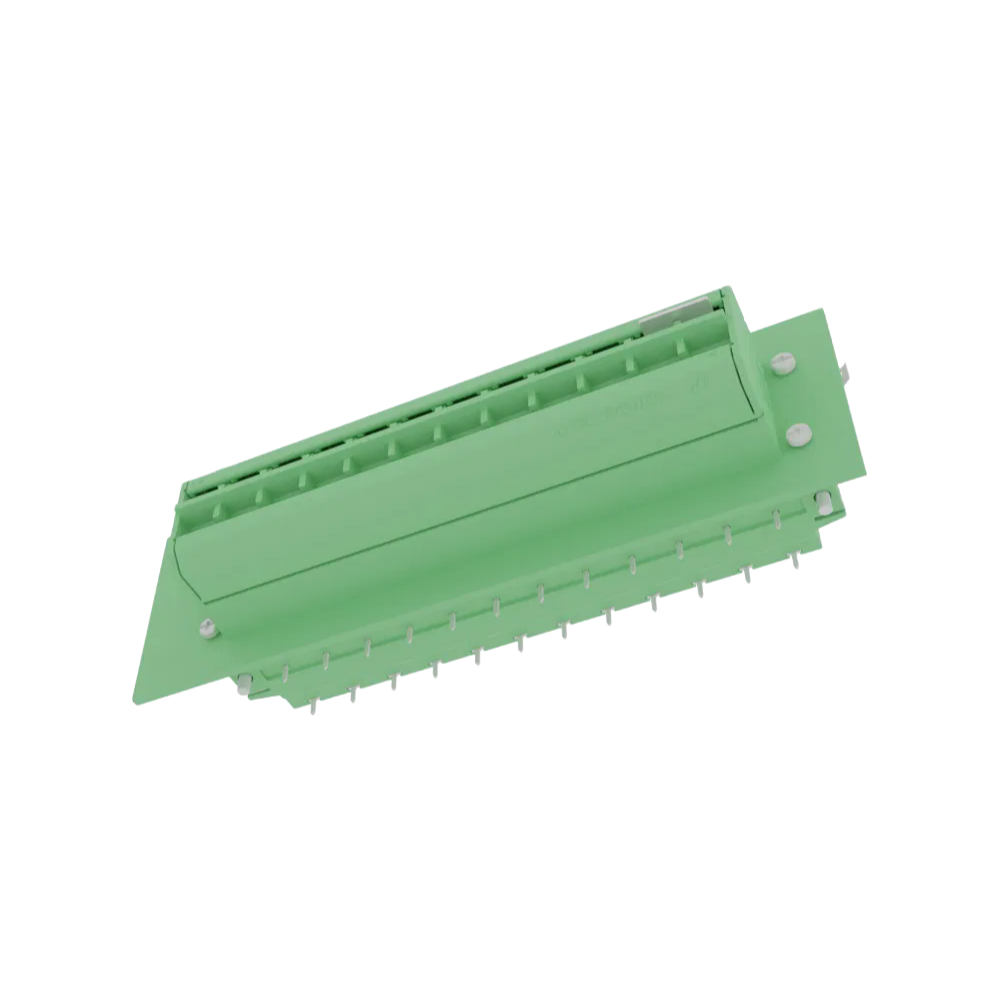

TD4-9.4 Terminal Block Side View

With a rated voltage of 400/690VAC and nominal current of 25/13.5A, these terminals meet rigorous industrial standards. The brass conductive material with nickel tin plating ensures excellent conductivity and corrosion resistance.

The PC insulation material achieves UL 94V-0 flammability classification, making these terminal blocks suitable for high-temperature applications. Custom color options are available to meet specific project requirements.

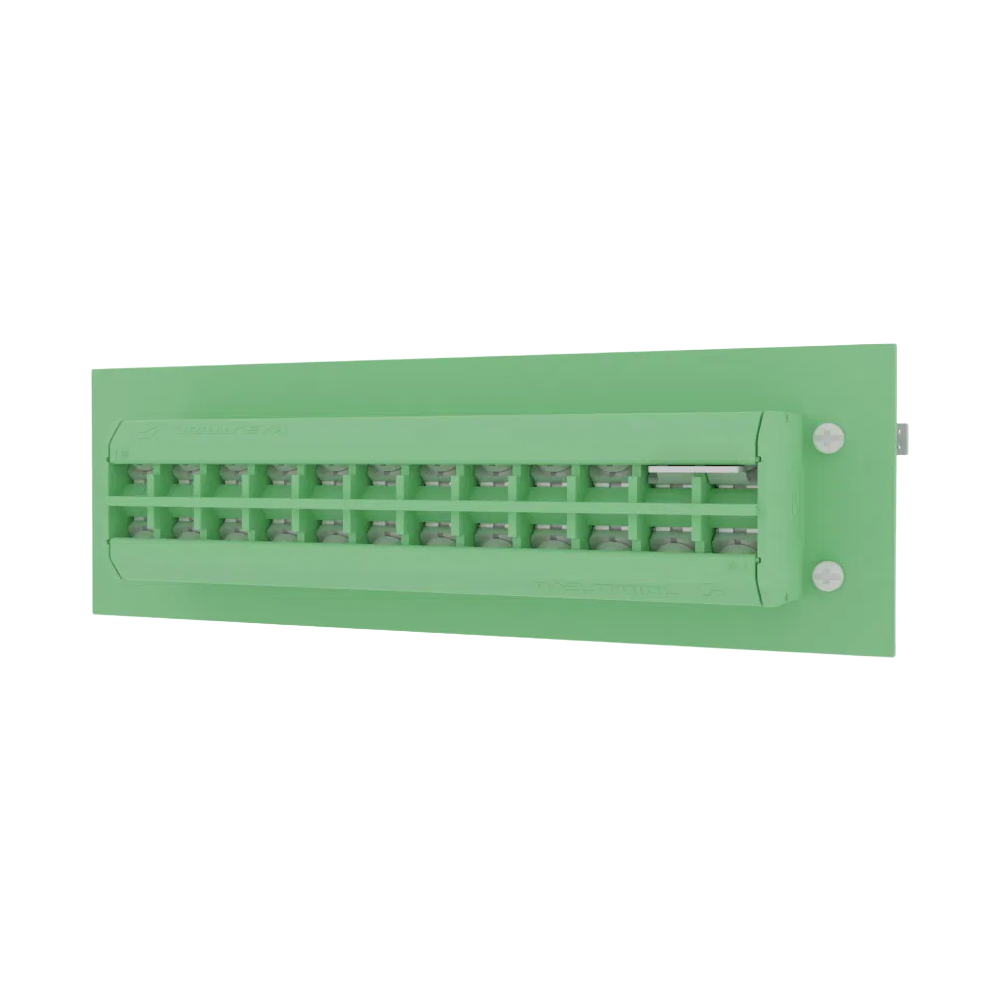

TD4-9.4 Terminal Block Installation

These terminal blocks operate reliably across a wide temperature range from -40°C to +130°C, withstanding various environmental conditions. The screw fixation system provides secure connections with specified tightening torque values.

Ideal for PCB applications, the TD4-9.4 terminal blocks feature precise dimensions including a 1.4mm PCB hole diameter and 0.6x1.0mm pin size. The product's mechanical specifications ensure compatibility with standard wiring practices.

TD4-9.4 Terminal Block Technical Details
