High Temperature Resistant Pluggable Terminal Block PG-508 with V0 Flame Rating High Temperature Resistant Pluggable Terminal Block PG-508 with V0 Flame Rating
High Temperature Resistant Pluggable Terminal Block PG-508 with V0 Flame Rating High Temperature Resistant Pluggable Terminal Block PG-508 with V0 Flame Rating
High Temperature Resistant Pluggable Terminal Block PG-508 with V0 Flame Rating High Temperature Resistant Pluggable Terminal Block PG-508 with V0 Flame Rating
High Temperature Resistant Pluggable Terminal Block PG-508 with V0 Flame Rating High Temperature Resistant Pluggable Terminal Block PG-508 with V0 Flame Rating
High Temperature Resistant Pluggable Terminal Block PG-508 with V0 Flame Rating High Temperature Resistant Pluggable Terminal Block PG-508 with V0 Flame Rating
High Temperature Resistant Pluggable Terminal Block PG-508 with V0 Flame Rating High Temperature Resistant Pluggable Terminal Block PG-508 with V0 Flame Rating

High Temperature Resistant Pluggable Terminal Block PG-508 with V0 Flame Rating

US$ 0.10 ~ 0.20
Min.Order: 500
Product origin: Chuzhou, Anhui, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 53 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : PG-508
  • Pitch : 5.08mm
  • Certification : UL/CUL/CSA
  • Rated Voltage : 250V/320V/630V
  • Current Rating : 12A
  • Wire Size : 0.2-2.5mm² (24-12 AWG)
  • Insulation Material : PA (Polyamide)
  • Flame Rating : UL94 V0
  • Contact Material : Copper Alloy
  • Operating Temperature : -40°C to +105°C
  • Dielectric Strength : 2500V AC
  • Insulation Resistance : ≥1000MΩ
  • Mechanical Life : ≥50 mating cycles
  • Termination Type : Screw connection
  • Color Options : Customizable
  • Packing : Standard export carton

The PG-508 series pluggable terminal blocks are designed for reliable PCB connections with their compact 5.08mm pitch spacing. These terminal blocks have obtained UL certification, ensuring compliance with international safety standards.

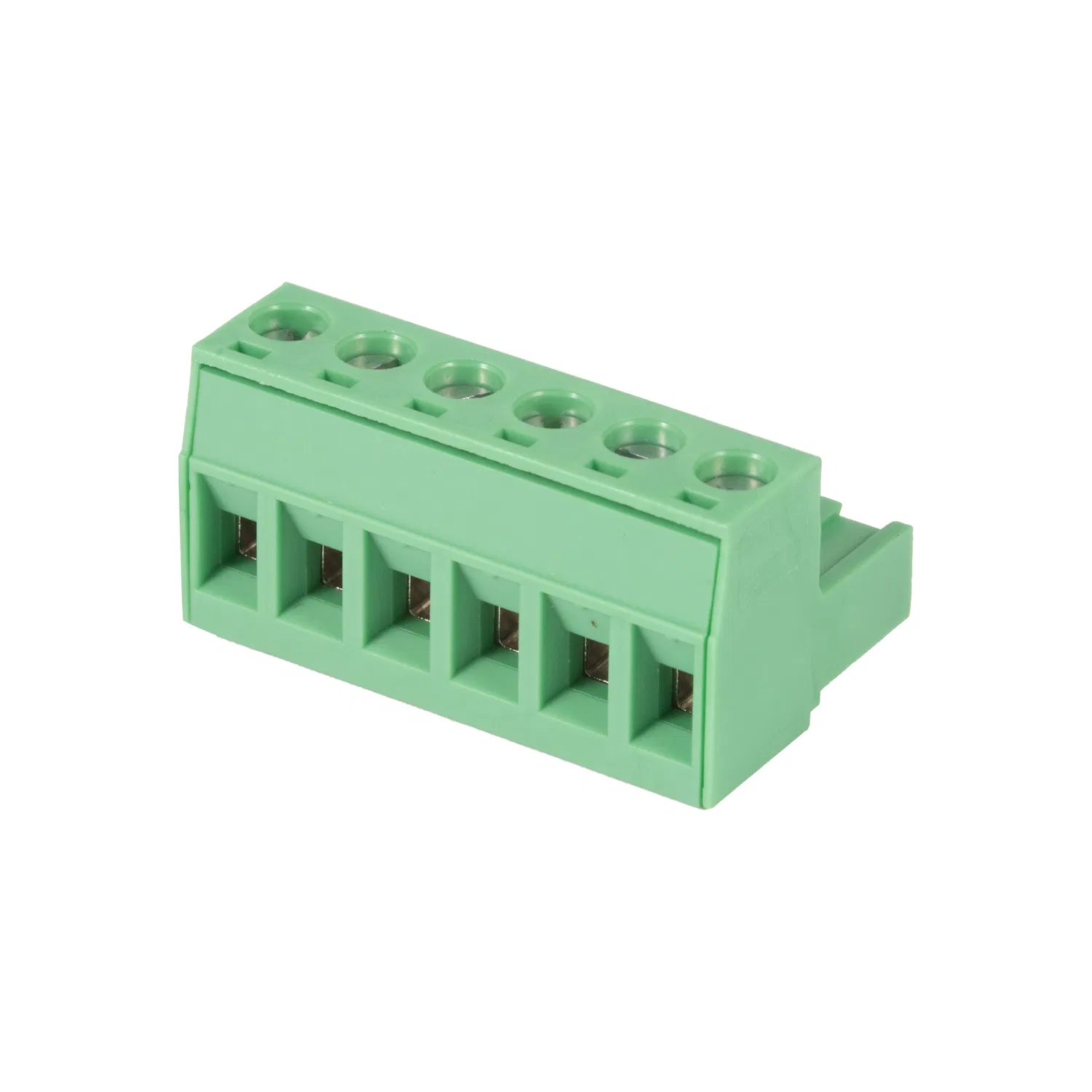

PG-508 terminal block front view

Featuring a low-profile design, these terminal blocks effectively save space while maintaining a large wiring capacity of up to 2.5mm² for flexible conductors. The plug and socket design incorporates anti-misplacement protection to prevent incorrect connections.

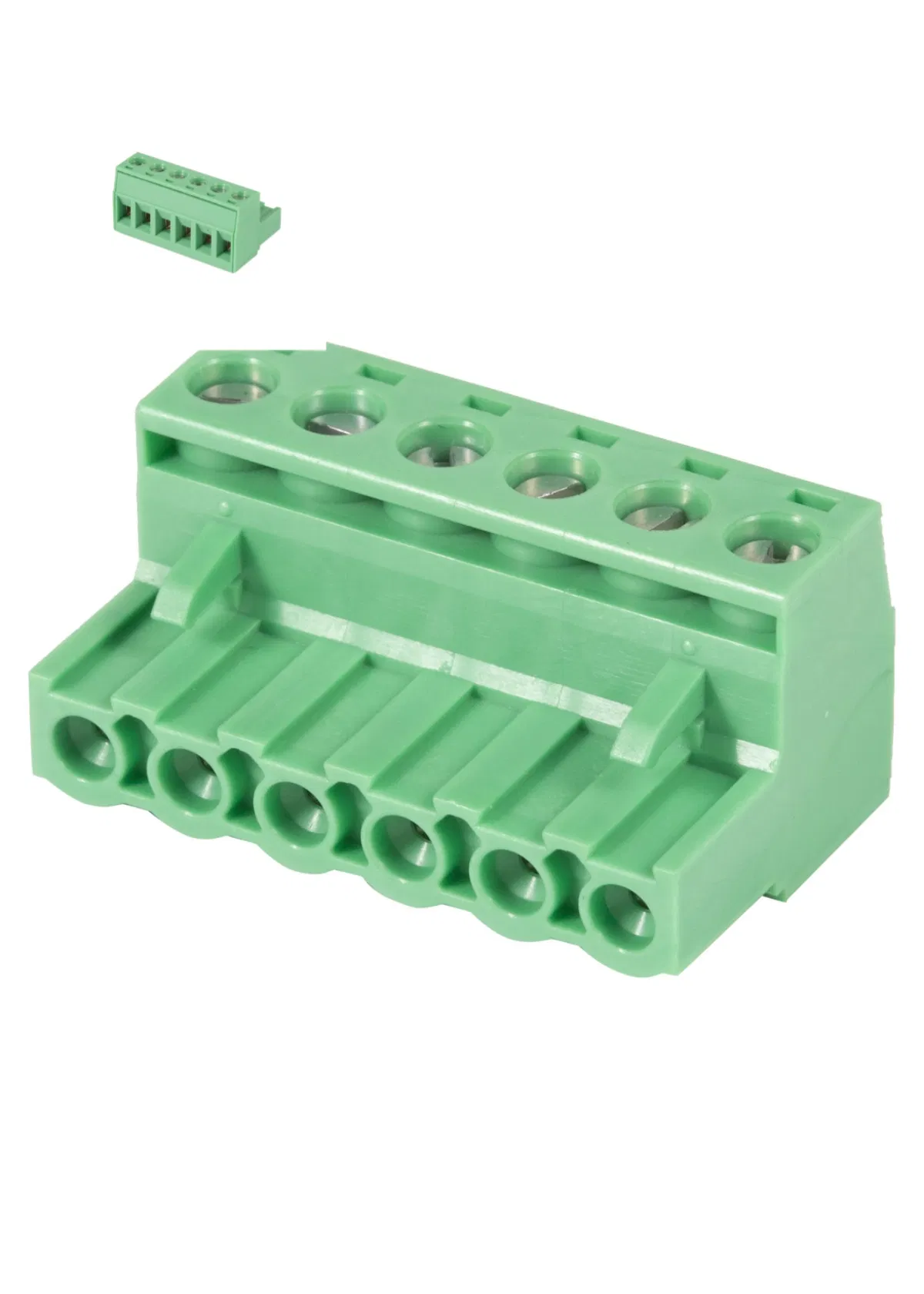

PG-508 terminal block side view

Available in standard configurations from 2 to 24 positions, the PG-508 series offers versatility for various applications. The terminal blocks are constructed with PA (polyamide) insulating material rated V0 for flame resistance, making them suitable for demanding environments.

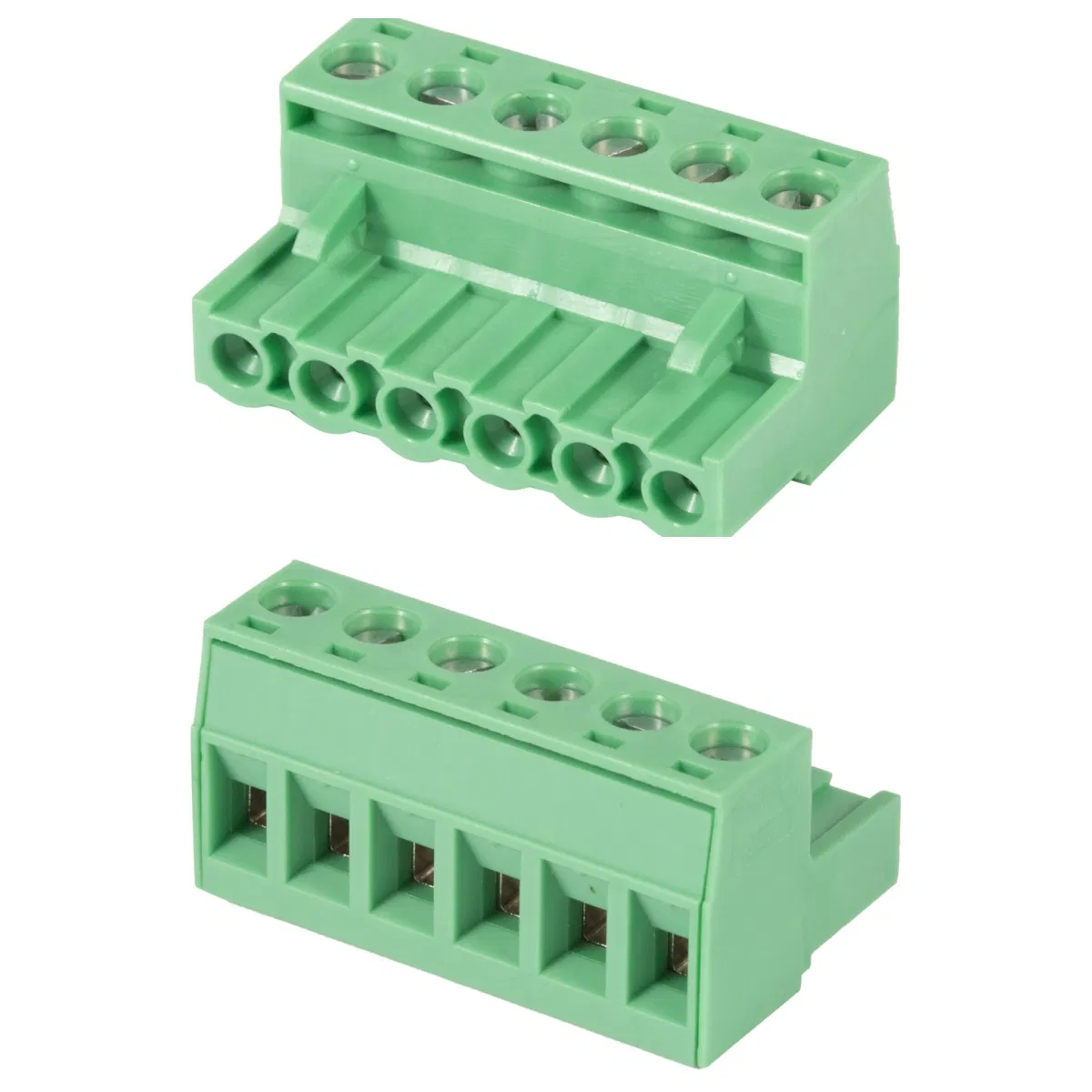

PG-508 terminal block multiple units

Custom color options are available to meet specific application requirements or for easy circuit identification. The terminal blocks support multiple connection types including rigid conductors, flexible conductors, and ferruled wires.
