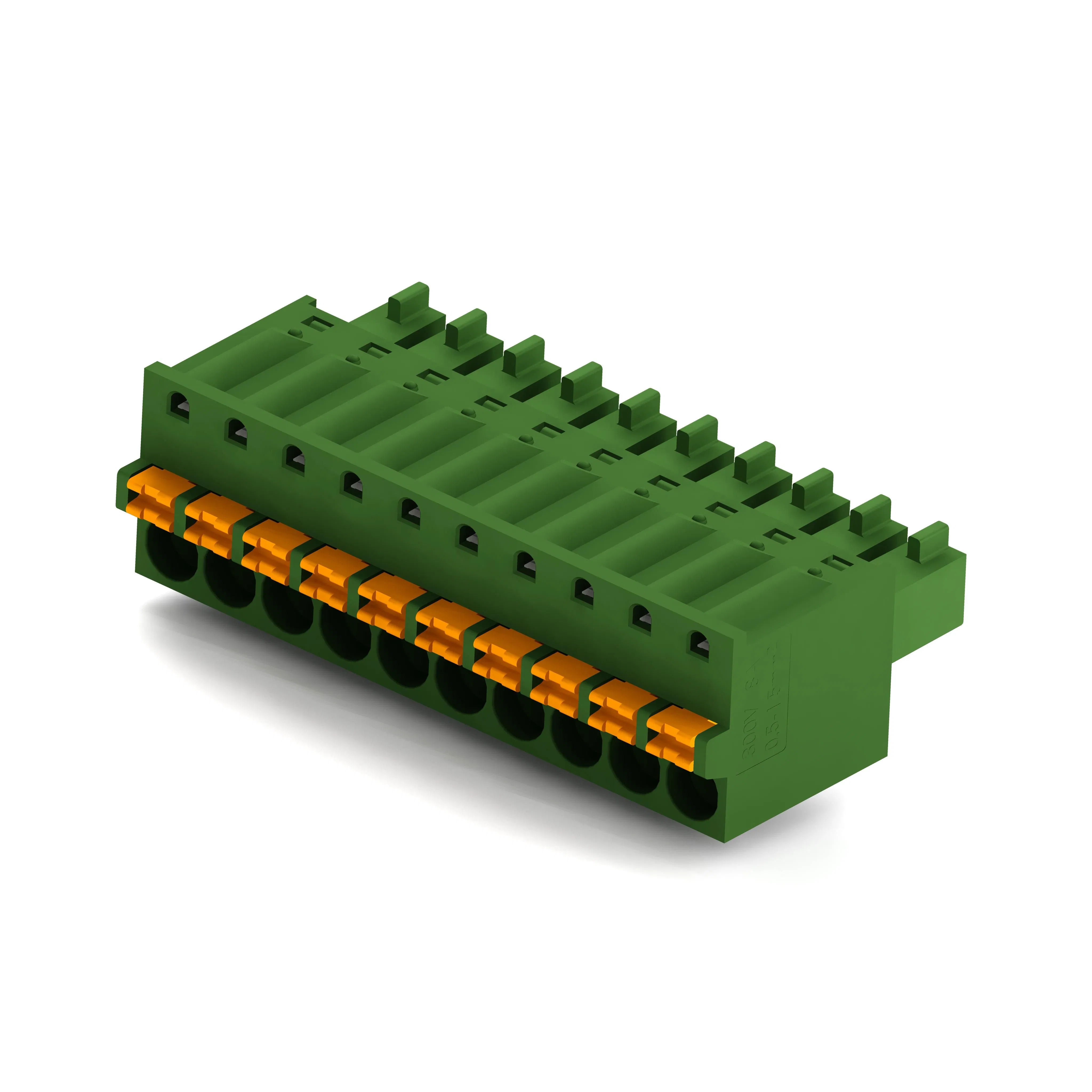

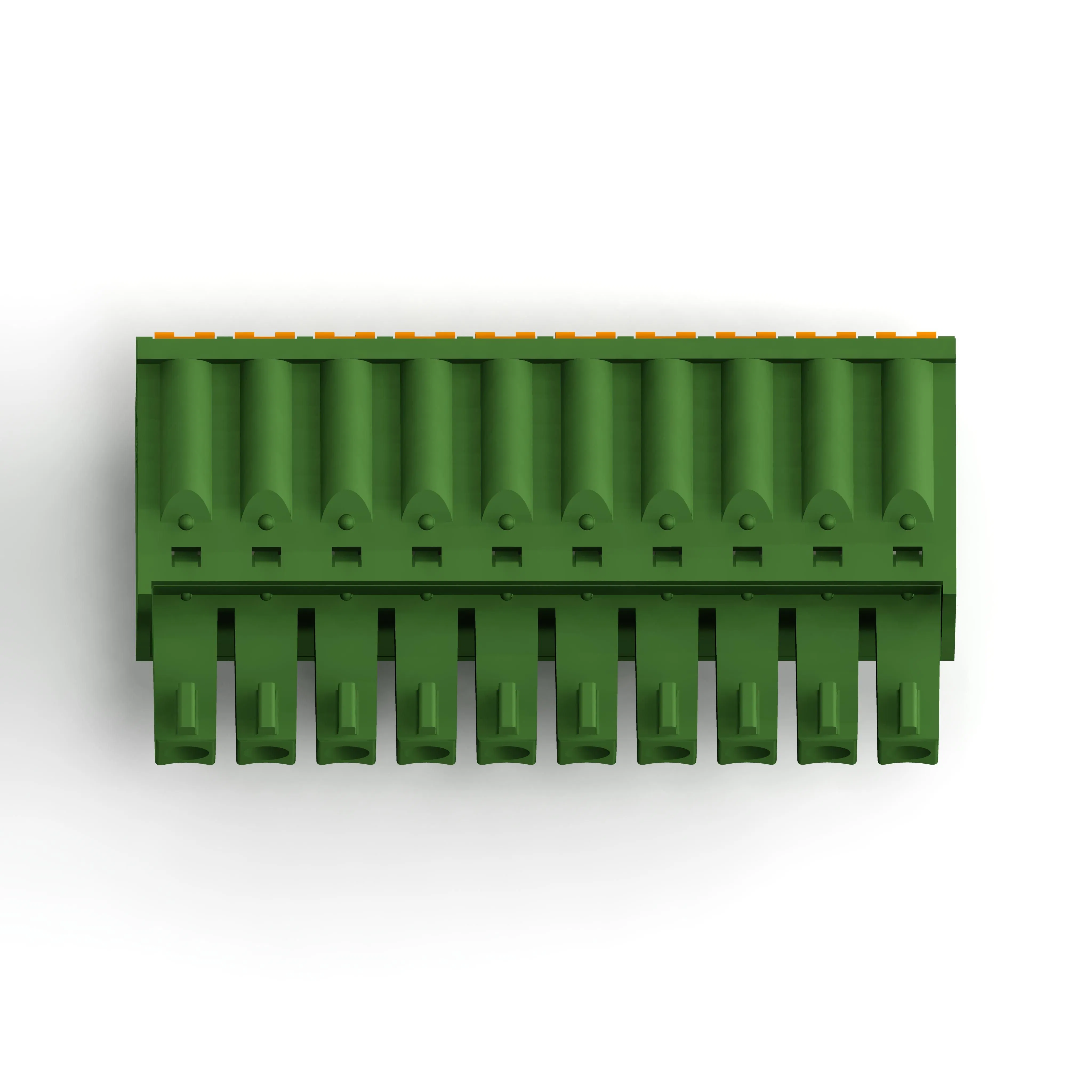

We’re looking at a 3.81mm pitch pluggable terminal block here, and the spring connection mechanism is what makes it fast to work with—no torquing screws, just push the wire in. It handles 0.14 to 1.5mm² wire, which is 26 to 16 AWG, and supports up to two conductors in one clamp, so you can daisy-chain signals if needed. The rated current is 8A at 160V or 320V depending on your setup, but don’t push it past 2.5kV surge votage for isolation.
If you’re wiring up a PCB for a control panel or industrial equipment, the 9mm stripping length is pretty standard, and the PA insulation with UL 94 V0 flame rating means it won’t propagate a fire in a fault condition. The test hole on top is actually useful for probing voltages without pulling the plug—most buyers don’t think to ask about that until they’re troubleshooting a live board. It’s not suited for high-vibration environments though; the spring contact can loosen over time if you’re near a motor or pump.
You can trust the reliability because of that it’s UL, CUL, and CSA certified, so the creepage and clearance distances are verified for 160V/320V operation. The contact termination is a welding connection, which gives better mechancial strength than soldering alone for repeated plugging cycles—we’ve seen these hold up past 200 insertion cycles in test jigs. Operating temp form -40°C to +105°C covers most indoor industrial use, but don’t expect it to survive steam cleaning or direct water spray (IP20 is basically finger-safe only).
For ordering, we stock positions from 2 to 24 poles, and color can be customized if you’re doing a batch of 500 pieces or so—lead time is usually 2-3 weeks for non-standard colors. The MOQ is 100 pieces for standard black, but our company can split that into smaller packs if you’re prototyping, we have COAs on hand for every lot, and the HPLC data is avaliable on request, though it’s not typically needed for a terminal block.
Our MOQ for the KPG-381 is typically 1000 pieces per position size, but we can do smaller sample orders for testing—just reach out to us with your required quantity and position count.
Yes, we include UL, CUL, and CSA certification copies with every order. Just let us know if you need them before shipping.
Yes, it supports up to 2 conductors in one position, but both wires must be within the 0.14-1.5mm² range and stripped to exactly 9mm for a secure spring connection.
Standard packaging is anti-static bags or boxes, with 100-500 pieces per pack depending on positions. Store them in a dry place at room temperature, away from direct sunlight, to keep the PA material stable.
Yes, we can match custom colors, but it adds about 7-10 working days to production since it requires a separate injection molding run. Standard black or green are in stock.
