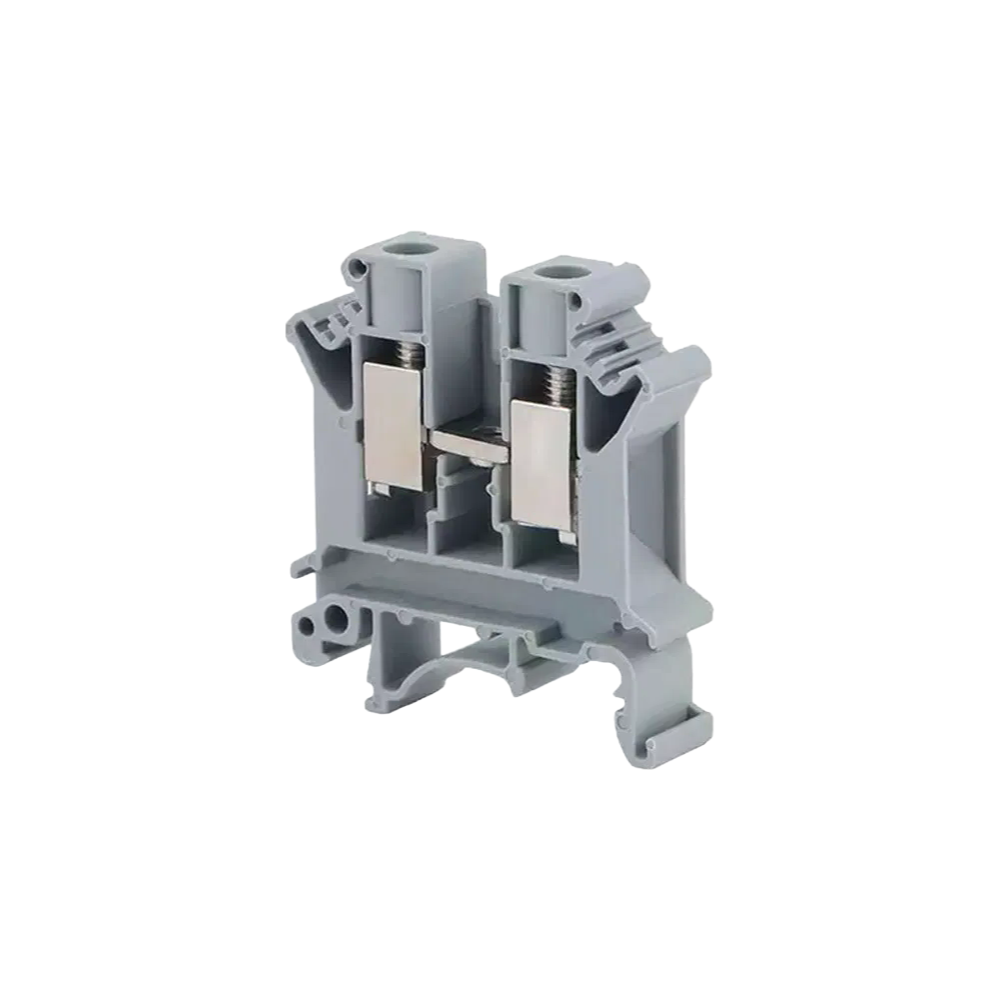

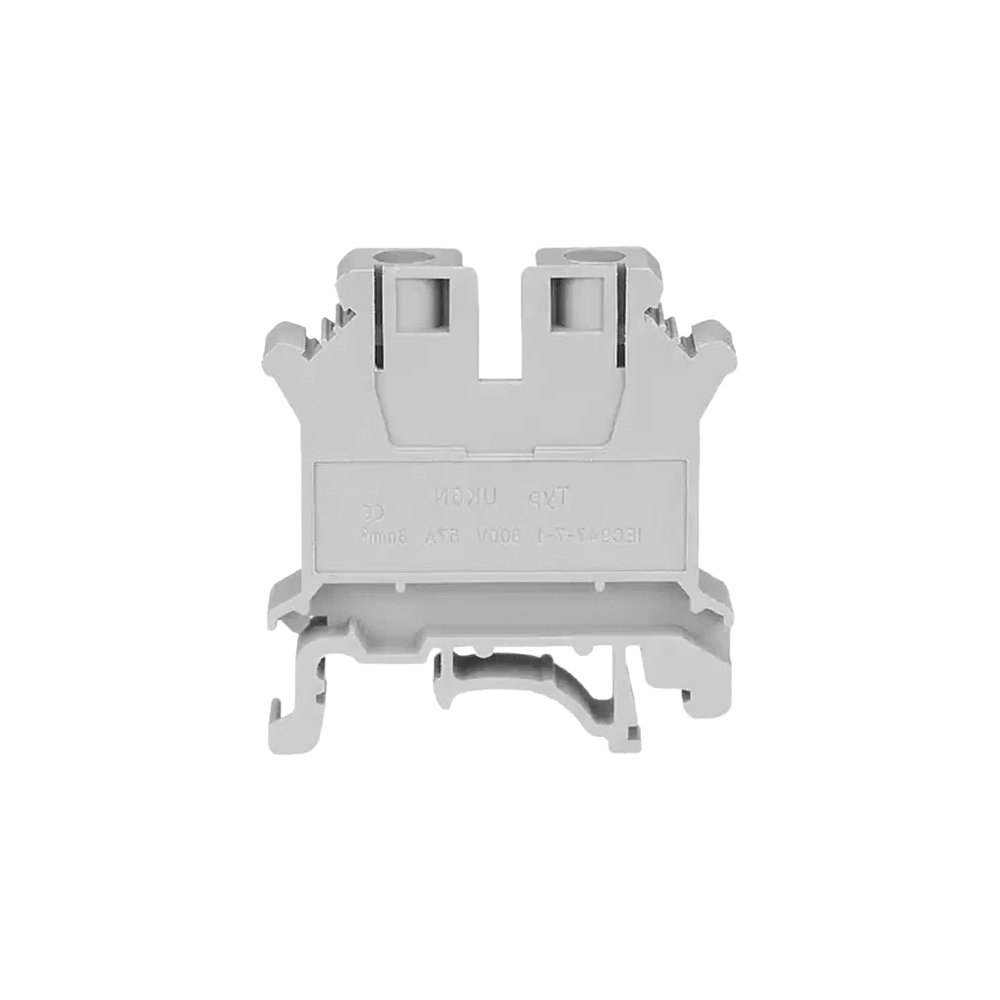

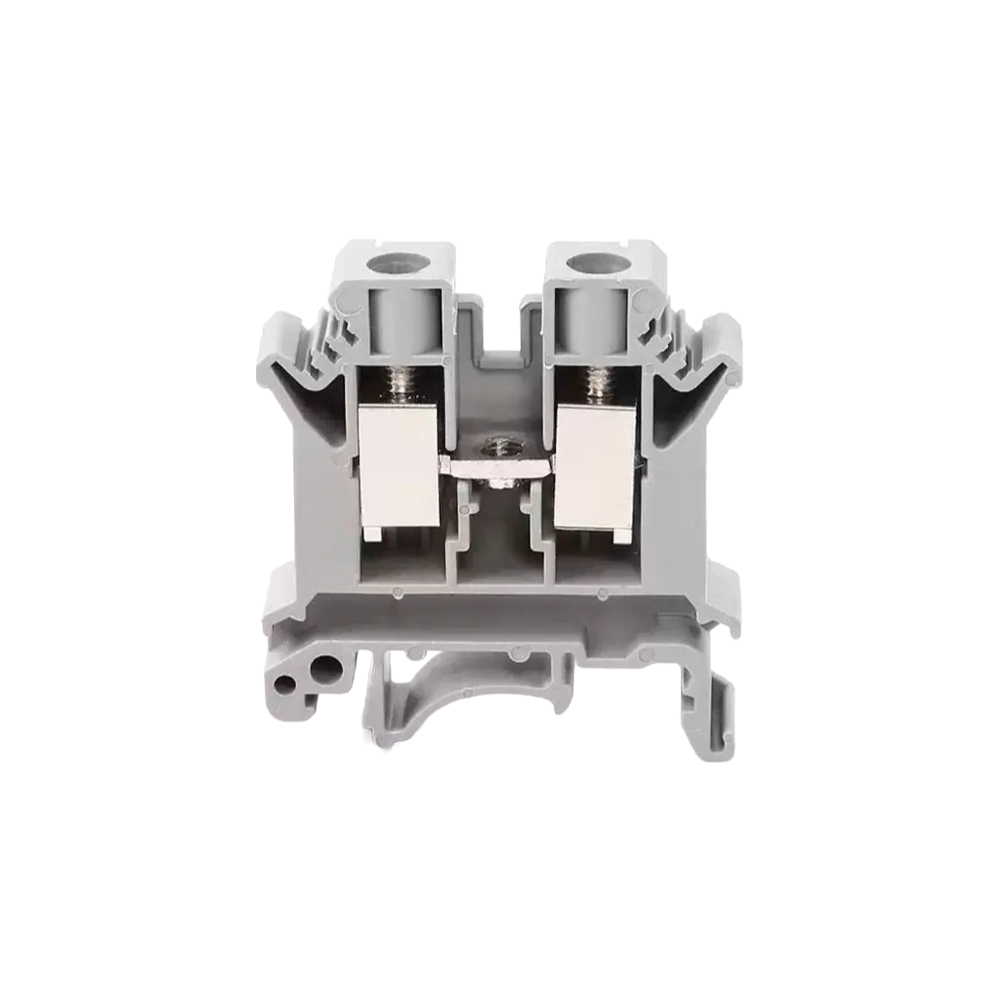

You're wiring up a control cabinet and need something that'll handle the heavier gauge stuff without giving you headaches—this block does exactly that, clamping down on 20 to 6 AWG wire with a brass M4 screw torqued to about 1.5-1.8 Nm.
It's 65A at 600V or 57A at 800V, with a dielectric strength of 3000V AC per minute and contact resistance under 0.5 milliohms, so it's built for indutrial panels where reliability actually matters.
The PA66 nylon body is flame retardant to V-0 and handles -40°C to +105°C, and the closed bolt design means you won't lose screw mid-insallation—a small thing, but you'll notice it.

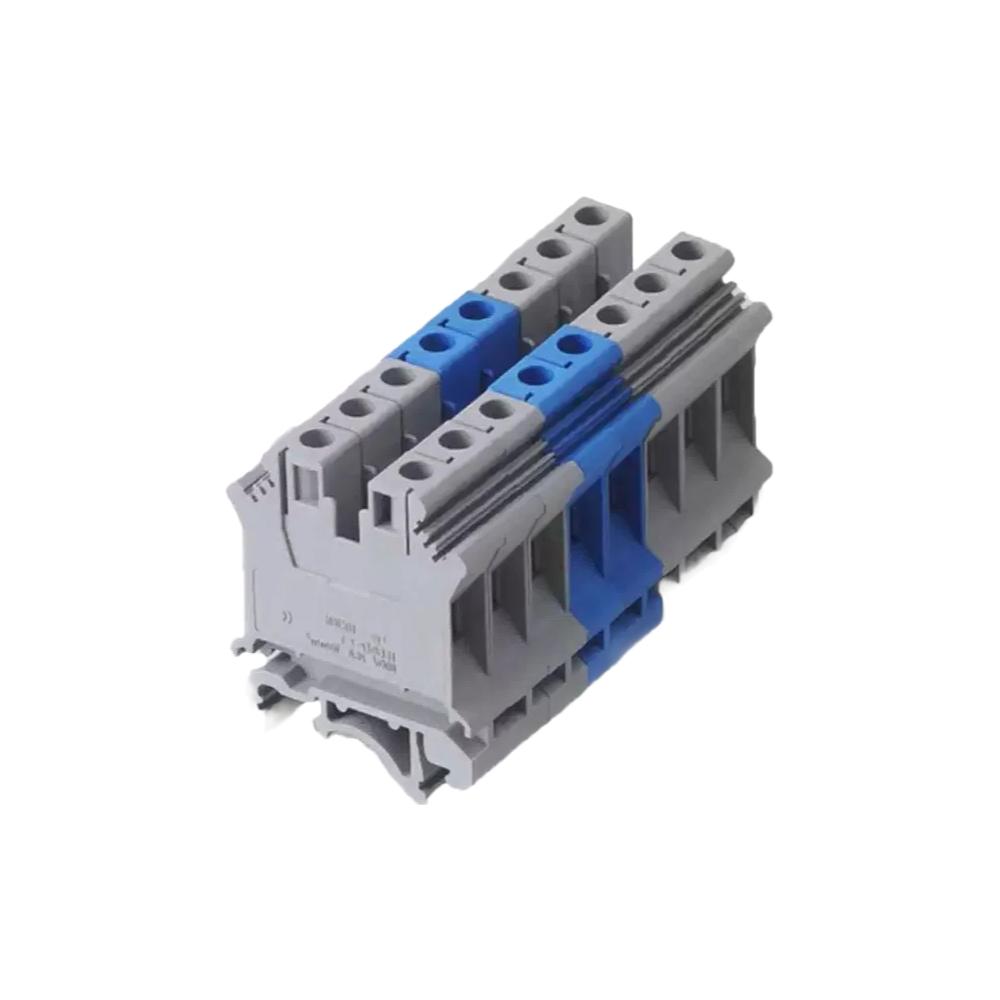

It mounts on standdard NS35 or NS32 DIN rails, and the white marking strips at both ends make labeling straightforward; pollution degree 3 means it's fine for dirty environments.
Most buyers go with the UK10N for motor control centers or distribution boards, but it's not ideal for high-vibration application where you'd want a spring clamp instead.
MOQ is usually 50 pieces or so, and we typically have stock, but confirm lead time if you need over 500 units—sometimes it stretches to 20 days.
Our standard MOQ is 100 pieces per model, but we can adjust for sample orders or larger bulk deals—just let us know your quantity.
For stock items like the UK10N, lead time is usually 3-7 business days. Custom orders may take 15-20 days depending on volume and specs.
Yes, we can supply UL and IEC compliance certificates along with test reports upon request—just ask when placing your order.
The 65A at 600V is the continuous rated current and voltage under normal conditions, as per specs. The 57A rating applies at 800V for higher voltage applications.
We recommend storing them in a dry, cool environment below 40°C, preferably in sealed bags or boxes to avoid moisture exposure. The PA66 material is stable, but humidity can affect performance over time.
