Customizable PCB Terminal Blocks TD2.5-8.2 with 8.2mm Pitch and V0 Flame Rating

US$ 0.10 ~ 0.20
Min.Order: 500
Product origin: Chuzhou, Anhui, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 0 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : TD2.5-8.2
  • Application : PCB Current and Voltage Connections
  • Pitch : 8.2mm
  • Rated Voltage : 660VAC
  • Nominal Current : 15A
  • Surge Voltage : 5.0kV/1.2/50μs
  • Withstanding Voltage : 2500VAC/min
  • Insulation Resistance : ≥1000MΩ
  • Contact Resistance : ≤20mΩ
  • Insulation Class : III
  • Contamination Degree : 2
  • CTI : 250≤CTI<400
  • Conductor Cross Section : 0.75-2.5mm²
  • Connection Method : Screw (M3x8)
  • Tightening Torque : 0.5Nm
  • Conductive Material : Brass (Nickel Tin Plated)
  • Insulation Material : PC (UL 94V-0)
  • Operating Temperature : -40°C to +130°C
  • Storage Temperature : -40°C to +70°C
  • Flammability Rating : UL 94V-0
  • Interface Type : AC/DC
  • Contact Termination : Welding Connection
  • Production Process : Injection Molding

The TD2.5-8.2 current and voltage terminal blocks are designed for superior performance in PCB applications. These UL certified components feature a compact 8.2mm pitch design that optimizes space utilization while maintaining excellent electrical properties.

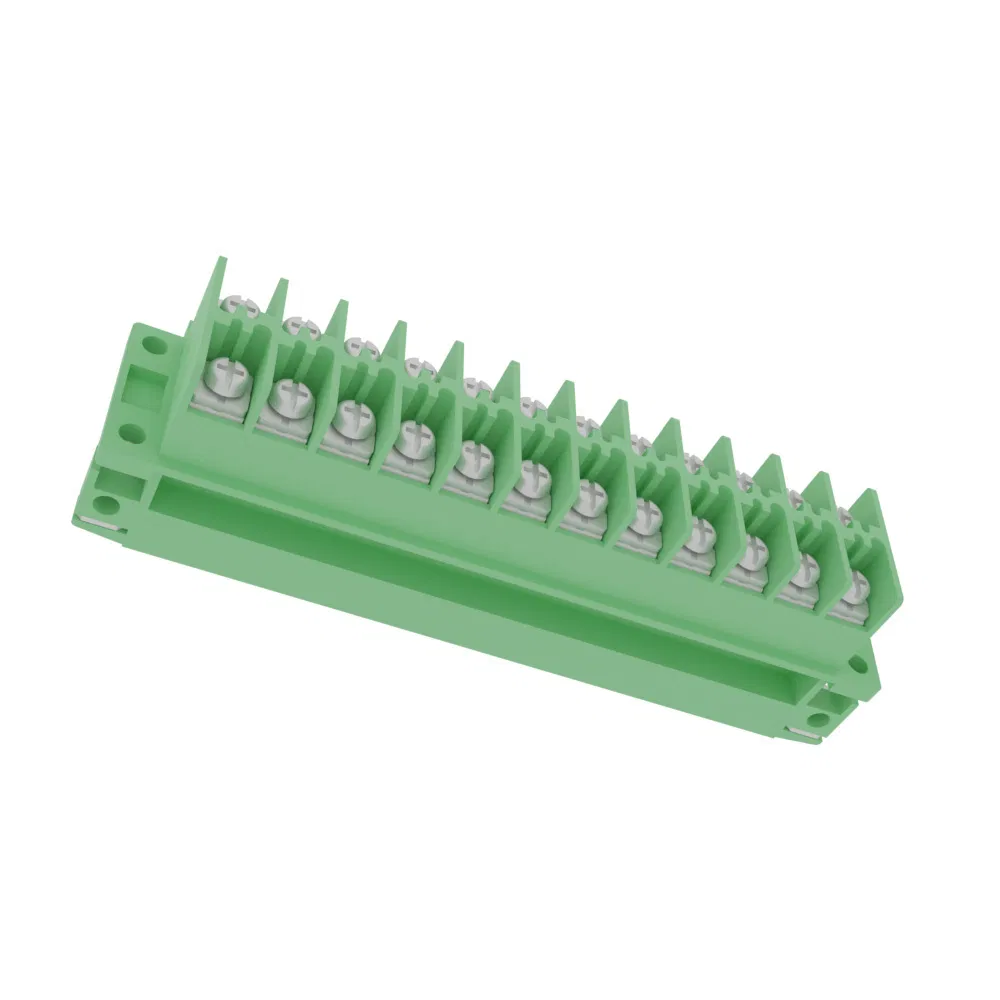

TD2.5-8.2 Terminal Block

Engineered with high-quality materials, these terminal blocks offer reliable connections for both current and voltage applications. The brass conductive material with nickel tin plating ensures excellent conductivity and corrosion resistance, while the PC insulation material provides UL 94V-0 flame retardancy.

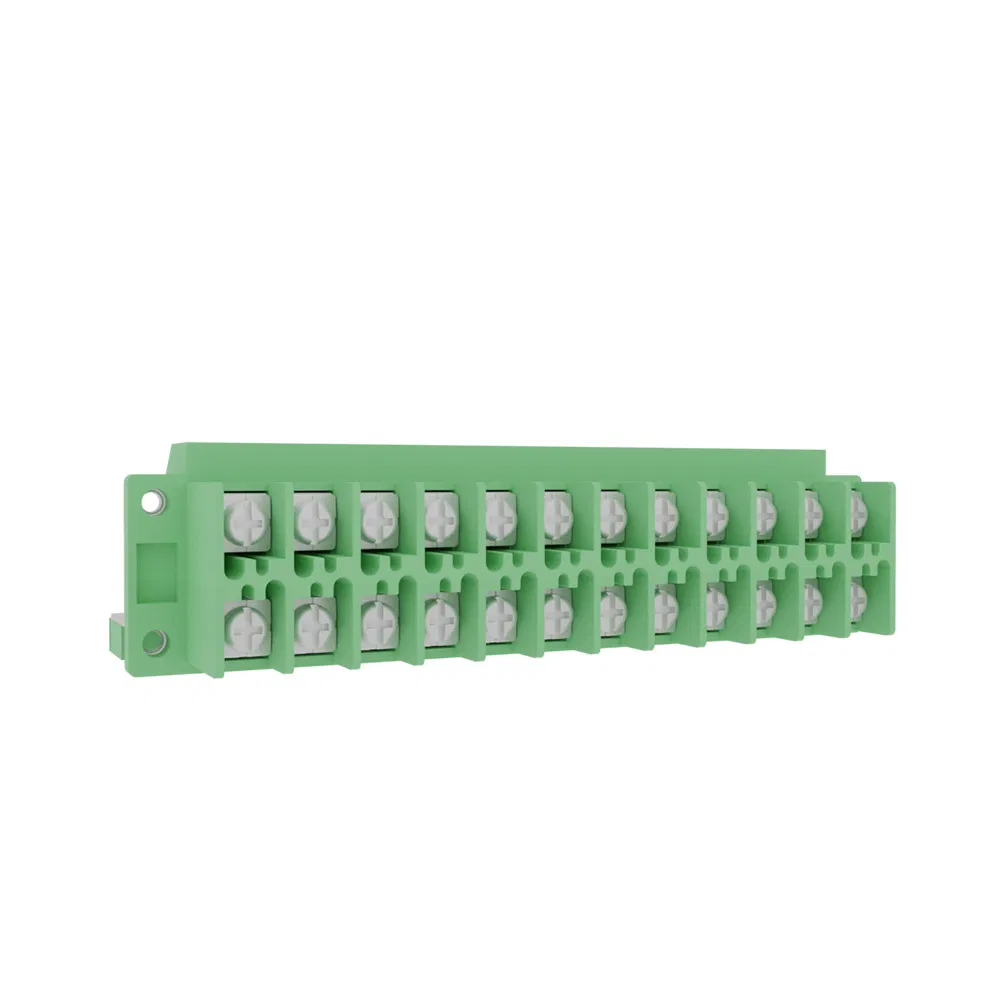

Terminal Block Connection

Key features include anti-misplacement protection through plug and socket design, accommodating conductor sizes from 0.75mm² to 2.5mm². The terminal blocks operate across a wide temperature range from -40°C to +130°C, making them suitable for various industrial environments.

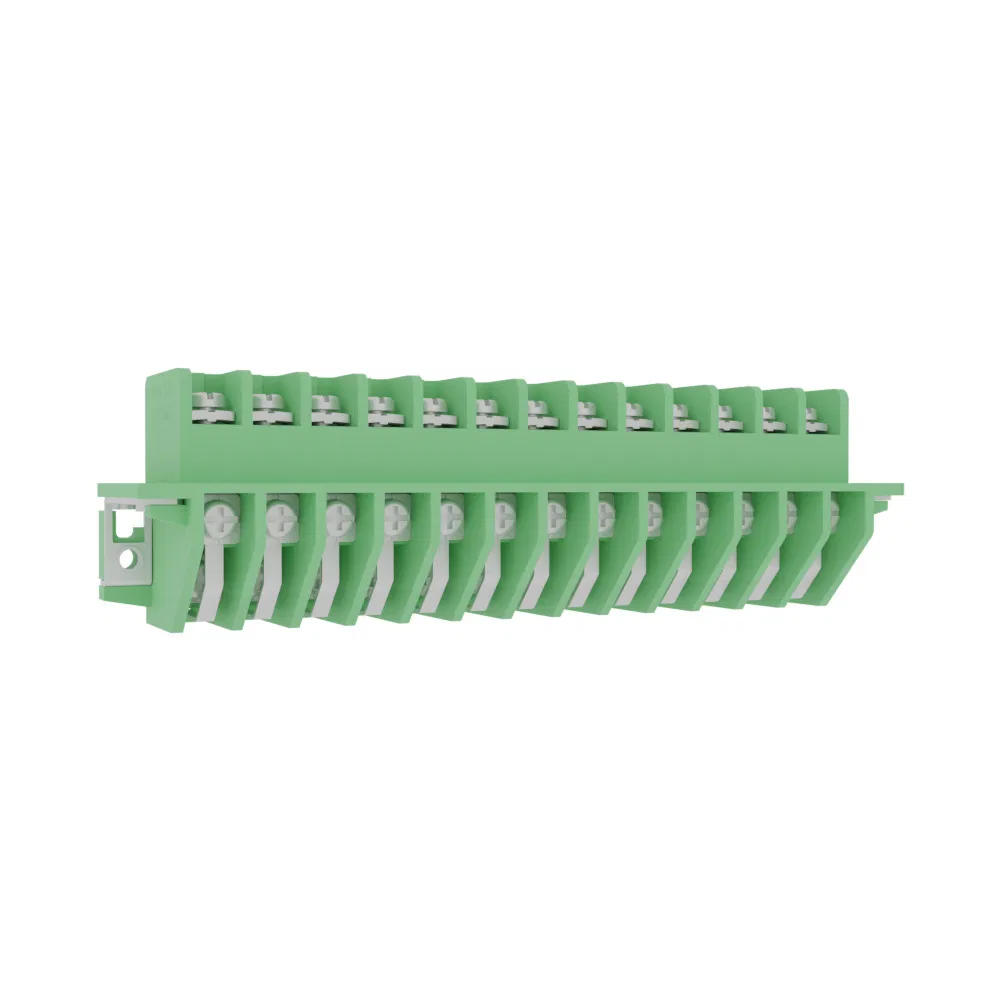

Terminal Block Specifications

The TD2.5-8.2 series supports both screw and spring connection methods, providing flexibility for different installation requirements. With a rated voltage of 660VAC and nominal current of 15A, these terminal blocks meet rigorous electrical standards.

Customization options are available including different color variations to suit specific application needs. The injection molded construction ensures consistent quality and durability for long-term performance.

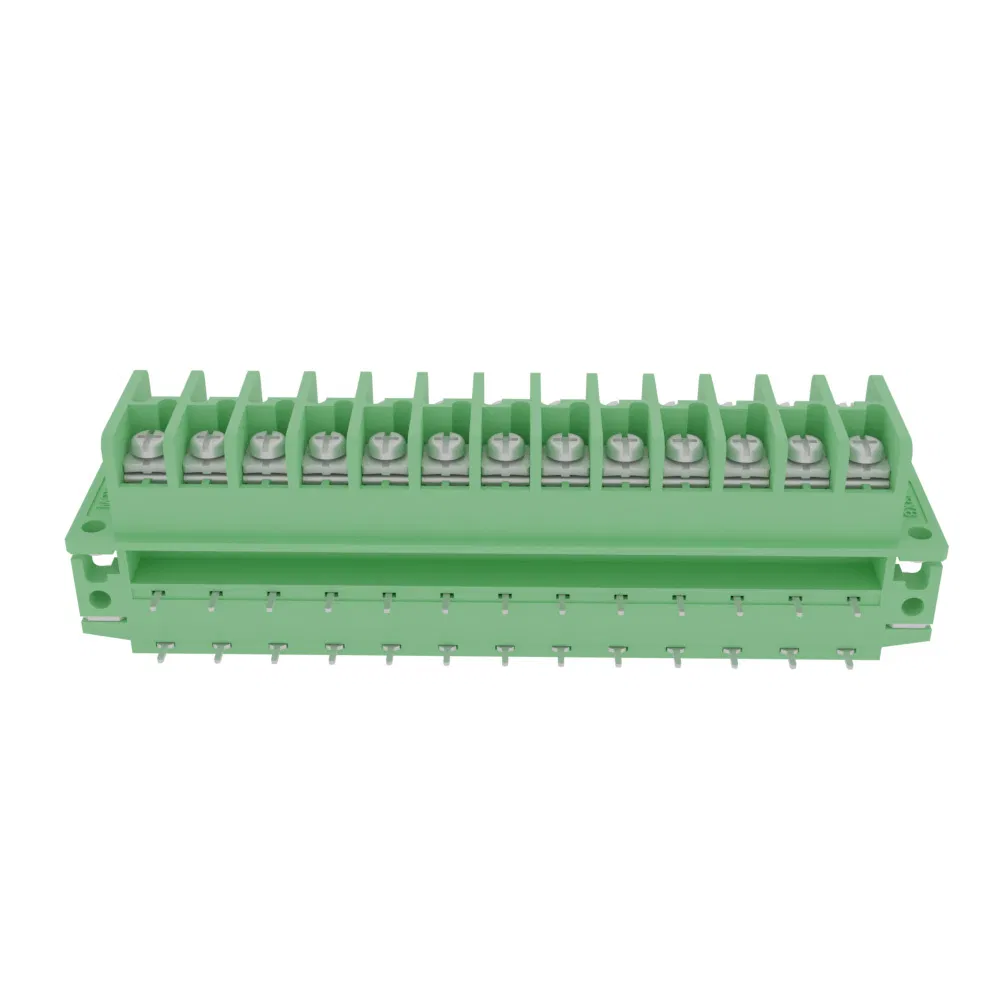

Terminal Block Dimensions
