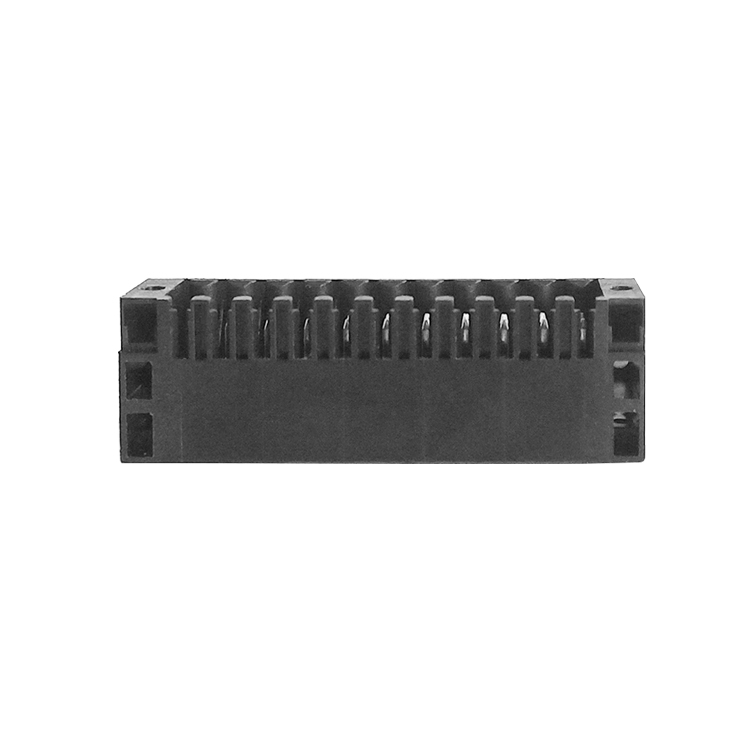

Customizable Composite Terminal Blocks with UL RoHS Certification for Electrical Connections Customizable Composite Terminal Blocks with UL RoHS Certification for Electrical Connections
Customizable Composite Terminal Blocks with UL RoHS Certification for Electrical Connections Customizable Composite Terminal Blocks with UL RoHS Certification for Electrical Connections

Customizable Composite Terminal Blocks with UL RoHS Certification for Electrical Connections

US$ 0.20 ~ 0.10
Min.Order: 1,000
Product origin: Dongguan, Guangdong, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 0 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : CMH 1.5-XX-3.50-03
  • Type : Dual Hole Terminals
  • Contact Material : Phosphor Bronze/Brass
  • Insulation Material : PA66 (UL94 V-0)
  • Current Rating : 10A
  • Voltage Rating : 300V
  • Surge Voltage : 4000V
  • Operating Temperature : -40°C to +120°C
  • Pitch Size : 3.5mm/3.81mm/5.0mm/5.08mm
  • Wire Size : 1.0-6.0mm²
  • Withstand Voltage : 2500V AC/min
  • Certifications : UL, RoHS, CE
  • Terminal Type : Plug and Socket
  • Color Options : Black, Green, Blue, Orange, Grey, Yellow, Red, White
  • Mounting Style : DIN Rail or Panel Mount
  • Mechanical Life : ≥1000 mating cycles
  • Flammability Rating : UL94 V-0
  • Contact Plating : Tin or Silver (Optional)
  • IP Rating : IP20

The pluggable terminal block represents a premium class of electrical connectors designed for secure and stable signal and power transmission. These composite terminals feature a unique plug (female) and socket (male) design that ensures reliable connections in demanding environments.

Pluggable Terminal BlockTerminal Block Connector

Manufactured using high-quality phosphor bronze and brass contacts, these terminal blocks provide excellent conductivity while maintaining durability. The insulation body is constructed from UL94 V-0 rated PA66 material, offering superior flame resistance and thermal stability.

These connectors find extensive application in power distribution systems, industrial automation, communication equipment, and control panels where secure electrical connections are critical. The design allows for easy installation and maintenance while ensuring long-term performance reliability.

Available in various configurations including different pitch sizes, positions, and color options, these terminal blocks can be customized to meet specific application requirements. The product meets international safety standards including UL and RoHS certifications.
