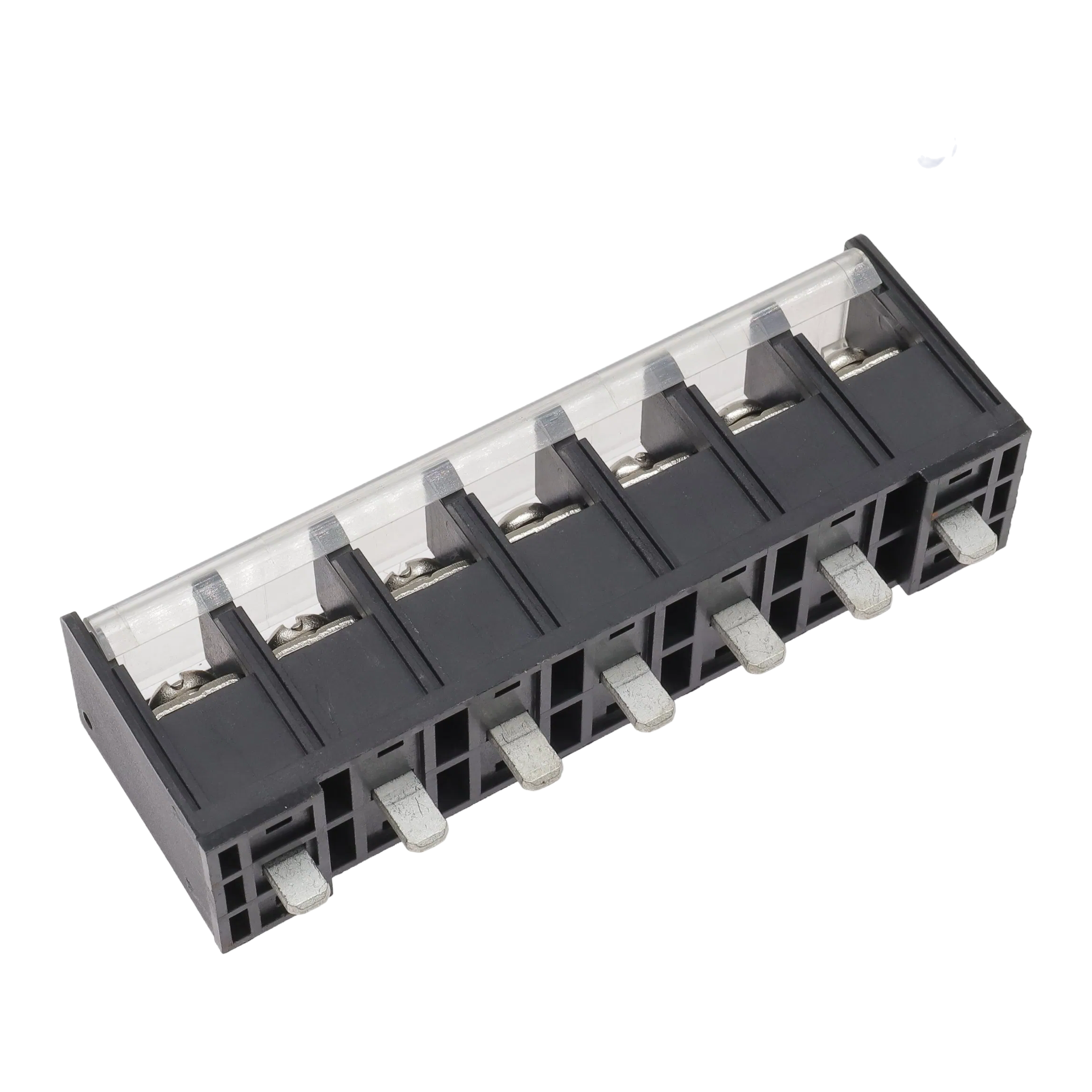

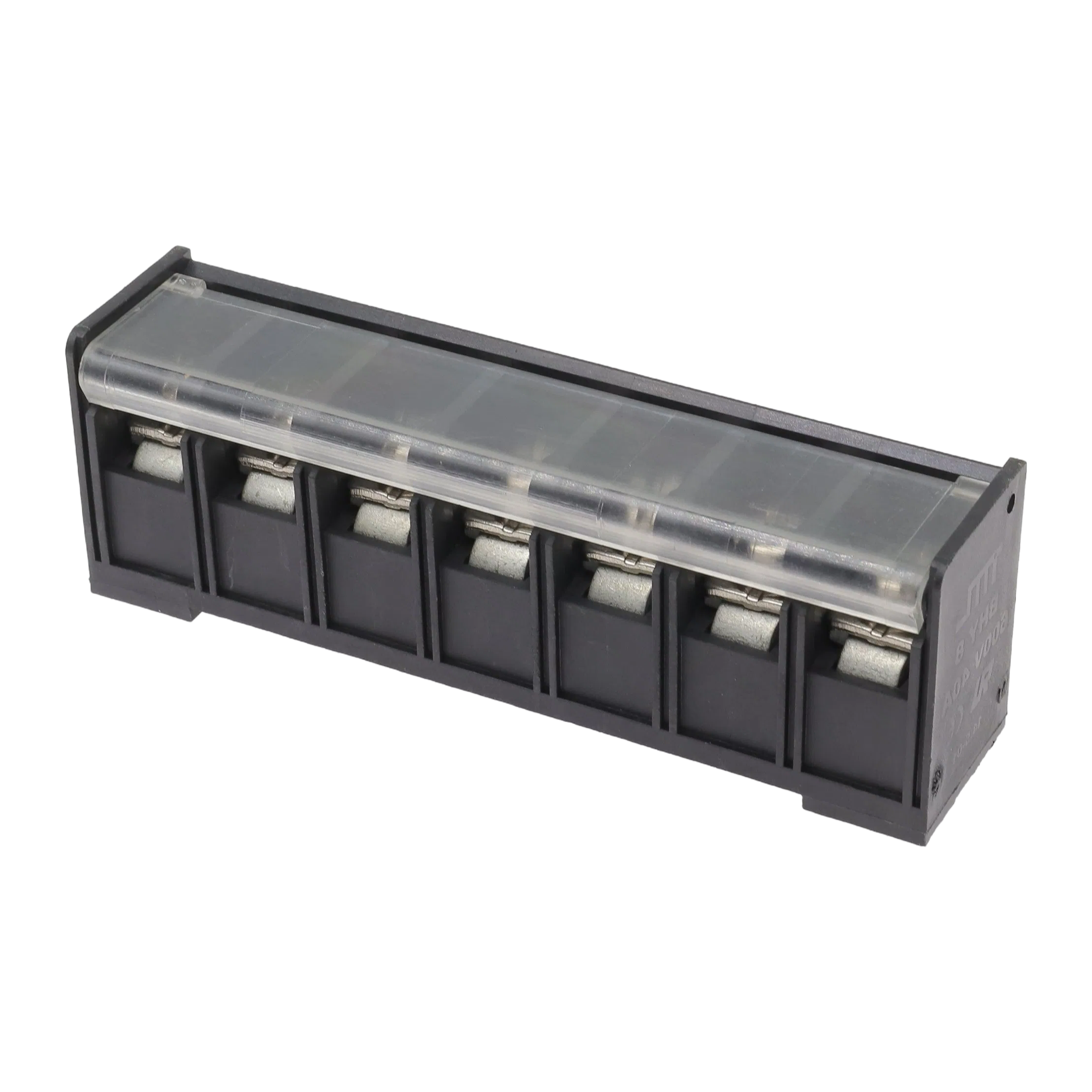

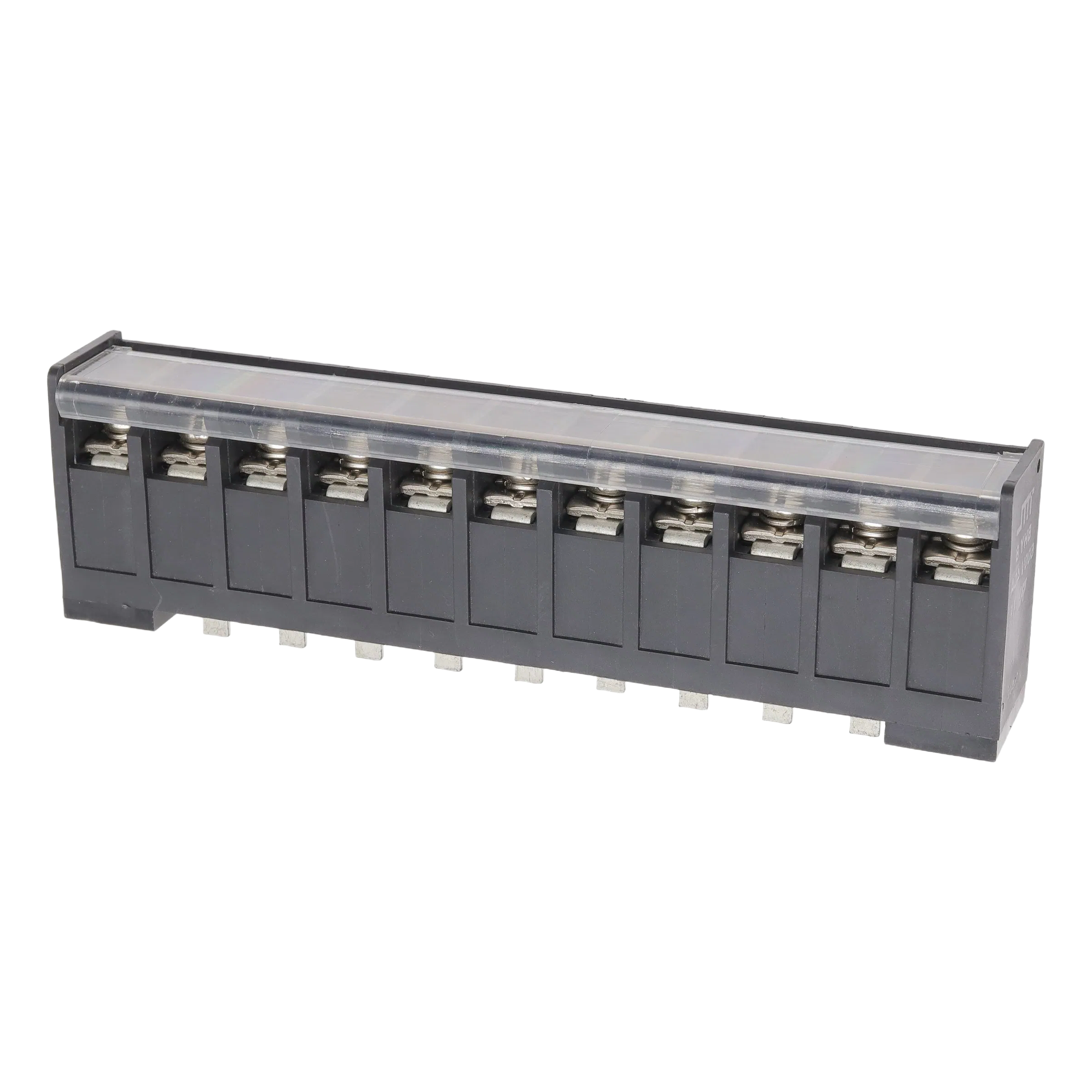

We see these going into PLC cabinets and relay panels all the time, where you're clamping ring or Y-lugs with a screw pressure plate — the 14.50mm center spacing is tight enough for dense layouts but still gives you room for 8AWG wire without cursing. Basically, if you're running signal and power circuits in automation gear, the 22-8AWG range covers most of what you'll hit.
The brass terminal body and steel M5 screw hold up well under repeated torquing, and the PBT insulation body is UL94 V-0 rated, so it handles -40°C to 120°C without getting brittle. Surge voltage is 6000V, which matters for those transient spikes in frequency drives or servo systems — most buyers don't think to check that.
Rated 600V and 40A continuous, but don't push it past 30A sustained in a sealed panel with no airflow — it's a fact, not a flaw. The copper current path gives you consistent contact resistance batch to batch, and we run HPLC on the brass alloy to keep ppm of lead within spec.
You get a box (356x286x166mm) with standdard 2P to 24P configurations depending on your pin count — we usually have stock for 12P and 16P, but confirm lead time for odd counts. Also, teh injection molding process on the insulator keeps dimensional tolerance tight for gang mounting.
What it's not suited for: don't use it for high-frequency switching or where you need gold-plated contacts — the brass tarnishes over time in humid environments. Storage-wise, keep it below 50°C in originial box, and it's fine for a year or so before the PBT starts absorbing moisture.
COA comes with each batch showing dielectric strength and torque test results — we've had buyers in the past miss that and then scramble for documentation during audit.
Our MOQ for this model is typically 500 pieces per size, but we can negotiate smaller trial orders if you're just testing it out.
Yes, the BHY8-XX-14.5-02-C is UL certified, and we can provide the certification paperwork upon request.
No, the 14.50mm center space is fixed for this model. If you need a different spacing, we have other series that might work.
They come in boxes sized 356*286*166mm, with each unit individually bagged to prevent scratches during transit.
Lead time is usually 15-20 working days after order confirmation, depending on the quantity and current production load.
