We've been running these through a pretty brutal testing cycle before they ship—every single tube gets a full power burn-in at max rated wattage for 15 minutes, and we log the surface temperature rise against the 4-6 second spec. If it doesn't hit 94% efficieny consistently across three consecutive tests, it's rejected. That's not something every supplier does, but it's how we catch ones that would fail after 500 hours.

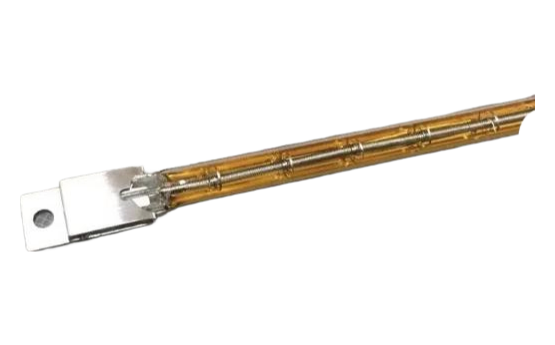

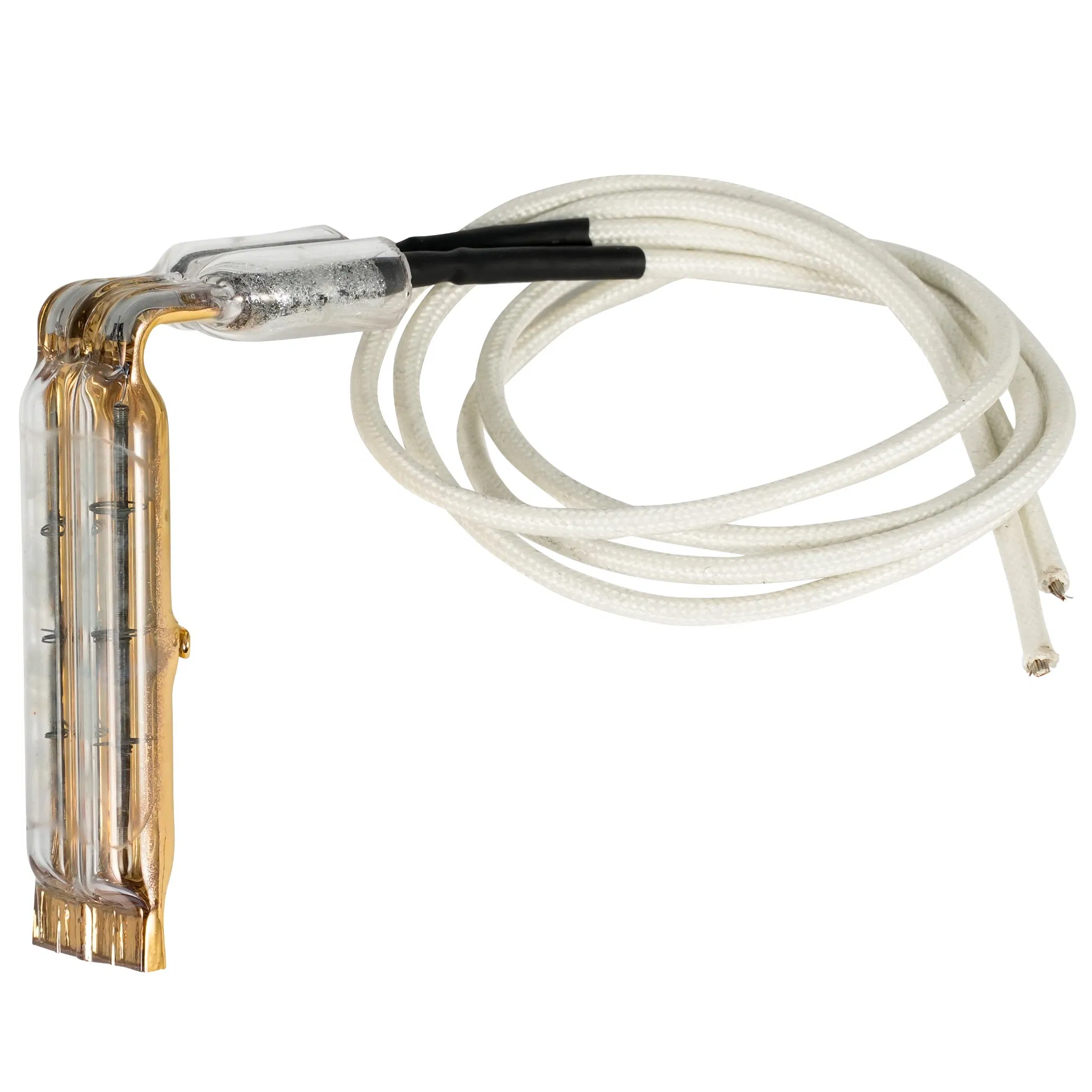

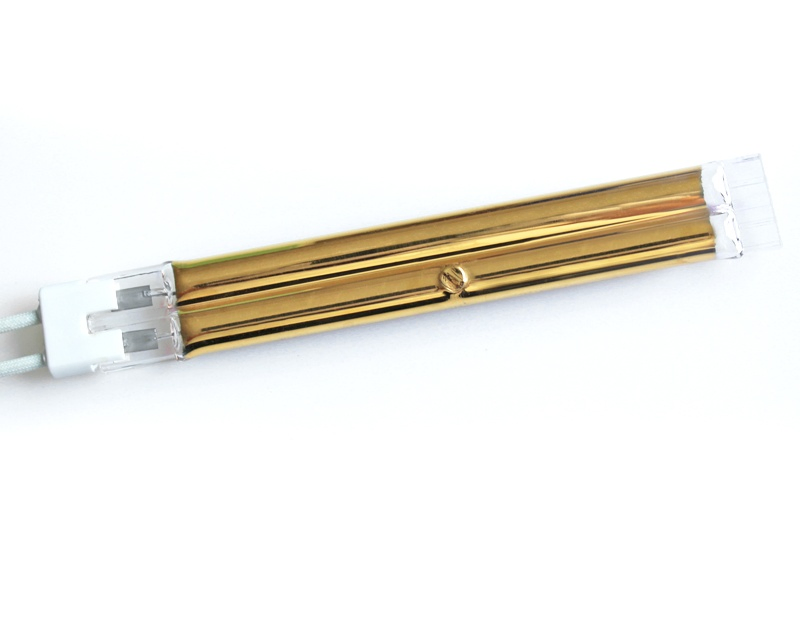

The gold coating isn't just for show; it basically doubles the infrared radiation output from the heating suface, and we verify that with a spectrometer reading on random samples from each batch. CE certification is standard, but we also provide a COA with every order that includes the actual HPLC purity data for the quartz material—usually better than 99.9% silica content. Most buyers don't ask for it, but we include it anyway.
Heat-up time is 4-6 seconds to reach 400-1000°C, depending on the voltage you choose (24V to 600V), and the wavelength is short-wave infrared, so it penetrates rather than just heating the surface. We don't test every single tube for the full 5000-hour lifespan—that would be impractical—but we do run accelerated life tests on 5% of each production batch. The ones that fail early (and it's rare, maybe 1 in 200) get flagged, and we adjust the process accordingly.
One thing you'll want to know: these are not suited for direct immersion in liquids or high-humidity environments without a protective sleeve—the quartz can handle the heat, but thermal shock from moisture will crack it. We usually have stock on 220V and 240V models in the 100-3000W range, but custom lengths (100mm to 3000mm) and diameters (8-20mm) need a lead time of roughly 20 days or so. Confirm before ordering if you're on a tight schedule.
Also, the gold coating is optional—most buyers go with it for the efficiency boost, but if your appliction doesn't need the extra radiation output, the uncoated version is cheaper and still hits 94% efficiency. We've seen some customers use the uncoated tubes for lower-tempearture drying processes (400-600°C range) where the gold would be overkill.
Yes, we can adjust the diameter and length to your specific needs, but it may affect lead time and cost. Just let us know your exact dimensions, and we'll confirm feasibility.
For custom specs like a specific wattage or voltage outside our standard options, the MOQ is typically 100 pieces. Standard configurations have a lower MOQ, usually around 50 pieces.
Yes, every unit comes with a CE certificate, and we can also provide test reports for things like power output or temperature consistency upon request.
Store the gold-coated tubes in a dry, clean environment away from direct sunlight and moisture. The gold coating is sensitive to scratches, so keep them in protective packaging until installation.
Standard lead time for a custom length like 2000mm with gold coating is about 15-20 working days. If you need it faster, we can prioritize for an additional fee.
